ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007

Engine 1ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0008- )SED

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81570 - LAMP ASSY, CENTER STOP
81570-12350A0	CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) IVORY,TRIM0#	08/2000 - 12/2003	1
81570-12350B1	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1#	08/2000 - 09/2002	1
81570-12360	ZZE122..SED;CE120,NZE12#,ZZE121..GEN W(REAR SPOILER)	10/2001 - 04/2004	1
81570-12360	ZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN W(REAR SPOILER)	09/2002 - 04/2004	1
81570-12350A0	CE120,NZE12#,ZZE12#..SED..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0#	04/2004 - 08/2007	1
81570-12350A0	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) IVORY,TRIM0#	09/2002 - 04/2004	1
81570-12350B0	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1#	09/2002 - 04/2004	1
81570-12361	CE120,NZE12#,ZZE121..GEN;ZZE122..SED..(ARL,GCC,GEN) W(REAR SPOILER)	07/2006 - 08/2007	1
81570-12350B0	CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) DK.GRAY,TRIM1#	04/2004 - 08/2007	1
81570-12360	CE120,NZE12#,ZZE121..GEN;ZZE122..SED..(ARL,GCC,GEN) W(REAR SPOILER)	04/2004 - 06/2006	1
81570B - BULB (FOR CENTER STOP LAMP)
90981-11059	CE120,NZE12#,ZZE12#..ARL,GCC,GEN 12V 16W	04/2004 - 12/2999	1
90981-11059	CE120,NZE12#,ZZE12#..GCC,GEN 12V 16W	09/2002 - 04/2004	1
90981-11059	NZE120..GCC;NZE121,ZZE121;NZE120..RHD..GEN;NZE120..GLI..PKN;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);CE120,ZZE122..RHD..(20DSA,GLI,XLI) 12V 16W	08/2000 - 07/2005	1
81570C - SOCKET, CENTER STOP LAMP
90075-99005	CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)	04/2004 - 12/2999	1
90075-99005	CE120,NZE12#,ZZE12#..SED..(GCC,GEN)	09/2002 - 04/2004	1
90075-99005	CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN)	08/2000 - 12/2003	1

(0008- )SED..ARL,GCC,GEN

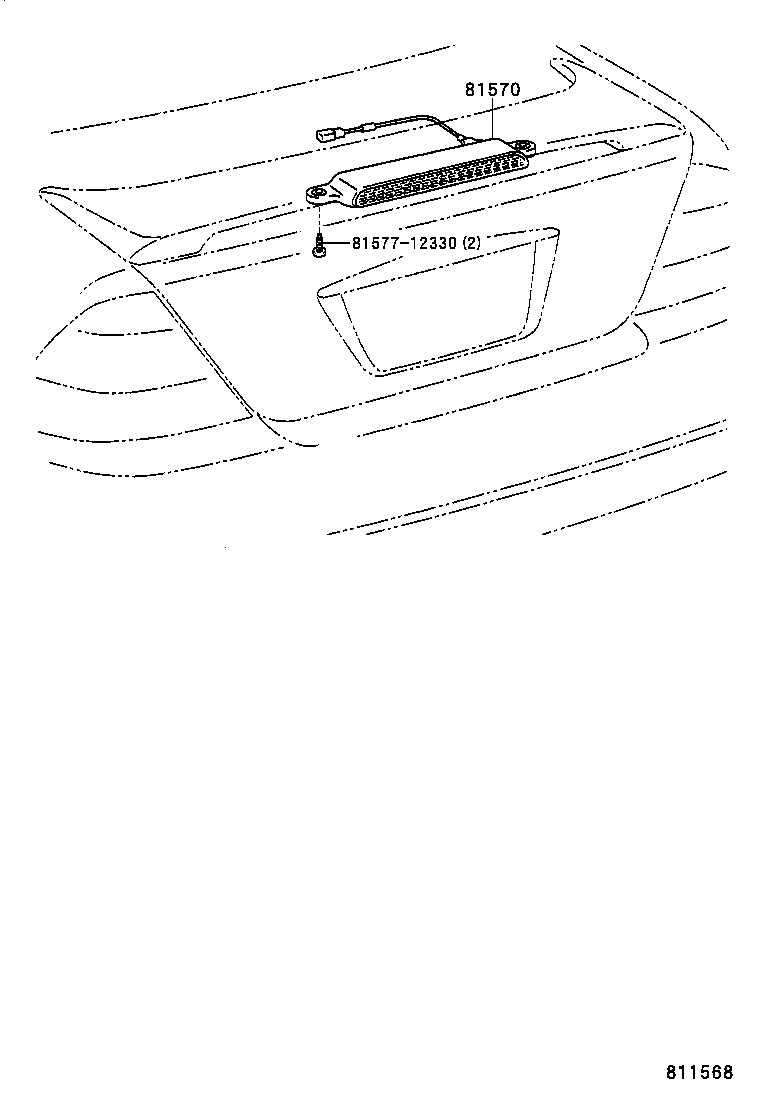

Click highlighted areas on diagram

W(REAR SPOILER)

diagram

Part #	Description	Period	Qty	Price
81570 - LAMP ASSY, CENTER STOP
81570-12350A0	CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) IVORY,TRIM0#	08/2000 - 12/2003	1
81570-12350B1	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1#	08/2000 - 09/2002	1
81570-12360	ZZE122..SED;CE120,NZE12#,ZZE121..GEN W(REAR SPOILER)	10/2001 - 04/2004	1
81570-12360	ZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN W(REAR SPOILER)	09/2002 - 04/2004	1
81570-12350A0	CE120,NZE12#,ZZE12#..SED..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0#	04/2004 - 08/2007	1
81570-12350A0	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) IVORY,TRIM0#	09/2002 - 04/2004	1
81570-12350B0	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1#	09/2002 - 04/2004	1
81570-12361	CE120,NZE12#,ZZE121..GEN;ZZE122..SED..(ARL,GCC,GEN) W(REAR SPOILER)	07/2006 - 08/2007	1
81570-12350B0	CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) DK.GRAY,TRIM1#	04/2004 - 08/2007	1
81570-12360	CE120,NZE12#,ZZE121..GEN;ZZE122..SED..(ARL,GCC,GEN) W(REAR SPOILER)	04/2004 - 06/2006	1
Common parts
81577-12330
