ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008-0209)SED ; (0209-0404)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

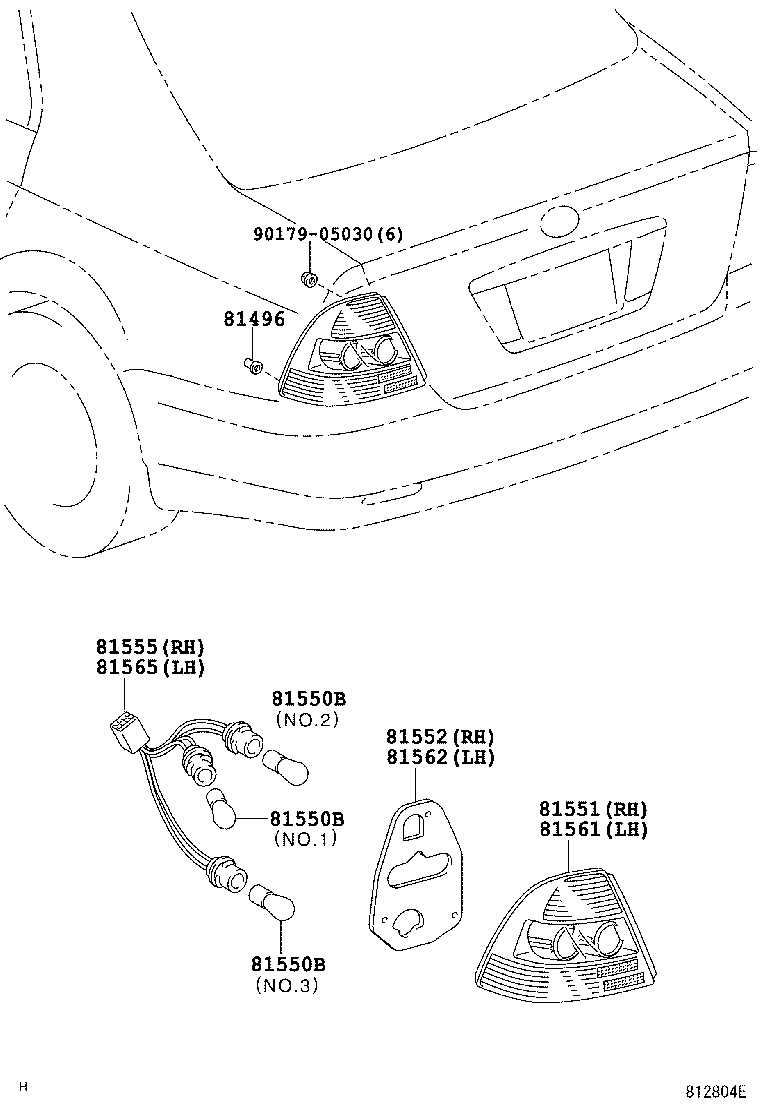

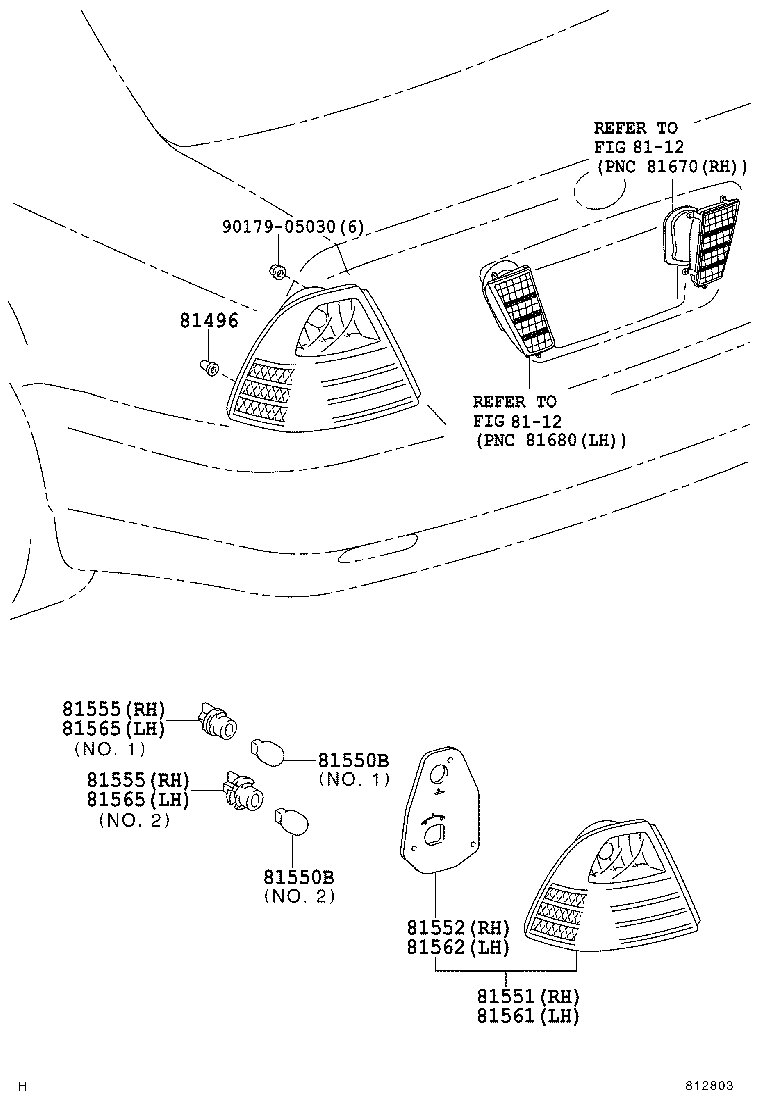

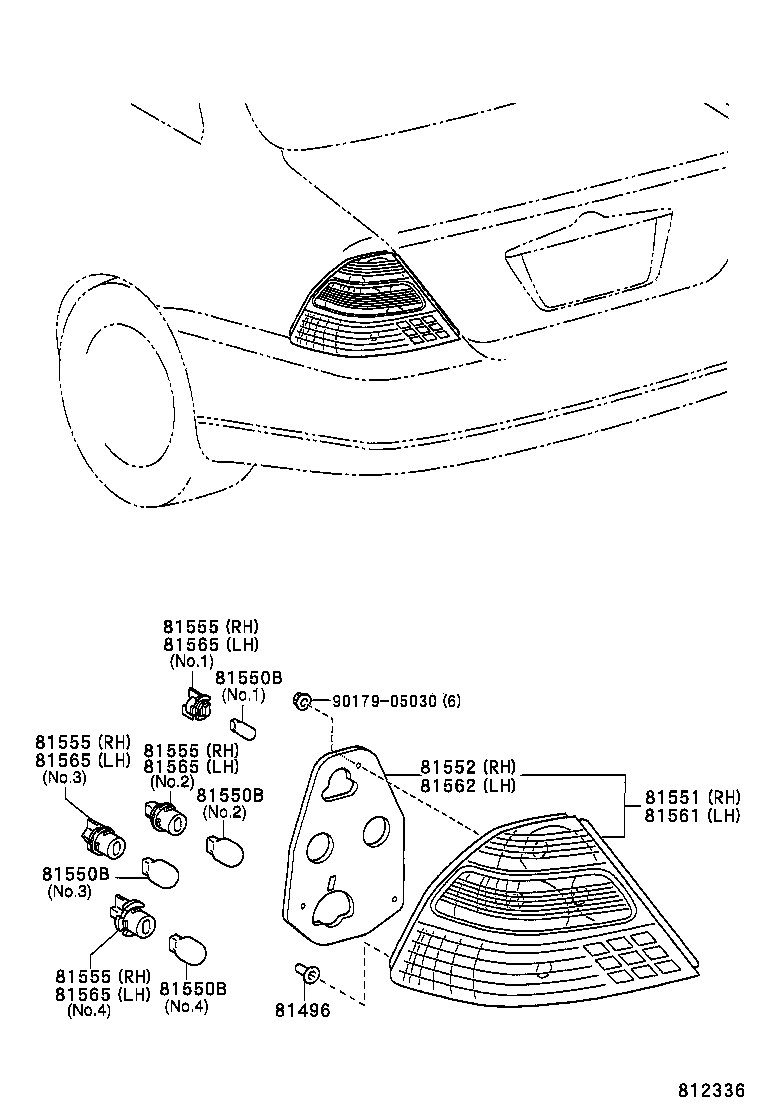

| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
2 | ||
| 81496-12020 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81551-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1E160 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81561-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81561-1A890 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81561-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| Common parts | ||||
| 90179-05030 | ||||
(0209-0404)SED..GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
2 | ||
| 81496-12020 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81551-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555B - SOCKET PLUG, NO.1 | ||||
| 90075-60052 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
2 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1E160 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81561-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81561-1A890 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81561-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| Common parts | ||||
| 90179-05030 | ||||
(0404- )SED..GCC,GEN
W(BACK UP LAMP)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
2 | ||
| 81496-12020 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81551-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1E160 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81561-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81561-1A890 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81561-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| Common parts | ||||
| 90179-05030 | ||||
| Linked diagrams | ||||
| 8112 | ||||
(0404- )SED..ARL,GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
2 | ||
| 81496-12020 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81496-12020 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21/5W,NO.4 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,NO.2 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) 12V 21W,AMBER,NO.3 |
2 | ||
| 99132-12050 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 5W,NO.1 |
2 | ||
| 90080-81104 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,OSRAM |
1 | ||
| 90981-13043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,NO.4 |
2 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21W,AMBER,NO.2 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
2 | ||
| 90080-81108 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,OSRAM |
1 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
2 | ||
| 90981-13044 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) 12V 21/5W,NO.2 |
2 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
2 | ||
| 90080-81109 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,OSRAM |
1 | ||
| 90981-WF001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1,GE |
1 | ||
| 90981-WF006 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,AMBER,NO.1 |
1 | ||
| 90981-15011 |
CE120,NZE12#,ZZE12#..SED..GEN 12V 21W,AMBER,W(BACK DOOR GARNISH = LOWER),NO.1 |
2 | ||
| 90981-WC008 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3 |
1 | ||
| 90981-WD001 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21/5W,NO.3,GE |
1 | ||
| 90981-WD003 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2,GE |
1 | ||
| 90981-WC007 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) 12V 21W,NO.2 |
1 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81551-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81551-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 81555-02260 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-1E160 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81561-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81561-1A890 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81561-1E200 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-1E200 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 81552-1E240 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 81552-02270 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 81552-1E040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(BACK UP LAMP) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 90075-60034 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.3 |
1 | ||
| 90075-60036 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.2 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) NO.4 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60033 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.3 |
1 | ||
| 90075-60035 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 90075-60043 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| 90075-60026 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.1 |
1 | ||
| 81565-02250 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 90075-60002 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) NO.2 |
1 | ||
| Common parts | ||||
| 90179-05030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
