ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0209) ; (0209-0404)ULT ; (0209-0404)WG..ARL

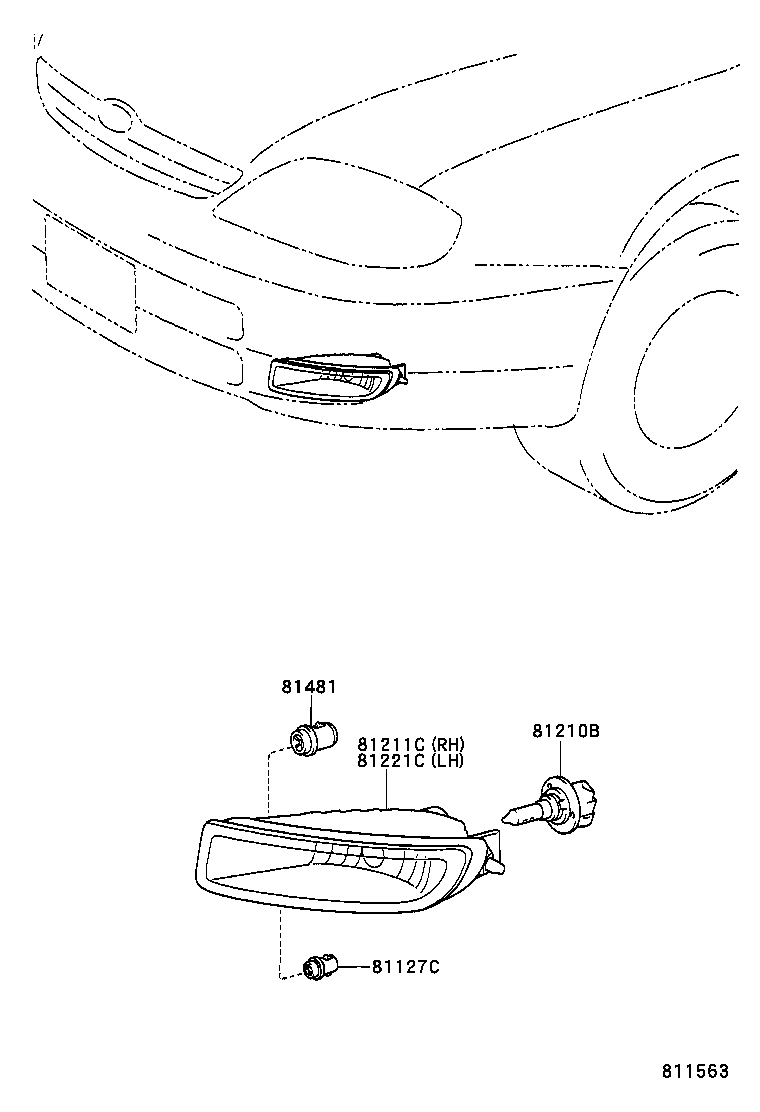

Click highlighted areas on diagram

diagram 81127C 81210B 81211C 81221C 81481
Part # Description Qty Price
81127C - BEARING FOG LAMP
90075-10811

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

 2
90075-10811

ZZE122..GCC;ZZE122..RHD..GEN;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN

 2
90075-10811

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

 2
81210B - BULB, FOG LAMP
90981-13047

ZZE122..GCC;ZZE122..RHD..GEN;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN

12V 51W,HALOGEN

 2
90981-13047

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

12V 51W,HALOGEN

 2
90981-13047

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-12150

ZZE122..GCC;ZZE122..RHD..GEN;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN

 1
81211-12180

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

 1
81211-12180

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-12180

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

 1
81221-12180

NZE120..GLI..GEN;NZE121,ZZE12#..GCC,GEN

 1
81221-12160

ZZE122..GCC;ZZE122..RHD..GEN;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN

 1
81481 - BRACKET, FOG LAMP
81481-10030

ZZE122..GCC;ZZE122..RHD..GEN;NZE121,ZZE121..GEN;NZE120..RHD..GLI..GEN

 2
