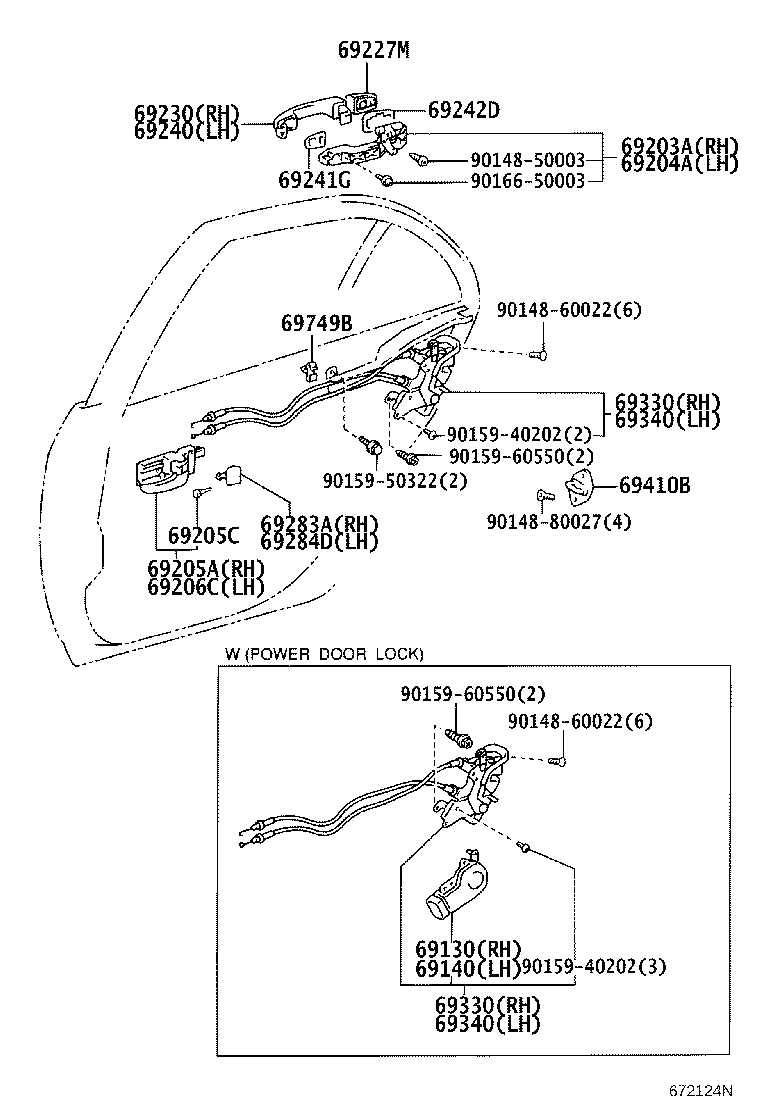

ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69130-12040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 69130-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-12040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 69140-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69140-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-12050 |
CE120,NZE12#,ZZE12# |
1 | ||
| 69203-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69203-12010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 69203-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-12050 |
CE120,NZE12#,ZZE12# |
1 | ||
| 69204-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69204-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69204-12010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-12200B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 69205-12200A0 |
ZZE122..WG..XLI;CE120,NZE12#,ZZE121;ZZE122..SED..(CONQ,GLI,XLI) IVORY,TRIM0# |
1 | ||
| 69205-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69205-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69205-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69205-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX,ULT)..(ARL,GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69205-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69205-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 69205-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69205-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90541-04027 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90541-04027 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-12200B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 69206-12200A0 |
ZZE122..WG..XLI;CE120,NZE12#,ZZE121;ZZE122..SED..(CONQ,GLI,XLI) IVORY,TRIM0# |
1 | ||
| 69206-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69206-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69206-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 69206-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69206-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69206-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69206-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69206-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69227M - COVER, REAR DOOR OUTSIDE HANDLE | ||||
| 69227-42070C1 |
NZE12#,ZZE12# BLACK ME,205 |
2 | ||
| 69227-42070A3 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN SUPER WHITE 2,040 |
2 | ||
| 69227-42070H0 |
CE120,NZE12#,ZZE12#..GCC,GEN TURQUOISE M.M.,769 |
2 | ||
| 69227-42070B1 |
CE120,NZE12#,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
2 | ||
| 69227-42070D1 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) SUPER RED II,3E5 |
2 | ||
| 69227-42070B2 |
ZZE121..LX;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(ARL,GEN) SILVER ME.,199 |
2 | ||
| 69227-42070J2 |
ZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121..GCC,GEN DK.BLUE M.M.,8P4 |
2 | ||
| 69227-42070C2 |
NZE120,ZZE122..GCC;CE120,NZE12#,ZZE12#..RHD..GEN BLACK MC.,209 |
2 | ||
| 69227-42070C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BLACK MC.,209 |
2 | ||
| 69227-42070D5 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BORDEAUX MC.,3P2 |
2 | ||
| 69227-42070D1 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) SUPER RED II,3E5 |
2 | ||
| 69227-42070J2 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) DK.BLUE M.M.,8P4 |
2 | ||
| 69227-42070B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
2 | ||
| 69227-42070P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
2 | ||
| 69227-42070A3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SUPER WHITE 2,040 |
2 | ||
| 69227-42070B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
2 | ||
| 69227-42070A3 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER WHITE 2,040 |
2 | ||
| 69227-42070P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
2 | ||
| 69227-42070C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN BLACK MC.,209 |
2 | ||
| 69227-42070R3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN LT.BLUE ME.,8Q6 |
2 | ||
| 69227-42070D1 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER RED II,3E5 |
2 | ||
| 69227-42070J2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.BLUE M.M.,8P4 |
2 | ||
| 69227-42070P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.,1E7 |
2 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69211-42020B3 |
NZE12#,ZZE12# SILVER ME.GR.,1D9 |
1 | ||
| 69211-42020A3 |
NZE12#,ZZE12# SUPER WHITE 2,040 |
1 | ||
| 69211-42020C1 |
NZE12#,ZZE12# BLACK ME,205 |
1 | ||
| 69211-42020B2 |
NZE12#,ZZE12# SILVER ME.,199 |
1 | ||
| 69211-42020D1 |
NZE12#,ZZE12#..SED SUPER RED II,3E5 |
1 | ||
| 69211-42020H0 |
NZE12#,ZZE12# TURQUOISE M.M.,769 |
1 | ||
| 69211-42020J2 |
NZE12#,ZZE12# DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12200 |
ZZE122..GLI PLATED |
1 | ||
| 69211-12220D0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) SUPER RED II,3E5 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220D2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BORDEAUX MC.,3P2 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220J0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220R3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN LT.BLUE ME.,8Q6 |
1 | ||
| 69211-12220J0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.,1E7 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220D0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER RED II,3E5 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69211-42020B2 |
NZE12#,ZZE12# SILVER ME.,199 |
1 | ||
| 69211-42020D1 |
NZE12#,ZZE12#..SED SUPER RED II,3E5 |
1 | ||
| 69211-42020A3 |
NZE12#,ZZE12# SUPER WHITE 2,040 |
1 | ||
| 69211-42020B3 |
NZE12#,ZZE12# SILVER ME.GR.,1D9 |
1 | ||
| 69211-42020C1 |
NZE12#,ZZE12# BLACK ME,205 |
1 | ||
| 69211-42020H0 |
NZE12#,ZZE12# TURQUOISE M.M.,769 |
1 | ||
| 69211-42020J2 |
NZE12#,ZZE12# DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12200 |
ZZE122..GLI PLATED |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220D2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BORDEAUX MC.,3P2 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220D0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) SUPER RED II,3E5 |
1 | ||
| 69211-12220J0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220D0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER RED II,3E5 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.,1E7 |
1 | ||
| 69211-12220J0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220R3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN LT.BLUE ME.,8Q6 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-42020 |
CE120,NZE12#,ZZE12# |
2 | ||
| 69241-42020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69241-42020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69242D - PAD, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69242-42010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 69242-42010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69242-42010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-12040B2 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69283-12040A0 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI IVORY,TRIM0# |
1 | ||
| 69283-12040A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 69283-12040A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 69283-12040B0 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI STONE,TRIM1# |
1 | ||
| 69283-12040B2 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-12040A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 69283-12040A0 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI IVORY,TRIM0# |
1 | ||
| 69283-12040B2 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69283-12040B2 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69283-12040B0 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI STONE,TRIM1# |
1 | ||
| 69283-12040A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-12350 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69050-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69050-12350 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69050-12350 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69050-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69050-12350 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-12350 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69060-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69060-12350 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69060-12350 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69060-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69060-12350 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20110 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 69410-20110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69410-33010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69410-20110 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69749-32040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 69749-32040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90159-60550 | ||||
| 90166-50003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
