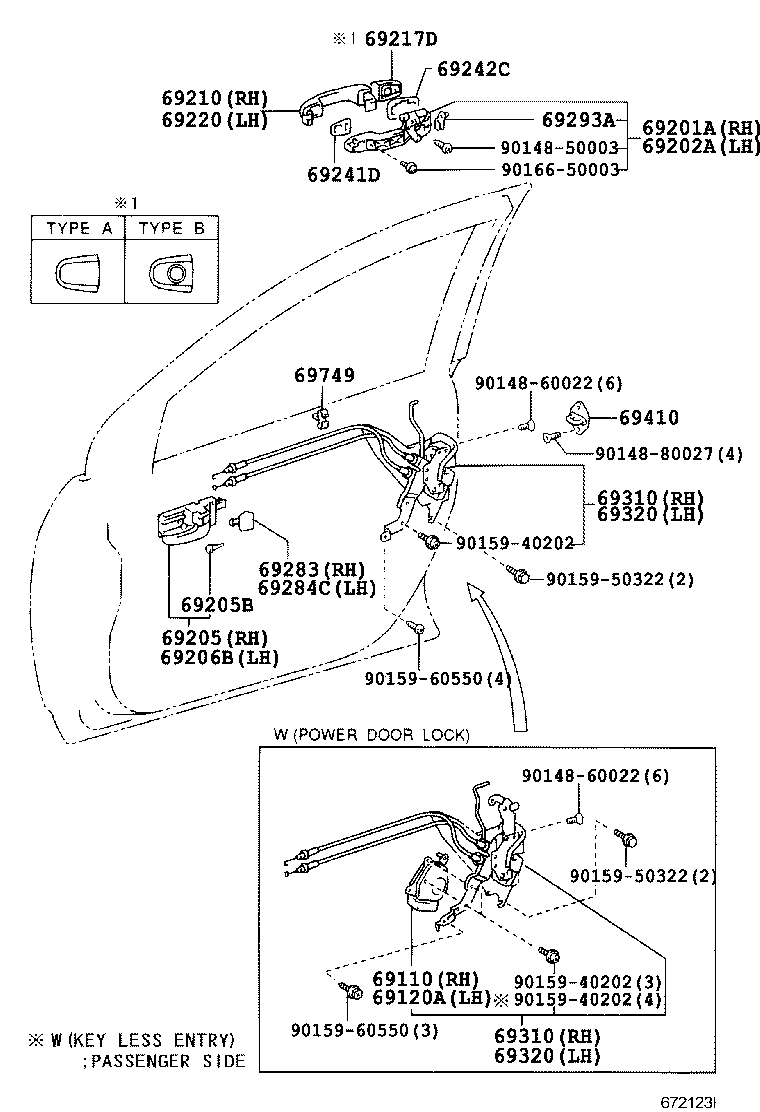

ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH | ||||
| 69110-12070 |
NZE120..RHD..GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..RHD..(20DSA,CONQ,GLI,LX,SESAL,ULT,XLI) |
1 | ||
| 69110-12070 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 69110-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH | ||||
| 69120-12090 |
CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) W(KEY LESS ENTRY) |
1 | ||
| 69120-12070 |
NZE120..RHD..GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..RHD..(20DSA,CONQ,GLI,LX,SESAL,ULT,XLI) |
1 | ||
| 69120-12070 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 69120-12090 |
CE120,NZE12#,ZZE12#..RHD..GEN W(KEY LESS ENTRY) |
1 | ||
| 69120-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 69120-12090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(KEY LESS ENTRY) |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69201-52010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 69201-52010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-52010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 69202-52010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69202-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-12200B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 69205-12200A0 |
ZZE122..WG..XLI;CE120,NZE12#,ZZE121;ZZE122..SED..(CONQ,GLI,XLI) IVORY,TRIM0# |
1 | ||
| 69205-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69205-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69205-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69205-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 69205-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69205-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69205-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69205-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90541-04027 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 90541-04027 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-12200B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 69206-12200A0 |
ZZE122..WG..XLI;CE120,NZE12#,ZZE121;ZZE122..SED..(CONQ,GLI,XLI) IVORY,TRIM0# |
1 | ||
| 69206-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69206-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69206-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69206-12200A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN IVORY,TRIM0# |
1 | ||
| 69206-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..(CONQ,GLI,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69206-12190B3 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,MD.GRAY,TRIM1# |
1 | ||
| 69206-12190A0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) *CR,IVORY,TRIM0# |
1 | ||
| 69206-12200B4 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-42020B3 |
NZE12#,ZZE12# SILVER ME.GR.,1D9 |
1 | ||
| 69211-42020B2 |
NZE12#,ZZE12# SILVER ME.,199 |
1 | ||
| 69211-42020C1 |
NZE12#,ZZE12# BLACK ME,205 |
1 | ||
| 69211-42020A3 |
NZE12#,ZZE12# SUPER WHITE 2,040 |
1 | ||
| 69211-42020D1 |
NZE12#,ZZE12#..SED SUPER RED II,3E5 |
1 | ||
| 69211-42020H0 |
NZE12#,ZZE12# TURQUOISE M.M.,769 |
1 | ||
| 69211-12200 |
ZZE122..GLI PLATED |
1 | ||
| 69211-42020J2 |
NZE12#,ZZE12# DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220D0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) SUPER RED II,3E5 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220J0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220D2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BORDEAUX MC.,3P2 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220R3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN LT.BLUE ME.,8Q6 |
1 | ||
| 69211-12220D0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER RED II,3E5 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220J0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.,1E7 |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-42020C1 |
NZE12#,ZZE12# TYPE B:REFER TO ILLUSTRATION,BLACK ME,205 |
2 | ||
| 69217-12040C0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK ME,205 |
1 | ||
| 69217-12040H0 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),TURQUOISE M.M.,769 |
1 | ||
| 69217-42020H0 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,TURQUOISE M.M.,769 |
2 | ||
| 69217-12040B0 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.GR.,1D9 |
1 | ||
| 69217-12040B1 |
ZZE121..LX;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,199 |
1 | ||
| 69217-12040D0 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5 |
1 | ||
| 69217-12040A0 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69217-12040C2 |
NZE120..GLI..GEN;CE120,ZZE122..ARL,GEN;NZE120,ZZE121..LHD..(LX,XLI)..GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209 |
1 | ||
| 69217-12040J0 |
ZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4 |
1 | ||
| 69217-42020B1 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9 |
2 | ||
| 69217-42020B2 |
ZZE121..LX;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(ARL,GEN) TYPE B:REFER TO ILLUSTRATION,SILVER ME.,199 |
2 | ||
| 69217-42020A3 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040 |
2 | ||
| 69217-42020J2 |
ZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121..GCC,GEN TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4 |
2 | ||
| 69217-42020C2 |
NZE120..GCC;ZZE122..SED..GCC;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..GEN;NZE120,ZZE122..LHD..GLI..GEN TYPE B:REFER TO ILLUSTRATION,BLACK MC.,209 |
2 | ||
| 69217-12040B0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.GR.,1D9 |
1 | ||
| 69217-12040D0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5 |
1 | ||
| 69217-42020D1 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) TYPE B:REFER TO ILLUSTRATION,SUPER RED II,3E5 |
2 | ||
| 69217-12040B4 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,1E7 |
1 | ||
| 69217-42020A3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040 |
2 | ||
| 69217-12040J0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4 |
1 | ||
| 69217-12040A0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69217-42020B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.GR.,1D9 |
1 | ||
| 69217-42020C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209 |
1 | ||
| 69217-42020D1 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,SUPER RED II,3E5 |
2 | ||
| 69217-42020D5 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,BORDEAUX MC.,3P2 |
2 | ||
| 69217-12040C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209 |
1 | ||
| 69217-12040D3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BORDEAUX MC.,3P2 |
1 | ||
| 69217-42020J2 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4 |
1 | ||
| 69217-42020C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,BLACK MC.,209 |
2 | ||
| 69217-42020D5 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BORDEAUX MC.,3P2 |
1 | ||
| 69217-42020B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9 |
2 | ||
| 69217-42020A3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69217-42020J2 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4 |
2 | ||
| 69217-42020D1 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5 |
1 | ||
| 69217-42020P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SILVER M.M.,1E7 |
2 | ||
| 69217-42020P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,1E7 |
1 | ||
| 69217-12040B4 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,1E7 |
1 | ||
| 69217-42020P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SILVER M.M.,1E7 |
2 | ||
| 69217-42020P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER M.M.,1E7 |
1 | ||
| 69217-12040A0 |
NZE121..LX;ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE120,ZZE121..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69217-12040C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209 |
1 | ||
| 69217-12040J0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4 |
1 | ||
| 69217-12040B0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.GR.,1D9 |
1 | ||
| 69217-12040D0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5 |
1 | ||
| 69217-42020A3 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER WHITE 2,040 |
1 | ||
| 69217-42020D1 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION,SUPER RED II,3E5 |
2 | ||
| 69217-42020A3 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION,SUPER WHITE 2,040 |
2 | ||
| 69217-42020J7 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE ME.,8Q6 |
1 | ||
| 69217-42020B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SILVER ME.GR.,1D9 |
2 | ||
| 69217-12040R0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),LT.BLUE ME.,8Q6 |
1 | ||
| 69217-42020C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION,BLACK MC.,209 |
2 | ||
| 69217-42020J7 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,LT.BLUE ME.,8Q6 |
2 | ||
| 69217-42020J2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION,DK.BLUE M.M.,8P4 |
2 | ||
| 69217-42020C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),BLACK MC.,209 |
1 | ||
| 69217-42020P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION,SILVER ME.,1E7 |
2 | ||
| 69217-42020P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1E7 |
1 | ||
| 69217-42020B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.GR.,1D9 |
1 | ||
| 69217-42020J2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),DK.BLUE M.M.,8P4 |
1 | ||
| 69217-12040P1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SILVER ME.,1E7 |
1 | ||
| 69217-42020D1 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN TYPE B:REFER TO ILLUSTRATION & W(KEY LESS ENTRY),SUPER RED II,3E5 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-42020B3 |
NZE12#,ZZE12# SILVER ME.GR.,1D9 |
1 | ||
| 69211-42020C1 |
NZE12#,ZZE12# BLACK ME,205 |
1 | ||
| 69211-42020H0 |
NZE12#,ZZE12# TURQUOISE M.M.,769 |
1 | ||
| 69211-42020A3 |
NZE12#,ZZE12# SUPER WHITE 2,040 |
1 | ||
| 69211-42020B2 |
NZE12#,ZZE12# SILVER ME.,199 |
1 | ||
| 69211-42020D1 |
NZE12#,ZZE12#..SED SUPER RED II,3E5 |
1 | ||
| 69211-12200 |
ZZE122..GLI PLATED |
1 | ||
| 69211-42020J2 |
NZE12#,ZZE12# DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220D0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) SUPER RED II,3E5 |
1 | ||
| 69211-12220J0 |
CE120,NZE121,ZZE121..LX,XLI;NZE120,ZZE122..SED..(GCC,GEN) DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220D2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BORDEAUX MC.,3P2 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN BLACK MC.,209 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220A0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER WHITE 2,040 |
1 | ||
| 69211-12220J0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.BLUE M.M.,8P4 |
1 | ||
| 69211-12220B1 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.GR.,1D9 |
1 | ||
| 69211-12220R3 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN LT.BLUE ME.,8Q6 |
1 | ||
| 69211-12220P0 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER M.M.,1E7 |
1 | ||
| 69211-12220D0 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN SUPER RED II,3E5 |
1 | ||
| 69211-12220P6 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN SILVER ME.,1E7 |
1 | ||
| 69211-12220C2 |
NZE121..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN BLACK MC.,209 |
1 | ||
| 69241D - PAD, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69241-42020 |
CE120,NZE12#,ZZE12# |
2 | ||
| 69241-42020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69241-42020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69242C - PAD, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69242-42010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69242-42010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69242-42010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040A1 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI IVORY,TRIM0# |
1 | ||
| 69283-30040B8 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI STONE,TRIM1# |
1 | ||
| 69283-30040P1 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69283-30040P1 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69283-30040A1 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 69283-30040A1 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69283-30040P1 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69283-30040A1 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 69283-30040A1 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 69283-30040A1 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI IVORY,TRIM0# |
1 | ||
| 69283-30040B8 |
ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI STONE,TRIM1# |
1 | ||
| 69283-30040P1 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-12030 |
NZE121,ZZE121..GEN;NZE120,ZZE122..XLI..GCC;CE120,NZE120,ZZE122..RHD..GEN RH |
1 | ||
| 69293-12040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..XLI..GCC;CE120,NZE120,ZZE122..RHD..GEN LH |
1 | ||
| 69293-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 69293-12040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 69293-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 69293-12040 |
CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-12510 |
CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) W(POWER DOOR LOCK) |
1 | ||
| 69030-12510 |
CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69030-12510 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69030-12510 |
CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) W(POWER DOOR LOCK) |
1 | ||
| 69030-12510 |
CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69030-12510 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-12540 |
CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-12530 |
ZZE121..RHD..ATM;NZE120,ZZE121..RHD..MTM..(GLI,SESAL);CE120,ZZE122..RHD..(20DSA,CONQ,GLI,ULT,XLI) |
1 | ||
| 69040-12530 |
NZE120..RHD..GLI..GEN;ZZE121..RHD..ATM..GEN;CE120,ZZE122..RHD..GEN |
1 | ||
| 69040-12540 |
CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-12530 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69040-12540 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69040-12540 |
CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-12530 |
ZZE121..RHD..ATM;NZE120,ZZE121..RHD..MTM..(GLI,SESAL);CE120,ZZE122..RHD..(20DSA,CONQ,GLI,ULT,XLI) |
1 | ||
| 69040-12530 |
NZE120..RHD..GLI..GEN;ZZE121..RHD..ATM..GEN;CE120,ZZE122..RHD..GEN |
1 | ||
| 69040-12540 |
CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69040-12530 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK) |
1 | ||
| 69040-12540 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(POWER DOOR LOCK & WIRELESS DOOR LOCK) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-20110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69410-33010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69410-20110 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 69410-20110 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-32040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 69749-32040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 69749-32040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90159-50322 | ||||
| 90159-60550 | ||||
| 90166-50003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
