Toyota Corolla/altis sed/wg ZZE122 FRONT DOOR PANEL & GLASS

ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007

Engine 1ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(0008- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-1A680	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	12/2001 - 12/2002	1
67001-1A681	CE120,NZE12#,ZZE12#..GCC,GEN	12/2002 - 04/2004	1
67001-1A680	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 12/2002	1
67001-1A620	CE120,NZE12#,ZZE12#	08/2000 - 12/2001	1
67001-1A681	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-1A640	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67002-1A640	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	12/2001 - 04/2004	1
67002-1A640	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
67002-1A580	CE120,NZE12#,ZZE12#	08/2000 - 12/2001	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-12670	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67111-12670	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
67111-12670	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-12660	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	12/2001 - 12/2002	1
67112-12660	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67112-12660	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 08/2007	1
67112-12660	CE120,NZE12#,ZZE12#	08/2000 - 12/2001	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-12220	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67403-12220	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67403-12220	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-12200	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67404-12200	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67404-12200	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67813B - PACKING, DOOR PROTECTOR
67817-47010	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	12/2001 - 12/2002	2
67817-47010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
67817-47010	CE120,NZE12#,ZZE12#	08/2000 - 12/2001	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-12590	CE120,NZE12#,ZZE12#..GCC,GEN,PKN	08/2000 - 07/2005	1
67831-12630	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67831-12630	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-12380	CE120,NZE12#,ZZE12#..GCC,GEN,PKN	08/2000 - 07/2005	1
67832-12410	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67832-12410	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-1A020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
67861-1A020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67861-1A020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-12870	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67862-12870	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67862-12870	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	14
67867-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	14
67867-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	02/2005 - 12/2999	14
67867-12150	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 01/2005	14
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	14
67867-12150	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 01/2005	14
67867-12150	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	14
67867-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	02/2005 - 12/2999	14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
67869-12050	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	2
67869-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-1A480	NZE121..LX;CE120,NZE120,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) *UVCTT,T=3.5,GREEN	08/2000 - 04/2004	1
68101-1A480	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN	09/2002 - 04/2004	1
68101-1A480	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN	04/2004 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-1A480	NZE121..LX;CE120,NZE120,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) *UVCTT,T=3.5,GREEN	08/2000 - 04/2004	1
68102-1A480	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN	04/2004 - 12/2999	1
68102-1A480	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN *UVCTT,T=3.5,GREEN	09/2002 - 04/2004	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-12510	CE120,NZE12#,ZZE12#	08/2000 - 01/2002	1
68141-12511	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 01/2006	1
68141-12511	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
68141-12511	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	01/2002 - 04/2004	1
68141-12512	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	02/2006 - 12/2999	1
68145A - CUSHION, FRONT DOOR WINDOW
69759-12060	NZE12#,ZZE12#	08/2000 - 12/2000	4
69759-12110	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	4
69759-12110	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
68151C - RUN, FRONT DOOR GLASS, LH
68151-12211	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	01/2002 - 04/2004	1
68151-12210	CE120,NZE12#,ZZE12#	08/2000 - 01/2002	1
68151-12211	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 01/2006	1
68151-12211	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
68151-12212	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	02/2006 - 12/2999	1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-12161	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
68610-12160	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
68610-12160	CE120,NZE12#,ZZE12#	08/2000 - 05/2004	1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-12091	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
68620-12090	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
68620-12090	CE120,NZE12#,ZZE12#	08/2000 - 05/2004	1
75921C - TAPE, BLACK OUT, NO.1 RH
75921-12031	NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN	11/2001 - 09/2002	1
75921-12032	CE120,NZE12#,ZZE12#..SED..(GCC,GEN)	05/2003 - 06/2003	1
75921-12030	CE120,NZE12#,ZZE12#..SED	08/2000 - 11/2001	1
75921-12032	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
75921-12032	CE120,NZE12#,ZZE12#..GCC,GEN	06/2003 - 04/2004	1
75922M - TAPE, BLACK OUT, NO.1 LH
75922-12031	NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN	11/2001 - 09/2002	1
75922-12030	CE120,NZE12#,ZZE12#..SED	08/2000 - 11/2001	1
75922-12032	CE120,NZE12#,ZZE12#..SED..(GCC,GEN)	05/2003 - 06/2003	1
75922-12032	CE120,NZE12#,ZZE12#..GCC,GEN	06/2003 - 04/2004	1
75922-12032	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
90109-08295
90159-60550
90159-T0010
90541-09069
90950-01429
90950-01620
90950-06105
91515-60616

ILLUST NO. 3 OF 4(0008-0209) ; (0209-0303)ARL

Click highlighted areas on diagram

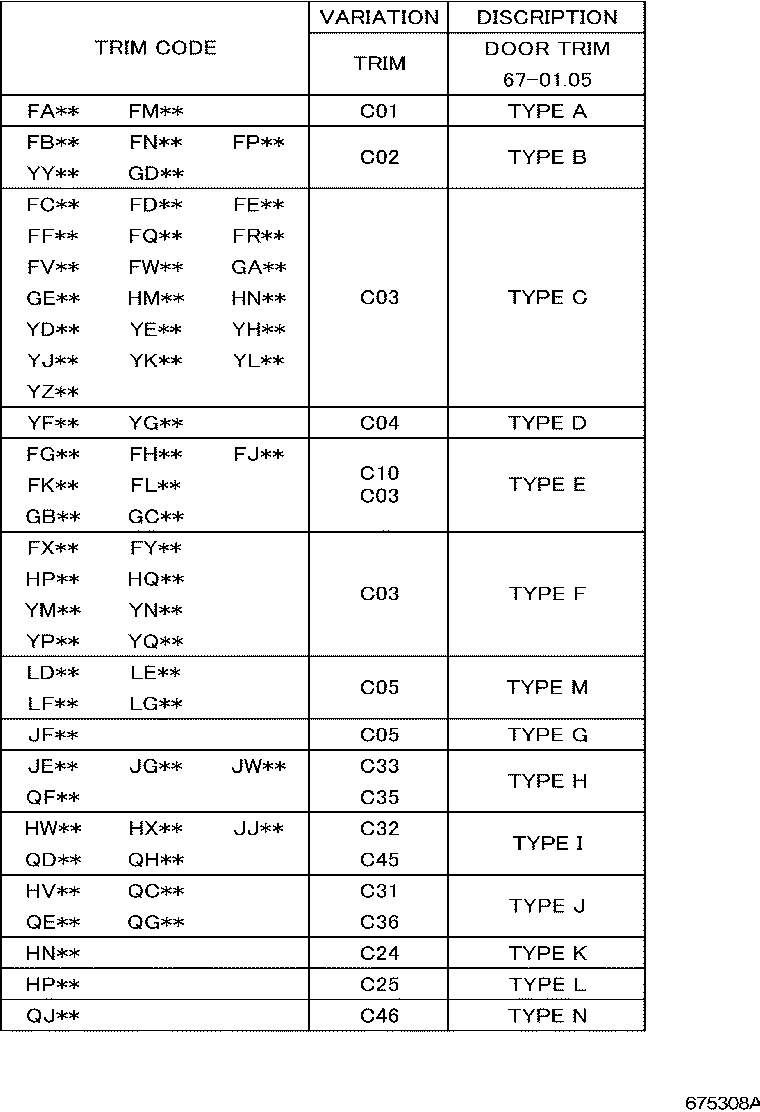

TRIM CODE TABLE

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 4(0008- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-12460	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
67491-12460	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67491-12460	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-12460	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
67492-12460	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67492-12460	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67771-12060	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
67771-12060	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
67771-12060	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1L110A1	CE120,NZE12#,ZZE12#..RHD..GEN W(POWER WINDOW) & TRIM = TYPE B-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67610-1L100B1	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE L-*104;W(POWER WINDOW),STONE,TRIM1#	08/2000 - 09/2002	1
67610-1L110B1	CE120,NZE12#,ZZE12#..RHD..SED..GEN W(POWER WINDOW) & TRIM = TYPE B-*104,STONE,TRIM1#	08/2000 - 09/2002	1
67610-1L100A1	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE L-*104;W(POWER WINDOW),IVORY,TRIM0#	08/2000 - 09/2002	1
67610-1L640A0	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67610-1L640B0	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67610-1L650B0	CE120,NZE12#,ZZE12#..RHD..SED..GEN DOOR TRIM=TYPE C-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67610-1L650A0	CE120,NZE12#,ZZE12#..RHD..GEN DOOR TRIM=TYPE C-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67610-12C00A4	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,IVORY,TRIM0#	04/2004 - 08/2007	1
67610-12C00B2	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,DK.GRAY,TRIM1#	04/2004 - 08/2007	1
67610-12B90B4	CE120,NZE12#,ZZE12#..RHD..SED..GEN DOOR TRIM=TYPE E-*104,MD.GRAY,TRIM1#	04/2004 - 08/2007	1
67610-12B90A4	CE120,NZE12#,ZZE12#..RHD..GEN DOOR TRIM=TYPE E-*104,IVORY,TRIM0#	04/2004 - 08/2007	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12050	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI	02/2002 - 07/2005	8
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	8
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	8
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12050	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI	02/2002 - 07/2005	8
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	8
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	8
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12050	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI	02/2002 - 07/2005	8
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	8
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	8
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1N620B1	CE120,NZE12#,ZZE12#..RHD..SED..GEN W(POWER WINDOW) & TRIM = TYPE B-*104,STONE,TRIM1#	08/2000 - 09/2002	1
67620-1N620A1	CE120,NZE12#,ZZE12#..RHD..GEN W(POWER WINDOW) & TRIM = TYPE B-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67620-1N210A1	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI W(POWER WINDOW) & TRIM = TYPE E-*104,IVORY,TRIM0#	02/2002 - 09/2002	1
67620-1N210B1	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI W(POWER WINDOW) & TRIM = TYPE E-*104,STONE,TRIM1#	02/2002 - 09/2002	1
67620-1T330A0	CE120,NZE12#,ZZE12#..RHD..GEN DOOR TRIM=TYPE C-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67620-1T330B0	CE120,NZE12#,ZZE12#..RHD..SED..GEN DOOR TRIM=TYPE C-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67620-1T310B0	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,MD.GRAY,TRIM1#	09/2002 - 04/2004	1
67620-1T310A0	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67620-12B00A4	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,IVORY,TRIM0#	04/2004 - 08/2007	1
67620-12B00B2	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI DOOR TRIM=TYPE F-*104,DK.GRAY,TRIM1#	04/2004 - 08/2007	1
67620-12A90B4	CE120,NZE12#,ZZE12#..RHD..SED..GEN DOOR TRIM=TYPE E-*104,MD.GRAY,TRIM1#	04/2004 - 08/2007	1
67620-12A90A4	CE120,NZE12#,ZZE12#..RHD..GEN DOOR TRIM=TYPE E-*104,IVORY,TRIM0#	04/2004 - 08/2007	1
67602A - RETAINER, DOOR TRIM, LH
67771-12050	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI	02/2002 - 07/2005	8
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	8
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	8
67602A - RETAINER, DOOR TRIM, LH
67771-12050	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI	02/2002 - 07/2005	8
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	8
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	8
67602A - RETAINER, DOOR TRIM, LH
67771-12050	ZZE121..RHD..GEN;NZE121,ZZE122..RHD..GLI	02/2002 - 07/2005	8
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	8
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	8
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-12290	CE120,NZE12#,ZZE12# RH	08/2000 - 07/2002	1
68172-12240	CE120,NZE12#,ZZE12#..GCC,GEN LH	09/2002 - 04/2004	1
68171-12320	CE120,NZE12#,ZZE12#..GCC,GEN RH	09/2002 - 04/2004	1
68172-12240	CE120,NZE12#,ZZE12# LH	07/2002 - 07/2005	1
68172-12210	CE120,NZE12#,ZZE12# LH	08/2000 - 07/2002	1
68172-12240	CE120,NZE12#,ZZE12#..ARL,GCC,GEN LH	04/2004 - 08/2007	1
68171-12320	CE120,NZE12#,ZZE12# RH	07/2002 - 07/2005	1
68171-12320	CE120,NZE12#,ZZE12#..ARL,GCC,GEN RH	04/2004 - 08/2007	1
86262E - COVER, SPEAKER, FRONT
86262-17010	ZZE121..LHD;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
86262-17010	CE120,NZE12#,ZZE12#..GEN	04/2004 - 12/2999	2
Common parts
90164-50032
90164-60018
90189-05003
90189-06018
Linked diagrams
6703

ILLUST NO. 3 OF 4(0404- )ARL,GCC,GEN

Click highlighted areas on diagram

TRIM CODE TABLE

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 4(0209-0404)GCC,GEN,PKN ; (0304-0404)ARL ; (0404-0507)PKN ; (0404- )CE120,NZE120,

Click highlighted areas on diagram

TRIM CODE TABLE

Part #	Description	Period	Qty	Price

ILLUST NO. 3 OF 4(0209-0404)GCC,GEN,PKN ; (0304-0404)ARL ; (0404-0507)PKN ; (0404- )CE120,NZE120,

Click highlighted areas on diagram

TRIM CODE TABLE

Part #	Description	Period	Qty	Price

ZZE122R-AEMNK (2001)

ILLUST NO. 1 OF 4(0008- )

ILLUST NO. 3 OF 4(0008-0209) ; (0209-0303)ARL

ILLUST NO. 2 OF 4(0008- )

ILLUST NO. 3 OF 4(0404- )ARL,GCC,GEN

ILLUST NO. 3 OF 4(0209-0404)GCC,GEN,PKN ; (0304-0404)ARL ; (0404-0507)PKN ; (0404- )CE120,NZE120,

ILLUST NO. 3 OF 4(0209-0404)GCC,GEN,PKN ; (0304-0404)ARL ; (0404-0507)PKN ; (0404- )CE120,NZE120,

Part Price Details
