ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg

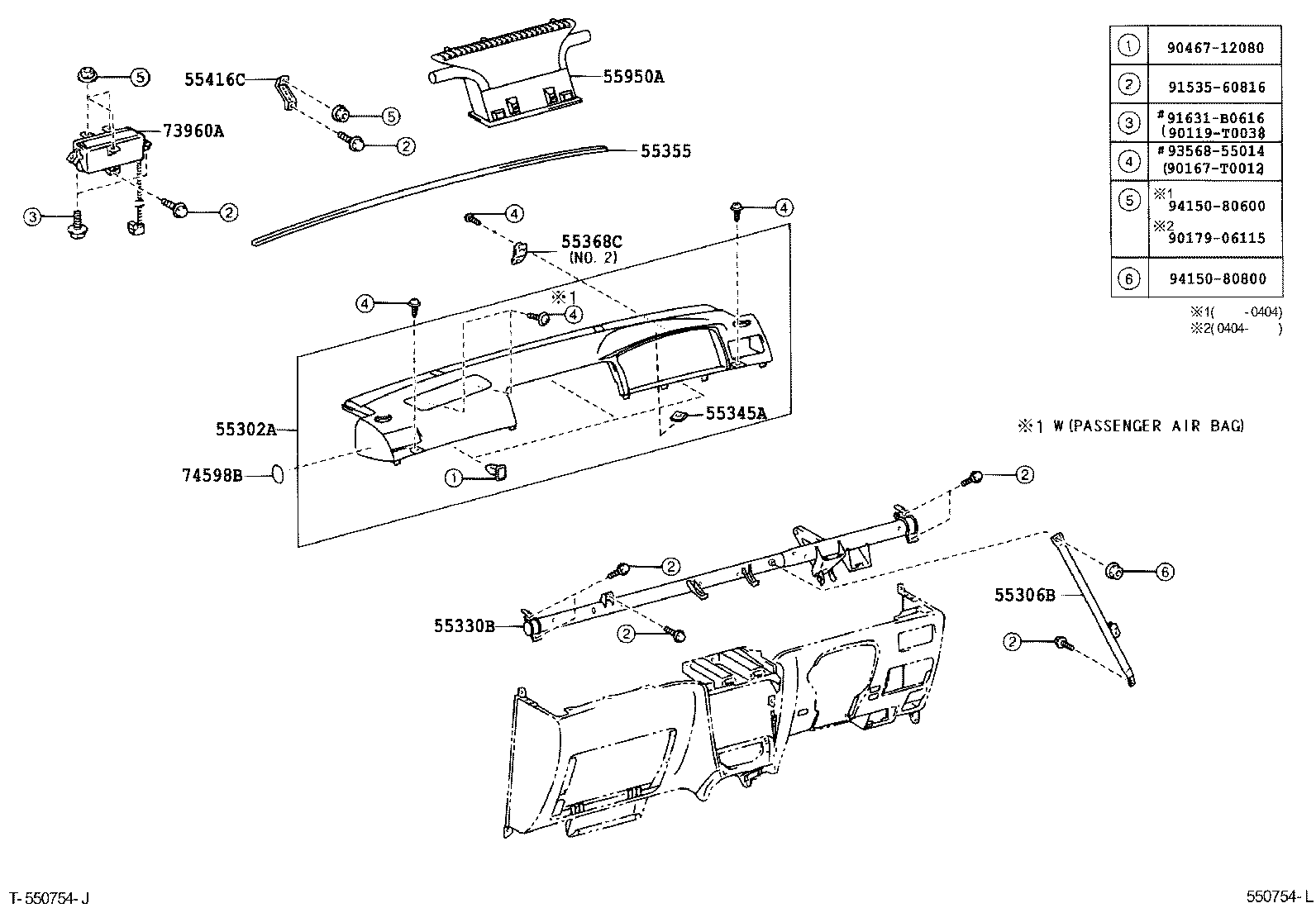

ILLUST NO. 1 OF 2(0008- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-12010E0 |
CE120,NZE12#,ZZE12#..RHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),SANDAL WOOD,TRIM0# |
1 | ||
| 55302-12020E0 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) SANDAL WOOD,TRIM0# |
1 | ||
| 55302-12010B0 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..SED..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1# |
1 | ||
| 55302-12020B0 |
ZZE122..WG..ARL;CE120,NZE121..RHD..(LX,XLI);NZE120,ZZE122..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55302-12010E0 |
CE120,NZE12#,ZZE12#..RHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),SANDAL WOOD,TRIM0# |
1 | ||
| 55302-12020B0 |
CE120,NZE121..RHD..(LX,XLI);NZE120,ZZE122..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55302-12010B0 |
CE120,NZE12#,ZZE12#..RHD..SED..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1# |
1 | ||
| 55302-12020E0 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) SANDAL WOOD,TRIM0# |
1 | ||
| 55302-12010B0 |
CE120,NZE12#,ZZE12#..RHD..(CONQ,GLI,LX,XLI)..(ARL,GEN) W(*80,DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1# |
1 | ||
| 55302-12010E0 |
CE120,NZE12#,ZZE12#..RHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE),SANDAL WOOD,TRIM0# |
1 | ||
| 55302-12020B0 |
CE120,NZE121..RHD..(LX,XLI);NZE120,ZZE122..RHD..(CONQ,GLI,XLI)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 55302-12020E0 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) SANDAL WOOD,TRIM0# |
1 | ||
| 55306B - BRACE SUB-ASSY, INSTRUMENT PANEL TO COWL | ||||
| 55306-12270 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55306-12270 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55306-12270 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-12390 |
CE120,NZE120,ZZE12#..RHD |
1 | ||
| 55330-12490 |
CE120,NZE120,ZZE12#..RHD..(ARL,GEN) |
1 | ||
| 55330-12490 |
CE120,NZE120,ZZE12#..RHD..GEN |
1 | ||
| 55330-12490 |
CE120,NZE120,ZZE12#..RHD..(ARL,GEN) |
1 | ||
| 55330-12740 |
ZZE122..WG..ARL;CE120,NZE120,ZZE12#..RHD..GEN |
1 | ||
| 55345A - CLIP, INSTRUMENT PANEL, NO.1 | ||||
| 55345-12060 |
CE120,NZE12#,ZZE12# |
1 | ||
| 55345-12060 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55345-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52012 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55355-52012 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55355-52012 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
2 | ||
| 55368-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2 |
1 | ||
| 55368-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN NO.2 |
1 | ||
| 55362-12050 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..RHD..(ARL,GEN) NO.1 |
2 | ||
| 55368-12090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.2 |
1 | ||
| 55362-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN NO.1 |
2 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-12030 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 55416-12030 |
ZZE121..LHD;NZE120,ZZE122..GEN;CE120,NZE121..LX,XLI;NZE120,ZZE122..WG..(ARL,GCC) |
1 | ||
| 55416-12030 |
ZZE121..LHD;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-12240 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55950-12240 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55950-12240 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-12030 |
CE120,NZE12#,ZZE12#..RHD..(ARL,GEN) |
1 | ||
| 73960-12030 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 73960-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
CE120,NZE12#,ZZE12# |
1 | ||
| 74598-30040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 74598-30040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-T0038 | ||||
| 90167-T0012 | ||||
| 90179-06115 | ||||
| 90467-12080 | ||||
| 91535-60816 | ||||
| 91631-B0616 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| 94150-80800 | ||||

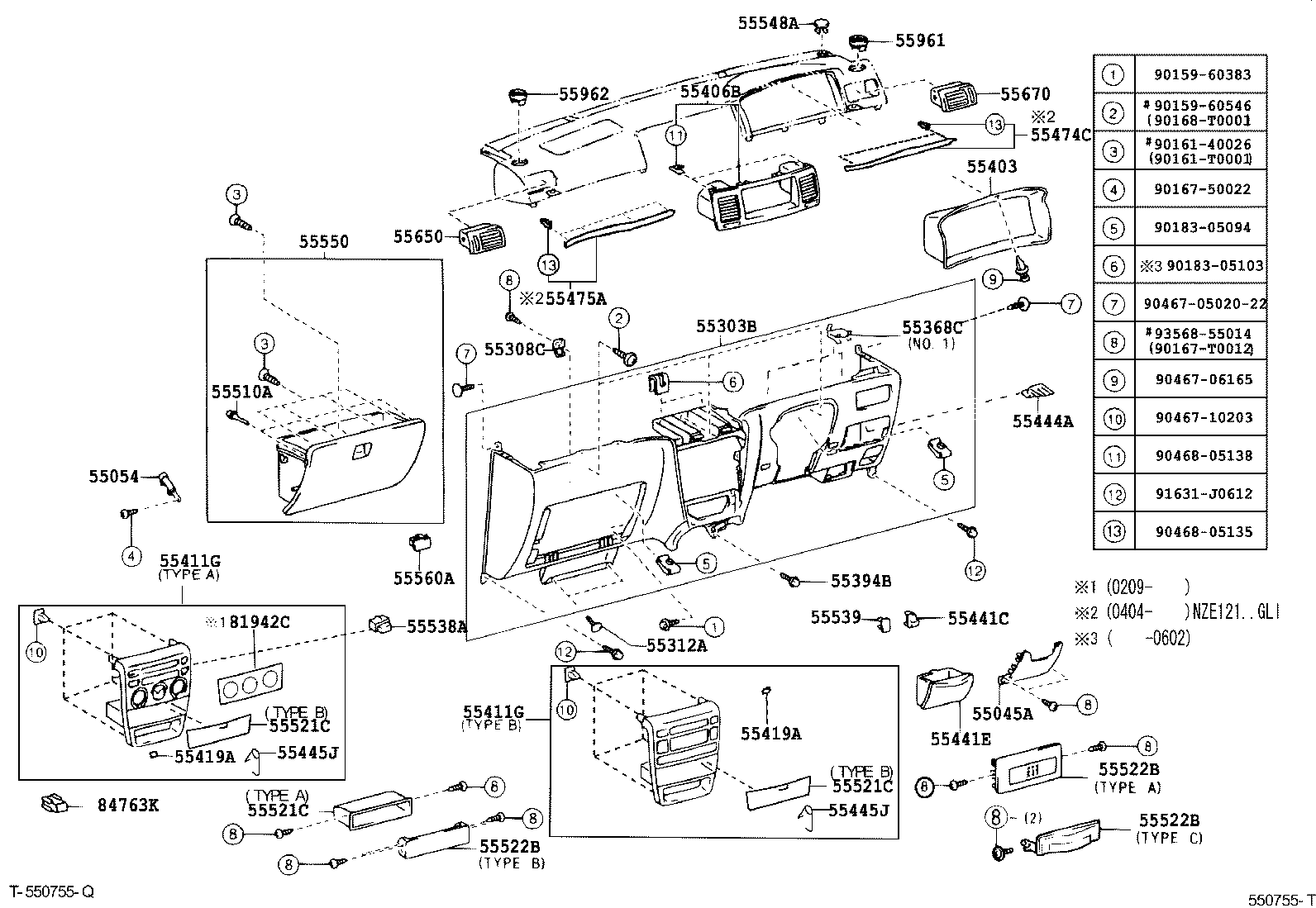

ILLUST NO. 2 OF 2(0008- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045A - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-12270B0 |
CE120,NZE12#,ZZE12#..RHD..SED..GEN STONE,TRIM1# |
1 | ||
| 55045-12270A0 |
ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE12#..RHD..SED..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 55045-12270B2 |
CE120,NZE12#,ZZE12#..RHD..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 55045-12270B2 |
CE120,NZE12#,ZZE12#..RHD..SED..(CONQ,GLI,LX,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55045-12270A0 |
CE120,NZE12#,ZZE12#..RHD..GEN IVORY,TRIM0# |
1 | ||
| 55045-12270A0 |
CE120,NZE12#,ZZE12#..RHD..(GLI,LX,ULT,XLI)..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55054-12010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 55054-12010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-12241B2 |
CE120,NZE12#,ZZE12#..RHD..SED..GEN MD.GRAY,TRIM1# |
1 | ||
| 55303-12241A0 |
CE120,NZE12#,ZZE12#..RHD..GEN IVORY,TRIM0# |
1 | ||
| 55303-12241A0 |
CE120,NZE12#,ZZE12#..RHD..(GLI,LX,ULT,XLI)..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 55303-12242B2 |
CE120,NZE12#,ZZE12#..RHD..SED..(CONQ,GLI,LX,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55303-12241B2 |
CE120,NZE12#,ZZE12#..RHD..SED..(CONQ,GLI,LX,XLI)..(ARL,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55303-12242A0 |
CE120,NZE12#,ZZE12#..RHD..(GLI,LX,ULT,XLI)..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-12280 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55308-12280 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55308-12280 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-06089C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) BLACK,TRIM0#,1# |
2 | ||
| 90467-06089C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) BLACK,TRIM0#,1# |
2 | ||
| 90467-06089C0 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN BLACK |
2 | ||
| 55368C - BRACKET, METER MOUNTING | ||||
| 55362-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
2 | ||
| 55368-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2 |
1 | ||
| 55368-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN NO.2 |
1 | ||
| 55362-12050 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..RHD..(ARL,GEN) NO.1 |
2 | ||
| 55368-12090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.2 |
1 | ||
| 55362-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN NO.1 |
2 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-12020 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 55394-12010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN OD=6 |
1 | ||
| 55394-12020 |
CE120,NZE12#,ZZE12#..GCC,GEN OD=7 |
1 | ||
| 55394-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55403 - HOOD SUB-ASSY, METER | ||||
| 55403-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55403-12030 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55403-12030 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-12320B0 |
NZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55406-12320B0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55406-12360B0 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) W(KNOB=CHROME PLATED),DK.GRAY,TRIM1# |
1 | ||
| 55406-12360E0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM0# |
1 | ||
| 55406-12320E0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55406-12320E0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55406-12320B0 |
NZE121..LX;CE120,NZE120,ZZE12#..(CONQ,GLI,LX,XLI)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 55406-12320E0 |
NZE121..LX;CE120,NZE120,ZZE12#..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-12270C0 |
CE120..LHD;NZE12#,ZZE12#..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(BOOST VENTILATOR),METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12260C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12260C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12290A0 |
ZZE122..SED..XLI..GCC;NZE120,ZZE12#..(GLI,LX)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & BOOST VENTILATOR),IVORY,TRIM0#,1# |
1 | ||
| 55420-12280A0 |
ZZE122..SED..XLI..GCC;NZE120,ZZE12#..(GLI,LX)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & FRONT HEATER),IVORY,TRIM0#,1# |
1 | ||
| 55420-12270C0 |
CE120..LHD;ZZE122..GEN;ZZE122..SED..GCC;NZE12#,ZZE121..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(BOOST VENTILATOR),METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12290A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & BOOST VENTILATOR),IVORY,TRIM0#,1# |
1 | ||
| 55420-12280A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & FRONT HEATER),IVORY,TRIM0#,1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55420-12270C0 |
CE120..LHD;NZE12#,ZZE12#..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(BOOST VENTILATOR),METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12260C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12260C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12290A0 |
ZZE122..SED..XLI..GCC;NZE120,ZZE12#..(GLI,LX)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & BOOST VENTILATOR),IVORY,TRIM0#,1# |
1 | ||
| 55420-12280A0 |
ZZE122..SED..XLI..GCC;NZE120,ZZE12#..(GLI,LX)..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & FRONT HEATER),IVORY,TRIM0#,1# |
1 | ||
| 55420-12270C0 |
CE120..LHD;ZZE122..GEN;ZZE122..SED..GCC;NZE12#,ZZE121..SED..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(BOOST VENTILATOR),METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55420-12290A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & BOOST VENTILATOR),IVORY,TRIM0#,1# |
1 | ||
| 55420-12280A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION & W(WOOD PANEL & FRONT HEATER),IVORY,TRIM0#,1# |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-32020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 55419-32020 |
ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD |
3 | ||
| 55419-32020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-32020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 55419-32020 |
ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD |
3 | ||
| 55419-32020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-20140A0 |
NZE12#,ZZE12# IVORY,TRIM0# |
1 | ||
| 55441-20140B9 |
NZE12#,ZZE12#..SED STONE,TRIM1# |
1 | ||
| 55441-20140A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 55441-20140A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55441-20140P1 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55441-20140P1 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55441E - BOX, INSTRUMENT PANEL | ||||
| 55441-12150B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 55441-12150B2 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55441-12150A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 55441-12150A0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE120,ZZE122..RHD..SED..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 55441-12150A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55441-12150B2 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-12080 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55444-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55444-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 55445-12110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55445-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55445J - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 55445-12110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55445-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05020 |
NZE12#,ZZE12# |
2 | ||
| 90541-04002 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90541-04002 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 90541-04002 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55520-12050A0 |
ZZE121..LX;ZZE122..SED..XLI..GCC;NZE12#,ZZE122..GLI..(GCC,GEN) IVORY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12040C0 |
NZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN METALLIC BLACK,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12040B0 |
NZE12#,ZZE12#..GEN DARK GRAY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55521-16030 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55520-12050A0 |
ZZE121..LX;ZZE122..SED..XLI..GCC;NZE12#,ZZE122..GLI..(GCC,GEN) IVORY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12050A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) REFER TO ILLUSTRATION : TYPE B,IVORY,TRIM0#,1# |
1 | ||
| 55520-12040C0 |
ZZE122..GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) REFER TO ILLUSTRATION : TYPE B,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55521-16030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55520-12050A0 |
ZZE121..LX;ZZE122..SED..XLI..GCC;NZE12#,ZZE122..GLI..(GCC,GEN) IVORY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12040C0 |
NZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN METALLIC BLACK,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12040B0 |
NZE12#,ZZE12#..GEN DARK GRAY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55521-16030 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55520-12050A0 |
ZZE121..LX;ZZE122..SED..XLI..GCC;NZE12#,ZZE122..GLI..(GCC,GEN) IVORY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12050A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) REFER TO ILLUSTRATION : TYPE B,IVORY,TRIM0#,1# |
1 | ||
| 55520-12040C0 |
ZZE122..GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) REFER TO ILLUSTRATION : TYPE B,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55521-16030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55520-12050A0 |
ZZE121..LX;ZZE122..SED..XLI..GCC;NZE12#,ZZE122..GLI..(GCC,GEN) IVORY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12040C0 |
NZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN METALLIC BLACK,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12040B0 |
NZE12#,ZZE12#..GEN DARK GRAY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55521-16030 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55520-12050A0 |
ZZE121..LX;ZZE122..SED..XLI..GCC;NZE12#,ZZE122..GLI..(GCC,GEN) IVORY,TRIM0#,1#,TYPE B:REFER ILLUST. |
1 | ||
| 55520-12050A0 |
ZZE121..LHD..LX;NZE120,ZZE122..SED..XLI..GCC;NZE120,ZZE122..GLI..(GCC,GEN) REFER TO ILLUSTRATION : TYPE B,IVORY,TRIM0#,1# |
1 | ||
| 55520-12040C0 |
ZZE122..GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) REFER TO ILLUSTRATION : TYPE B,METALLIC BLACK,TRIM0#,1# |
1 | ||
| 55521-16030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12180 |
ZZE121..LHD;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
CE120,NZE12#,ZZE12#..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 55522-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
CE120,NZE12#,ZZE12#..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12180 |
ZZE121..LHD;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
CE120,NZE12#,ZZE12#..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 55522-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
CE120,NZE12#,ZZE12#..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-12180 |
ZZE121..LHD;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
CE120,NZE12#,ZZE12#..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 55522-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
CE120,NZE12#,ZZE12#..GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-52010 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-12100 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55538-12100 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55538-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010P1 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 55539-32010P5 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55539-32010A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 55539-32010A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55539-32010A0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN IVORY,TRIM0# |
1 | ||
| 55539-32010P5 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-12390B0 |
NZE12#,ZZE12#..SED STONE,TRIM1# |
1 | ||
| 55550-12390A0 |
NZE12#,ZZE12# IVORY,TRIM0# |
1 | ||
| 55550-12391A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 55550-12391B2 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55550-12391A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55550-12391B2 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-12120A0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN IVORY,TRIM0# |
1 | ||
| 55560-12120B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) STONE,TRIM1# |
1 | ||
| 55560-12120A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 55560-12120A0 |
CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 55560-12120B2 |
CE120,NZE12#,ZZE12#..SED..(CONQ,GLI,LX,XLI)..(ARL,GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55560-12120B2 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) MD.GRAY,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-12260E0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12260B0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55650-12260B0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55650-12260B0 |
NZE121..LX;CE120,NZE120,ZZE12#..(CONQ,GLI,LX,XLI)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 55650-12270B0 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) W(KNOB=CHROME PLATED),DK.GRAY,TRIM1# |
1 | ||
| 55650-12270E0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12260E0 |
NZE121..LX;CE120,NZE120,ZZE12#..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55650-12260E0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-12290B0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55670-12290E0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55670-12290B0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55670-12290E0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55670-12300B0 |
NZE120,ZZE122..SED..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) W(KNOB=CHROME PLATED),DK.GRAY,TRIM1# |
1 | ||
| 55670-12290E0 |
NZE121..LX;CE120,NZE120,ZZE12#..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55670-12300E0 |
NZE120,ZZE122..XLI..GCC;NZE12#,ZZE12#..(GLI,LX)..(GCC,GEN) W(KNOB=CHROME PLATED),SANDAL WOOD,TRIM0# |
1 | ||
| 55670-12290B0 |
NZE121..LX;CE120,NZE120,ZZE12#..(CONQ,GLI,LX,XLI)..(ARL,GEN) DK.GRAY,TRIM1# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-12220E0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55961-12220B0 |
NZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55961-12220E0 |
CE120,NZE12#,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55961-12220B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 55961-12220E0 |
CE120,NZE12#,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55961-12220B0 |
NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..CONQ,GLI,LX,XLI DK.GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55961-12220E0 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55961-12220E0 |
CE120,NZE12#,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0# |
1 | ||
| 55961-12220B0 |
NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..CONQ,GLI,LX,XLI DK.GRAY,TRIM1# |
1 | ||
| 55961-12220B0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 55961-12220B0 |
NZE120,ZZE122..SED..GCC;CE120,NZE12#,ZZE12#..RHD..SED..GEN DK.GRAY,TRIM1# |
1 | ||
| 55961-12220E0 |
CE120,NZE12#,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0# |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-12770 |
CE120..LHD;NZE12#,ZZE12#..GCC,GEN W/O(HEATER) |
1 | ||
| 81942-12770 |
CE120..LHD;NZE12#,ZZE12#..GCC,GEN W/O(HEATER) |
1 | ||
| 81942-12750 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 81942-12750 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 84763K - PLATE, SWITCH | ||||
| 84763-12120 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 84763-12120C1 |
CE120,NZE121..RHD..(LX,XLI);NZE120,ZZE122..RHD..SED..GEN 21GY18,TRIM0#,1# |
1 | ||
| 84763-12120 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 84763-12120 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90159-60546 | ||||
| 90161-40026 | ||||
| 90161-T0001 | ||||
| 90167-50022 | ||||
| 90167-T0012 | ||||
| 90168-T0001 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90467-0502022 | ||||
| 90467-06165 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 90468-05138 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
