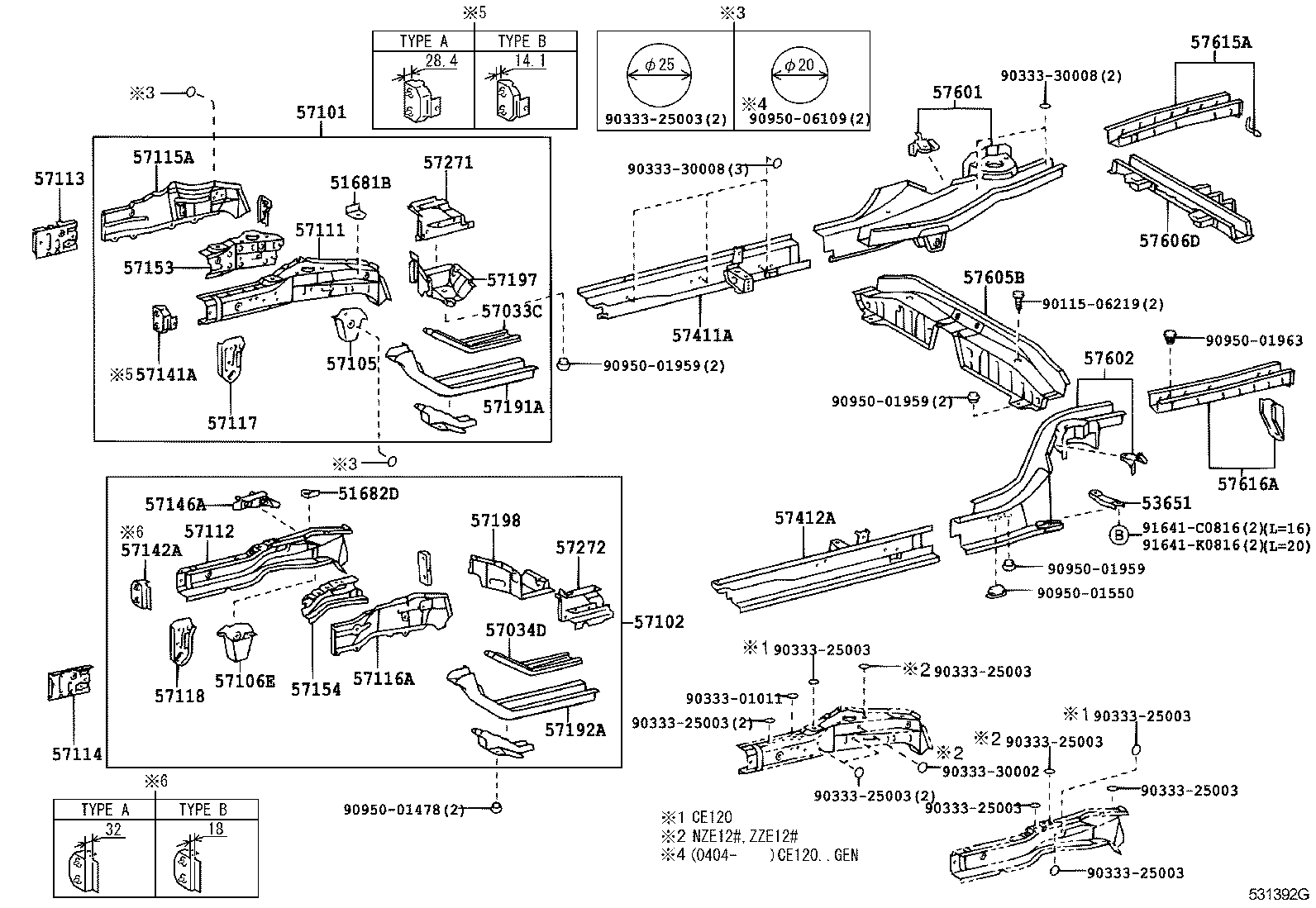

ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008-0209) ; (0209-0404)ARL,PKN ; (0404- )PKN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 53651-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 53651-32010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-1A330 |
NZE12#,ZZE12#..GCC,GEN PNC 57141A = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57101-1A330 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57101-12890 |
NZE12#,ZZE12# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12810 |
NZE12#,ZZE12# |
1 | ||
| 57102-1A310 |
NZE12#,ZZE12#..GCC,GEN PNC 57142A = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57102-1A310 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12140 |
NZE12#,ZZE12# |
1 | ||
| 57105-12140 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57105-12140 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12130 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57106-12130 |
NZE12#,ZZE12# |
1 | ||
| 57106-12130 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12210 |
NZE12#,ZZE12# |
1 | ||
| 57111-12240 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57111-12240 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12170 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12190 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57113-12190 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12160 |
CE120..RHD..GEN;NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57114-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57114-12160 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12080 |
ZZE122;CE120..RHD..GEN;NZE120,ZZE121..LHD;NZE120..RHD..GLI..GEN |
1 | ||
| 57116-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57116-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-12130 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-12130 |
ZZE121..LHD;NZE120,ZZE122..GCC;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN |
1 | ||
| 57118-12130 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57118-12130 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57141-12050 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57141-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57142-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57142-12090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||||
| 57146-12020 |
ZZE122;CE120..RHD..GEN;NZE120,ZZE121..LHD;NZE120..RHD..GLI..GEN |
1 | ||
| 57146-12020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57146-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-12080 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57016-12080 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-12060 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57017-12060 |
NZE12#,ZZE12# |
1 | ||
| 57017-12060 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-12030 |
ZZE121..LHD;NZE120,ZZE122..GCC;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN |
1 | ||
| 57198-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57198-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57271-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57272-12090 |
ZZE122;CE120..RHD..GEN;NZE120,ZZE121..LHD;NZE120..RHD..GLI..GEN |
1 | ||
| 57272-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-12570 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57401-12630 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57401-12630 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-12680 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57402-12590 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57402-12590 |
CE120..GEN;ZZE121..LHD;ZZE122..RHD;NZE120..GLI..GEN;ZZE122..LHD..WG..GEN;ZZE122..LHD..GLI..GEN |
1 | ||
| 57402-12590 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-1A907 |
CE120..GEN;ZZE121..LHD;NZE120..GLI..GEN;ZZE122..RHD..SED..GEN;ZZE122..LHD..GLI..GEN |
1 | ||
| 57601-1A907 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 57601-1A907 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-1A905 |
CE120..GEN;ZZE121..LHD;NZE120..GLI..GEN;ZZE122..RHD..SED..GEN;ZZE122..LHD..GLI..GEN |
1 | ||
| 57602-1A905 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 57602-1A905 |
ZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN REFER TO THE COMMENT IN THE ILLUSTRATION |
1 | ||
| 57602-12964 |
NZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12180 |
ZZE122..ARL,GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) |
1 | ||
| 57605-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-13110 |
CE120..GEN;ZZE121..LHD;ZZE122..RHD;NZE120..GLI..GEN;ZZE122..LHD..GLI..GEN;NZE120,ZZE122..LHD..WG |
1 | ||
| 57606-12130 |
NZE12#,ZZE12#..SED |
1 | ||
| 57606-13110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57606-13110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12908 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57615-12908 |
ZZE122..ARL,GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) |
1 | ||
| 57801-12130 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57615-12905 |
CE120,NZE12#,ZZE12#..GCC,GEN BRAZIL SPEC |
1 | ||
| 57615-12905 |
CE120,NZE12#,ZZE12#..GCC,GEN BRAZIL SPEC |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12909 |
ZZE122..GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) |
1 | ||
| 57616-12909 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57616-12909 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 90115-06314 | ||||
| 90115-T0009 | ||||
| 90333-01011 | ||||
| 90333-20001 | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01478 | ||||
| 90950-01550 | ||||
| 90950-01959 | ||||
| 90950-01963 | ||||
| 91641-K0816 | ||||
(0209- )GCC,GEN ; (0404- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51681B - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH | ||||
| 51681-32050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 51681-32050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 51682D - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH | ||||
| 51682-32040 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 51682-32040 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53651 - BRACE, REAR FLOOR SIDE MEMBER | ||||
| 53651-32010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 53651-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 53651-32010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 57033C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH | ||||
| 57033-13010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57033-13010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57034D - REINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH | ||||
| 57034-13010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57034-13010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-1A330 |
NZE12#,ZZE12#..GCC,GEN PNC 57141A = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57101-1A330 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57101-12890 |
NZE12#,ZZE12# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-12810 |
NZE12#,ZZE12# |
1 | ||
| 57102-1A310 |
NZE12#,ZZE12#..GCC,GEN PNC 57142A = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57102-1A310 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57105-12140 |
NZE12#,ZZE12# |
1 | ||
| 57105-12140 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57105-12140 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO | ||||
| 57106-12130 |
NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57106-12130 |
NZE12#,ZZE12# |
1 | ||
| 57106-12130 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-12210 |
NZE12#,ZZE12# |
1 | ||
| 57111-12240 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57111-12240 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-12170 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-12190 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57113-12190 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-12160 |
CE120..RHD..GEN;NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57114-12160 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57114-12160 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-12080 |
ZZE122;CE120..RHD..GEN;NZE120,ZZE121..LHD;NZE120..RHD..GLI..GEN |
1 | ||
| 57116-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57116-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57117 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH | ||||
| 57117-12130 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57118 - PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH | ||||
| 57118-12130 |
ZZE121..LHD;NZE120,ZZE122..GCC;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN |
1 | ||
| 57118-12130 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57118-12130 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57141A - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-12080 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57141-12050 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57141-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57142A - SUPPORT, FRONT BUMPER ARM, LH | ||||
| 57142-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 57142-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 57142-12090 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57146A - REINFORCEMENT, FRONT SIDE MEMBER, REAR LH | ||||
| 57146-12020 |
ZZE122;CE120..RHD..GEN;NZE120,ZZE121..LHD;NZE120..RHD..GLI..GEN |
1 | ||
| 57146-12020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57146-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57153 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57016-12080 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57016-12080 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57154 - REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57017-12060 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57017-12060 |
NZE12#,ZZE12# |
1 | ||
| 57017-12060 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-13010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57191-13010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-13010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57192-13010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57197 - BOX, TORQUE, FRONT RH | ||||
| 57197-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57198 - BOX, TORQUE, FRONT LH | ||||
| 57198-12030 |
ZZE121..LHD;NZE120,ZZE122..GCC;NZE120..RHD..GLI..GEN;CE120,ZZE122..RHD..GEN |
1 | ||
| 57198-12030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57198-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57271 - EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH | ||||
| 57271-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57271-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57272 - EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH | ||||
| 57272-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57272-12090 |
ZZE122;CE120..RHD..GEN;NZE120,ZZE121..LHD;NZE120..RHD..GLI..GEN |
1 | ||
| 57272-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-12570 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57401-12630 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57401-12630 |
NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-12680 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57402-12590 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57402-12590 |
CE120..GEN;ZZE121..LHD;ZZE122..RHD;NZE120..GLI..GEN;ZZE122..LHD..WG..GEN;ZZE122..LHD..GLI..GEN |
1 | ||
| 57402-12590 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-1A907 |
CE120..GEN;ZZE121..LHD;NZE120..GLI..GEN;ZZE122..RHD..SED..GEN;ZZE122..LHD..GLI..GEN |
1 | ||
| 57601-1A907 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 57601-1A907 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-1A905 |
CE120..GEN;ZZE121..LHD;NZE120..GLI..GEN;ZZE122..RHD..SED..GEN;ZZE122..LHD..GLI..GEN |
1 | ||
| 57602-1A905 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 57602-1A905 |
ZZE122..SED..(GCC,GEN);CE120,NZE12#,ZZE121..GEN REFER TO THE COMMENT IN THE ILLUSTRATION |
1 | ||
| 57602-12964 |
NZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-12180 |
ZZE122..ARL,GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) |
1 | ||
| 57605-12180 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57606D - MEMBER SUB-ASSY, REAR ABSORBER MOUNTING | ||||
| 57606-13110 |
CE120..GEN;ZZE121..LHD;ZZE122..RHD;NZE120..GLI..GEN;ZZE122..LHD..GLI..GEN;NZE120,ZZE122..LHD..WG |
1 | ||
| 57606-12130 |
NZE12#,ZZE12#..SED |
1 | ||
| 57606-13110 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57606-13110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-12908 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57615-12908 |
ZZE122..ARL,GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) |
1 | ||
| 57801-12130 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57615-12905 |
CE120,NZE12#,ZZE12#..GCC,GEN BRAZIL SPEC |
1 | ||
| 57615-12905 |
CE120,NZE12#,ZZE12#..GCC,GEN BRAZIL SPEC |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-12909 |
ZZE122..GEN;ZZE122..SED..GCC;CE120,NZE12#,ZZE121..SED..(GCC,GEN) |
1 | ||
| 57616-12909 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57616-12909 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90115-06219 | ||||
| 90333-01011 | ||||
| 90333-25003 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01478 | ||||
| 90950-01550 | ||||
| 90950-01959 | ||||
| 90950-01963 | ||||
| 90950-06109 | ||||
| 91641-C0816 | ||||
| 91641-K0816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
