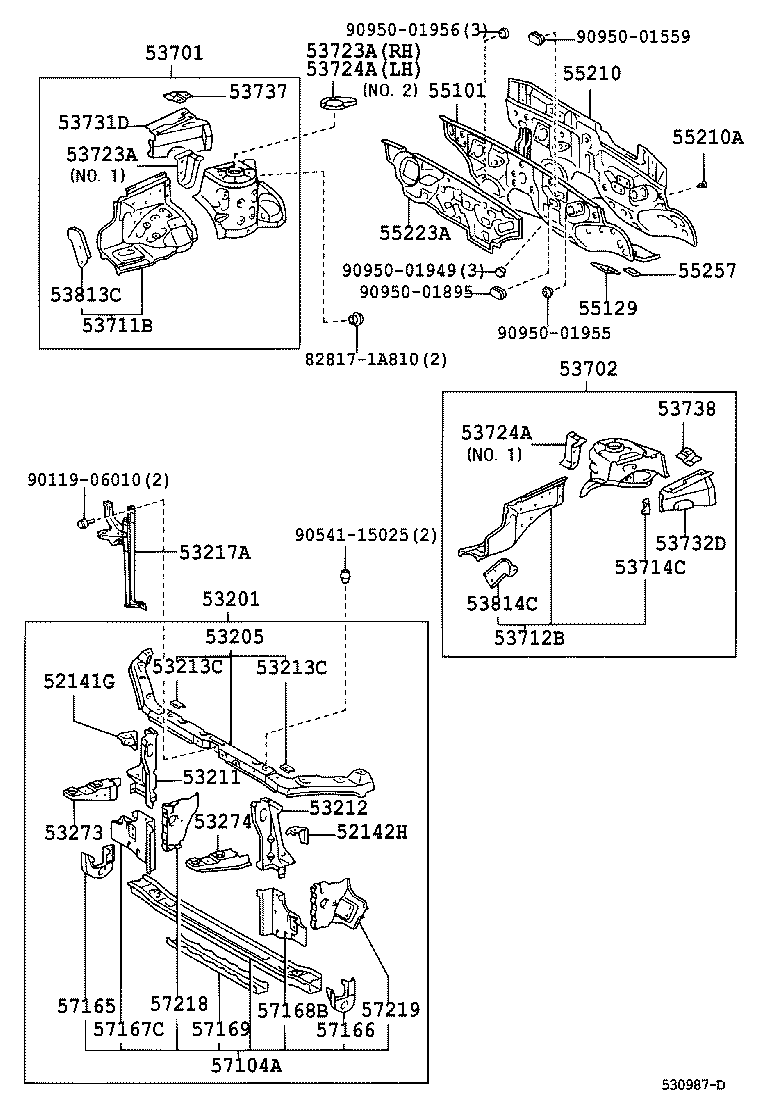

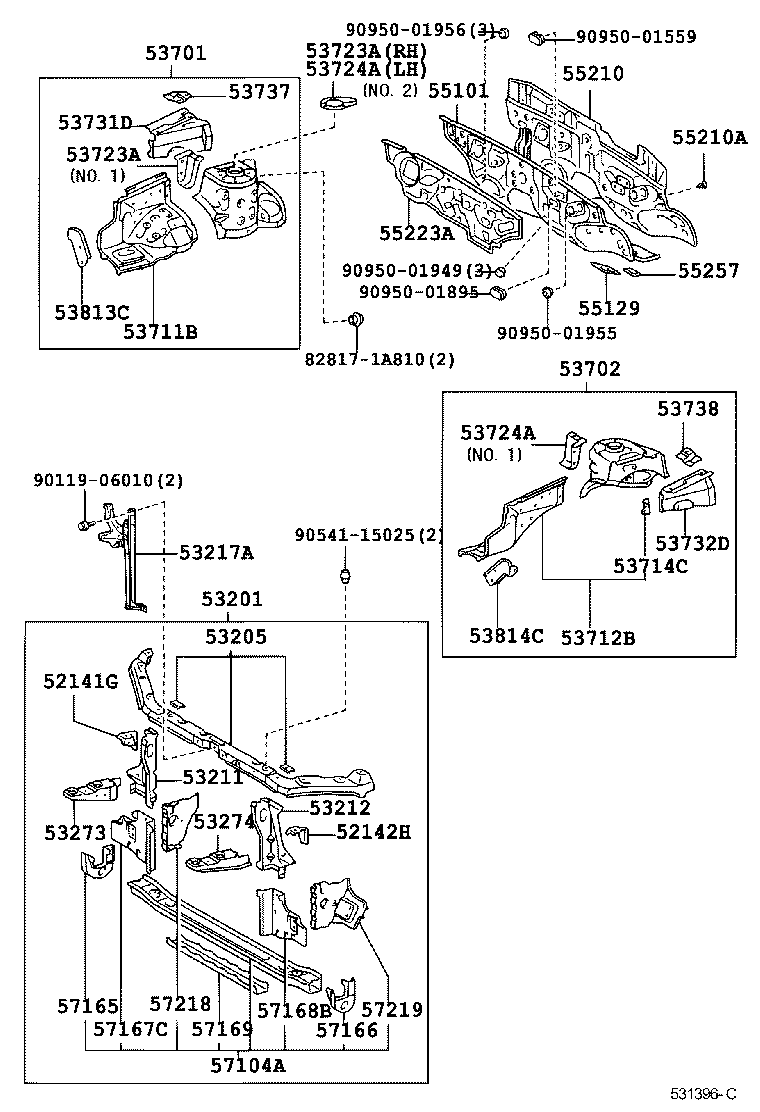

ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008-0209)RHD..ARL,GEN ; (0209- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52141-12500 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 52141-12480 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52142-12430 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 52142-12410 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-1A210 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-1A330 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-1A320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-1A320 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-12A60 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53201-12A90 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-12200 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53205-12270 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-12410 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53211-12410 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-12350 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53212-12350 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53213C - SUPPORT, RADIATOR, UPPER FRONT | ||||
| 53213-12110 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 53213C - SUPPORT, RADIATOR, UPPER FRONT | ||||
| 53213-12110 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-12450 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53208-12520 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53273-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53274-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-1A090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53701-1A090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53701-1A090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-1A060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53702-1A060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-12905 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711-12905 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711-12905 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711-12910 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53711-12910 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-12902 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712-12904 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712-12904 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712-02912 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53712-02912 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-12150 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53714-13020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53714-13020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53724-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53724-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12160 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53731-12160 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53731-12160 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12140 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53732-12140 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53732-12140 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53737-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53737-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53738-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53813-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53814-12020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-32030 |
CE120,NZE12#,ZZE12# RH |
1 | ||
| 55139-32010 |
CE120,NZE12#,ZZE12# LH |
1 | ||
| 55129-32030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 55139-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-12491 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55210A - CLIP | ||||
| 90467-10005C0 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN BLACK |
4 | ||
| 90467-10005C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) BLACK,TRIM0#,1# |
4 | ||
| 90467-10005B0 |
NZE12#,ZZE12#..SED MD.CHARCOAL,TRIM0#,1# |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-12090 |
NZE121..ATM;CE120,ZZE12#..RHD..GEN |
1 | ||
| 55223-12090 |
NZE121..ATM;ZZE122..WG..ARL;CE120,ZZE12#..RHD..GEN |
1 | ||
| 55223-12090 |
NZE121..ATM;CE120,ZZE12#..RHD..(ARL,GEN) |
1 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 55257-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12170 |
CE120,NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12260 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12260 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12250 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12110 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12180 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12120 |
NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12260 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 57104-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12250 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12250 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-12070 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57165-12070 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57165-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-12020 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57166-12020 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57166-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57167-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57167-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57167-12110 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57168-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57168-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-12020 |
CE120,NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57169-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57169-42030 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57169-42030 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57218-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57218-12020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57218-12010 |
NZE12#,ZZE12# |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57219-12010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57219-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90119-06010 | ||||
| 90541-15025 | ||||
| 90950-01559 | ||||
| 90950-01895 | ||||
| 90950-01949 | ||||
| 90950-01955 | ||||
| 90950-01956 | ||||
(0209- )RHD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52141G - STAY, FRONT BUMPER, RH | ||||
| 52141-12500 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 52141-12480 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52142H - STAY, FRONT BUMPER, LH | ||||
| 52142-12430 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 52142-12410 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53201 - SUPPORT SUB-ASSY, RADIATOR | ||||
| 53201-1A210 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-1A330 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-1A320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-1A320 |
CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 53201-12A60 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53201-12A90 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-12200 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53205-12270 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-12410 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53211-12410 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-12350 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53212-12350 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53208-12450 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53208-12520 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53273-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53274-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-1A090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53701-1A090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53701-1A090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-1A060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53702-1A060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-12905 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711-12905 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711-12905 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53711-12910 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53711-12910 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-12902 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712-12904 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712-12904 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53712-02912 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53712-02912 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53714C - EXTENSION, FRONT FENDER APRON, FRONT LH | ||||
| 53714-12150 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53714-13020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53714-13020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53723A - REINFORCEMENT, FRONT SPRING SUPPORT, RH | ||||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.2 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12080 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53723-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53724-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53724A - REINFORCEMENT, FRONT SPRING SUPPORT, LH | ||||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02),NO.2 |
1 | ||
| 53723-12090 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53724-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN NO.1 |
1 | ||
| 53723-12091 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC,NO.2 |
1 | ||
| 53724-12070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN NO.1 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-12160 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53731-12160 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53731-12160 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-12140 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53732-12140 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53732-12140 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53737 - PLATE, FRONT APRON TO COWL SIDE MEMBER, RH | ||||
| 53737-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53737-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53737-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53738 - PLATE, FRONT APRON TO COWL SIDE MEMBER, LH | ||||
| 53738-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53738-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-12060 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 53813-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 53814-12020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..SED..MTM EXCEPT SOUTH AFRICA |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 55101-19035 |
CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 55129 - COVER, DASH PANEL HOLE | ||||
| 55129-32030 |
CE120,NZE12#,ZZE12# RH |
1 | ||
| 55139-32010 |
CE120,NZE12#,ZZE12# LH |
1 | ||
| 55129-32030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 55139-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-12491 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 55210A - CLIP | ||||
| 90467-10005C0 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN BLACK |
4 | ||
| 90467-10005C0 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) BLACK,TRIM0#,1# |
4 | ||
| 90467-10005B0 |
NZE12#,ZZE12#..SED MD.CHARCOAL,TRIM0#,1# |
4 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-12090 |
NZE121..ATM;CE120,ZZE12#..RHD..GEN |
1 | ||
| 55223-12090 |
NZE121..ATM;ZZE122..WG..ARL;CE120,ZZE12#..RHD..GEN |
1 | ||
| 55223-12090 |
NZE121..ATM;CE120,ZZE12#..RHD..(ARL,GEN) |
1 | ||
| 55257 - COVER, DASH PANEL OPENING | ||||
| 55257-32010 |
CE120,NZE12#,ZZE12# |
2 | ||
| 55257-32010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12170 |
CE120,NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12260 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12260 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12250 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12110 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12180 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12120 |
NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12260 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 57104-12240 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12250 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57104-12250 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57165-12070 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57165-12070 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57165-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57166-12020 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57166-12020 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57166-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH | ||||
| 57167-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57167-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57167-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57167-12110 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57168B - GUSSET, FRONT CROSSMEMBER SIDE, LH | ||||
| 57168-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57168-12110 |
CE120,NZE12#,ZZE12# |
1 | ||
| 57168-12110 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57169 - MEMBER, FRONT FLOOR, FRONT RH | ||||
| 57169-12020 |
CE120,NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57169-12020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57169-42030 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION (FIG 51-02) |
1 | ||
| 57169-42030 |
ZZE121..LHD;CE120,NZE120,ZZE122..GEN ROUGH ROAD AREA SPEC |
1 | ||
| 57218 - GUSSET, FRONT SIDE MEMBER, NO.1 | ||||
| 57218-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57218-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57218-12020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57218-12010 |
NZE12#,ZZE12# |
1 | ||
| 57219 - GUSSET, FRONT SIDE MEMBER, NO.2 | ||||
| 57219-12030 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 57219-12010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 57219-12030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 82817-1A810 | ||||
| 90119-06010 | ||||
| 90541-15025 | ||||
| 90950-01559 | ||||
| 90950-01895 | ||||
| 90950-01949 | ||||
| 90950-01955 | ||||
| 90950-01956 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
