ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008-0404)SED..ARL,GCC,GEN

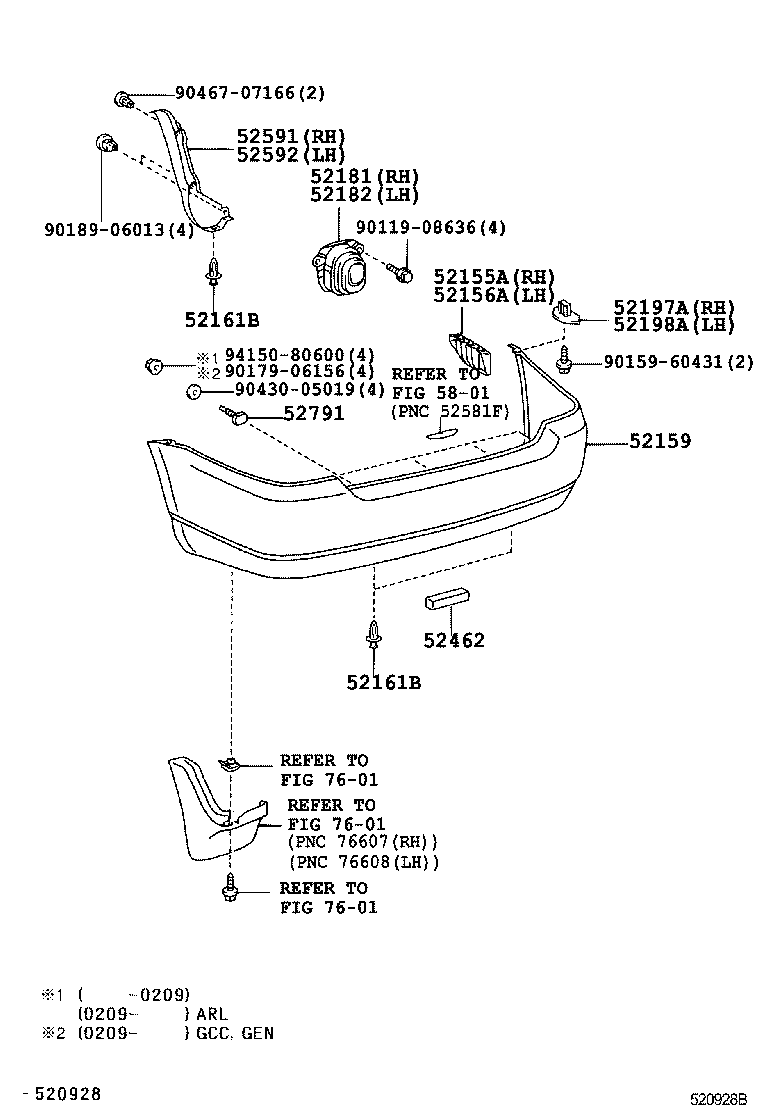

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12290 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52155-12290 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-12270 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52156-12270 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1A920 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52159-1A920 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52159-1A920 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 52159-12928 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..GEN W(REAR LICENSE PLATE GARNISH) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 90467-09093 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52161-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 90467-09093 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52161-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-12440 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52181-12440 |
NZE120,ZZE122..ARL,GEN;NZE120,ZZE122..WG..GCC;CE120,NZE121,ZZE121..LX,XLI |
1 | ||
| 52181-12490 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(REFLEX REFLECTOR) |
1 | ||
| 52181-12440 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52181-12440 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52181-12440 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52181-12440 |
NZE120,ZZE122..ARL,GEN;NZE120,ZZE122..WG..GCC;CE120,NZE121,ZZE121..LX,XLI |
1 | ||
| 52181-12490 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(REFLEX REFLECTOR) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-12080 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52197-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-12080 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52198-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-12070 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52462-12070 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12150 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52591-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52591-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52592-12070 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52592-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52791-12040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
4 | ||
| Common parts | ||||
| 90119-08636 | ||||
| 90159-60431 | ||||
| 90179-06156 | ||||
| 90189-06013 | ||||
| 90430-05019 | ||||
| 90467-07166 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7601 | ||||
(0404- )SED..ARL,GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-12290 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52155-12290 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-12270 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52156-12270 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-1A920 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52159-1A920 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52159-1A920 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..(ARL,GEN) |
1 | ||
| 52159-12928 |
NZE121..LX;CE120,NZE120,ZZE12#..SED..GEN W(REAR LICENSE PLATE GARNISH) |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 90467-09093 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52161-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 90467-09093 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52161-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 90467-09093 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52161-16010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
4 | ||
| 52181 - ARM, REAR BUMPER, RH | ||||
| 52181-12440 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52181-12440 |
NZE120,ZZE122..ARL,GEN;NZE120,ZZE122..WG..GCC;CE120,NZE121,ZZE121..LX,XLI |
1 | ||
| 52181-12490 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(REFLEX REFLECTOR) |
1 | ||
| 52181-12440 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52181-12440 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52181-12440 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52181-12440 |
NZE120,ZZE122..ARL,GEN;NZE120,ZZE122..WG..GCC;CE120,NZE121,ZZE121..LX,XLI |
1 | ||
| 52181-12490 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) W(REFLEX REFLECTOR) |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-12080 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52197-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-12080 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52198-12080 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-12070 |
CE120,NZE12#,ZZE12#..SED..(ARL,GCC,GEN) |
1 | ||
| 52462-12070 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12150 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52591-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52591-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12070 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52592-12070 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 52592-12070 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 52791 - BOLT, BUMPER MOULDING SET, NO.1 | ||||
| 52791-12040 |
NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN |
4 | ||
| 52791-12040 |
CE120,NZE12#,ZZE12#..SED..(GCC,GEN) |
4 | ||
| Common parts | ||||
| 90119-08636 | ||||
| 90159-60431 | ||||
| 90179-06156 | ||||
| 90189-06013 | ||||
| 90430-05019 | ||||
| 90467-07166 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 5801 | ||||
| 7601 | ||||
| 8115 | ||||
