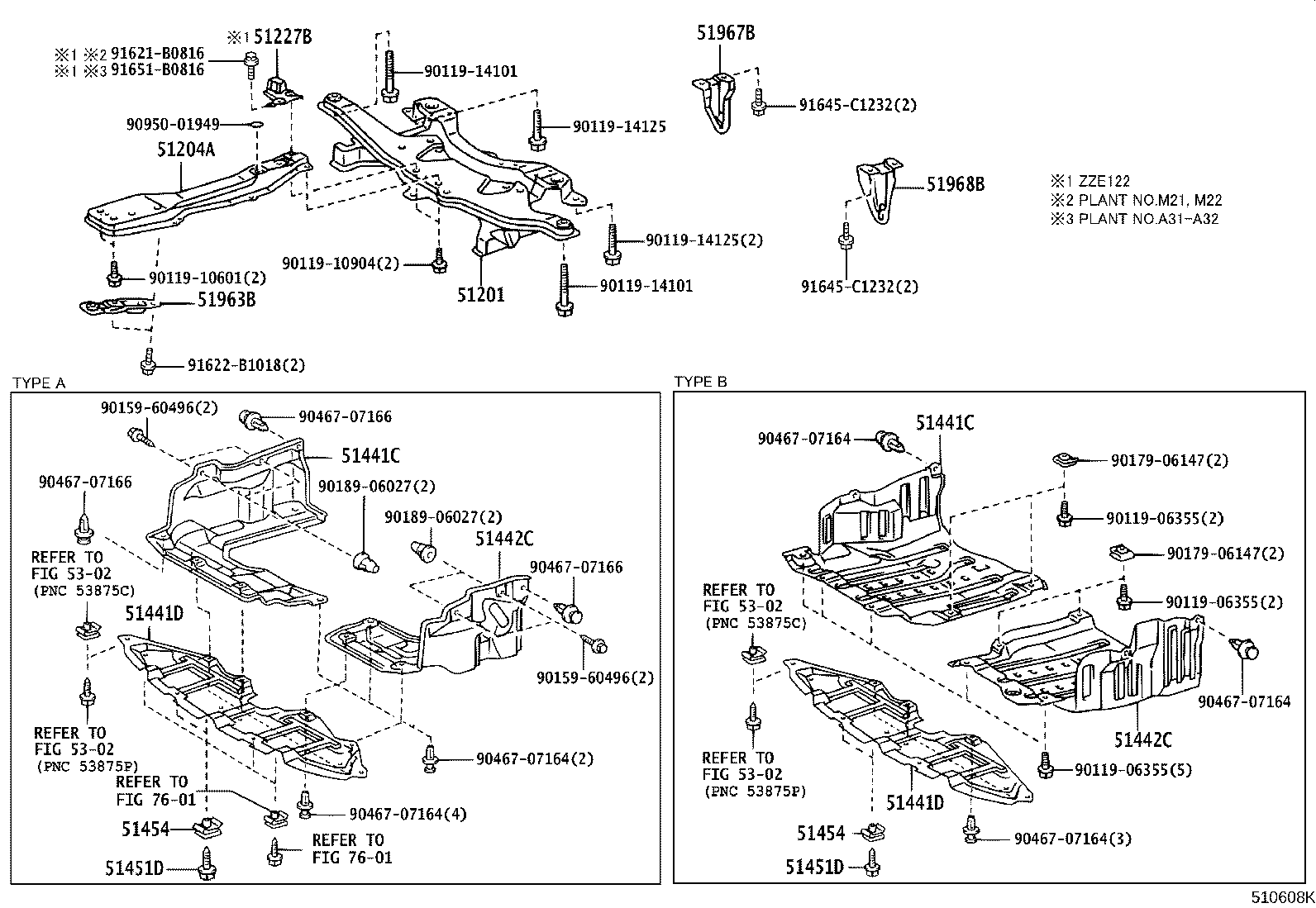

Toyota Corolla/altis sed/wg ZZE122 SUSPENSION CROSSMEMBER & UNDER COVER

Part #	Description	Period	Qty
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-20350	CE120,NZE12#,ZZE12#	08/2000 - 11/2001	1
51201-12431	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
51201-12430	CE120,NZE12#,ZZE12#	11/2001 - 03/2003	1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-12150	ZZE122..GCC,GEN;ZZE122..WG..ARL	04/2004 - 12/2999	1
51204-12150	ZZE122	08/2000 - 04/2004	1
51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC
51227-12070	ZZE122..GCC,GEN	04/2004 - 12/2999	1
51227-12070	ZZE122..GCC,GEN	08/2000 - 04/2004	1
51441C - COVER, ENGINE UNDER, RH
51408-12080	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51408-12080	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51441-12190	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51441-12190	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51441C - COVER, ENGINE UNDER, RH
51408-12080	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51408-12080	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51441-12190	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51441-12190	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51441D - COVER, ENGINE UNDER
51451-12020	CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION	09/2002 - 04/2004	1
51451-12020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51451-12030	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	09/2002 - 04/2004	1
51451-12030	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51441D - COVER, ENGINE UNDER
51451-12020	CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION	09/2002 - 04/2004	1
51451-12020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN TYPE A:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51451-12030	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	09/2002 - 04/2004	1
51451-12030	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51442C - COVER, ENGINE UNDER, LH
51409-12060	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51409-12060	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51442-12180	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51442-12180	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51442C - COVER, ENGINE UNDER, LH
51409-12060	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51409-12060	ZZE121..LHD;CE120,NZE120,ZZE122..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51442-12180	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..(ARL,GEN) TYPE A:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
51442-12180	ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
51451D - SCREW, NO.1
90159-60488	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90159-60488	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
51451D - SCREW, NO.1
90159-60488	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
90159-60488	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
51454 - CLIP
90467-05138	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-05138	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
51454 - CLIP
90467-05138	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
90467-05138	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
51963B - HOOK, TRANSPORT, FRONT RH
51963-12240	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
51963-12240	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
51967B - HOOK, TRANSPORT, REAR RH
51967-12270	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
51967-12270	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
51968B - HOOK, TRANSPORT, REAR LH
51968-12170	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
51968-12170	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
90119-06355
90119-10601
90119-10904
90119-14101
90119-14125
90159-60496
90179-06147
90189-06027
90467-07164
90467-07166
90950-01949
91621-B0816
91622-B1018
91645-C1232
91651-B0816
Linked diagrams
5302
7601

ZZE122R-AEMNK (2001)

(0008- )ARL,GCC,GEN
