ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008- )ZZE122..RHD..ARL,GEN ; (0008- )CE120,NZE12#,ZZE121..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12440 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 47150-12440 |
ZZE121..LHD;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47150-12440 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12870 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47311-12680 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47311-12680 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47311-12820 |
CE120,NZE120,ZZE122..RHD..(CONQ,GLI,XLI) |
1 | ||
| 47311-12870 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47311-12870 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10286 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 90413-10286 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 90413-10286 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12440 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47312-12410 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47312-12440 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47312-12410 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47312-12440 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12480 |
ZZE121..RHD..GEN;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN W(ABS) |
1 | ||
| 47313-12630 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47313-12480 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47313-12630 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47313-12630 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47313-12480 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C47 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN RH |
1 | ||
| 90947-02C48 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN LH |
1 | ||
| 90947-02C48 |
CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 90947-02C47 |
CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C47 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C48 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C47 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN RH |
1 | ||
| 90947-02C48 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN LH |
1 | ||
| 90947-02C48 |
CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 90947-02C47 |
CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C47 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C48 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90401-10058 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 90401-10058 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90401-10058 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 90401-10058 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12450 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47314-12420 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47314-12450 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47314-12420 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47314-12450 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12520 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47315-12490 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47315-12490 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47315-12520 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47315-12490 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47315-12520 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN |
2 | ||
| 90401-10045 |
CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 90401-10045 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN |
2 | ||
| 47389-50020 |
CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12280 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47321-12280 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47321-12280 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12400 |
CE120,NZE12#,ZZE12# |
1 | ||
| 47322-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47322-12400 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
CE120,NZE12#,ZZE12# |
2 | ||
| 77299-32030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 77299-32030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90949-01B45 | ||||
| 90949-01B66 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(0008- )RHD..ARL,GEN ; (0507- )20DSA,SESAL
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12870 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47311-12680 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47311-12680 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47311-12820 |
CE120,NZE120,ZZE122..RHD..(CONQ,GLI,XLI) |
1 | ||
| 47311-12870 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47311-12870 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12870 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47311-12680 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47311-12680 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47311-12820 |
CE120,NZE120,ZZE122..RHD..(CONQ,GLI,XLI) |
1 | ||
| 47311-12870 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47311-12870 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10167 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 90412-10167 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 90412-10167 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12440 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47312-12410 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47312-12440 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47312-12410 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47312-12440 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12440 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47312-12410 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47312-12440 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47312-12410 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47312-12440 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12480 |
ZZE121..RHD..GEN;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN W(ABS) |
1 | ||
| 47313-12630 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47313-12480 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47313-12630 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47313-12630 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47313-12480 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12480 |
ZZE121..RHD..GEN;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN W(ABS) |
1 | ||
| 47313-12630 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47313-12480 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47313-12630 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47313-12630 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47313-12480 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C47 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN RH |
1 | ||
| 90947-02C48 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN LH |
1 | ||
| 90947-02C48 |
CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 90947-02C47 |
CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C47 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C48 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02C47 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN RH |
1 | ||
| 90947-02C48 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN LH |
1 | ||
| 90947-02C48 |
CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 90947-02C47 |
CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C47 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 90947-02C48 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90401-10058 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 90401-10058 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 90401-10058 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 90401-10058 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12450 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47314-12420 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47314-12450 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47314-12420 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47314-12450 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12450 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47314-12420 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47314-12450 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47314-12420 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47314-12450 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12520 |
CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47315-12490 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47315-12490 |
CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47315-12520 |
NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN |
1 | ||
| 47315-12490 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN W(ABS) |
1 | ||
| 47315-12520 |
ZZE122..WG..ARL;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12190 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47317-12190 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47317-12190 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12190 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47317-12190 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47317-12190 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12330 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318-12330 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318-12330 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12330 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318-12330 |
CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318-12330 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10045 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN |
2 | ||
| 90401-10045 |
CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 90401-10045 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN |
2 | ||
| 47389-50020 |
CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 47389-50020 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C50 |
ZZE122..GCC;NZE121,ZZE121..GEN;CE120,ZZE122..RHD..GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 90947-02C50 |
CE120,NZE121,ZZE12#..GCC,GEN W(REAR DISC BRAKE) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12280 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47321-12280 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47321-12280 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12088 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 90904-12088 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90904-12088 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12400 |
CE120,NZE12#,ZZE12# |
1 | ||
| 47322-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47322-12400 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12230 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47371-12230 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47371-12230 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47374-12050 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 47374-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47374-12050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 77299-32030 |
CE120,NZE12#,ZZE12# |
2 | ||
| 77299-32030 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 77299-32030 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90480-01577 | ||||
| 90949-01970 | ||||
| 90949-01B45 | ||||
| 90949-01B65 | ||||
| 90949-01B66 | ||||
| 90949-01C74 | ||||
| 91515-60645 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 7701 | ||||

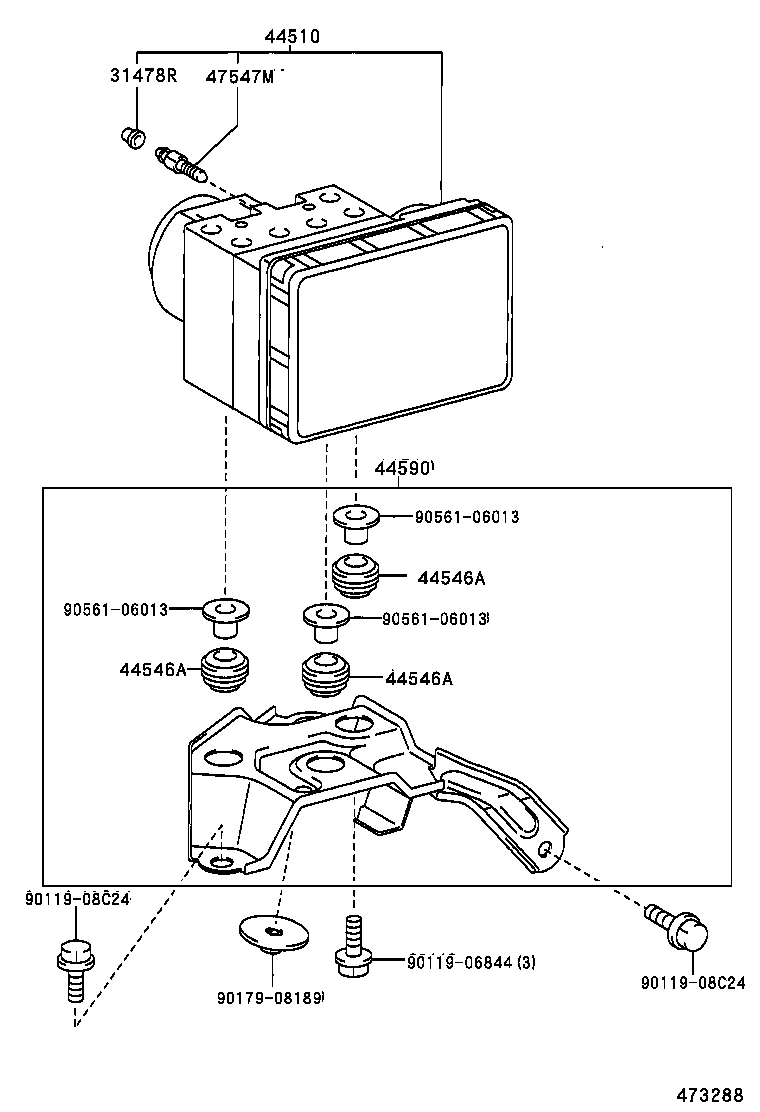

ILLUST NO. 2 OF 2(0008- )ARL,GCC,GEN ; (0507- )20DSA,SESAL
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 31478-30010 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 31478-30010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12132 |
NZE121,ZZE12# |
1 | ||
| 44050-12132 |
CE120,NZE121,ZZE12#..GCC,GEN |
1 | ||
| 44050-12133 |
CE120,NZE121,ZZE12#..GCC,GEN |
1 | ||
| 44050-12133 |
ZZE122..WG..ARL;CE120,NZE121,ZZE12#..GCC,GEN |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
3 | ||
| 44546-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 44546-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
3 | ||
| 44546-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 44546-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
3 | ||
| 44546-12100 |
CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 44546-12100 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-12060 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 44590-12060 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 44590-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 47547-22020 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 47547-22020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90119-08C24 | ||||
| 90179-08189 | ||||
| 90561-06013 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
