ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008- )ARL,GCC,GEN
3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

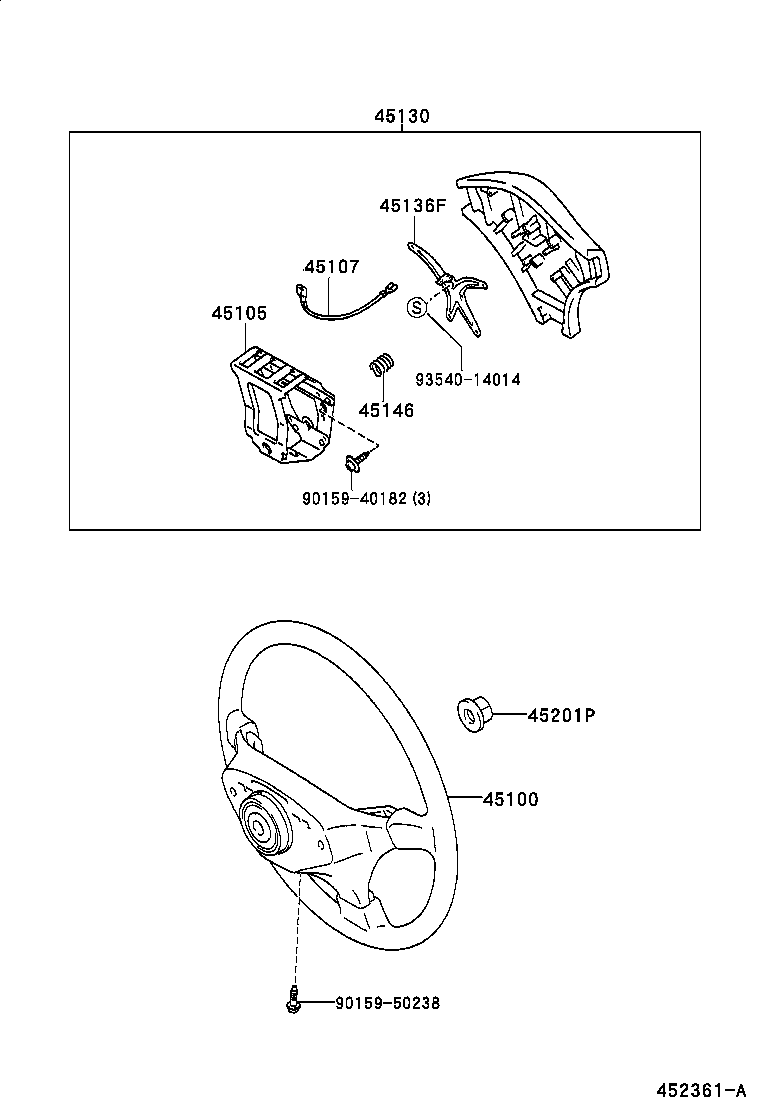

| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12760E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-12760B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-1A030B0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-32420B0 |
ZZE121..LHD..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12760E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-1A030E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-12760B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-32420E0 |
ZZE121..LHD..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-12760E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-32420B2 |
ZZE121..LHD..LX;NZE120,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,DK.GRAY & IVORY,TRIM1# |
1 | ||
| 45100-12760B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-32420E2 |
ZZE121..LHD..LX;NZE120,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,SANDAL WOOD & IVORY,TRIM0# |
1 | ||
| 45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1 | ||||
| 45105-12230 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 45105-12230 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-12010 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 45107-12010 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1A210E0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200E0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A210B0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A320B0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A320E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A320E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A320B0 |
ZZE121..LX;NZE12#,ZZE122..(CONQ,GLI)..(ARL,GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200B0 |
NZE12#,ZZE12#..SED TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45136F - PLATE, HORN BUTTON CONTACT, NO.1 | ||||
| 45136-32130 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 45136-32130 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
1 | ||
| 45146 - SPRING, HORN BUTTON CONTACT | ||||
| 45146-32080 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
3 | ||
| 45146-32080 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN |
3 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90179-12071 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90179-12071 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| Common parts | ||||
| 90159-40182 | ||||
| 90159-50238 | ||||
| 93540-14014 | ||||
(0008- )
4-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12760E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-12760B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-1A030B0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-32420B0 |
ZZE121..LHD..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12760E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-1A030E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-12760B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-32420E0 |
ZZE121..LHD..LX;NZE12#,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-12760E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,SANDAL WOOD,TRIM0# |
1 | ||
| 45100-32420B2 |
ZZE121..LHD..LX;NZE120,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,DK.GRAY & IVORY,TRIM1# |
1 | ||
| 45100-12760B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-32420E2 |
ZZE121..LHD..LX;NZE120,ZZE122..GLI..(GCC,GEN) 4-SPOKE,WOOD&LEATHER,SANDAL WOOD & IVORY,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1A210E0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200E0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A210B0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A320B0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A320E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A320E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A320B0 |
ZZE121..LX;NZE12#,ZZE122..(CONQ,GLI)..(ARL,GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200B0 |
NZE12#,ZZE12#..SED TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-1A210E0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200E0 |
NZE12#,ZZE12# TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..SED..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A210B0 |
ZZE121;NZE121,ZZE122..GLI TYPE B:REFER TO ILLUSTRATION,DK.GRAY,TRIM1# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A320B0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A320E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-1A320E0 |
ZZE121..LX;NZE12#,ZZE122..GLI..(GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45130-12810B3 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A320B0 |
ZZE121..LX;NZE12#,ZZE122..(CONQ,GLI)..(ARL,GCC,GEN) TYPE G:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-1A200B0 |
NZE12#,ZZE12#..SED TYPE A:REFER TO ILLUSTRATION & W(4-SPOKE STEERING WHEEL),DK.GRAY,TRIM1# |
1 | ||
| 45130-12810E1 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GEN W(3-SPOKE STEERING WHEEL),SANDAL WOOD,TRIM0# |
1 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN L=18 |
2 | ||
| 45188-60010 |
CE120,NZE12#,ZZE12#..GCC,GEN L=18 |
2 | ||
| 45188-60010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN L=18 |
2 | ||
| 45188 - SCREW, STEERING WHEEL PAD ATTACHING | ||||
| 45188-60010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN L=18 |
2 | ||
| 45188-60010 |
CE120,NZE12#,ZZE12#..GCC,GEN L=18 |
2 | ||
| 45188-60010 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN L=18 |
2 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90179-12071 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 90179-12071 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| Common parts | ||||
| 90168-40113 | ||||
