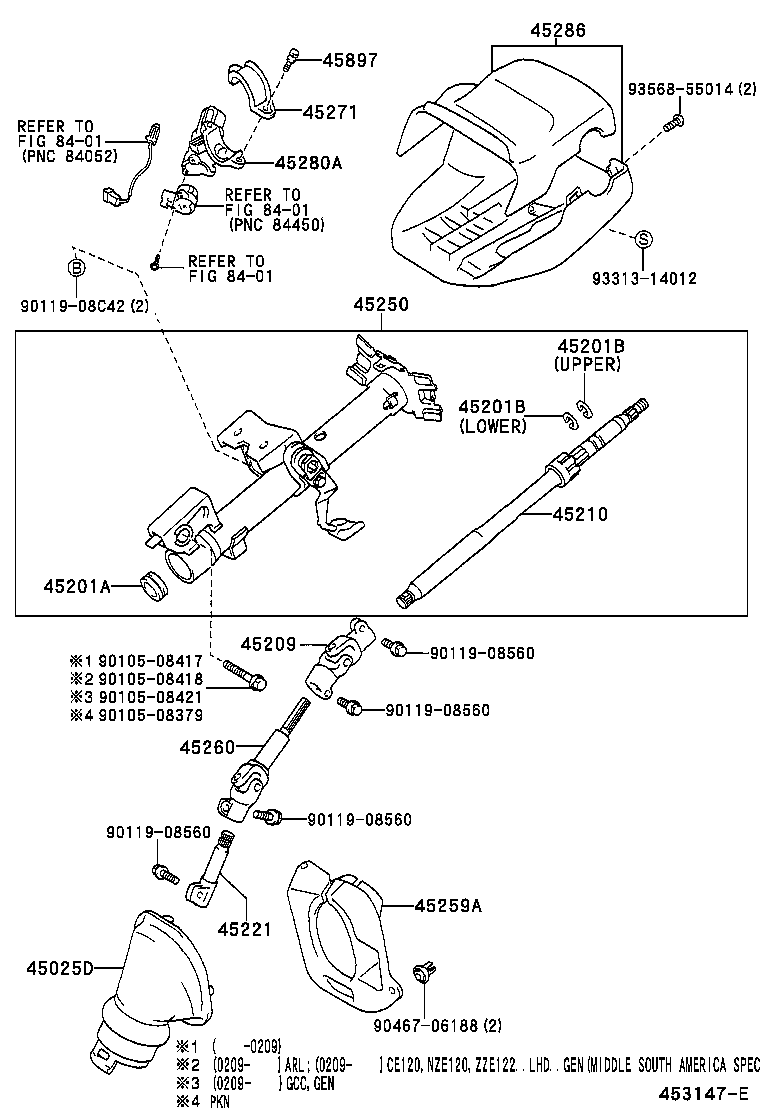

Toyota Corolla/altis sed/wg ZZE122 STEERING COLUMN & SHAFT

Part #	Description	Period	Qty
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-12230	CE120,NZE120,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
45025-12230	CE120,NZE120,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
45025-12230	CE120,NZE120,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
45201A - BEARING(FOR STEERING MAIN SHAFT)
45274-42010	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45274-42010	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45274-42010	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN T=1.20,LOWER	08/2000 - 09/2002	1
90520-17042	CE120,NZE120,ZZE12#..GCC,GEN T=1.20,LOWER	09/2002 - 04/2004	1
90520-17269	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN T=1.20,UPPER	08/2000 - 09/2002	1
90520-17042	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN T=1.20,LOWER	04/2004 - 12/2999	1
90520-17269	CE120,NZE120,ZZE12#..GCC,GEN T=1.20,UPPER	09/2002 - 04/2004	1
90520-17269	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN T=1.20,UPPER	04/2004 - 12/2999	1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN T=1.20,LOWER	08/2000 - 09/2002	1
90520-17042	CE120,NZE120,ZZE12#..GCC,GEN T=1.20,LOWER	09/2002 - 04/2004	1
90520-17269	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN T=1.20,UPPER	08/2000 - 09/2002	1
90520-17042	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN T=1.20,LOWER	04/2004 - 12/2999	1
90520-17269	CE120,NZE120,ZZE12#..GCC,GEN T=1.20,UPPER	09/2002 - 04/2004	1
90520-17269	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN T=1.20,UPPER	04/2004 - 12/2999	1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12150	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
45209-12150	CE120,NZE12#,ZZE12#..RHD	08/2000 - 07/2005	1
45209-12151	NZE121..ATM;NZE121..MTM..LX;ZZE122..WG..ARL;CE120,NZE120,ZZE12#..RHD..GEN	10/2005 - 12/2999	1
45209-12150	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..RHD..(ARL,GEN)	04/2004 - 09/2005	1
45210 - SHAFT ASSY, STEERING MAIN
45210-42020	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
45210-42020	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45210-42020	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45221 - SHAFT, STEERING INTERMEDIATE
45221-12291	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45221-12291	CE120,NZE120,ZZE12#..RHD	08/2000 - 07/2005	1
45221-12291	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN W(POWER STEERING)	04/2004 - 12/2999	1
45250 - COLUMN ASSY, STEERING
45250-1E200	ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
45250-1E200	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45250-1E200	CE120,NZE120,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45259A - SHEET, COLUMN HOLE COVER SILENCER
45259-12010	CE120,NZE12#,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
45259-12010	CE120,NZE12#,ZZE12#..RHD..GEN	08/2000 - 09/2002	1
45259-12010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45260-12460	CE120,NZE120,ZZE12#..RHD	08/2000 - 04/2004	1
45260-12460	CE120,NZE120,ZZE12#..RHD..GEN	09/2002 - 04/2004	1
45260-12461	ZZE122..WG..ARL;CE120,NZE120,ZZE12#..RHD..GEN	04/2004 - 12/2999	1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
45271-16020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
45271-16020	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-52020	ZZE121..MTM..GEN;NZE120,ZZE122..MTM..GCC;CE120,NZE120,ZZE122..RHD..MTM..GEN	08/2000 - 09/2002	1
45280-52020	CE120,NZE120,ZZE12#..MTM..(GCC,GEN)	09/2002 - 04/2004	1
45280-52020	ZZE122..WG..MTM..ARL;CE120,NZE120,ZZE12#..MTM..(GCC,GEN)	04/2004 - 12/2999	1
45286 - COVER, STEERING COLUMN
45286-12968E0	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN SANDAL WOOD,TRIM0#	08/2000 - 09/2002	1
45286-12968B2	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1#	09/2002 - 04/2004	1
45286-12968E0	CE120,NZE12#,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0#	09/2002 - 04/2004	1
45286-12968B2	CE120,NZE12#,ZZE12#..SED..(GCC,GEN) DK.GRAY,TRIM1#	08/2000 - 09/2002	1
45286-12968B2	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..ARL,GCC,GEN DK.GRAY,TRIM1#	04/2004 - 12/2999	1
45286-12968E0	NZE121..ATM;NZE121..MTM..LX;CE120,NZE120,ZZE12#..GCC,GEN SANDAL WOOD,TRIM0#	04/2004 - 12/2999	1
45897 - BOLT, STEERING LOCK SET
45897-12020	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
45897-12020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
45897-12020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
Common parts
90105-08379
90105-08417
90105-08418
90105-08421
90119-08560
90119-08C42
90467-06188
93313-14012
93568-55014
Linked diagrams
8401

ZZE122R-AEMNK (2001)

(0008-0507)CE120,NZE120,ZZE12# ; (0507- )CE120,NZE120,ZZE12#..ARL,GCC,GEN
