Toyota Corolla/altis sed/wg ZZE122 DISC WHEEL & WHEEL CAP

ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007

Engine 1ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601 - WHEEL, DISC
42611-1A450	CE120,NZE12#,ZZE12#..RHD..GEN 14X5.5JJ, #,TYPE B:REFER ILLUST.	08/2000 - 09/2002	4
42611-1A460	CE120,NZE12#,ZZE12#..RHD..GEN 14X5.5JJ,TYPE C:REFER ILLUST.	08/2000 - 09/2002	4
42611-1A490	CE120,NZE12#,ZZE12#..RHD..GEN 14X6JJ,TYPE D:REFER ILLUST.	08/2000 - 09/2002	4
42611-1A510	ZZE12#..RHD..GEN 15X6JJ, #,TYPE F:REFER ILLUST.	08/2000 - 09/2002	4
42611-1A490	NZE121..LX;CE120,NZE120,ZZE12#..GEN 14X6JJ,TYPE D:REFER ILLUST.	09/2002 - 04/2004	4
42611-1A510	ZZE12#..GCC,GEN 15X6JJ, #,TYPE F:REFER ILLUST.	09/2002 - 04/2004	4
42611-1A450	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN 14X5.5JJ, #,TYPE B:REFER ILLUST.	09/2002 - 04/2004	4
42611-1A450	NZE120,ZZE122..GEN;NZE120,ZZE122..WG..GCC;CE120,NZE121,ZZE121..LX,XLI 14X5.5JJ, #,TYPE B:REFER ILLUST.	04/2004 - 12/2999	4
42611-1A490	NZE121..LX;CE120,NZE120,ZZE12#..GEN 14X6JJ,TYPE D:REFER ILLUST.	04/2004 - 12/2999	4
42611-1A510	ZZE12#..GCC,GEN 15X6JJ, #,TYPE F:REFER ILLUST.	04/2004 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A490	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN 14X6JJ,TYPE D:REFER TO ILLUSTRATION	08/2000 - 09/2002	1
42611-1A450	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN 14X5.5JJ, #,TYPE B:REFER TO ILLUSTRATION	08/2000 - 09/2002	1
42611-1A460	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN 14X5.5JJ,TYPE C:REFER TO ILLUSTRATION	08/2000 - 09/2002	1
42611-1A510	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN 15X6JJ, #,TYPE F:REFER ILLUST.	08/2000 - 09/2002	1
42611-1A490	NZE121..LX;CE120,NZE120,ZZE12#..GEN 14X6JJ,TYPE D:REFER ILLUST.	09/2002 - 04/2004	1
42611-1A450	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN 14X5.5JJ, #,TYPE B:REFER ILLUST.	09/2002 - 04/2004	1
42611-1A450	NZE120,ZZE122..GEN;NZE120,ZZE122..WG..GCC;CE120,NZE121,ZZE121..LX,XLI 14X5.5JJ, #,TYPE B:REFER ILLUST.	04/2004 - 12/2999	1
42611-1A490	NZE121..LX;CE120,NZE120,ZZE12#..GEN 14X6JJ,TYPE D:REFER ILLUST.	04/2004 - 12/2999	1
42611-1A510	ZZE12#..GCC,GEN;ZZE122..WG..ARL 15X6JJ, #,TYPE F:REFER ILLUST.	04/2004 - 12/2999	1
42611-1A510	ZZE12#..GCC,GEN 15X6JJ, #,TYPE F:REFER ILLUST.	09/2002 - 04/2004	1
42601C - NUT, HUB (FOR AXLE)
90942-01007	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN TYPE A:REFER ILLUST.	08/2000 - 09/2002	16
90942-01058	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN TYPE D:REFER ILLUST.	08/2000 - 09/2002	16
90942-01058	ZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN TYPE D:REFER ILLUST.	09/2002 - 04/2004	16
90942-01058	ZZE122..GCC,GEN;ZZE122..WG..ARL;CE120,NZE12#,ZZE121..GEN TYPE D:REFER ILLUST.	04/2004 - 12/2999	16
90942-01007	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER ILLUST.	04/2004 - 12/2999	16
90942-01007	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER ILLUST.	09/2002 - 04/2004	16
42601C - NUT, HUB (FOR AXLE)
90942-01007	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN TYPE A:REFER ILLUST.	08/2000 - 09/2002	16
90942-01058	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN TYPE D:REFER ILLUST.	08/2000 - 09/2002	16
90942-01058	ZZE122..GCC,GEN;CE120,NZE12#,ZZE121..GEN TYPE D:REFER ILLUST.	09/2002 - 04/2004	16
90942-01058	ZZE122..GCC,GEN;ZZE122..WG..ARL;CE120,NZE12#,ZZE121..GEN TYPE D:REFER ILLUST.	04/2004 - 12/2999	16
90942-01007	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER ILLUST.	04/2004 - 12/2999	16
90942-01007	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN TYPE A:REFER ILLUST.	09/2002 - 04/2004	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	4
90942-05009	NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
90942-05009	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
90942-05009	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
90942-05009	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
42652 - TIRE
42652-1A480	CE120,NZE12#,ZZE12#..RHD..GEN 175/70R14H	08/2000 - 09/2002	4
42652-1A500	CE120,NZE12#,ZZE12#..RHD..GEN 185/70R14H	08/2000 - 09/2002	4
42652-2B810	ZZE12#..RHD..GEN 195/60R15,*B/S	09/2002 - 03/2004	4
42652-1A480	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14H	09/2002 - 04/2004	4
42652-2B810	ZZE12#..RHD..GEN 195/60R15,*B/S	08/2000 - 09/2002	4
42652-1A500	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 185/70R14H	09/2002 - 04/2004	4
42652-20A10	ZZE12#..RHD..GEN 195/60R15 *B/S	04/2004 - 12/2999	4
42652-1A500	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 185/70R14H	04/2004 - 12/2999	4
42652-1A480	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14H	04/2004 - 12/2999	4
42652-12A90	ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 185/70R14	06/2004 - 12/2999	4
42652-12D80	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14,*T/Y	10/2005 - 12/2999	4
42652-12B20	ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14	06/2004 - 12/2999	4
42652A - TIRE (FOR SPARE)
42652-2B810	ZZE12#..RHD..GEN 195/60R15,*B/S	08/2000 - 09/2002	1
42652-1A480	CE120,NZE12#,ZZE12#..RHD..GEN 175/70R14H	08/2000 - 09/2002	1
42652-1A500	CE120,NZE12#,ZZE12#..RHD..GEN 185/70R14H	08/2000 - 09/2002	1
42652-2B810	ZZE12#..RHD..GEN 195/60R15,*B/S	09/2002 - 03/2004	1
42652-1A500	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 185/70R14H	09/2002 - 04/2004	1
42652-1A480	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14H	09/2002 - 04/2004	1
42652-1A480	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14H	04/2004 - 12/2999	1
42652-20A10	ZZE12#..RHD..GEN 195/60R15 *B/S	04/2004 - 12/2999	1
42652-1A500	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 185/70R14H	04/2004 - 12/2999	1
42652-12D80	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14,*T/Y	10/2005 - 12/2999	1
42652-12B20	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 175/70R14	07/2004 - 12/2999	1
42652-12A90	NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(LX,XLI) 185/70R14	07/2004 - 12/2999	1

ILLUST NO. 2 OF 3(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12710	ZZE12#..GCC,GEN *ALU, NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION	09/2002 - 03/2003	4
42603-12700	NZE121,ZZE121..GEN;CE120,NZE120,ZZE122..RHD..GEN *ALU, NO PAINT REQ.,TYPE A:REFER ILLUST.	08/2000 - 09/2002	4
42603-12710	ZZE12#..GCC,GEN *ALU, NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION	03/2003 - 04/2004	4
42603-12700	NZE121..LX;CE120,NZE120,ZZE12#..GEN *ALU, NO PAINT REQ.,TYPE A:REFER TO ILLUSTRATION	09/2002 - 04/2004	4
42603-12700	NZE121..LX;CE120,NZE120,ZZE12#..GEN *ALU, NO PAINT REQ.,TYPE A:REFER ILLUST.	04/2004 - 12/2999	4
42603-12710	ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN *ALU, NO PAINT REQ.,TYPE B:REFER TO ILLUSTRATION	08/2000 - 09/2002	4
42603-12710	ZZE12#..GCC,GEN;ZZE122..WG..ARL *ALU, NO PAINT REQ.,TYPE B:REFER ILLUST.	04/2004 - 12/2999	4
42621 - CAP, WHEEL
42602-12670	ZZE122..GEN;ZZE122..SED..GCC;NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE121..(LX,XLI)..GEN TYPE D:REFER TO ILLUSTRATION	09/2002 - 04/2004	4
42602-12590	NZE121,ZZE121..GEN;NZE120,ZZE122..SED..GCC;CE120,NZE120,ZZE122..RHD..GEN TYPE A:REFER ILLUST.	08/2000 - 09/2002	4
42602-12670	NZE121..LX;CE120,NZE120,ZZE12#..GEN TYPE D:REFER ILLUST.	04/2004 - 12/2999	4

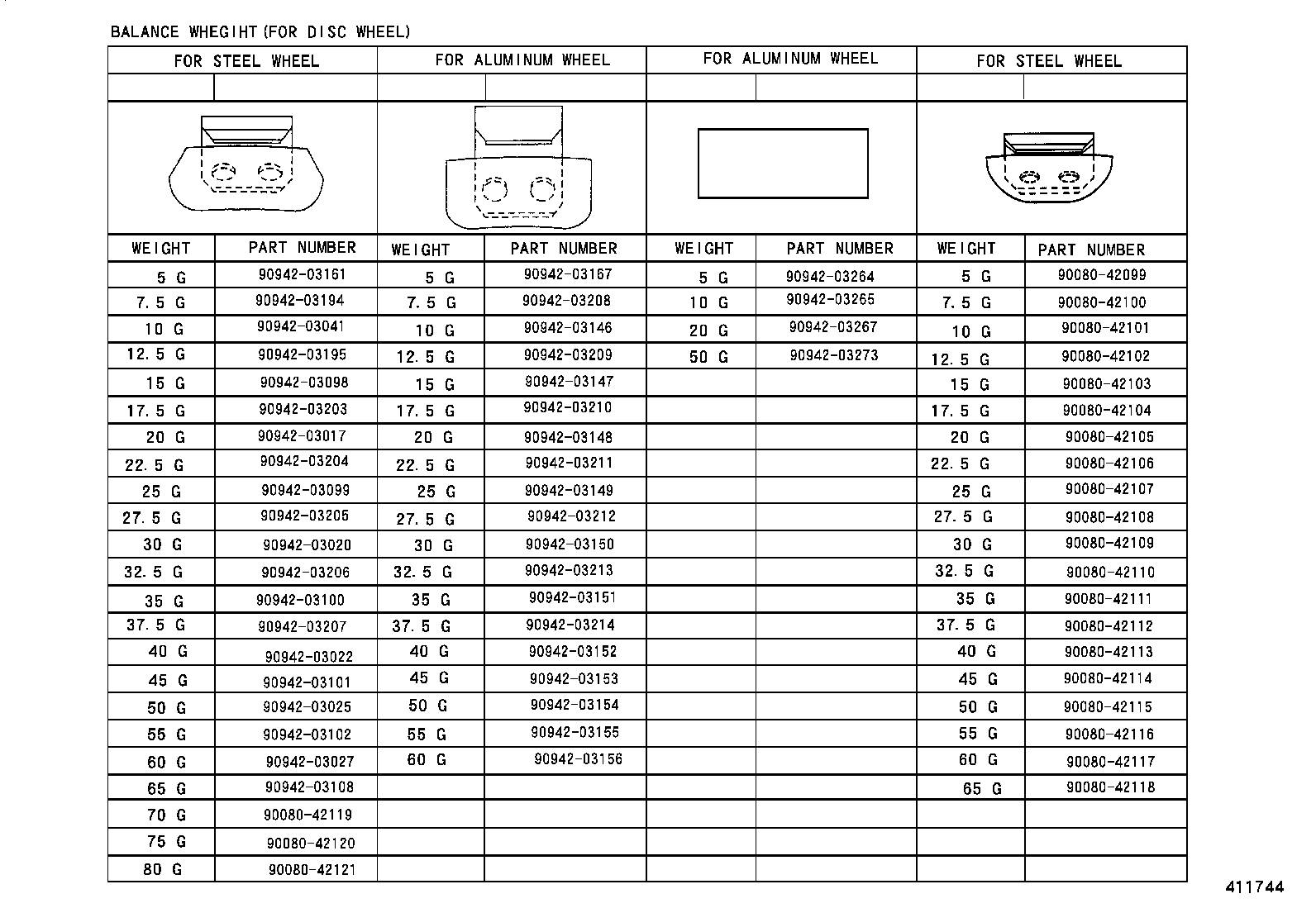

ILLUST NO. 3 OF 3(0008- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90080-42099
90080-42100
90080-42101
90080-42102
90080-42103
90080-42104
90080-42105
90080-42106
90080-42107
90080-42108
90080-42109
90080-42110
90080-42111
90080-42112
90080-42113
90080-42114
90080-42115
90080-42116
90080-42117
90080-42118
90080-42119
90080-42120
90080-42121
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03041
90942-03098
90942-03099
90942-03100
90942-03101
90942-03102
90942-03108
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03161
90942-03167
90942-03194
90942-03195
90942-03203
90942-03204
90942-03205
90942-03206
90942-03207
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03264
90942-03265
90942-03267
90942-03273
