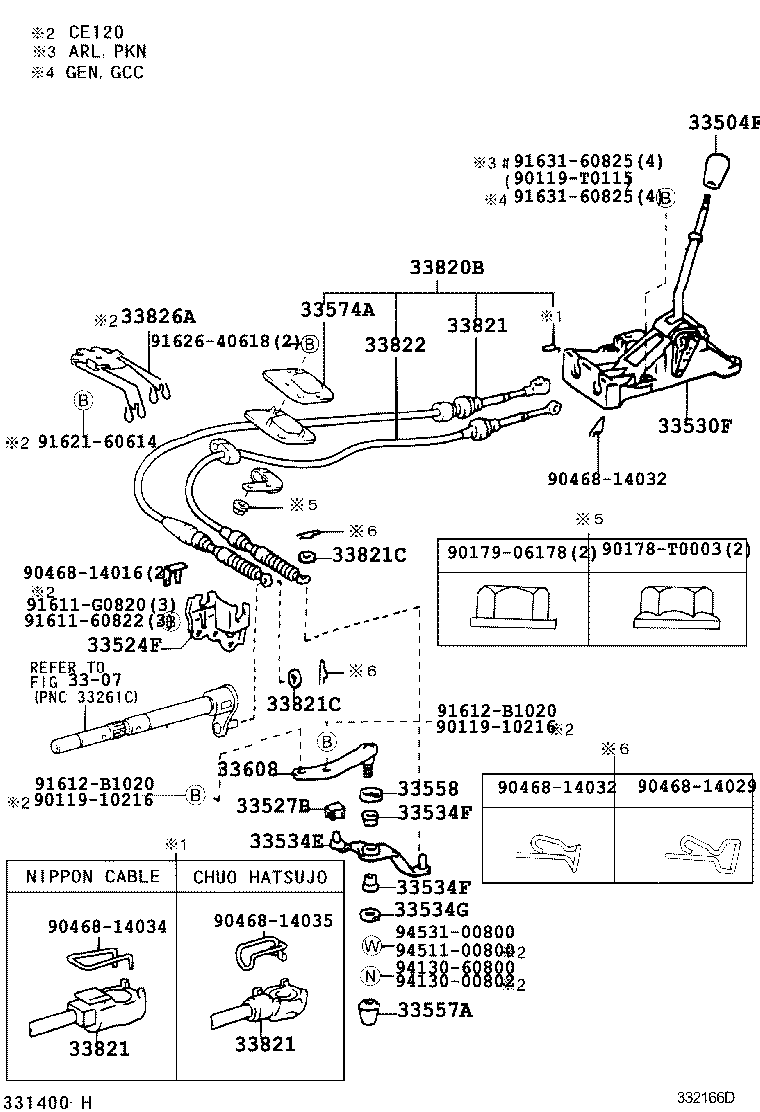

ZZE122R-AEMNK (2001)
Toyota Corolla/Altis Sed/Wg
(0008- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12180B7 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..SED..MTM..(GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 33504-12180B7 |
NZE121..MTM..LX;ZZE122..SED..MTM..GEN;ZZE122..SED..MTM..XLI..GCC;CE120,NZE120,ZZE121..SED..MTM..(GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 33504-22140B2 |
ZZE121..MTM..LX;NZE121,ZZE122..MTM..GLI LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 33504-22140E2 |
ZZE122..MTM..GLI..GCC;ZZE121..MTM..(LX,SESAL);CE120,NZE121,ZZE122..RHD..MTM..(20DSA,GLI) LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 33504-12180L0 |
ZZE121..MTM..LX;NZE120,ZZE122..MTM..GCC;CE120,NZE12#,ZZE122..RHD..MTM..(20D,GLI,LX,XLI) SANDAL WOOD,TRIM0# |
1 | ||
| 33504-22140E2 |
ZZE121..MTM..LX;NZE121,ZZE122..MTM..GLI LEATHER,SANDAL WOOD,TRIM1# |
1 | ||
| 33504-12180L0 |
NZE121..MTM..LX;ZZE122..MTM..GEN;ZZE122..MTM..XLI..GCC;CE120,NZE120,ZZE121..MTM..(GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 33504-22140B2 |
ZZE121..MTM..LX;NZE121,ZZE122..MTM..GLI LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 33504-12180L0 |
NZE121..MTM..LX;ZZE122..MTM..GEN;ZZE122..MTM..XLI..GCC;CE120,NZE120,ZZE121..MTM..(GCC,GEN) SANDAL WOOD,TRIM0# |
1 | ||
| 33504-22140B2 |
ZZE121..MTM..LX;ZZE122..WG..MTM..ARL;NZE121,ZZE122..MTM..GLI LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 33504-22140E2 |
ZZE121..MTM..LX;NZE121,ZZE122..MTM..GLI LEATHER,SANDAL WOOD,TRIM0# |
1 | ||
| 33504-12180B7 |
NZE121..MTM..LX;ZZE122..MTM..XLI..GCC;ZZE122..MTM..(CONQ,GLI,XLI)..(ARL,GEN);CE120,NZE120,ZZE121..SED..MTM..(GCC,GEN) DK.GRAY,TRIM1# |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-42020 |
ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33524-42020 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33527B - BUSH (FOR CONTROL SHIFT LEVER) | ||||
| 33557-33010 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33557-33010 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33557-33010 |
NZE120..MTM..GCC;ZZE121..LHD..MTM;CE120,NZE12#,ZZE122..RHD..MTM..GEN |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12760 |
CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 33530-12760 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 33530-12760 |
CE120,NZE12#,ZZE12#..RHD..MTM..GEN |
1 | ||
| 33534E - CRANK, SELECTING BELL, NO.2 | ||||
| 33534-42010 |
ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33534-42010 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
NZE120..MTM..GCC;ZZE121..LHD..MTM;CE120,NZE12#,ZZE122..RHD..MTM..GEN |
2 | ||
| 90386-12022 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
2 | ||
| 90386-12022 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
NZE120..MTM..GCC;ZZE121..LHD..MTM;CE120,NZE12#,ZZE122..RHD..MTM..GEN |
2 | ||
| 90386-12022 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
2 | ||
| 90386-12022 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 90201-08028 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 90201-08028 |
ZZE121..LHD..MTM..LX;ZZE121..MTM..(SESAL,XLI);CE120,NZE12#,ZZE122..MTM |
1 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
NZE120..MTM..GCC;ZZE121..LHD..MTM;CE120,NZE12#,ZZE122..RHD..MTM..GEN |
1 | ||
| 33557-32010 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33557-32010 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33558-10030 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33558-10030 |
NZE120..MTM..GCC;ZZE121..LHD..MTM;CE120,NZE12#,ZZE122..RHD..MTM..GEN |
1 | ||
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-12090 |
ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN |
1 | ||
| 33574-12090 |
CE120,NZE121,ZZE12#..MTM..(GCC,GEN) NIPPON CABLE |
1 | ||
| 33574-12090 |
ZZE122..WG..MTM..ARL;CE120,NZE121,ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK | ||||
| 33608-42010 |
ZZE121..LHD..MTM..LX;ZZE12#..MTM..(CONQ,GLI,SESAL,ULT,XLI) |
1 | ||
| 33608-42010 |
ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33608-42010 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-1A140 |
ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN |
1 | ||
| 33820-1A140 |
ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33820-1A140 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-1A130 |
ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN |
1 | ||
| 33821-1A130 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-1A130 |
ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN |
1 | ||
| 33821-1A130 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33821-1A130 |
ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN |
1 | ||
| 33821-1A130 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) OD=28 |
2 | ||
| 90201-08077 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) OD=30 |
2 | ||
| 90201-08267 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) OD=28 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08267 |
CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) OD=28 |
2 | ||
| 90201-08077 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) OD=30 |
2 | ||
| 90201-08267 |
ZZE122..WG..MTM..ARL;CE120,NZE12#,ZZE12#..MTM..(GCC,GEN) OD=28 |
2 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33822-12430 |
ZZE121..MTM..GEN;ZZE122..MTM..GCC;ZZE122..RHD..MTM..GEN |
1 | ||
| 33822-12430 |
ZZE122..WG..MTM..ARL;ZZE12#..MTM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-10216 | ||||
| 90119-T0115 | ||||
| 90178-T0003 | ||||
| 90179-06178 | ||||
| 90468-14016 | ||||
| 90468-14029 | ||||
| 90468-14032 | ||||
| 90468-14034 | ||||
| 90468-14035 | ||||
| 91611-60822 | ||||
| 91611-G0820 | ||||
| 91612-B1020 | ||||
| 91621-60614 | ||||
| 91626-40618 | ||||
| 91631-60825 | ||||
| 94130-00802 | ||||
| 94130-60800 | ||||
| 94511-00800 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 3307 | ||||
