ZZE122R-AEMNK (2001)

Toyota Corolla/Altis Sed/Wg

Production Oct 2001 - Aug 2007
Engine 1ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )

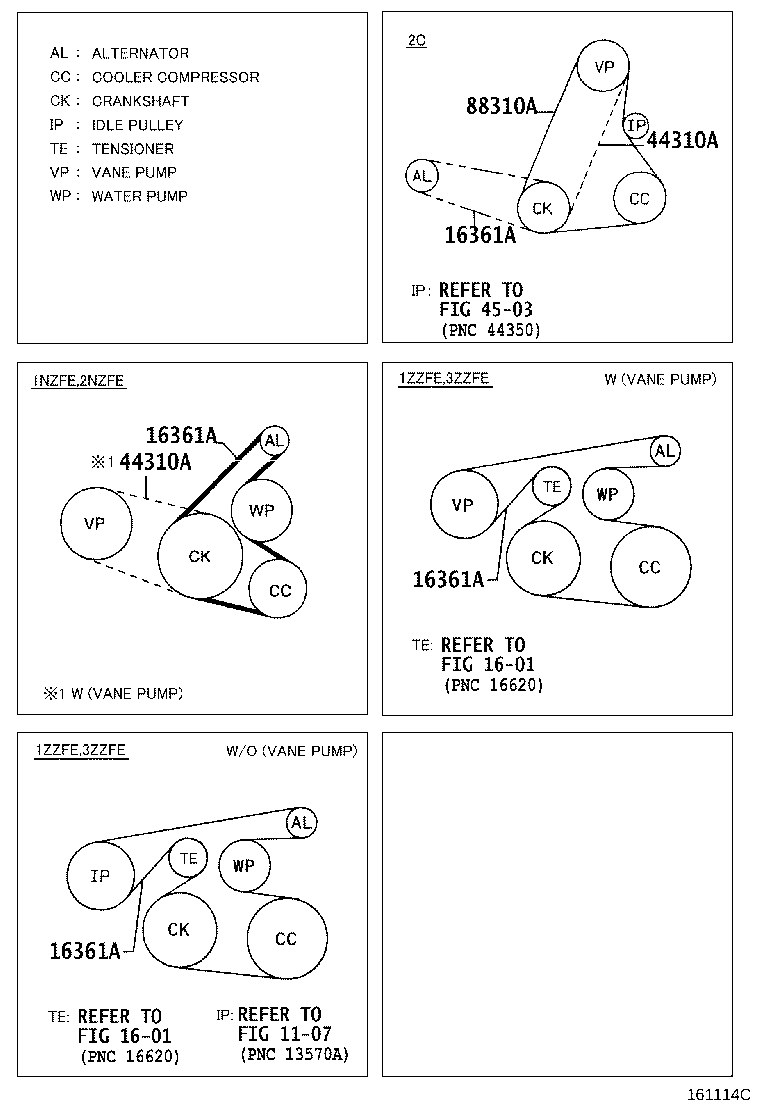

Click highlighted areas on diagram

diagram 1107 1601 1601 16361A 16361A 16361A 16361A 44310A 44310A 4503 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02468

3ZZFE..ZZE121..GEN;1ZZFE..ZZE122..RHD;1ZZFE..ZZE122..GCC;1ZZFE..ZZE122..LHD..WG..GEN;1ZZFE..ZZE122..LHD..GLI..GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02506

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02468

3ZZFE..ZZE121..GEN;1ZZFE..ZZE122..RHD;1ZZFE..ZZE122..GCC;1ZZFE..ZZE122..LHD..WG..GEN;1ZZFE..ZZE122..LHD..GLI..GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02506

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02468

3ZZFE..ZZE121..GEN;1ZZFE..ZZE122..RHD;1ZZFE..ZZE122..GCC;1ZZFE..ZZE122..LHD..WG..GEN;1ZZFE..ZZE122..LHD..GLI..GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02506

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02468

3ZZFE..ZZE121..GEN;1ZZFE..ZZE122..RHD;1ZZFE..ZZE122..GCC;1ZZFE..ZZE122..LHD..WG..GEN;1ZZFE..ZZE122..LHD..GLI..GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02506

1ZZFE,3ZZFE..ZZE12#

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02551

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
90916-02468

1ZZFE,3ZZFE..ZZE12#..ARL,GCC,GEN

W(POWER STEERING) & W/O(AIR CONDITIONER)

 1
