ZZE122L-AWPDKV (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Sep 2006
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0404)ZZE122..SED ; (0008-0404)ZZE122..WG..XLI ; (0008-0404)CE120,NZE12#,ZZE12

Click highlighted areas on diagram

diagram 827111A750 827111A770 86300 9015040007
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-12720

CE120,NZE12#,ZZE12#..GCC,GEN

 1
86300-12720

NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN

 1
Common parts
82711-1A750
82711-1A770
90150-40007

(0110- )WG..ARL ; (0404- )WG..XLI

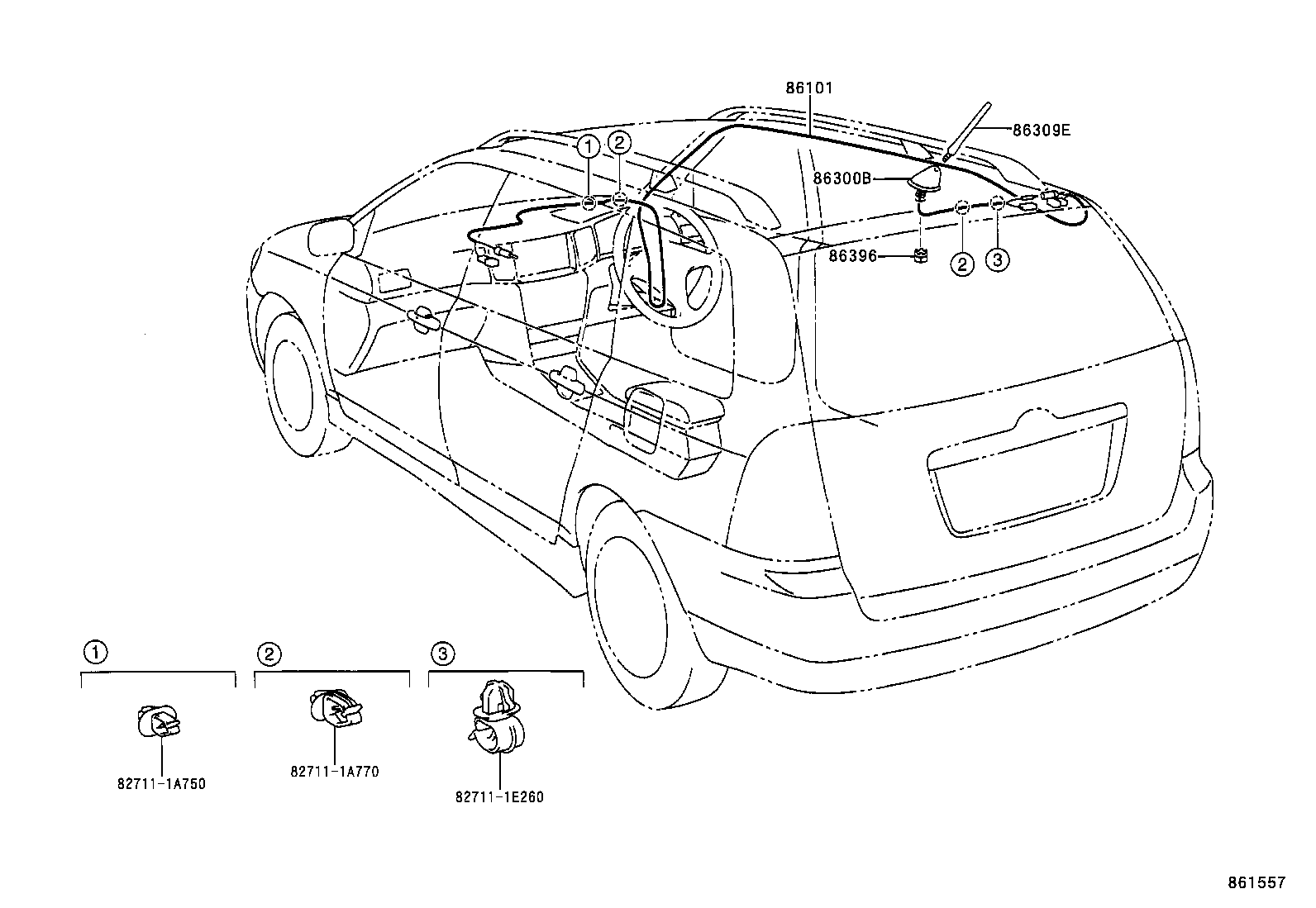

Click highlighted areas on diagram

diagram 827111A750 827111A770 827111E260 86101 86300B 86309E 86396
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-12330

NZE120,ZZE122..WG

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-12790

NZE120,ZZE122..WG

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-13010

NZE120,ZZE122..WG

 1
86396 - NUT, ANTENNA
86396-12030

NZE120,ZZE122..WG

 1
Common parts
82711-1A750
82711-1A770
82711-1E260
