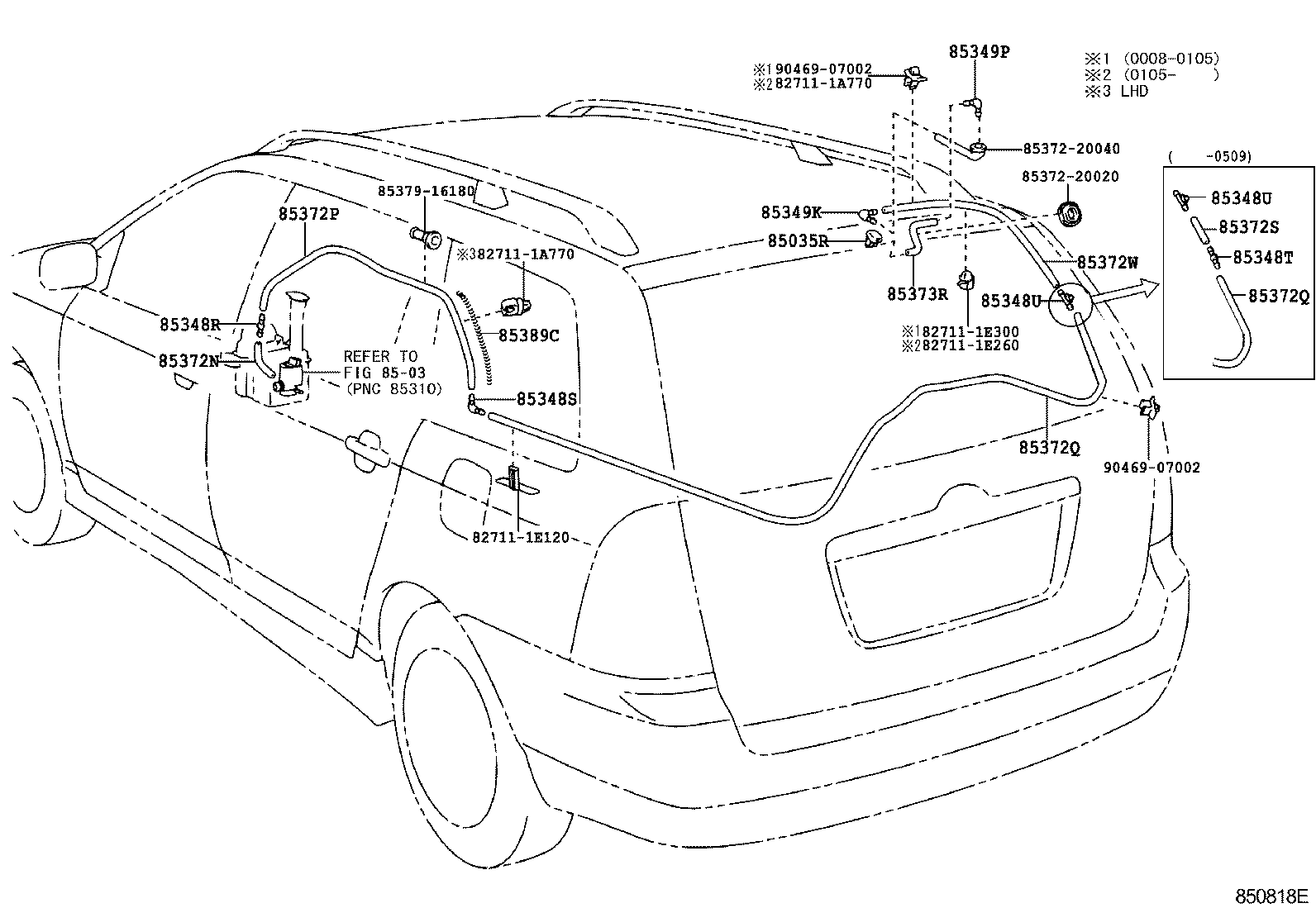

Toyota Corolla/altis sed/wg ZZE122 REAR WASHER

Part #	Description	Period	Qty
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-13010	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85391-13010	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85391-13010	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85375-10260	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85375-10260	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-20200	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85355-20200	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85355-20200	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85375-10260	NZE120,ZZE122..WG	04/2004 - 09/2005	1
85375-10260	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-20800	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85375-20800	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85375-20800	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85348U - JOINT, REAR WASHER HOSE, NO.3
85375-20800	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85375-20800	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85375-20800	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85355-20200	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85355-20200	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
85355-20200	NZE120,ZZE122..WG	04/2004 - 09/2006	1
85355-20200	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-33080	NZE120,ZZE122..WG *H,L=70	04/2004 - 09/2006	1
90099-33080	NZE120,ZZE122..WG..XLI *H,L=70	09/2002 - 04/2004	1
90099-33080	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=70	08/2000 - 09/2002	1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=1470	05/2001 - 09/2002	1
90446-07001	NZE120,ZZE122..WG *H,L=1470	04/2004 - 09/2006	1
90099-59086	NZE120,ZZE122..WG L=1420	08/2000 - 05/2001	1
90446-07001	NZE120,ZZE122..WG..XLI *H,L=1470	09/2002 - 04/2004	1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33589	NZE120,ZZE122..WG *H,L=3140	09/2005 - 09/2006	1
90099-33589	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=3090	08/2000 - 09/2002	1
90099-33589	NZE120,ZZE122..WG..XLI *H,L=3090	09/2002 - 04/2004	1
90099-33589	NZE120,ZZE122..WG *H,L=3090	04/2004 - 08/2005	1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-33589	NZE120,ZZE122..WG *H,L=3140	09/2005 - 09/2006	1
90099-33589	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=3090	08/2000 - 09/2002	1
90099-33589	NZE120,ZZE122..WG..XLI *H,L=3090	09/2002 - 04/2004	1
90099-33589	NZE120,ZZE122..WG *H,L=3090	04/2004 - 08/2005	1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-33080	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=40	08/2000 - 09/2002	1
90099-33080	NZE120,ZZE122..WG *H,L=40	04/2004 - 09/2005	1
90099-33080	NZE120,ZZE122..WG..XLI *H,L=40	09/2002 - 04/2004	1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90446-07001	NZE120,ZZE122..WG..XLI *H,L=640	09/2002 - 04/2004	1
90446-07001	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=640	08/2000 - 09/2002	1
90446-07001	NZE120,ZZE122..WG *H,L=640	04/2004 - 09/2006	1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299	NZE120,ZZE122..WG..XLI *H,L=230	09/2002 - 04/2004	1
90099-33299	NZE120,ZZE122..WG *H,L=230	04/2004 - 09/2006	1
90099-33080	NZE120,ZZE122..WG *H,L=230	08/2000 - 04/2001	1
90099-33299	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC *H,L=230	04/2001 - 09/2002	1
85389C - PROTECTOR, WASHER
85389-12010	NZE120,ZZE122..WG	09/2005 - 09/2006	1
Common parts
82711-1A770
82711-1E120
82711-1E260
82711-1E300
85372-20020
85372-20040
85379-16180
90469-07002
Linked diagrams
8503

ZZE122L-AWPDKV (2000)

(0008- )WG
