ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg

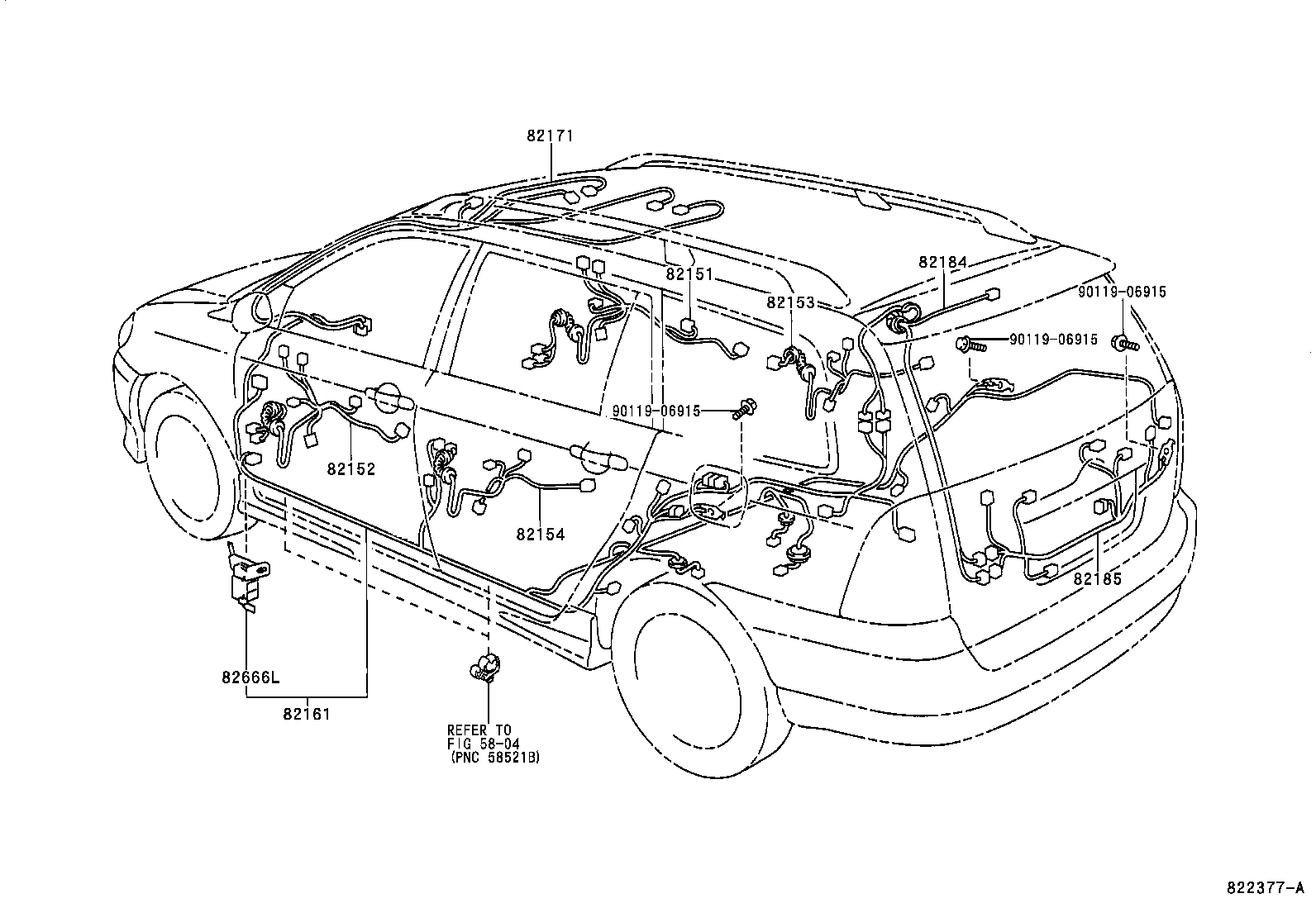

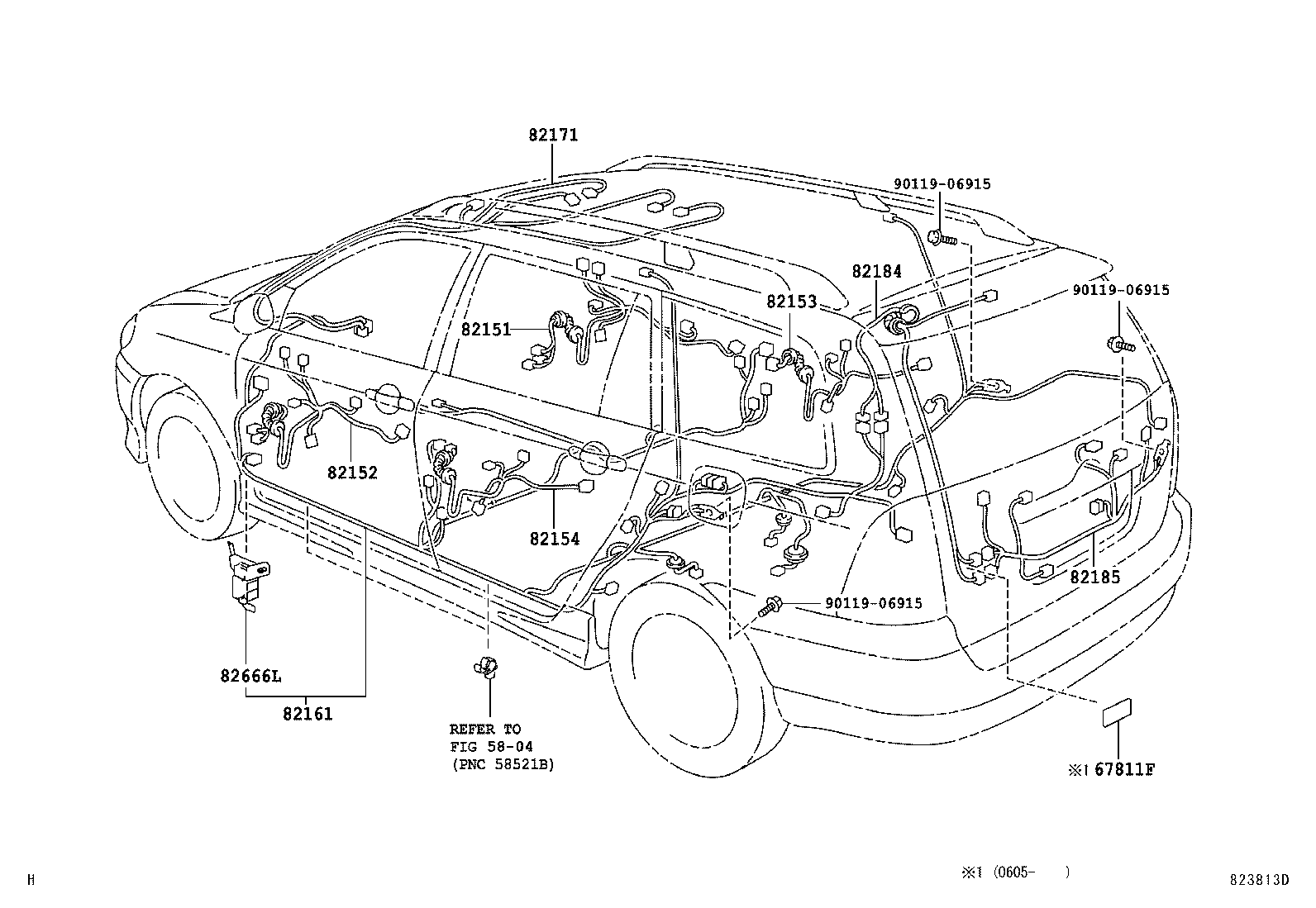

ILLUST NO. 4 OF 8(0008-0404)WG
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1E180 |
ZZE121..XLI;NZE120,ZZE122..XLI..GCC;CE120,NZE120,ZZE122..RHD..XLI..GEN |
1 | ||
| 82151-1E190 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82151-1E260 |
ZZE121..LHD;NZE120,ZZE122..GCC W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-1E250 |
ZZE121..XLI;NZE120,ZZE122..GCC W(POWER DOOR LOCK) |
1 | ||
| 82151-1E250 |
ZZE122..GCC;ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI W(POWER DOOR LOCK) |
1 | ||
| 82151-1E180 |
CE120,NZE120,ZZE12#..XLI..(GCC,GEN) |
1 | ||
| 82151-1E190 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82151-1E260 |
CE120,NZE120,ZZE12#..LHD W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-1E190 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82151-1E180 |
ZZE121..XLI;NZE120,ZZE122..XLI..GCC;CE120,NZE120,ZZE122..RHD..XLI..GEN |
1 | ||
| 82152-1A770 |
ZZE121..XLI;NZE120,ZZE122..GCC W(POWER DOOR LOCK) |
1 | ||
| 82152-1A780 |
ZZE121..LHD;NZE120,ZZE122..GCC W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-1A770 |
ZZE122..GCC;ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI W(POWER DOOR LOCK) |
1 | ||
| 82151-1E180 |
CE120,NZE120,ZZE12#..XLI..(GCC,GEN) |
1 | ||
| 82151-1E190 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82152-1A780 |
CE120,NZE120,ZZE12#..LHD W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12390 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-12400 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12390 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-12390 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-12400 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(REAR SPEAKER) |
1 | ||
| 82153-12390 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1F830 |
NZE120,ZZE122..WG..GCC W(ABS) |
1 | ||
| 82161-1F820 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 82161-13A30 |
NZE120,ZZE122..LHD..WG W(*80,DRIVER SIDE ONLY) |
1 | ||
| 82199-13250 |
NZE120,ZZE122..LHD..WG W(ABS) |
1 | ||
| 82199-13240 |
NZE120,ZZE122..LHD..WG |
1 | ||
| 82161-13A40 |
NZE120,ZZE122..LHD..WG W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-1A030 |
ZZE121..LHD;NZE120,ZZE122..GCC |
1 | ||
| 82171-1A040 |
ZZE121..LHD;NZE120,ZZE122..GCC W(MOON ROOF) |
1 | ||
| 82171-1A050 |
ZZE121..LHD;NZE120,ZZE122..GCC W(KEY LESS ENTRY) |
1 | ||
| 82171-1A060 |
ZZE121..LHD;NZE120,ZZE122..GCC W(KEY LESS ENTRY & MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13420 |
ZZE122..WG..GCC W/O(REAR SPOILER) |
1 | ||
| 82184-13410 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 82184-13420 |
ZZE122..WG..GCC W/O(REAR SPOILER) |
1 | ||
| 82184-13500 |
NZE120,ZZE122..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13550 |
NZE120,ZZE122..WG |
1 | ||
| 82185-13560 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 82185-13720 |
NZE120,ZZE122..WG |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02120 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN (L) |
1 | ||
| 82666-12330 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN (J) |
1 | ||
| 82666-02120 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO. 1 OF 8(0008- )NZE12#,ZZE12#
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1K570 |
NZE120,ZZE122..GCC W(ABS & *80, DRIVER SIDE) OR W(ABS & *80, DRIVER & PASSENGER SIDE) |
1 | ||
| 82111-1K560 |
NZE120,ZZE122..GCC |
1 | ||
| 82111-1K571 |
ZZE121..LHD;NZE120,ZZE122..GCC W(ABS & *80, DRIVER SIDE) OR W(ABS & *80, DRIVER & PASSENGER SIDE) |
1 | ||
| 82111-1K561 |
NZE120,ZZE122..GCC |
1 | ||
| 82111-1L120 |
NZE120,ZZE12#..LHD W(*80) |
1 | ||
| 82111-1L140 |
NZE120,ZZE12#..LHD W(ABS & *80) |
1 | ||
| 82111-1L141 |
NZE120,ZZE12#..LHD W(ABS & *80) |
1 | ||
| 82111-12E50 |
NZE120,ZZE12#..LHD W(*80) |
1 | ||
| 82111-12E60 |
NZE120,ZZE12#..LHD W(ABS & *80) |
1 | ||
| 82111-1L121 |
NZE120,ZZE12#..LHD W(*80) |
1 | ||
| 82111-12E80 |
NZE120,ZZE122..GCC W(ABS & HEADLAMP LEVELING) |
1 | ||
| 82111-12E70 |
NZE120,ZZE122..GCC W(HEADLAMP LEVELING) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
ZZE121..LHD;ZZE122..GCC 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN 40A,TERM.:FEMALE,GRN,TAIHEIYO |
1 | ||
| 90982-08246 |
ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN 100A,TERM.:MALE,BLUE,TAIHEIYO |
1 | ||
| 90982-08283 |
ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08280 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08281 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08246 |
CE120,NZE12#,ZZE12#..GCC,GEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08283 |
CE120,NZE12#,ZZE12#..GCC,GEN 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08284 |
CE120,NZE12#,ZZE12#..GCC,GEN 40A,TERM.:FEMALE,GRN,TAIHEIYO |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12300 |
NZE120,ZZE122..GCC |
1 | ||
| 82824-12300 |
NZE121..LX;NZE121..MTM..GLI;CE120,NZE120,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 8(0008- )ZZE12#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-1T700 |
ZZE122..ATM..XLI |
1 | ||
| 82139-12020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC & W(POWER STEERING) |
1 | ||
| 82121-1T600 |
ZZE122..ATM W(POWER STEERING) |
1 | ||
| 82139-12040 |
ZZE122..ATM..XLI..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82139-12021 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC & W(POWER STEERING) |
1 | ||
| 82139-12041 |
ZZE122..ATM..XLI..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82121-1T601 |
ZZE122..LHD..ATM W(POWER STEERING) |
1 | ||
| 82121-1T701 |
ZZE122..LHD..ATM..XLI |
1 | ||
| 82121-1T701 |
ZZE122..LHD..ATM..XLI |
1 | ||
| 82121-1T601 |
ZZE122..LHD..ATM W(POWER STEERING) |
1 | ||
| 82139-12041 |
ZZE122..ATM..XLI..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82139-12021 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC & W(POWER STEERING) |
1 | ||
| 82121-12C20 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82121-12C10 |
ZZE122..LHD..ATM |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12350 |
ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN |
1 | ||
| 82123-12360 |
ZZE122..WG..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82123-12360 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82123-12350 |
ZZE12#..GCC,GEN |
1 | ||
| 82123-12360 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02030 |
ZZE122..GCC (L) |
1 | ||
| 82124-02030 |
ZZE12#..GCC,GEN (L) |
1 | ||
| 82124-32050 |
ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN |
1 | ||
| 82124-32050 |
ZZE12#..GCC,GEN (J) |
1 | ||
| 82124-32050 |
ZZE12#..GCC,GEN |
1 | ||
| 82124-32050 |
ZZE122..GCC (J) |
1 | ||
| 82124-32050 |
ZZE12#..GCC,GEN |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12090 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 82823-12090 |
ZZE122..GCC |
1 | ||
| 82823-12090 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NZE12#,ZZE12# |
1 | ||
| 82823-22050 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82823-22050 |
NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12090 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..GEN |
1 | ||
| 82991-12090 |
ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90116-06127 | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90119-T0003 | ||||
| 91635-G0616 | ||||
| 91643-80614 | ||||
| 94150-80640 | ||||
ILLUST NO. 3 OF 8(0008- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1T300 |
ZZE122 PART NUMBER LABEL=82141-1T300 |
1 | ||
| 82141-1T280 |
ZZE122..GCC PART NUMBER LABEL=82141-1T280 |
1 | ||
| 82141-1T310 |
ZZE122 PART NUMBER LABEL=82141-1T310 |
1 | ||
| 82141-1T290 |
ZZE122..GCC PART NUMBER LABEL=82141-1T290 |
1 | ||
| 82141-1T400 |
ZZE122..GCC PART NUMBER LABEL=82141-1T400 |
1 | ||
| 82141-1T410 |
ZZE122..GCC PART NUMBER LABEL=82141-1T410 |
1 | ||
| 82141-1T281 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1T281 |
1 | ||
| 82141-1T291 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1T291 |
1 | ||
| 82141-1T401 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1T401 |
1 | ||
| 82141-1T411 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1T411 |
1 | ||
| 82141-1T301 |
ZZE12#..LHD PART NUMBER LABEL=82141-1T301 |
1 | ||
| 82141-1T311 |
ZZE12#..LHD PART NUMBER LABEL=82141-1T311 |
1 | ||
| 82141-1Y180 |
ZZE12#..LHD PART NUMBER LABEL=82141-1Y180 |
1 | ||
| 82141-1Y200 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1Y200 |
1 | ||
| 82141-1Y190 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1Y190 |
1 | ||
| 82141-1Y181 |
ZZE12#..LHD PART NUMBER LABEL=82141-1Y181 |
1 | ||
| 82141-1Y201 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1Y201 |
1 | ||
| 82141-1Y191 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-1Y191 |
1 | ||
| 82141-12V70 |
ZZE12#..LHD PART NUMBER LABEL=82141-12V70 |
1 | ||
| 82141-12V80 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-12V80 |
1 | ||
| 82141-12V90 |
ZZE122..GCC;ZZE121..LHD..ATM..LX PART NUMBER LABEL=82141-12V90 |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-12140 |
CE120,NZE120,ZZE12#..LHD W(*80,DRIVER SIDE ONLY) |
1 | ||
| 82143-12120 |
CE120,NZE120,ZZE12#..LHD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82144 - WIRE, INSTRUMENT PANEL, NO.4 | ||||
| 82144-12060 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 82144-12060 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08281 |
ZZE121..LHD;ZZE122..GCC 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08284 |
ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN 40A,TERM.:FEMALE,GRN,TAIHEIYO |
1 | ||
| 90982-08246 |
ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN 100A,TERM.:MALE,BLUE,TAIHEIYO |
1 | ||
| 90982-08283 |
ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GLI,XLI)..GEN 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08280 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK,YAZAKI |
1 | ||
| 90982-08281 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN,YAZAKI |
1 | ||
| 90982-08246 |
CE120,NZE12#,ZZE12#..GCC,GEN 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08283 |
CE120,NZE12#,ZZE12#..GCC,GEN 30A,TERM.:FEMALE,PNK,TAIHEIYO |
1 | ||
| 90982-08284 |
CE120,NZE12#,ZZE12#..GCC,GEN 40A,TERM.:FEMALE,GRN,TAIHEIYO |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12280 |
ZZE121..LHD;NZE120,ZZE122..GCC (J) |
1 | ||
| 82666-02090 |
ZZE121..LHD;NZE120,ZZE122..GCC (L) |
1 | ||
| 82666-02090 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
ZZE121..LHD;NZE120,ZZE122..GCC (L) |
2 | ||
| 82666-02070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 82666-12260 |
ZZE121..LHD;NZE120,ZZE122..GCC (J) |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-02070 |
ZZE121..LHD;NZE120,ZZE122..GCC (L) |
2 | ||
| 82666-02070 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
2 | ||
| 82666-12260 |
ZZE121..LHD;NZE120,ZZE122..GCC (J) |
2 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12300 |
ZZE121..LHD;NZE120,ZZE122..GCC (J) |
1 | ||
| 82666-02100 |
ZZE121..LHD;NZE120,ZZE122..GCC (L) |
1 | ||
| 82666-02100 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-02080 |
ZZE121..LHD;NZE120,ZZE122..GCC (L) |
1 | ||
| 82666-12270 |
ZZE121..LHD;NZE120,ZZE122..GCC (J) |
1 | ||
| 82666-02080 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-12320 |
CE120,NZE120,ZZE12#..LHD |
1 | ||
| 82666-12320 |
ZZE121..LHD;NZE120,ZZE122..GCC |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A760 |
NZE12#,ZZE12# |
2 | ||
| 82817-1A761 |
ZZE121..LHD;NZE120,ZZE122..GCC RH |
1 | ||
| 82817-1A830 |
ZZE121..LHD;NZE120,ZZE122..GCC LH |
1 | ||
| 82817-1A761 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 82817-1A830 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A760 |
NZE12#,ZZE12# |
2 | ||
| 82817-1A761 |
ZZE121..LHD;NZE120,ZZE122..GCC RH |
1 | ||
| 82817-1A830 |
ZZE121..LHD;NZE120,ZZE122..GCC LH |
1 | ||
| 82817-1A761 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH |
1 | ||
| 82817-1A830 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50295 | ||||
| 90159-70003 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 8(0008- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-35470 | ||||
| 82711-3F230 | ||||
| 82715-12420 | ||||
| 82715-12540 | ||||
| 82715-12570 | ||||
| 82715-12580 | ||||
| 82715-12590 | ||||
| 82715-12610 | ||||
| 82715-12620 | ||||
| 82715-12630 | ||||
| 82715-12640 | ||||
| 82715-12660 | ||||
| 82715-12680 | ||||
| 82715-12700 | ||||
| 82715-12710 | ||||
| 82715-12720 | ||||
| 82715-12800 | ||||
| 82715-13150 | ||||
| 82715-20430 | ||||
| 82715-20810 | ||||
| 82715-32390 | ||||
| 82715-33140 | ||||
| 82715-33570 | ||||
| 82715-42550 | ||||
| 82715-42560 | ||||
| 82715-42580 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52120 | ||||
| 82715-52140 | ||||
| 82715-52170 | ||||
| 82715-52330 | ||||
| 82715-52370 | ||||
| 82715-52C50 | ||||
| 82729-20010 | ||||
| 90105-08096 | ||||
| 90119-06539 | ||||
| 90119-T0029 | ||||
| 90949-01C15 | ||||
| 91512-B1016 | ||||
| 91611-B0816 | ||||
| 91621-60614 | ||||
| 91621-J0612 | ||||
| 91641-C0614 | ||||
| 91651-60612 | ||||
| 91651-B0610 | ||||
| 91651-B0614 | ||||
| 91651-B0618 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
ILLUST NO. 7 OF 8(0008- )NZE12#,ZZE12#
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07181 |
ZZE122..ATM..GCC GCC SPEC,NO.2 |
1 | ||
| 90080-82049 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(L) |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07407 |
NZE121..MTM;ZZE12#..LHD..XLI;NZE120..LHD..MTM..XLI NO.2 |
1 | ||
| 90980-07407 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(J) |
1 | ||
| 90980-07407 |
ZZE12#..GCC,GEN;ZZE122..WG..MTM..ARL;NZE12#..MTM..(GCC,GEN) NO.2 |
1 | ||
| 90980-07109 |
ZZE12#..GCC,GEN;ZZE122..WG..ARL NO.1 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07109 |
ZZE12# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07181 |
ZZE122..ATM..GCC GCC SPEC,NO.2 |
1 | ||
| 90080-82049 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(L) |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07407 |
NZE121..MTM;ZZE12#..LHD..XLI;NZE120..LHD..MTM..XLI NO.2 |
1 | ||
| 90980-07407 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(J) |
1 | ||
| 90980-07407 |
ZZE12#..GCC,GEN;ZZE122..WG..MTM..ARL;NZE12#..MTM..(GCC,GEN) NO.2 |
1 | ||
| 90980-07109 |
ZZE12#..GCC,GEN;ZZE122..WG..ARL NO.1 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07109 |
ZZE12# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07181 |
ZZE122..ATM..GCC GCC SPEC,NO.2 |
1 | ||
| 90080-82049 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(L) |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07407 |
NZE121..MTM;ZZE12#..LHD..XLI;NZE120..LHD..MTM..XLI NO.2 |
1 | ||
| 90980-07407 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(J) |
1 | ||
| 90980-07407 |
ZZE12#..GCC,GEN;ZZE122..WG..MTM..ARL;NZE12#..MTM..(GCC,GEN) NO.2 |
1 | ||
| 90980-07109 |
ZZE12#..GCC,GEN;ZZE122..WG..ARL NO.1 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07109 |
ZZE12# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07181 |
ZZE122..ATM..GCC GCC SPEC,NO.2 |
1 | ||
| 90080-82049 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(L) |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07407 |
NZE121..MTM;ZZE12#..LHD..XLI;NZE120..LHD..MTM..XLI NO.2 |
1 | ||
| 90980-07407 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(J) |
1 | ||
| 90980-07407 |
ZZE12#..GCC,GEN;ZZE122..WG..MTM..ARL;NZE12#..MTM..(GCC,GEN) NO.2 |
1 | ||
| 90980-07109 |
ZZE12#..GCC,GEN;ZZE122..WG..ARL NO.1 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07109 |
ZZE12# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07181 |
ZZE122..ATM..GCC GCC SPEC,NO.2 |
1 | ||
| 90080-82049 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(L) |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07407 |
NZE121..MTM;ZZE12#..LHD..XLI;NZE120..LHD..MTM..XLI NO.2 |
1 | ||
| 90980-07407 |
NZE120..MTM;ZZE121..MTM..PKN;ZZE12#..ARL,GCC,GEN NO.2,(J) |
1 | ||
| 90980-07407 |
ZZE12#..GCC,GEN;ZZE122..WG..MTM..ARL;NZE12#..MTM..(GCC,GEN) NO.2 |
1 | ||
| 90980-07109 |
ZZE12#..GCC,GEN;ZZE122..WG..ARL NO.1 |
1 | ||
| 90980-07411 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NO.2 |
1 | ||
| 90980-07109 |
ZZE12# NO.1 |
1 | ||
| Common parts | ||||
| 87616-22010 | ||||
| 90119-06915 | ||||
| 90119-10550 | ||||
| 91512-B1016 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80612 | ||||
ILLUST NO. 4 OF 8(0404- )WG
DOOR,ROOF & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67811F - PAD, FRONT DOOR SILENCER | ||||
| 67811-22070 |
NZE120,ZZE122..WG |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1E180 |
ZZE121..XLI;NZE120,ZZE122..XLI..GCC;CE120,NZE120,ZZE122..RHD..XLI..GEN |
1 | ||
| 82151-1E190 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82151-1E260 |
ZZE121..LHD;NZE120,ZZE122..GCC W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82151-1E250 |
ZZE121..XLI;NZE120,ZZE122..GCC W(POWER DOOR LOCK) |
1 | ||
| 82151-1E250 |
ZZE122..GCC;ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI W(POWER DOOR LOCK) |
1 | ||
| 82151-1E180 |
CE120,NZE120,ZZE12#..XLI..(GCC,GEN) |
1 | ||
| 82151-1E190 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82151-1E260 |
CE120,NZE120,ZZE12#..LHD W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-1E190 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82151-1E180 |
ZZE121..XLI;NZE120,ZZE122..XLI..GCC;CE120,NZE120,ZZE122..RHD..XLI..GEN |
1 | ||
| 82152-1A770 |
ZZE121..XLI;NZE120,ZZE122..GCC W(POWER DOOR LOCK) |
1 | ||
| 82152-1A780 |
ZZE121..LHD;NZE120,ZZE122..GCC W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82152-1A770 |
ZZE122..GCC;ZZE122..LHD..XLI..GEN;CE120,NZE120,ZZE121..LHD..XLI W(POWER DOOR LOCK) |
1 | ||
| 82151-1E180 |
CE120,NZE120,ZZE12#..XLI..(GCC,GEN) |
1 | ||
| 82151-1E190 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(ELECTRIC RETRACTABLE MIRROR) |
1 | ||
| 82152-1A780 |
CE120,NZE120,ZZE12#..LHD W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12390 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-12400 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12390 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-12390 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-12400 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(LX,XLI)..GEN W(REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82153-12380 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(POWER DOOR LOCK & REAR SPEAKER) |
1 | ||
| 82153-12370 |
ZZE121..XLI;ZZE122..GLI..GCC;CE120,NZE12#,ZZE122..(LX,XLI)..(GCC,GEN) W(REAR SPEAKER) |
1 | ||
| 82153-12390 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW) |
1 | ||
| 82153-12400 |
CE120,NZE12#,ZZE12#..GCC,GEN W(POWER DOOR LOCK & POWER WINDOW & REAR SPEAKER) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1F830 |
NZE120,ZZE122..WG..GCC W(ABS) |
1 | ||
| 82161-1F820 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 82161-13A30 |
NZE120,ZZE122..LHD..WG W(*80,DRIVER SIDE ONLY) |
1 | ||
| 82199-13250 |
NZE120,ZZE122..LHD..WG W(ABS) |
1 | ||
| 82199-13240 |
NZE120,ZZE122..LHD..WG |
1 | ||
| 82161-13A40 |
NZE120,ZZE122..LHD..WG W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-1A030 |
ZZE121..LHD;NZE120,ZZE122..GCC |
1 | ||
| 82171-1A040 |
ZZE121..LHD;NZE120,ZZE122..GCC W(MOON ROOF) |
1 | ||
| 82171-1A050 |
ZZE121..LHD;NZE120,ZZE122..GCC W(KEY LESS ENTRY) |
1 | ||
| 82171-1A060 |
ZZE121..LHD;NZE120,ZZE122..GCC W(KEY LESS ENTRY & MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-13420 |
ZZE122..WG..GCC W/O(REAR SPOILER) |
1 | ||
| 82184-13410 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 82184-13420 |
ZZE122..WG..GCC W/O(REAR SPOILER) |
1 | ||
| 82184-13500 |
NZE120,ZZE122..WG |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13550 |
NZE120,ZZE122..WG |
1 | ||
| 82185-13560 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 82185-13720 |
NZE120,ZZE122..WG |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-02120 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN (L) |
1 | ||
| 82666-12330 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..SED..GEN (J) |
1 | ||
| 82666-02120 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO. 6 OF 8(0008- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-02170 | ||||
| 82711-02180 | ||||
| 82711-30370 | ||||
| 82711-3F040 | ||||
| 82715-52C60 | ||||
| 87616-22010 | ||||
| 91671-80614 | ||||
ILLUST NO. 8 OF 8(0404- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90980-10481 | ||||
| 90980-10619 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
