Toyota Corolla/altis sed/wg ZZE122 REAR COMBINATION LAMP

ZZE122L-AWPDKV (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

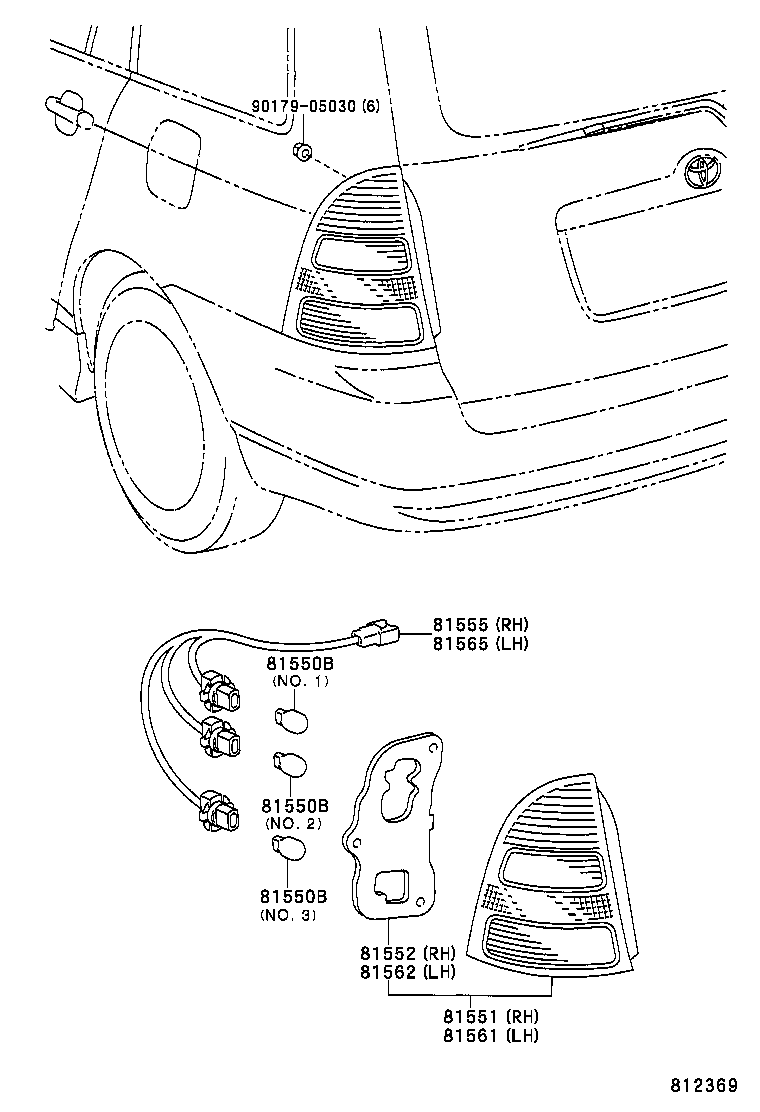

(0008-0209)WG ; (0209-0404)WG..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.3	08/2000 - 09/2002	2
90981-15011	NZE120,ZZE122..WG 12V 21W,AMBER,NO.2	08/2000 - 09/2002	2
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	08/2000 - 09/2002	2
90981-13043	NZE120,ZZE122..WG..XLI 12V 21W,NO.2 & NO.3	09/2002 - 06/2003	2
90981-13044	NZE120,ZZE122..WG..XLI 12V 21/5W,NO.1	09/2002 - 04/2004	2
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.2 & NO.3	04/2004 - 09/2006	4
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	04/2004 - 09/2006	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.3	08/2000 - 09/2002	2
90981-15011	NZE120,ZZE122..WG 12V 21W,AMBER,NO.2	08/2000 - 09/2002	2
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	08/2000 - 09/2002	2
90981-13043	NZE120,ZZE122..WG..XLI 12V 21W,NO.2 & NO.3	09/2002 - 06/2003	2
90981-13044	NZE120,ZZE122..WG..XLI 12V 21/5W,NO.1	09/2002 - 04/2004	2
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.2 & NO.3	04/2004 - 09/2006	4
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	04/2004 - 09/2006	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.3	08/2000 - 09/2002	2
90981-15011	NZE120,ZZE122..WG 12V 21W,AMBER,NO.2	08/2000 - 09/2002	2
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	08/2000 - 09/2002	2
90981-13043	NZE120,ZZE122..WG..XLI 12V 21W,NO.2 & NO.3	09/2002 - 06/2003	2
90981-13044	NZE120,ZZE122..WG..XLI 12V 21/5W,NO.1	09/2002 - 04/2004	2
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.2 & NO.3	04/2004 - 09/2006	4
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	04/2004 - 09/2006	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13460	NZE120,ZZE122..WG	08/2000 - 09/2002	1
81551-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81551-13570	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC;ZZE122..LHD..WG..MTM..GEN	09/2002 - 06/2003	1
81551-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-13460	NZE120,ZZE122..WG	08/2000 - 04/2004	1
81552-13570	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
81552-13570	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13460	NZE120,ZZE122..WG	08/2000 - 09/2002	1
81561-13561	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81561-13561	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81561-13560	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-13460	NZE120,ZZE122..WG	08/2000 - 04/2004	1
81552-13570	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
81552-13570	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
Common parts
90179-05030

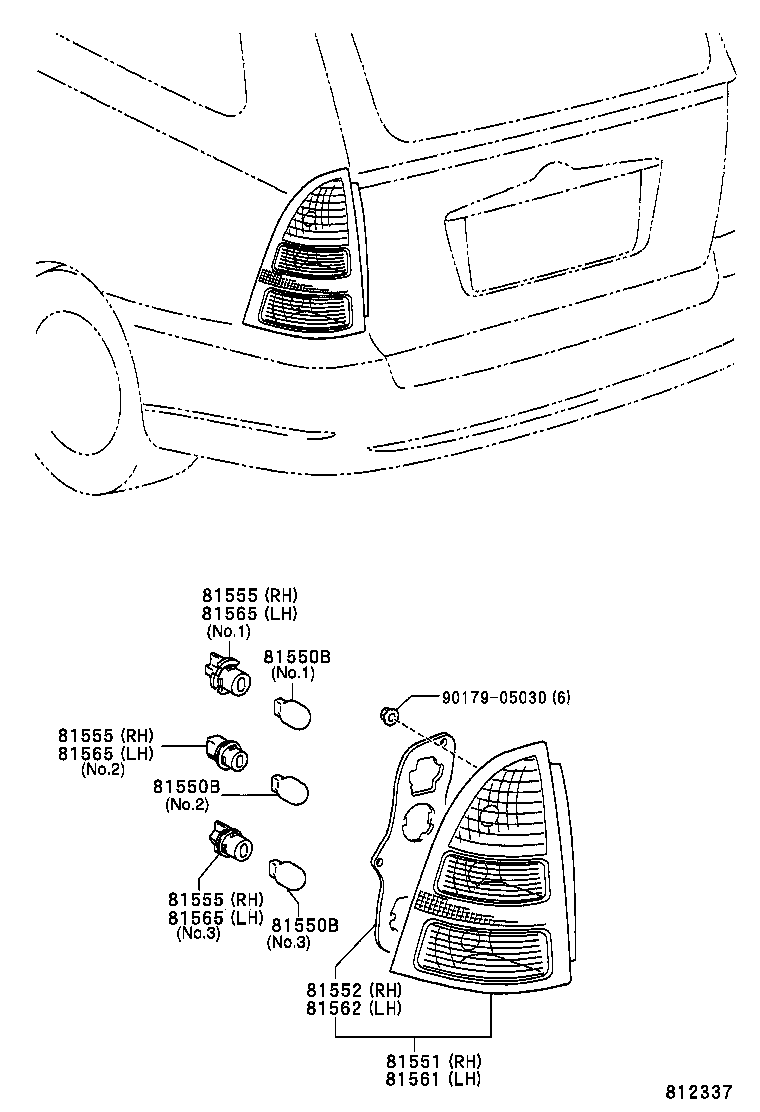

(0209-0404)WG..XLI ; (0404- )WG

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.3	08/2000 - 09/2002	2
90981-15011	NZE120,ZZE122..WG 12V 21W,AMBER,NO.2	08/2000 - 09/2002	2
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	08/2000 - 09/2002	2
90981-13043	NZE120,ZZE122..WG..XLI 12V 21W,NO.2 & NO.3	09/2002 - 06/2003	2
90981-13044	NZE120,ZZE122..WG..XLI 12V 21/5W,NO.1	09/2002 - 04/2004	2
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.2 & NO.3	04/2004 - 09/2006	4
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	04/2004 - 09/2006	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.3	08/2000 - 09/2002	2
90981-15011	NZE120,ZZE122..WG 12V 21W,AMBER,NO.2	08/2000 - 09/2002	2
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	08/2000 - 09/2002	2
90981-13043	NZE120,ZZE122..WG..XLI 12V 21W,NO.2 & NO.3	09/2002 - 06/2003	2
90981-13044	NZE120,ZZE122..WG..XLI 12V 21/5W,NO.1	09/2002 - 04/2004	2
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.2 & NO.3	04/2004 - 09/2006	4
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	04/2004 - 09/2006	2
81550B - BULB(FOR REAR COMBINATION LAMP)
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.3	08/2000 - 09/2002	2
90981-15011	NZE120,ZZE122..WG 12V 21W,AMBER,NO.2	08/2000 - 09/2002	2
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	08/2000 - 09/2002	2
90981-13043	NZE120,ZZE122..WG..XLI 12V 21W,NO.2 & NO.3	09/2002 - 06/2003	2
90981-13044	NZE120,ZZE122..WG..XLI 12V 21/5W,NO.1	09/2002 - 04/2004	2
90981-13043	NZE120,ZZE122..WG 12V 21W,NO.2 & NO.3	04/2004 - 09/2006	4
90981-13044	NZE120,ZZE122..WG 12V 21/5W,NO.1	04/2004 - 09/2006	2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-13460	NZE120,ZZE122..WG	08/2000 - 09/2002	1
81551-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81551-13570	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC;ZZE122..LHD..WG..MTM..GEN	09/2002 - 06/2003	1
81551-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-13460	NZE120,ZZE122..WG	08/2000 - 04/2004	1
81552-13570	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
81552-13570	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-13460	NZE120,ZZE122..WG	08/2000 - 09/2002	1
81561-13561	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81561-13561	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
81561-13560	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-13460	NZE120,ZZE122..WG	08/2000 - 04/2004	1
81552-13570	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
81552-13570	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
90075-60033	NZE120,ZZE122..WG NO.1	08/2000 - 09/2002	1
90075-60043	NZE120,ZZE122..WG NO.2	08/2000 - 09/2002	1
90075-60044	NZE120,ZZE122..WG NO.3	08/2000 - 09/2002	1
81555-13571	NZE120,ZZE122..WG	04/2004 - 09/2006	1
81555-13570	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
81555-13571	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
Common parts
90179-05030

ZZE122L-AWPDKV (2000)

(0008-0209)WG ; (0209-0404)WG..ARL

(0209-0404)WG..XLI ; (0404- )WG
