ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
ILLUST NO. 1 OF 2(0008- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-12030A0 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73135-12030A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-12030A0 |
ZZE122..WG..XLI;ZZE122..SED..(ARL,GCC,GEN);CE120,NZE12#,ZZE121..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73135-12030A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73178-33020A1 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73178-33020A1 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52040A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73200-52010A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73200-52040A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52040A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73200-52010A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73200-52040A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-1A220A0 |
NZE12#,ZZE12# W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73210-1A221A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73210-1A221A0 |
CE120,NZE12#,ZZE12#..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73210-1A311A0 |
NZE120,ZZE122..WG..GCC W(*80,DRIVER SIDE ONLY),IVORY,TRIM0# |
1 | ||
| 73210-1A360A0 |
CE120,NZE12#,ZZE12#..GCC,GEN W(PRETENSIONER SEAT BELT),IVORY,TRIM0# |
1 | ||
| 73210-1A370A0 |
CE120,NZE120,ZZE12#..LHD W(PRETENSIONER SEAT BELT) & W/O(SRS AIR BAG,PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-1A120A0 |
NZE12#,ZZE12# W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73220-1A121A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73220-1A121A0 |
CE120,NZE12#,ZZE12#..GCC,GEN W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73220-1A250A0 |
CE120,NZE12#,ZZE12#..GCC,GEN W(PRETENSIONER SEAT BELT),IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12681A0 |
CE120,NZE120,ZZE12#..LHD W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73230-32280A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73230-32280A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73230-12710A0 |
NZE121..LX;ZZE121..LHD;CE120,NZE120,ZZE122..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73230-12710A0 |
NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..GEN;CE120,NZE121..RHD..(LX,XLI)..GEN IVORY,TRIM0# |
1 | ||
| 73230-12700A0 |
CE120,NZE120,ZZE12#..LHD W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73230-12681A0 |
CE120,NZE120,ZZE12#..LHD W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73233-33010A1 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73233-33010A1 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-12670A0 |
CE120,NZE120,ZZE12#..LHD W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73230-12670A0 |
CE120,NZE120,ZZE12#..LHD W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73230-12690A0 |
NZE120,ZZE122..LHD..WG IVORY,TRIM0# |
2 | ||
| 73230-12690A0 |
CE120,NZE120,ZZE12#..LHD W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11036 | ||||
| 90105-T0001 | ||||
| 90105-T0002 | ||||
| 90109-11027 | ||||
| 90109-11028 | ||||
| 90109-11052 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

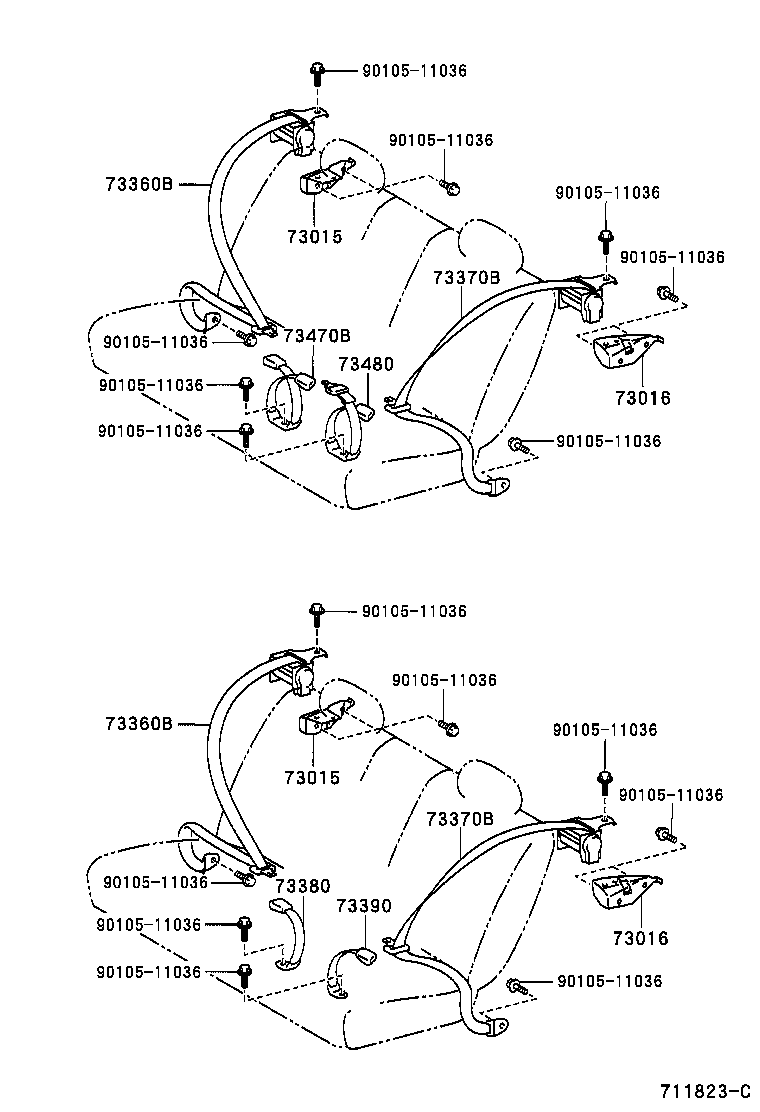

ILLUST NO. 2 OF 2(0008- )WG..XLI
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73015-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73015-13010 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73015-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73015-13010 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73016-13010 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 73016-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73016-13010 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 73016-13010 |
NZE120,ZZE122..WG |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12751A0 |
ZZE121..LHD..LX;ZZE121..ATM..XLI;ZZE122..RHD..WG..GEN;NZE120..RHD..GLI..GEN;NZE120,ZZE122..WG..GCC;CE120,ZZE122..RHD..SED..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 73360-12750A0 |
NZE120,ZZE122..WG IVORY,TRIM0# |
1 | ||
| 73360-12751A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12751A0 |
ZZE121..LHD..LX;ZZE121..ATM..XLI;ZZE122..RHD..WG..GEN;NZE120..RHD..GLI..GEN;NZE120,ZZE122..WG..GCC;CE120,ZZE122..RHD..SED..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 73360-12750A0 |
NZE120,ZZE122..WG IVORY,TRIM0# |
1 | ||
| 73360-12751A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12751A0 |
ZZE121..LHD..LX;ZZE121..ATM..XLI;ZZE122..RHD..WG..GEN;NZE120..RHD..GLI..GEN;NZE120,ZZE122..WG..GCC;CE120,ZZE122..RHD..SED..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 73360-12750A0 |
NZE120,ZZE122..WG IVORY,TRIM0# |
1 | ||
| 73360-12751A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12751A0 |
ZZE121..LHD..LX;ZZE121..ATM..XLI;ZZE122..RHD..WG..GEN;NZE120..RHD..GLI..GEN;NZE120,ZZE122..WG..GCC;CE120,ZZE122..RHD..SED..(ARL,GEN) IVORY,TRIM0# |
1 | ||
| 73360-12750A0 |
NZE120,ZZE122..WG IVORY,TRIM0# |
1 | ||
| 73360-12751A0 |
CE120,NZE12#,ZZE12#..GCC,GEN IVORY,TRIM0# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-13110A0 |
NZE120,ZZE122..WG..GCC IVORY,TRIM0# |
1 | ||
| 73380-13110A0 |
NZE120,ZZE122..WG..GCC IVORY,TRIM0# |
1 | ||
| 73380-13110A0 |
NZE120,ZZE122..WG..GCC IVORY,TRIM0# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-13110A0 |
NZE120,ZZE122..WG..GCC IVORY,TRIM0# |
1 | ||
| 73380-13110A0 |
NZE120,ZZE122..WG..GCC IVORY,TRIM0# |
1 | ||
| 73380-13110A0 |
NZE120,ZZE122..WG..GCC IVORY,TRIM0# |
1 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-13100A0 |
NZE120,ZZE122..WG IVORY,TRIM0# |
1 | ||
| 73470-13110A0 |
NZE120,ZZE122..WG..XLI IVORY,TRIM0# |
1 | ||
| 73470-13110A0 |
NZE120,ZZE122..WG..XLI IVORY,TRIM0# |
1 | ||
| 73470-13110C0 |
ZZE122..WG..XLI BLACK,TRIM1# |
1 | ||
| 73470-13110A0 |
NZE120,ZZE122..WG..XLI IVORY,TRIM0# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-13100A0 |
NZE120,ZZE122..WG IVORY,TRIM0# |
1 | ||
| 73480-13120C0 |
ZZE122..WG..XLI BLACK,TRIM1# |
1 | ||
| 73480-13120A0 |
NZE120,ZZE122..WG..XLI IVORY,TRIM0# |
1 | ||
| 73480-13120A0 |
NZE120,ZZE122..WG..XLI IVORY,TRIM0# |
1 | ||
| 73480-13120A0 |
NZE120,ZZE122..WG..XLI IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
