Toyota Corolla/altis sed/wg ZZE122 REAR DOOR PANEL & GLASS

ZZE122L-AWPDKV (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

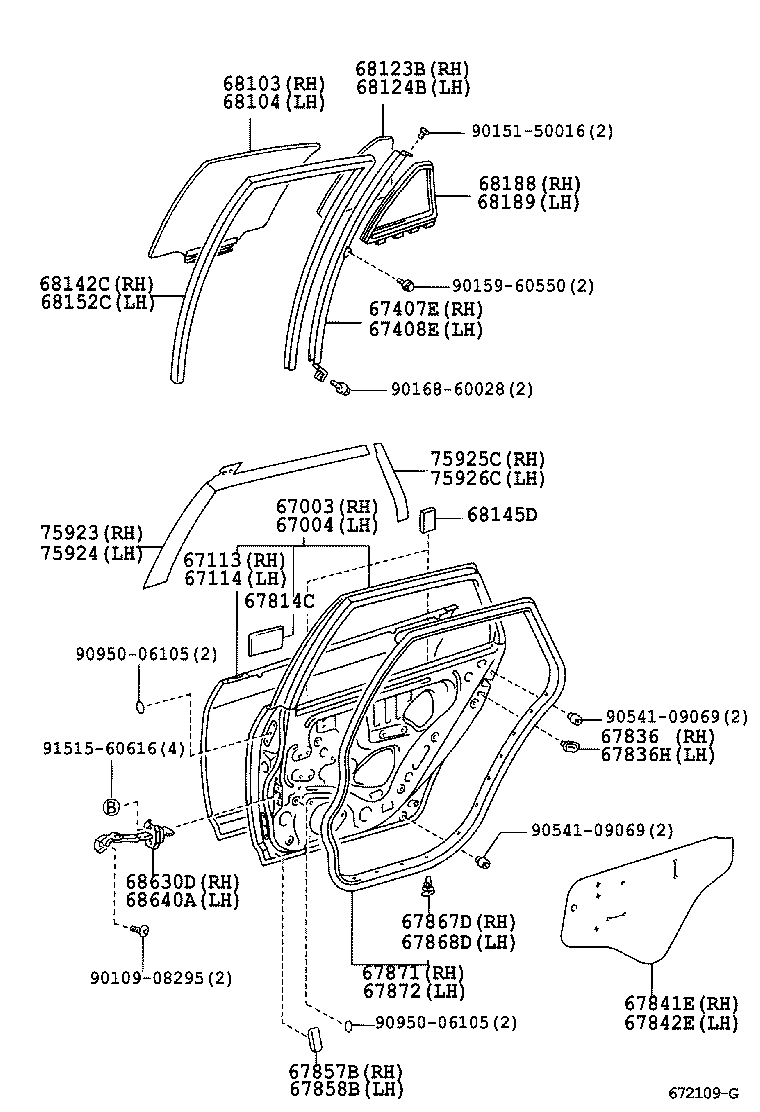

ILLUST NO. 1 OF 2(0008- )WG

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-13270	NZE120,ZZE122..WG..XLI	08/2000 - 04/2004	1
67003-13270	NZE120,ZZE122..WG..XLI	04/2004 - 09/2006	1
67003-13280	NZE120,ZZE122..WG W(POWER WINDOW)	08/2000 - 04/2004	1
67003-13280	NZE120,ZZE122..WG W(POWER WINDOW)	04/2004 - 09/2006	1
67003-13270	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
67003-13280	NZE120,ZZE122..WG..XLI W(POWER WINDOW)	09/2002 - 04/2004	1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-13280	NZE120,ZZE122..WG W(POWER WINDOW)	08/2000 - 04/2004	1
67004-13270	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
67004-13270	NZE120,ZZE122..WG..XLI	04/2004 - 09/2006	1
67004-13270	NZE120,ZZE122..WG..XLI	08/2000 - 04/2004	1
67004-13280	NZE120,ZZE122..WG..XLI W(POWER WINDOW)	09/2002 - 04/2004	1
67004-13280	NZE120,ZZE122..WG W(POWER WINDOW)	04/2004 - 09/2006	1
67113 - PANEL, REAR DOOR, OUTER RH
67113-12270	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67113-12270	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67114 - PANEL, REAR DOOR, OUTER LH
67114-12270	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67114-12270	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-13060	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
67407-13060	NZE120,ZZE122..WG	08/2000 - 04/2004	1
67407-13060	NZE120,ZZE122..WG	04/2004 - 09/2006	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-13060	NZE120,ZZE122..WG	08/2000 - 04/2004	1
67408-13060	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
67408-13060	NZE120,ZZE122..WG	04/2004 - 09/2006	1
67814C - PACKING, DOOR PROTECTOR
67817-47010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	2
67817-47010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
67817-47010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040	CE120,NZE12#,ZZE12# (J)	08/2000 - 07/2005	1
67836-12040	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN (J)	04/2004 - 12/2999	1
67836-12040	CE120,NZE12#,ZZE12#..GCC,GEN (J)	09/2002 - 04/2004	1
67836-02030	CE120,NZE12#,ZZE12# (L)	09/2001 - 11/2001	1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-02030	CE120,NZE12#,ZZE12# (L)	09/2001 - 11/2001	1
67836-12040	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN (J)	04/2004 - 12/2999	1
67836-12040	CE120,NZE12#,ZZE12#..GCC,GEN (J)	09/2002 - 04/2004	1
67836-12040	CE120,NZE12#,ZZE12# (J)	08/2000 - 07/2005	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-12310	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67841-12310	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67841-12310	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67841-12310	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
67841-12310	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
67841-12310	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150	ZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121	08/2000 - 07/2005	16
67867-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	16
67867-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	16
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150	ZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121	08/2000 - 07/2005	16
67867-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	16
67867-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	16
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-13140	ZZE122..RHD..WG;NZE120,ZZE122..WG..GCC	08/2000 - 04/2004	1
67871-13140	NZE120,ZZE122..WG	04/2004 - 09/2006	1
67871-13140	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-13130	ZZE122..RHD..WG;NZE120,ZZE122..WG..GCC	08/2000 - 04/2004	1
67872-13130	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
67872-13130	NZE120,ZZE122..WG	04/2004 - 09/2006	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-13230	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	04/2004 - 09/2006	1
68113-13230	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	08/2000 - 04/2004	1
68113-13230	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	09/2002 - 04/2004	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-13230	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	08/2000 - 04/2004	1
68114-13230	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	04/2004 - 09/2006	1
68114-13230	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	09/2002 - 04/2004	1
68123B - GLASS, REAR DOOR QUARTER WINDOW, RH
68123-13210	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	04/2004 - 09/2006	1
68123-13210	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	09/2002 - 04/2004	1
68123-13210	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	08/2000 - 04/2004	1
68124B - GLASS, REAR DOOR QUARTER WINDOW, LH
68124-13200	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	08/2000 - 04/2004	1
68124-13200	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	04/2004 - 09/2006	1
68124-13200	NZE120,ZZE122..WG..XLI *UVCTT,T=3.1,GREEN	09/2002 - 04/2004	1
68142C - RUN, REAR DOOR GLASS, RH
68142-13110	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
68142-13110	NZE120,ZZE122..WG	08/2000 - 04/2004	1
68142-13110	NZE120,ZZE122..WG	04/2004 - 09/2006	1
68145D - CUSHION, REAR DOOR WINDOW
69759-12060	NZE12#,ZZE12#	08/2000 - 12/2000	4
69759-12110	CE120,NZE12#,ZZE12#	12/2000 - 07/2005	4
69759-12110	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
69759-12110	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	4
68152C - RUN, REAR DOOR GLASS, LH
68152-13070	NZE120,ZZE122..WG	04/2004 - 09/2006	1
68152-13070	NZE120,ZZE122..WG	08/2000 - 04/2004	1
68152-13070	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-13080	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
68188-13080	ZZE122..RHD..WG;NZE120,ZZE122..WG..GCC	08/2000 - 04/2004	1
68188-13080	NZE120,ZZE122..WG	04/2004 - 09/2006	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-13080	ZZE122..RHD..WG;NZE120,ZZE122..WG..GCC	08/2000 - 04/2004	1
68189-13080	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
68189-13080	NZE120,ZZE122..WG	04/2004 - 09/2006	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-12070	CE120,NZE12#,ZZE12#	08/2000 - 05/2004	1
68630-12070	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
68630-12071	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
68640A - CHECK ASSY, REAR DOOR, LH
68640-12041	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
68640-12040	CE120,NZE12#,ZZE12#	08/2000 - 05/2004	1
68640-12040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
75923 - TAPE, BLACK OUT, NO.2 RH
75923-13011	NZE120,ZZE122..WG	12/2001 - 06/2003	1
75923-13011	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
75923-13010	NZE120,ZZE122..WG	08/2000 - 12/2001	1
75923-13012	NZE120,ZZE122..WG	04/2004 - 09/2006	1
75923-13012	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
75924 - TAPE, BLACK OUT, NO.2 LH
75924-13011	NZE120,ZZE122..WG	12/2001 - 06/2003	1
75924-13010	NZE120,ZZE122..WG	08/2000 - 12/2001	1
75924-13011	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
75924-13012	NZE120,ZZE122..WG	04/2004 - 09/2006	1
75924-13012	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
75925C - TAPE, BLACK OUT, NO.3 RH
75925-13010	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
75925-13011	NZE120,ZZE122..WG	04/2004 - 09/2006	1
75925-13010	NZE120,ZZE122..WG	08/2000 - 06/2003	1
75925-13011	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
75926C - TAPE, BLACK OUT, NO.3 LH
75926-13010	NZE120,ZZE122..WG	08/2000 - 06/2003	1
75926-13010	NZE120,ZZE122..WG..XLI	09/2002 - 06/2003	1
75926-13011	NZE120,ZZE122..WG..XLI	06/2003 - 04/2004	1
75926-13011	NZE120,ZZE122..WG	04/2004 - 09/2006	1
Common parts
90109-08295
90151-50016
90159-60550
90168-60028
90541-09069
90950-06105
91515-60616

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-1K160A1	ZZE122..GCC;NZE120..SED..GCC TRIM = TYPE B-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67630-1K140A4	NZE120..LHD..SED;CE120,ZZE12#..LHD W(POWER WINDOW) & TRIM = TYPE B-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67630-1K530A0	NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..GCC,GEN DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),IVORY,TRIM0#	09/2002 - 04/2004	1
67630-1K610A0	ZZE122..GCC;NZE120..SED..GCC DOOR TRIM=TYPE C-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050	ZZE122..ARL,GCC;ZZE121..SESAL,XLI;ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..XLI;CE120,NZE120..(20DSA,GLI)..PKN	08/2000 - 07/2005	7
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	7
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	7
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050	ZZE122..ARL,GCC;ZZE121..SESAL,XLI;ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..XLI;CE120,NZE120..(20DSA,GLI)..PKN	08/2000 - 07/2005	7
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	7
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	7
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-12050	ZZE122..ARL,GCC;ZZE121..SESAL,XLI;ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..XLI;CE120,NZE120..(20DSA,GLI)..PKN	08/2000 - 07/2005	7
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	7
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	7
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-1K160A1	ZZE122..GCC;NZE120..SED..GCC TRIM = TYPE B-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67640-1K140A4	NZE120..LHD..SED;CE120,ZZE12#..LHD W(POWER WINDOW) & TRIM = TYPE B-*104,IVORY,TRIM0#	08/2000 - 09/2002	1
67640-1K610A0	ZZE122..GCC;NZE120..SED..GCC DOOR TRIM=TYPE C-*104,IVORY,TRIM0#	09/2002 - 04/2004	1
67640-1K530A0	NZE120..SED..(GCC,GEN);CE120,NZE121,ZZE12#..GCC,GEN DOOR TRIM=TYPE C-*104 & W(POWER WINDOW),IVORY,TRIM0#	09/2002 - 04/2004	1
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050	ZZE122..ARL,GCC;ZZE121..SESAL,XLI;ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..XLI;CE120,NZE120..(20DSA,GLI)..PKN	08/2000 - 07/2005	7
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	7
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	7
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050	ZZE122..ARL,GCC;ZZE121..SESAL,XLI;ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..XLI;CE120,NZE120..(20DSA,GLI)..PKN	08/2000 - 07/2005	7
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	7
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	7
67604D - RETAINER, REAR DOOR TRIM, LH
67771-12050	ZZE122..ARL,GCC;ZZE121..SESAL,XLI;ZZE122..LHD..XLI..GEN;CE120,NZE120..LHD..XLI;CE120,NZE120..(20DSA,GLI)..PKN	08/2000 - 07/2005	7
67771-12050	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	7
67771-12050	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	7
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68174-12150	CE120,NZE12#,ZZE12# LH	07/2002 - 07/2005	1
68174-12150	CE120,NZE12#,ZZE12#..GCC,GEN LH	09/2002 - 04/2004	1
68173-12290	CE120,NZE12#,ZZE12# RH	07/2002 - 07/2005	1
68174-12130	CE120,NZE12#,ZZE12# LH	08/2000 - 07/2002	1
68173-12270	CE120,NZE12#,ZZE12# RH	08/2000 - 07/2002	1
68173-12290	CE120,NZE12#,ZZE12#..GCC,GEN RH	09/2002 - 04/2004	1
86262D - COVER, REAR DOOR SPEAKER
86262-12010	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
86262-12010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
86262-12010	CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
Common parts
90159-50381
90164-60018
90189-05003
90189-06018
