ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg

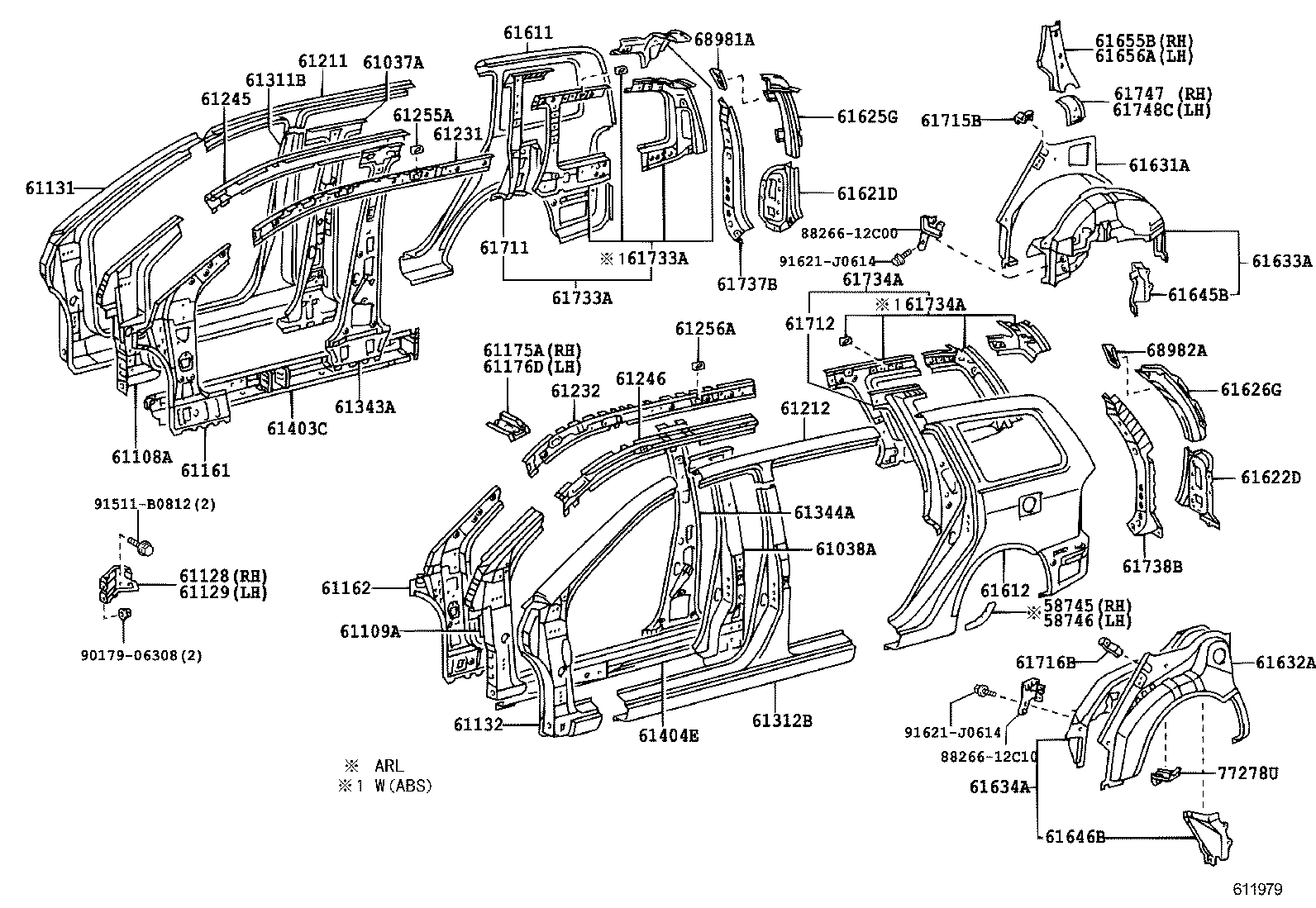

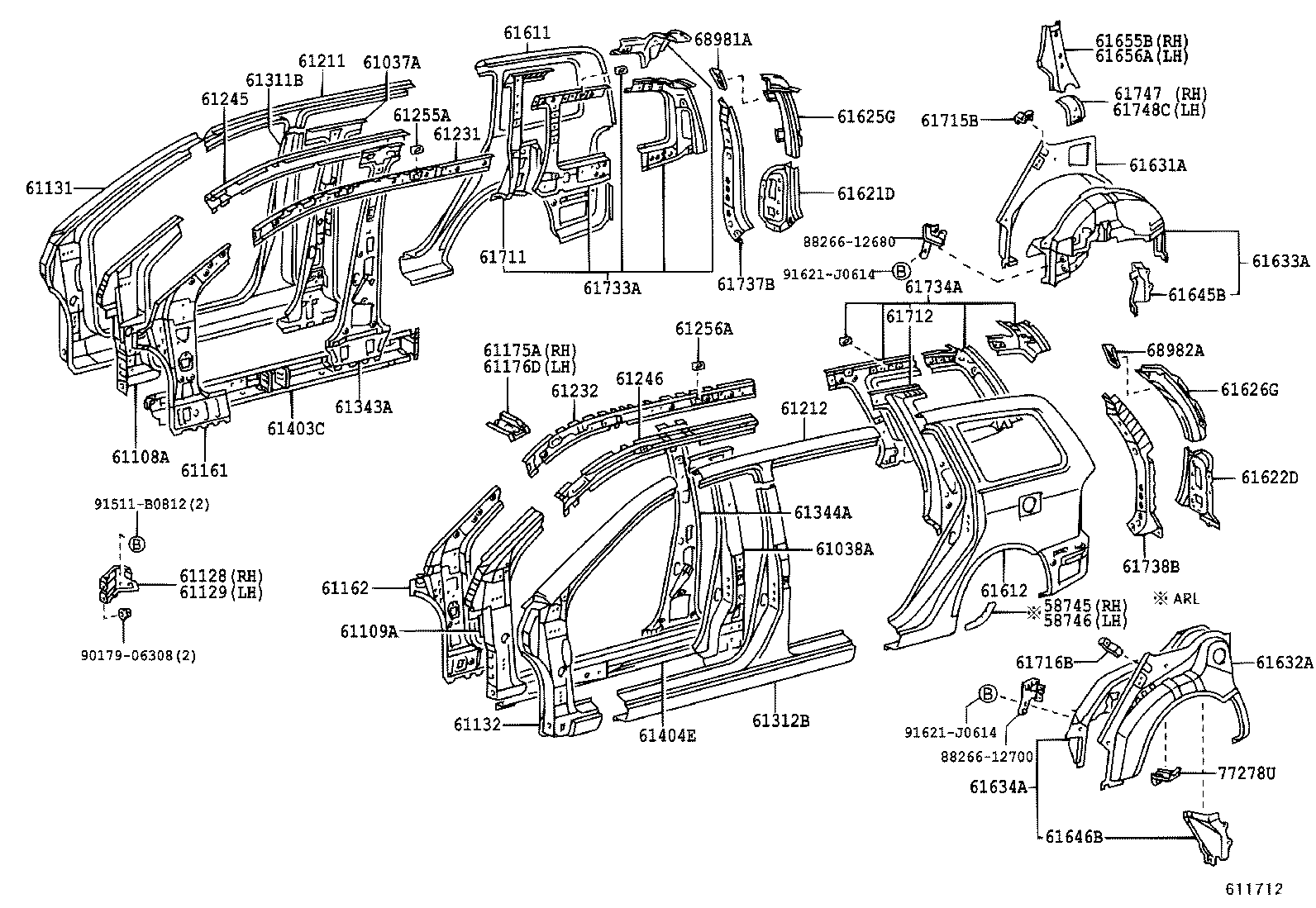

ILLUST NO. 1 OF 2(0008-0404)WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12903 |
NZE120,ZZE122..WG |
1 | ||
| 61037-12903 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61037-12903 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12903 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61038-12903 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61038-12903 |
NZE120,ZZE122..WG |
1 | ||
| 61038-12903 |
ZZE122..WG;NZE120..GCC;ZZE122..SED..GCC |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12230 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61108-12230 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12220 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61109-12220 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61109-12220 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-12190 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61103-12190 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61103-12200 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-12220 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61104-12220 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61104-12230 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12600 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61131-12600 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61131-12600 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12600 |
CE120,NZE120,ZZE12#..LHD W(ANTENNA HOLE) |
1 | ||
| 61132-12600 |
CE120,NZE120,ZZE12#..LHD W(ANTENNA HOLE) |
1 | ||
| 61132-12610 |
CE120,NZE12#,ZZE12#..GEN;NZE120,ZZE122..WG..(ARL,GCC) |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61023-12320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61024-12320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-12140 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61175-12140 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61175-12140 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61176-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61176-12150 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61211-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61211-13070 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61212-13070 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61212-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-13200 |
NZE120,ZZE122..WG |
1 | ||
| 61231-13200 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61231-13200 |
NZE120,ZZE122..WG |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-13180 |
NZE120,ZZE122..WG |
1 | ||
| 61232-13180 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61232-13180 |
NZE120,ZZE122..WG |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61245-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61245-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61246-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61246-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61255A - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-13020 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12330 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61311-12330 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61311-12330 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12370 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61312-12370 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61312-12370 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12240 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61343-12240 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61343-12240 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12240 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61344-12240 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61344-12240 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-12010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61403-12010 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-12011 |
NZE120,ZZE122..WG |
1 | ||
| 61404-12011 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61404-12011 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61404-12011 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-13530 |
NZE120,ZZE122..WG |
1 | ||
| 61601-13531 |
NZE120,ZZE122..WG |
1 | ||
| 61601-13631 |
NZE120,ZZE122..WG |
1 | ||
| 61601-13531 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-13591 |
NZE120,ZZE122..WG |
1 | ||
| 61602-13591 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61602-13590 |
NZE120,ZZE122..WG |
1 | ||
| 61602-13671 |
NZE120,ZZE122..WG |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61621-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61621-13050 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61621-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61622-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61622-13050 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61622-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-13060 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61625-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61625-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-13060 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61626-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61626-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12410 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61631-12410 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12430 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61632-12430 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12927 |
ZZE121..LHD;ZZE122..GEN;CE120,NZE120..GCC,GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC W(FIXED TYPE REAR SEAT ) |
1 | ||
| 61607-12928 |
NZE121..LX;ZZE122..GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61607-12927 |
ZZE121..LHD;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120..GCC,GEN W(FIXED TYPE REAR SEAT) |
1 | ||
| 61607-12941 |
NZE120,ZZE122..WG |
1 | ||
| 61607-12928 |
NZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61607-12942 |
NZE120,ZZE122..WG W(ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12925 |
ZZE121..LHD;ZZE122..GEN;CE120,NZE120..GCC,GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC W(FIXED TYPE REAR SEAT ) |
1 | ||
| 61608-12926 |
NZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61608-12921 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN W(FOLDING REAR SEAT) |
1 | ||
| 61608-12926 |
NZE121..LX;ZZE122..GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61608-12925 |
ZZE121..LHD;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120..GCC,GEN W(FIXED TYPE REAR SEAT) |
1 | ||
| 61608-12922 |
CE120,NZE12#,ZZE12#..GCC,GEN W(FOLDING REAR SEAT & ABS) |
1 | ||
| 61608-12937 |
NZE120,ZZE122..WG..(ARL,GCC) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61645-12150 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61645-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12140 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61646-12140 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61646-12140 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61655-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61655-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61655-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61656A - GUSSET, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61656-13021 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61656-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61656-13021 |
NZE120,ZZE122..WG |
1 | ||
| 61656-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-13120 |
NZE120,ZZE122..WG |
1 | ||
| 61711-13120 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61711-13121 |
NZE120,ZZE122..WG |
1 | ||
| 61711-13121 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-13121 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61712-13121 |
NZE120,ZZE122..WG |
1 | ||
| 61712-13120 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61712-13120 |
NZE120,ZZE122..WG |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61715-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61715-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-13900 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13900 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61734-13903 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734-13900 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734-13900 |
NZE120,ZZE122..WG |
1 | ||
| 61734-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-13060 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61737-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61737-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-13050 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61738-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61738-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61747-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61747-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-13080 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61748-13080 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61748-13080 |
NZE120,ZZE122..WG |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68981-13030 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 68981-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 68981-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68982-13030 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 68982-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68982-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-32050 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 77278-32050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77278-32050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88266-12680 | ||||
| 88266-12700 | ||||
| 90179-06308 | ||||
| 91511-B0812 | ||||
| 91621-J0614 | ||||
ILLUST NO. 2 OF 2(0008- )
HOLE PLUG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-12060 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61824-12060 |
NZE120,ZZE122..WG |
2 | ||
| 61824-12040 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61824-12040 |
NZE120..GCC;ZZE122..SED..GCC;NZE121,ZZE121..GEN;ZZE122..LHD..WG..GEN;ZZE122..WG..(ARL,GCC);CE120,NZE120,ZZE122..RHD..GEN |
2 | ||
| 61824-12050 |
NZE120,ZZE122..WG |
2 | ||
| 61824C - PAD, NOISE SHUTTER, NO.1 | ||||
| 61824-52040 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61824-50020 |
ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) |
2 | ||
| 61824-50020 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61826A - PLATE, NOISE CONTROL, NO.3 | ||||
| 61826-12020 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61826-52020 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61826-52020 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 62152B - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-12050 |
ZZE122..RHD;ZZE122..WG..GCC;ZZE122..LHD..SED;CE120,NZE12#,ZZE121 |
2 | ||
| 62152-12050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 62152-12060 |
NZE120,ZZE122..WG |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-12180 |
CE120,NZE12#,ZZE12#..GCC,GEN |
2 | ||
| 62554-12170 |
NZE120,ZZE122..WG |
2 | ||
| 62554-12180 |
CE120,NZE12#,ZZE12# |
2 | ||
| 75941A - STRIPE, CENTER PILLAR, RH | ||||
| 75941-12010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 75941-12010 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 75941-12011 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 75941-12011 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 75942B - STRIPE, CENTER PILLAR, LH | ||||
| 75942-12010 |
NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN |
1 | ||
| 75942-12011 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 75942-12010 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 75942-12011 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 66244-12010 | ||||
| 90159-60602 | ||||
| 90189-06006 | ||||
| 90333-30002 | ||||
| 90333-30008 | ||||
| 90950-01310 | ||||
| 90950-01345 | ||||
| 90950-01637 | ||||
| 90950-01821 | ||||
| 90950-01832 | ||||
| 90950-01864 | ||||
| 90950-01866 | ||||
| 90950-01919 | ||||
| 90950-01959 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 7601 | ||||
ILLUST NO. 1 OF 2(0404- )WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-12903 |
NZE120,ZZE122..WG |
1 | ||
| 61037-12903 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61037-12903 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-12903 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61038-12903 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61038-12903 |
NZE120,ZZE122..WG |
1 | ||
| 61038-12903 |
ZZE122..WG;NZE120..GCC;ZZE122..SED..GCC |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-12230 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61108-12230 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-12220 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61109-12220 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61109-12220 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61128 - REINFORCEMENT, COWL SIDE PANEL, RH | ||||
| 61103-12190 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61103-12190 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61103-12200 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61129 - REINFORCEMENT, COWL SIDE PANEL, LH | ||||
| 61104-12220 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61104-12220 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61104-12230 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-12600 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61131-12600 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61131-12600 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-12600 |
CE120,NZE120,ZZE12#..LHD W(ANTENNA HOLE) |
1 | ||
| 61132-12600 |
CE120,NZE120,ZZE12#..LHD W(ANTENNA HOLE) |
1 | ||
| 61132-12610 |
CE120,NZE12#,ZZE12#..GEN;NZE120,ZZE122..WG..(ARL,GCC) |
1 | ||
| 61161 - PILLAR, FRONT BODY, UPPER INNER RH | ||||
| 61023-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61023-12320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61162 - PILLAR, FRONT BODY, UPPER INNER LH | ||||
| 61024-12350 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61024-12320 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61175A - REINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH | ||||
| 61175-12140 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61175-12140 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61175-12140 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61176D - REINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH | ||||
| 61176-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61176-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61176-12150 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61211-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61211-13070 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61212-13070 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61212-13070 |
NZE120,ZZE122..WG |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-13200 |
NZE120,ZZE122..WG |
1 | ||
| 61231-13200 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61231-13200 |
NZE120,ZZE122..WG |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-13180 |
NZE120,ZZE122..WG |
1 | ||
| 61232-13180 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61232-13180 |
NZE120,ZZE122..WG |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61245-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61245-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61246-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61246-13030 |
NZE120,ZZE122..WG |
1 | ||
| 61246-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61255A - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-13020 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61255-13020 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-12330 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61311-12330 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61311-12330 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-12370 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61312-12370 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61312-12370 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-12240 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61343-12240 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61343-12240 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-12240 |
CE120,NZE12#,ZZE12#..ARL,GCC,GEN |
1 | ||
| 61344-12240 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61344-12240 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-12010 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61403-12010 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-12011 |
NZE120,ZZE122..WG |
1 | ||
| 61404-12011 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61404-12011 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61404-12011 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-13530 |
NZE120,ZZE122..WG |
1 | ||
| 61601-13531 |
NZE120,ZZE122..WG |
1 | ||
| 61601-13631 |
NZE120,ZZE122..WG |
1 | ||
| 61601-13531 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-13591 |
NZE120,ZZE122..WG |
1 | ||
| 61602-13591 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61602-13590 |
NZE120,ZZE122..WG |
1 | ||
| 61602-13671 |
NZE120,ZZE122..WG |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61621-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61621-13050 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61621-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61622-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61622-13050 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61622-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-13060 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61625-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61625-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-13060 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61626-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61626-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12410 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61631-12410 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12430 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61632-12430 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12927 |
ZZE121..LHD;ZZE122..GEN;CE120,NZE120..GCC,GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC W(FIXED TYPE REAR SEAT ) |
1 | ||
| 61607-12928 |
NZE121..LX;ZZE122..GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61607-12927 |
ZZE121..LHD;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120..GCC,GEN W(FIXED TYPE REAR SEAT) |
1 | ||
| 61607-12941 |
NZE120,ZZE122..WG |
1 | ||
| 61607-12928 |
NZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61607-12942 |
NZE120,ZZE122..WG W(ABS) |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12925 |
ZZE121..LHD;ZZE122..GEN;CE120,NZE120..GCC,GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC W(FIXED TYPE REAR SEAT ) |
1 | ||
| 61608-12926 |
NZE121..LX;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61608-12921 |
NZE121..LX;CE120,NZE120,ZZE12#..GCC,GEN W(FOLDING REAR SEAT) |
1 | ||
| 61608-12926 |
NZE121..LX;ZZE122..GEN;ZZE122..WG..(ARL,GCC);ZZE122..SED..XLI..GCC;CE120,NZE120,ZZE121..GCC,GEN W(FIXED TYPE REAR SEAT & ABS) |
1 | ||
| 61608-12925 |
ZZE121..LHD;ZZE122..GEN;ZZE122..XLI..GCC;CE120,NZE120..GCC,GEN W(FIXED TYPE REAR SEAT) |
1 | ||
| 61608-12922 |
CE120,NZE12#,ZZE12#..GCC,GEN W(FOLDING REAR SEAT & ABS) |
1 | ||
| 61608-12937 |
NZE120,ZZE122..WG..(ARL,GCC) |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-12150 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61645-12150 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61645-12150 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-12140 |
CE120,NZE12#,ZZE12# |
1 | ||
| 61646-12140 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61646-12140 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 61655B - GUSSET, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61655-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61655-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61655-13020 |
NZE120,ZZE122..WG |
1 | ||
| 61656A - GUSSET, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61656-13021 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61656-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61656-13021 |
NZE120,ZZE122..WG |
1 | ||
| 61656-13020 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-13120 |
NZE120,ZZE122..WG |
1 | ||
| 61711-13120 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61711-13121 |
NZE120,ZZE122..WG |
1 | ||
| 61711-13121 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-13121 |
NZE120,ZZE122..WG..XLI |
2 | ||
| 61712-13121 |
NZE120,ZZE122..WG |
1 | ||
| 61712-13120 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61712-13120 |
NZE120,ZZE122..WG |
1 | ||
| 61715B - EXTENSION, ROOF SIDE, INNER FRONT RH | ||||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61715-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61716B - EXTENSION, ROOF SIDE, INNER FRONT LH | ||||
| 61715-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61715-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-13900 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13900 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-13900 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13900 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61733-13903 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61734-13903 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734-13900 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734-13900 |
NZE120,ZZE122..WG |
1 | ||
| 61734-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61734-13903 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734-13900 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61734-13900 |
NZE120,ZZE122..WG |
1 | ||
| 61734-13903 |
NZE120,ZZE122..WG |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-13060 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61737-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61737-13060 |
NZE120,ZZE122..WG |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-13050 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 61738-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61738-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61747-13050 |
NZE120,ZZE122..WG |
1 | ||
| 61747-13050 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-13080 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61748-13080 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 61748-13080 |
NZE120,ZZE122..WG |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68981-13030 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 68981-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 68981-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68982-13030 |
ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC |
1 | ||
| 68982-13030 |
NZE120,ZZE122..WG |
1 | ||
| 68982-13030 |
NZE120,ZZE122..WG..XLI |
1 | ||
| 77278U - BRACKET, FUEL TANK FILLER PIPE PROTECTOR | ||||
| 77278-32050 |
NZE120,ZZE122..WG..GCC |
1 | ||
| 77278-32050 |
CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| 77278-32050 |
ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN |
1 | ||
| Common parts | ||||
| 88266-12C00 | ||||
| 88266-12C10 | ||||
| 90179-06308 | ||||
| 91511-B0812 | ||||
| 91621-J0614 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
