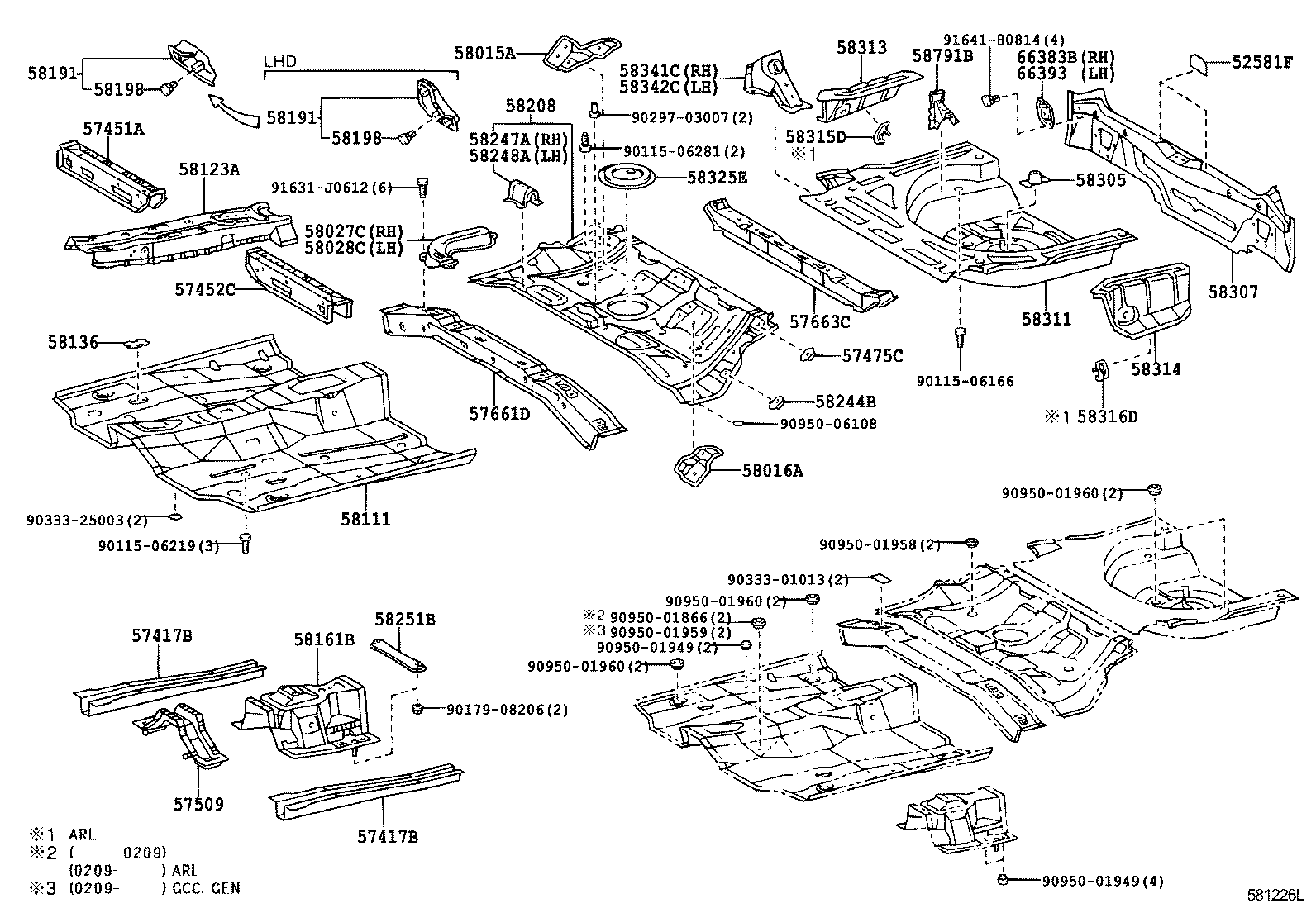

Toyota Corolla/altis sed/wg ZZE122 FLOOR PAN & LOWER BACK PANEL

Part #	Description	Period	Qty
52581F - PROTECTOR, REAR BUMPER
52581-12120	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
52581-12120	NZE120,ZZE122..WG	04/2004 - 09/2006	2
52581-12120	NZE120,ZZE122..WG	08/2000 - 04/2004	2
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-13020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN RH	05/2001 - 04/2004	1
57505-12070	NZE12#,ZZE12#	08/2000 - 05/2001	2
57417-13020	CE120,NZE12#,ZZE12#..GCC,GEN RH	09/2002 - 04/2004	1
57418-13020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH	04/2004 - 12/2999	1
57418-13020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN LH	05/2001 - 04/2004	1
57417-13020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH	04/2004 - 12/2999	1
57418-13020	CE120,NZE12#,ZZE12#..GCC,GEN LH	09/2002 - 04/2004	1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57417-13020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN RH	05/2001 - 04/2004	1
57505-12070	NZE12#,ZZE12#	08/2000 - 05/2001	2
57417-13020	CE120,NZE12#,ZZE12#..GCC,GEN RH	09/2002 - 04/2004	1
57418-13020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN LH	04/2004 - 12/2999	1
57418-13020	CE120,NZE12#,ZZE12#..ARL,GCC,GEN LH	05/2001 - 04/2004	1
57417-13020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN RH	04/2004 - 12/2999	1
57418-13020	CE120,NZE12#,ZZE12#..GCC,GEN LH	09/2002 - 04/2004	1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-12191	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	10/2000 - 11/2002	1
57451-12191	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 11/2002	1
57451-12192	CE120,NZE12#,ZZE12#..GCC,GEN	11/2002 - 04/2004	1
57451-12190	NZE12#,ZZE12#	08/2000 - 10/2000	1
57051-12020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
57452C - MEMBER, FRONT FLOOR CROSS, LH
57452-12020	NZE12#,ZZE12#	08/2000 - 10/2000	1
57452-12021	CE120,NZE120,ZZE12#..LHD	10/2000 - 04/2004	1
57452-12021	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
57452-12021	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
57475C - PLATE, FRONT FLOOR CROSSMEMBER
57475-13020	NZE120,ZZE122..WG..XLI	04/2004 - 09/2006	2
57475-13020	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	2
57475-13020	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-12040	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	1
57509-12040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
57509-12040	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
57661D - MEMBER, REAR FLOOR CROSS, FRONT
57407-13100	NZE120,ZZE122..WG	04/2004 - 09/2006	1
57407-13100	NZE120,ZZE122..WG	08/2000 - 04/2004	1
57407-13100	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
57663C - MEMBER, REAR FLOOR CROSS, CENTER
57663-13010	NZE120,ZZE122..WG	08/2000 - 05/2001	1
57663-13080	NZE120,ZZE122..WG	05/2001 - 04/2004	1
57663-13080	NZE120,ZZE122..WG	04/2004 - 09/2006	1
57663-13080	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58015A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58015-12070	NZE120..WG;NZE120,ZZE121..GEN;CE120,NZE121,ZZE122..(GLI,XLI)..(GCC,GEN) TYPE B:REFER TO ILLUSTRATION	09/2002 - 04/2004	1
58015-12070	NZE120..WG;ZZE122..GCC,GEN;ZZE122..WG..ARL;CE120,NZE12#,ZZE121..GEN TYPE B:REFER TO ILLUSTRATION	04/2004 - 12/2999	1
58015-12070	NZE120..WG;NZE120,ZZE121..GEN;CE120,NZE121,ZZE122..CONQ,GLI,ULT,XLI TYPE B:REFER TO ILLUSTRATION	08/2000 - 04/2004	1
58016A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
58016-13040	NZE120,ZZE122..WG	08/2000 - 04/2004	1
58016-13040	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58016-13040	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58027C - PANEL SUB-ASSY, CENTER FLOOR SIDE, RH
58027-13010	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58027-13010	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58027-13010	NZE120,ZZE122..WG	08/2000 - 04/2004	1
58028C - PANEL SUB-ASSY, CENTER FLOOR SIDE, LH
58028-13010	NZE120,ZZE122..WG	08/2000 - 04/2004	1
58028-13010	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58028-13010	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58111 - PAN, FRONT FLOOR
58111-12900	NZE12#,ZZE12#	08/2000 - 04/2001	1
58111-12902	NZE120,ZZE122..LHD	04/2001 - 05/2001	1
58111-12902	CE120,NZE120,ZZE12#..LHD	05/2001 - 04/2004	1
58111-12902	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58123A - SUPPORT, SHIFT & SELECT LEVER
58013-12040	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58013-12040	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	08/2000 - 04/2004	1
58013-12040	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58136 - COVER, FRONT FLOOR HOLE
58136-33010	CE120,NZE120,ZZE12#..GCC,PKN;NZE120,ZZE122..LHD..SED..XLI..GEN	08/2000 - 07/2005	2
58136-33010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	4
58136-33010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
58161B - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
57805-12080	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	1
57805-12080	CE120,NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
57805-12080	CE120,NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
58191 - FOOTREST, FRONT FLOOR
58192-12070	CE120,NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
58192-12070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	1
58192-12070	CE120,NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
58191 - FOOTREST, FRONT FLOOR
58192-12070	CE120,NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
58192-12070	CE120,NZE120,ZZE12#..LHD	08/2000 - 04/2004	1
58192-12070	CE120,NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
58198 - CLIP, FOOTREST
58198-20210	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
58198-20210	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	2
90467-09220	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	06/2004 - 12/2999	2
58198-20210	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 06/2004	2
58198 - CLIP, FOOTREST
58198-20210	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
58198-20210	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	2
90467-09220	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	06/2004 - 12/2999	2
58198-20210	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	04/2004 - 06/2004	2
58208 - PAN, CENTER FLOOR
58211-13910	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58211-13910	NZE120,ZZE122..WG..XLI	08/2000 - 04/2004	1
58211-13910	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58244B - BRACKET, REAR SEAT CUSHION MOUNTING
58244-13030	NZE120,ZZE122..WG	08/2000 - 04/2004	2
58244-13030	NZE120,ZZE122..WG	04/2004 - 09/2006	2
58244-13030	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
58247A - REINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58247-12070	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58247-12070	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
58247-12070	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58248A - REINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58247-12070	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58247-12070	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
58247-12070	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58251B - BRACE, FLOOR PANEL, FRONT
58251-12030	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
58251-12030	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58251-12030	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58351-33010	NZE120,ZZE122..WG..GCC	10/2001 - 07/2005	1
58351-33010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58351-33010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-13140	NZE120,ZZE122..WG	08/2000 - 04/2004	1
58307-13140	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58307-13140	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58311 - PAN, REAR FLOOR
58311-13230	NZE120,ZZE122..WG..XLI	09/2002 - 01/2004	1
58311-13310	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58311-13230	NZE120,ZZE122..WG	10/2001 - 04/2004	1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-12290	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58313-12290	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58313-12290	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-12290	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58314-12290	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58314-12290	CE120,NZE12#,ZZE12#..ARL,GCC,GEN	08/2000 - 04/2004	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-12110	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
58325-12110	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58325-12110	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
58341C - BRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58341-13040	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58341-13040	NZE120,ZZE122..WG	08/2000 - 04/2004	1
58341-13040	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58342C - BRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58342-13040	NZE120,ZZE122..WG	04/2004 - 09/2006	1
58342-13040	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
58342-13040	NZE120,ZZE122..WG	08/2000 - 04/2004	1
58791B - CARRIER, JACK
58791-12200	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
58791-12200	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
58791-12200	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
66383B - BRACKET, ROPE HOOK, NO.1 RH
66383-13010	NZE120,ZZE122..WG	08/2000 - 04/2004	1
66383-13010	NZE120,ZZE122..WG	04/2004 - 09/2006	1
66383-13010	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
66393 - BRACKET, ROPE HOOK, NO.1 LH
66393-13010	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
66393-13010	NZE120,ZZE122..WG	08/2000 - 04/2004	1
66393-13010	NZE120,ZZE122..WG	04/2004 - 09/2006	1
Common parts
90115-06166
90115-06219
90115-06281
90179-08206
90297-03007
90333-01013
90333-25003
90950-01866
90950-01949
90950-01958
90950-01959
90950-01960
90950-06108
91631-J0612
91641-80814

ZZE122L-AWPDKV (2000)

(0008- )WG
