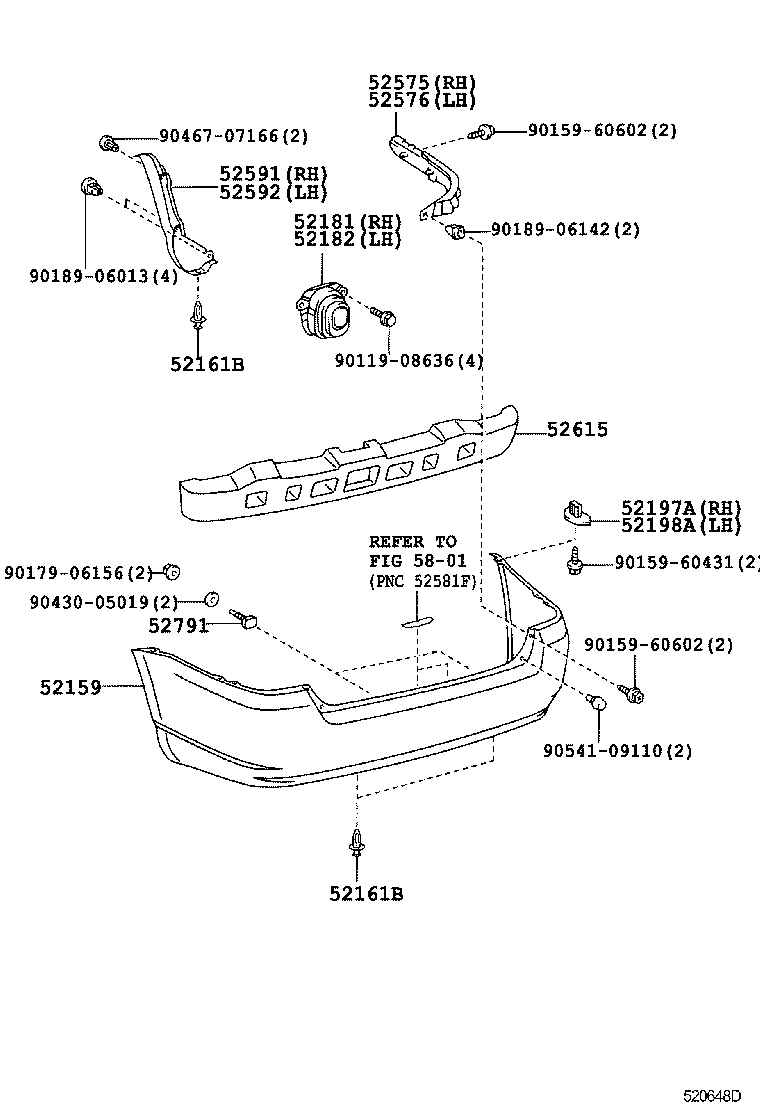

Toyota Corolla/altis sed/wg ZZE122 REAR BUMPER & BUMPER STAY

Part #	Description	Period	Qty
52159 - COVER, REAR BUMPER
52159-13904	NZE120,ZZE122..WG	04/2004 - 09/2006	1
52159-13904	NZE120,ZZE122..WG	08/2000 - 04/2004	1
52159-13904	NZE120,ZZE122..WG	09/2002 - 04/2004	1
52161B - PIECE, REAR BUMPER
52161-16010	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	04/2002 - 09/2002	4
52161-16010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
90467-09093	NZE120,ZZE122..WG	08/2000 - 04/2002	4
52161B - PIECE, REAR BUMPER
52161-16010	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	04/2002 - 09/2002	4
52161-16010	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
90467-09093	NZE120,ZZE122..WG	08/2000 - 04/2002	4
52181 - ARM, REAR BUMPER, RH
52181-12440	NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
52181-12440	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
52182 - ARM, REAR BUMPER, LH
52181-12440	NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
52181-12440	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-12080	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
52197-12080	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
52198A - BRACKET, REAR BUMPER SEAL, LH
52198-12080	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
52198-12080	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
52575 - RETAINER, REAR BUMPER SIDE, RH
52575-13020	NZE120,ZZE122..WG	04/2004 - 09/2006	1
52575-13020	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
52576 - RETAINER, REAR BUMPER SIDE, LH
52576-13020	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
52576-13020	NZE120,ZZE122..WG	04/2004 - 09/2006	1
52591 - SEAL, REAR BUMPER SIDE, RH
52591-12150	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
52591-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
52591-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-12070	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
52592-12070	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
52592-12070	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-13040	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
52615-13040	NZE120,ZZE122..WG	04/2004 - 09/2006	1
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-12040	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	2
52791-12040	NZE120,ZZE122..WG	04/2004 - 09/2006	2
Common parts
90119-08636
90159-60431
90159-60602
90179-06156
90189-06013
90189-06142
90430-05019
90467-07166
90541-09110
Linked diagrams
5801

ZZE122L-AWPDKV (2000)

(0008- )WG
