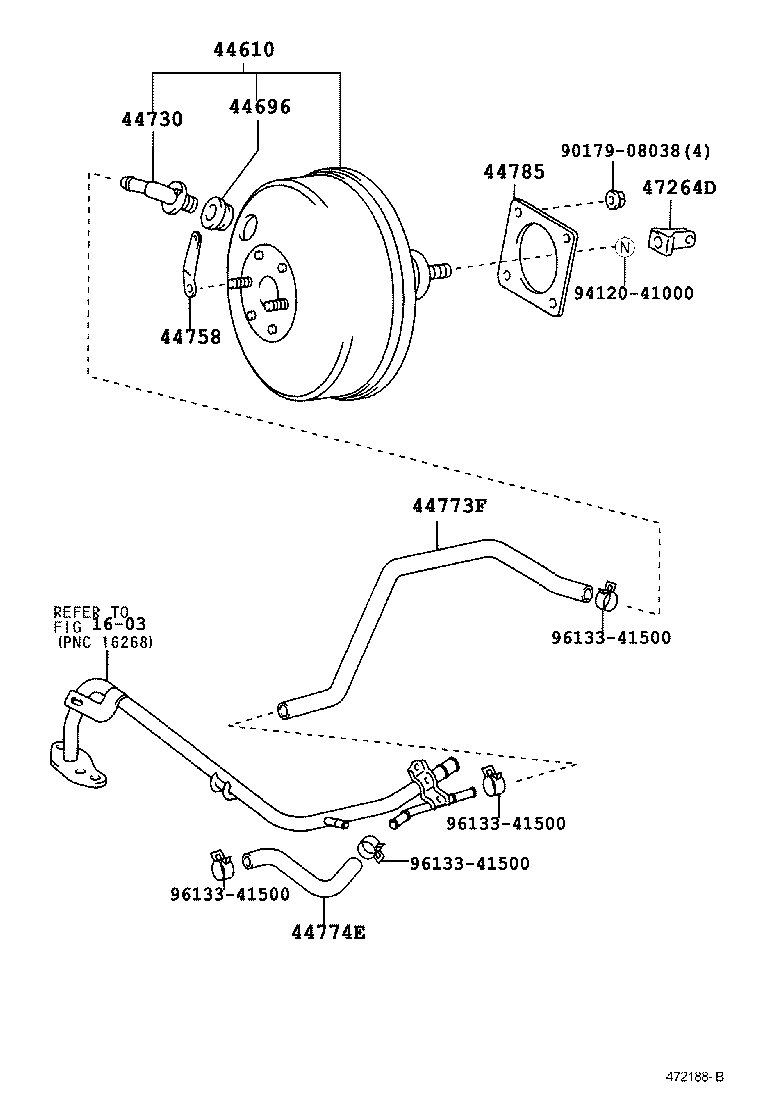

Toyota Corolla/altis sed/wg ZZE122 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-1E480	ZZE121..LHD;NZE120,ZZE122..GCC	08/2000 - 09/2002	1
44610-1E520	NZE120,ZZE12#..LHD W(ABS)	09/2002 - 04/2004	1
44610-1E520	ZZE121..LHD;NZE120,ZZE122..GCC W(ABS)	08/2000 - 09/2002	1
44610-1E480	NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
44610-1E480	NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
44610-1E520	NZE120,ZZE12#..LHD W(ABS)	04/2004 - 12/2999	1
44696 - GROMMET, CHECK VALVE
90480-24439	NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
90480-24439	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
90480-24439	ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12070	NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
44730-14050	ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
44730-12070	ZZE121..GEN;NZE120,ZZE122..GCC;NZE12#,ZZE122..RHD..(GLI,XLI)..GEN	08/2000 - 09/2002	1
44758 - BRACKET, VACUUM CHECK VALVE
44758-42010	ZZE121..LHD;NZE120,ZZE122..GCC	08/2000 - 09/2002	1
44758-42010	NZE120,ZZE12#..LHD	09/2002 - 04/2004	1
44758-42010	NZE120,ZZE12#..LHD	04/2004 - 12/2999	1
44773F - HOSE, UNION TO CHECK VALVE
44773-12710	ZZE121..LHD;ZZE122..GCC	08/2000 - 09/2002	1
44773-12710	ZZE12#..LHD	09/2002 - 04/2004	1
44773-12710	ZZE12#..LHD	04/2004 - 12/2999	1
44774E - HOSE, UNION TO CONNECTOR TUBE
44774-20310	ZZE122..GCC;ZZE122..RHD..GEN	08/2000 - 09/2002	1
44774-20310	ZZE122..GCC,GEN;ZZE122..WG..ARL	04/2004 - 12/2999	1
44774-20310	ZZE122..GCC,GEN	09/2002 - 04/2004	1
44785 - GASKET, BRAKE BOOSTER
44785-20020	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
44785-20020	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
44785-20020	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63010	ZZE121..GEN;NZE121..ATM;ZZE122..RHD..GEN;NZE120,ZZE122..GCC;CE120,NZE12#..RHD..MTM..(GLI,XLI)..GEN	08/2000 - 09/2002	1
47264-63010	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
47264-63010	CE120..LHD;ZZE122..WG..ARL;NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
Common parts
90179-08038
94120-41000
96133-41500
Linked diagrams
1603

ZZE122L-AWPDKV (2000)

(0008- )ZZE12#..LHD
