ZZE122L-AWPDKV (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Sep 2006
Engine 1ZZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )ZZE122..LHD..ATM ; (0008- )ZZE122..LHD..MTM..GEN ; (0110- )ZZE121.

Click highlighted areas on diagram

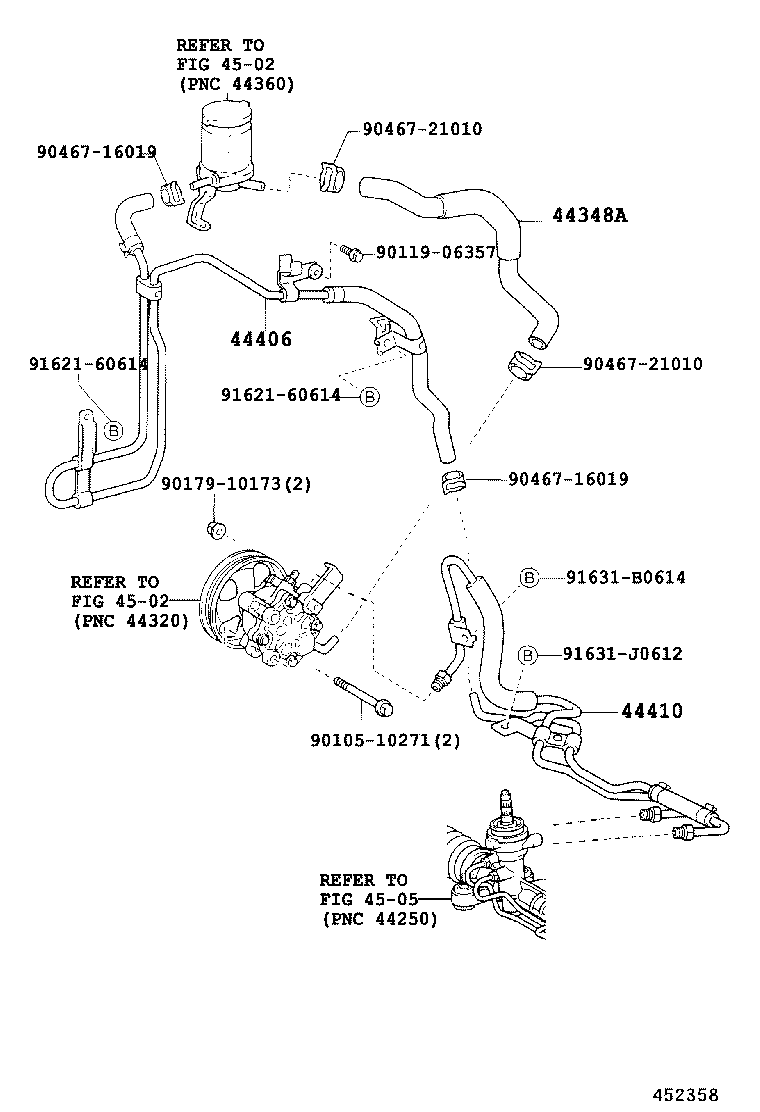

diagram 44348A 44406 44410 4502 4502 4505 9010510271 9011906357 9017910173 9046716019 9046716019 9046721010 9046721010 9162160614 9162160614 91631B0614 91631J0612
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12090

ZZE12#

 1
44348-12091

ZZE12#..GCC,GEN

 1
44348-12091

ZZE121..GEN;ZZE122..GCC;ZZE122..RHD..GEN

 1
44406 - TUBE SUB-ASSY, RETURN
44406-12231

ZZE121..GEN;NZE120..GCC;ZZE122..ATM..GCC;NZE120,ZZE122..RHD..GEN

 1
44406-12230

ZZE122..ATM;NZE120,ZZE121;ZZE122..MTM..GEN

 1
44406-12231

ZZE122..GEN;ZZE122..ATM..GCC;NZE120,ZZE121..GCC,GEN

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-12650

ZZE121..LHD;ZZE122..GCC

 1
44410-12650

ZZE12#..LHD

 1
Common parts
90105-10271
90119-06357
90179-10173
90467-16019
90467-21010
91621-60614
91631-B0614
91631-J0612
Linked diagrams
4502
4505
