ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
(0008-0510)ZZE122..ATM..ARL,GCC,GEN ; (0008-)ZZE121..ATM ; (0510- )ZZE122..A
A245E,A246E

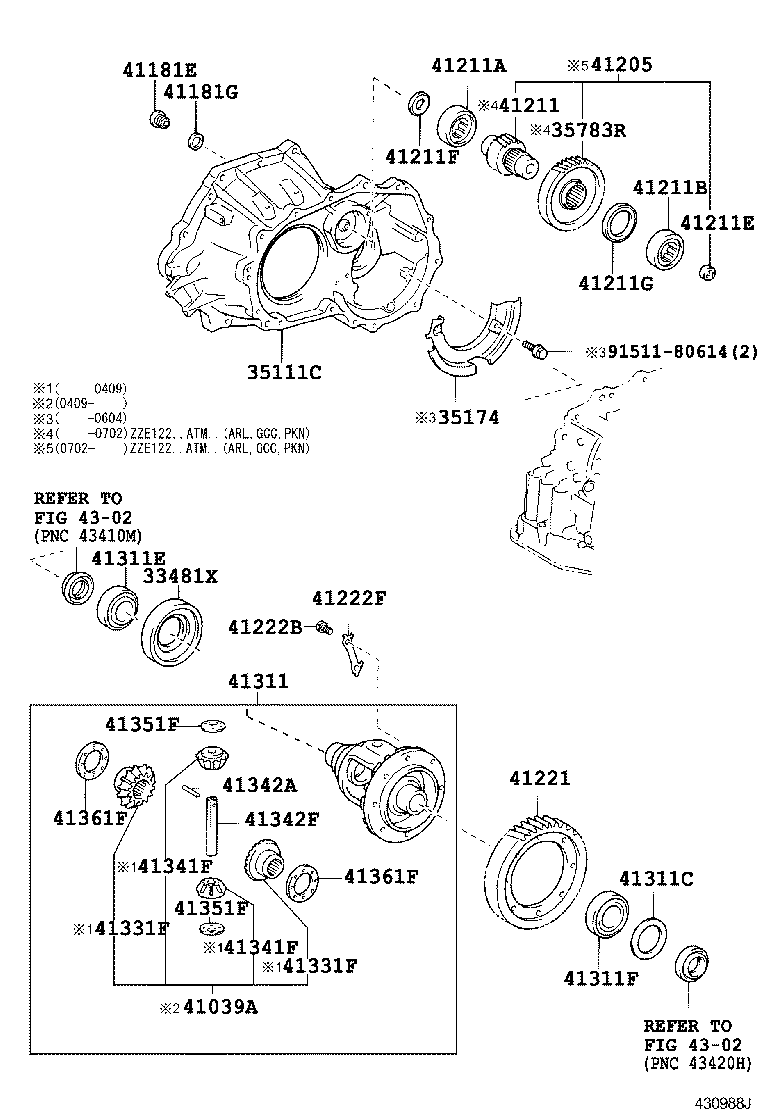

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-12040 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN N=35,MARK 35X29-31 |
1 | ||
| 33481-12040 |
ZZE12#..ATM..(GCC,GEN) N=35,MARK 35X29-31 |
1 | ||
| 33481-12040 |
ZZE12#..ATM..(GCC,GEN) N=35,MARK 35X29-31 |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12060 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35105-20160 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35105-12060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35105-20160 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35111E - WASHER, SEAL (FOR FRONT TRANSAXLE HOUSING) | ||||
| 90210-13002 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90210-13002 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90210-13002 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-12010 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 41039-32020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-20070 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 41206-20070 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 41211-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90365-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-30020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90366-30020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30019 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90365-35003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-30019 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20230 |
ZZE122..ATM |
1 | ||
| 41221-52050 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41221-52050 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41221-20230 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
8 | ||
| 90101-11353 |
ZZE12#..ATM |
8 | ||
| 90101-11353 |
ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 90101-11003 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12050 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
4 | ||
| 41222-12050 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 41222-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
4 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41231-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41231-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32071 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41301-20150 |
ZZE12#..ATM |
1 | ||
| 41301-20150 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41301-12210 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41301-32071 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-38028 |
ZZE12#..ATM |
1 | ||
| 90366-40016 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-38028 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42001 |
ZZE12#..ATM |
1 | ||
| 90366-42001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90366-44001 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-44001 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90201-41024 |
ZZE12#..ATM T=2.00,MARK V |
1 | ||
| 90201-41029 |
ZZE12#..ATM T=2.55,MARK E |
1 | ||
| 90201-41033 |
ZZE12#..ATM T=2.75,MARK J |
1 | ||
| 90201-41027 |
ZZE12#..ATM T=2.45,MARK C |
1 | ||
| 90201-41028 |
ZZE12#..ATM T=2.50,MARK D |
1 | ||
| 90201-41031 |
ZZE12#..ATM T=2.65,MARK G |
1 | ||
| 90201-41025 |
ZZE12#..ATM T=2.35,MARK A |
1 | ||
| 90201-41030 |
ZZE12#..ATM T=2.60,MARK F |
1 | ||
| 90201-41032 |
ZZE12#..ATM T=2.70,MARK H |
1 | ||
| 90201-41034 |
ZZE12#..ATM T=2.80,MARK K |
1 | ||
| 90201-41026 |
ZZE12#..ATM T=2.40,MARK B |
1 | ||
| 90201-41036 |
ZZE12#..ATM T=2.90,MARK M |
1 | ||
| 90201-41040 |
ZZE12#..ATM T=2.15,MARK R |
1 | ||
| 90201-41039 |
ZZE12#..ATM T=2.10,MARK Q |
1 | ||
| 90201-41027 |
ZZE12#..ATM..(GCC,GEN) T=2.45,MARK C |
1 | ||
| 90201-41035 |
ZZE12#..ATM T=2.85,MARK L |
1 | ||
| 90201-41043 |
ZZE12#..ATM T=2.30,MARK U |
1 | ||
| 90201-41025 |
ZZE12#..ATM..(GCC,GEN) T=2.35,MARK A |
1 | ||
| 90201-41042 |
ZZE12#..ATM T=2.25,MARK T |
1 | ||
| 90201-41041 |
ZZE12#..ATM T=2.20,MARK S |
1 | ||
| 90201-41032 |
ZZE12#..ATM..(GCC,GEN) T=2.70,MARK H |
1 | ||
| 90201-41034 |
ZZE12#..ATM..(GCC,GEN) T=2.80,MARK K |
1 | ||
| 90201-41033 |
ZZE12#..ATM..(GCC,GEN) T=2.75,MARK J |
1 | ||
| 90201-41024 |
ZZE12#..ATM..(GCC,GEN) T=2.00,MARK V |
1 | ||
| 90201-41026 |
ZZE12#..ATM..(GCC,GEN) T=2.40,MARK B |
1 | ||
| 90201-41028 |
ZZE12#..ATM..(GCC,GEN) T=2.50,MARK D |
1 | ||
| 90201-41029 |
ZZE12#..ATM..(GCC,GEN) T=2.55,MARK E |
1 | ||
| 90201-41035 |
ZZE12#..ATM..(GCC,GEN) T=2.85,MARK L |
1 | ||
| 90201-41036 |
ZZE12#..ATM..(GCC,GEN) T=2.90,MARK M |
1 | ||
| 90201-41041 |
ZZE12#..ATM..(GCC,GEN) T=2.20,MARK S |
1 | ||
| 90201-41030 |
ZZE12#..ATM..(GCC,GEN) T=2.60,MARK F |
1 | ||
| 90201-41039 |
ZZE12#..ATM..(GCC,GEN) T=2.10,MARK Q |
1 | ||
| 90201-41044 |
ZZE12#..ATM..(GCC,GEN) T=2.05,MARK W |
1 | ||
| 90201-41043 |
ZZE12#..ATM..(GCC,GEN) T=2.30,MARK U |
1 | ||
| 90201-41031 |
ZZE12#..ATM..(GCC,GEN) T=2.65,MARK G |
1 | ||
| 90201-41044 |
ZZE12#..ATM T=2.05,MARK W |
1 | ||
| 90201-41042 |
ZZE12#..ATM..(GCC,GEN) T=2.25,MARK T |
1 | ||
| 90201-41040 |
ZZE12#..ATM..(GCC,GEN) T=2.15,MARK R |
1 | ||
| 90201-41025 |
ZZE12#..ATM..(GCC,GEN) T=2.35,MARK A |
1 | ||
| 90201-41026 |
ZZE12#..ATM..(GCC,GEN) T=2.40,MARK B |
1 | ||
| 90201-41024 |
ZZE12#..ATM..(GCC,GEN) T=2.00,MARK V |
1 | ||
| 90201-41033 |
ZZE12#..ATM..(GCC,GEN) T=2.75,MARK J |
1 | ||
| 90201-41030 |
ZZE12#..ATM..(GCC,GEN) T=2.60,MARK F |
1 | ||
| 90201-41029 |
ZZE12#..ATM..(GCC,GEN) T=2.55,MARK E |
1 | ||
| 90201-41035 |
ZZE12#..ATM..(GCC,GEN) T=2.85,MARK L |
1 | ||
| 90201-41028 |
ZZE12#..ATM..(GCC,GEN) T=2.50,MARK D |
1 | ||
| 90201-41032 |
ZZE12#..ATM..(GCC,GEN) T=2.70,MARK H |
1 | ||
| 90201-41039 |
ZZE12#..ATM..(GCC,GEN) T=2.10,MARK Q |
1 | ||
| 90201-41036 |
ZZE12#..ATM..(GCC,GEN) T=2.90,MARK M |
1 | ||
| 90201-41034 |
ZZE12#..ATM..(GCC,GEN) T=2.80,MARK K |
1 | ||
| 90201-41044 |
ZZE12#..ATM..(GCC,GEN) T=2.05,MARK W |
1 | ||
| 90201-41042 |
ZZE12#..ATM..(GCC,GEN) T=2.25,MARK T |
1 | ||
| 90201-41043 |
ZZE12#..ATM..(GCC,GEN) T=2.30,MARK U |
1 | ||
| 90201-41031 |
ZZE12#..ATM..(GCC,GEN) T=2.65,MARK G |
1 | ||
| 90201-41041 |
ZZE12#..ATM..(GCC,GEN) T=2.20,MARK S |
1 | ||
| 90201-41027 |
ZZE12#..ATM..(GCC,GEN) T=2.45,MARK C |
1 | ||
| 90201-41040 |
ZZE12#..ATM..(GCC,GEN) T=2.15,MARK R |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41331-12011 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41331-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41331-12011 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41331-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41341-12030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41341-30011 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41341-12030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41341-30011 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
1 | ||
| 90250-06058 |
CE120,NZE121,ZZE12#..GCC,GEN |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20060 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
1 | ||
| 41342-20060 |
NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41351-12020 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41351-12020 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=0.95 |
2 | ||
| 41361-17060 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.20 |
2 | ||
| 41361-17020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.00 |
2 | ||
| 41361-17040 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.10 |
2 | ||
| 41361-17030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.05 |
2 | ||
| 41361-17050 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.15 |
2 | ||
| 41361-17010 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=0.95 |
2 | ||
| 41361-17060 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.20 |
2 | ||
| 41361-17030 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.05 |
2 | ||
| 41361-17020 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.00 |
2 | ||
| 41361-17040 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.10 |
2 | ||
| 41361-17050 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.15 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=0.95 |
2 | ||
| 41361-17060 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.20 |
2 | ||
| 41361-17020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.00 |
2 | ||
| 41361-17040 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.10 |
2 | ||
| 41361-17030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.05 |
2 | ||
| 41361-17050 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.15 |
2 | ||
| 41361-17010 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=0.95 |
2 | ||
| 41361-17060 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.20 |
2 | ||
| 41361-17030 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.05 |
2 | ||
| 41361-17020 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.00 |
2 | ||
| 41361-17040 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.10 |
2 | ||
| 41361-17050 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.15 |
2 | ||
| Linked diagrams | ||||
| 4302 | ||||
(0108- )ZZE122..ATM..GCC ; (0507- )ATM..PKN ; (0510- )ATM..ARL
U341E,UNLEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481X - GEAR, SPEEDOMETER DRIVE | ||||
| 33481-32010 |
ZZE122..ATM..GCC |
1 | ||
| 33481-32010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-12060 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35105-20160 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35105-12060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35105-20160 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-20010 |
ZZE122..ATM..GCC |
1 | ||
| 35174-20010 |
ZZE122..ATM..GCC |
1 | ||
| 35174-20010 |
ZZE122..ATM..GCC |
1 | ||
| 35174-20010 |
ZZE122..ATM..GCC |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35783-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35783-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35783-52020 |
ZZE122..ATM..GCC |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-12010 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 41039-32020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41181E - PLUG (FOR FRONT DIFFERENTIAL DRAIN) | ||||
| 90341-18021 |
ZZE122..ATM..GCC |
1 | ||
| 90341-18021 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90341-18021 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 41181G - GASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG) | ||||
| 90430-18008 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90430-18008 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90430-18008 |
ZZE122..ATM..GCC |
1 | ||
| 41211 - PINION, DIFFERENTIAL DRIVE | ||||
| 41206-20070 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 41206-20070 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 41211-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90365-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-30020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90366-30020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90366-30019 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90365-35003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-30019 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41211E - PLUG(FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90331-17017 |
ZZE122..ATM..GCC |
1 | ||
| 90331-17017 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 41211F - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH | ||||
| 90374-18005 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90374-18005 |
ZZE122..ATM..GCC |
1 | ||
| 41211G - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION LH | ||||
| 90374-45001 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90374-45001 |
ZZE122..ATM..GCC |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20230 |
ZZE122..ATM |
1 | ||
| 41221-52050 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41221-52050 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41221-20230 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
8 | ||
| 90101-11353 |
ZZE12#..ATM |
8 | ||
| 90101-11353 |
ZZE12#..ATM..(GCC,GEN) |
8 | ||
| 90101-11003 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
8 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-12050 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
4 | ||
| 41222-12050 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 41222-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
4 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-32071 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41301-20150 |
ZZE12#..ATM |
1 | ||
| 41301-20150 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41301-12210 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41301-32071 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-49002 |
ZZE122..ATM..GCC T=1.95,MARK 02 |
1 | ||
| 90564-49003 |
ZZE122..ATM..GCC T=2.00,MARK 03 |
1 | ||
| 90564-49007 |
ZZE122..ATM..GCC T=2.20,MARK 07 |
1 | ||
| 90564-49011 |
ZZE122..ATM..GCC T=2.40,MARK 11 |
1 | ||
| 90564-49012 |
ZZE122..ATM..GCC T=2.45,MARK 12 |
1 | ||
| 90564-49001 |
ZZE122..ATM..GCC T=1.90,MARK 01 |
1 | ||
| 90564-49006 |
ZZE122..ATM..GCC T=2.15,MARK 06 |
1 | ||
| 90564-49008 |
ZZE122..ATM..GCC T=2.25,MARK 08 |
1 | ||
| 90564-49010 |
ZZE122..ATM..GCC T=2.35,MARK 10 |
1 | ||
| 90564-49004 |
ZZE122..ATM..GCC T=2.05,MARK 04 |
1 | ||
| 90564-49013 |
ZZE122..ATM..GCC T=2.50,MARK 13 |
1 | ||
| 90564-49017 |
ZZE122..ATM..GCC T=2.70,MARK 17 |
1 | ||
| 90564-49019 |
ZZE122..ATM..GCC T=2.80,MARK 19 |
1 | ||
| 90564-49005 |
ZZE122..ATM..GCC T=2.10,MARK 05 |
1 | ||
| 90564-49015 |
ZZE122..ATM..GCC T=2.60,MARK 15 |
1 | ||
| 90564-49009 |
ZZE122..ATM..GCC T=2.30,MARK 09 |
1 | ||
| 90564-49014 |
ZZE122..ATM..GCC T=2.55,MARK 14 |
1 | ||
| 90564-49004 |
NZE121..ATM;ZZE122..ATM..GCC T=2.05,MARK 04 |
1 | ||
| 90564-49018 |
ZZE122..ATM..GCC T=2.75,MARK 18 |
1 | ||
| 90564-49016 |
ZZE122..ATM..GCC T=2.65,MARK 16 |
1 | ||
| 90564-49006 |
NZE121..ATM;ZZE122..ATM..GCC T=2.15,MARK 06 |
1 | ||
| 90564-49001 |
NZE121..ATM;ZZE122..ATM..GCC T=1.90,MARK 01 |
1 | ||
| 90564-49005 |
NZE121..ATM;ZZE122..ATM..GCC T=2.10,MARK 05 |
1 | ||
| 90564-49008 |
NZE121..ATM;ZZE122..ATM..GCC T=2.25,MARK 08 |
1 | ||
| 90564-49010 |
NZE121..ATM;ZZE122..ATM..GCC T=2.35,MARK 10 |
1 | ||
| 90564-49013 |
NZE121..ATM;ZZE122..ATM..GCC T=2.50,MARK 13 |
1 | ||
| 90564-49011 |
NZE121..ATM;ZZE122..ATM..GCC T=2.40,MARK 11 |
1 | ||
| 90564-49017 |
NZE121..ATM;ZZE122..ATM..GCC T=2.70,MARK 17 |
1 | ||
| 90564-49014 |
NZE121..ATM;ZZE122..ATM..GCC T=2.55,MARK 14 |
1 | ||
| 90564-49003 |
NZE121..ATM;ZZE122..ATM..GCC T=2.00,MARK 03 |
1 | ||
| 90564-49002 |
NZE121..ATM;ZZE122..ATM..GCC T=1.95,MARK 02 |
1 | ||
| 90564-49012 |
NZE121..ATM;ZZE122..ATM..GCC T=2.45,MARK 12 |
1 | ||
| 90564-49015 |
NZE121..ATM;ZZE122..ATM..GCC T=2.60,MARK 15 |
1 | ||
| 90564-49007 |
NZE121..ATM;ZZE122..ATM..GCC T=2.20,MARK 07 |
1 | ||
| 90564-49009 |
NZE121..ATM;ZZE122..ATM..GCC T=2.30,MARK 09 |
1 | ||
| 90564-49019 |
NZE121..ATM;ZZE122..ATM..GCC T=2.80,MARK 19 |
1 | ||
| 90564-49018 |
NZE121..ATM;ZZE122..ATM..GCC T=2.75,MARK 18 |
1 | ||
| 90564-49016 |
NZE121..ATM;ZZE122..ATM..GCC T=2.65,MARK 16 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-38028 |
ZZE12#..ATM |
1 | ||
| 90366-40016 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-38028 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42001 |
ZZE12#..ATM |
1 | ||
| 90366-42001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90366-44001 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90366-44001 |
NZE121..ATM;ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41331-12011 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41331-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12011 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41331-12011 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41331-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41341-12030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41341-30011 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12030 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41341-12030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41341-30011 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
1 | ||
| 90250-06058 |
CE120,NZE121,ZZE12#..GCC,GEN |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20060 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
1 | ||
| 41342-20060 |
NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41351-12020 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI |
2 | ||
| 41351-12020 |
NZE121,ZZE12#..GCC,GEN |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=0.95 |
2 | ||
| 41361-17060 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.20 |
2 | ||
| 41361-17020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.00 |
2 | ||
| 41361-17040 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.10 |
2 | ||
| 41361-17030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.05 |
2 | ||
| 41361-17050 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.15 |
2 | ||
| 41361-17010 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=0.95 |
2 | ||
| 41361-17060 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.20 |
2 | ||
| 41361-17030 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.05 |
2 | ||
| 41361-17020 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.00 |
2 | ||
| 41361-17040 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.10 |
2 | ||
| 41361-17050 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.15 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-17010 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=0.95 |
2 | ||
| 41361-17060 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.20 |
2 | ||
| 41361-17020 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.00 |
2 | ||
| 41361-17040 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.10 |
2 | ||
| 41361-17030 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.05 |
2 | ||
| 41361-17050 |
ZZE122..WG..ATM..GCC;ZZE121..RHD..ATM..GEN;ZZE122..ATM..GLI..GCC;ZZE122..LHD..SED..ATM..XLI T=1.15 |
2 | ||
| 41361-17010 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=0.95 |
2 | ||
| 41361-17060 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.20 |
2 | ||
| 41361-17030 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.05 |
2 | ||
| 41361-17020 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.00 |
2 | ||
| 41361-17040 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.10 |
2 | ||
| 41361-17050 |
NZE121,ZZE12#..ATM..(GCC,GEN) T=1.15 |
2 | ||
| Common parts | ||||
| 91511-80614 | ||||
| Linked diagrams | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
