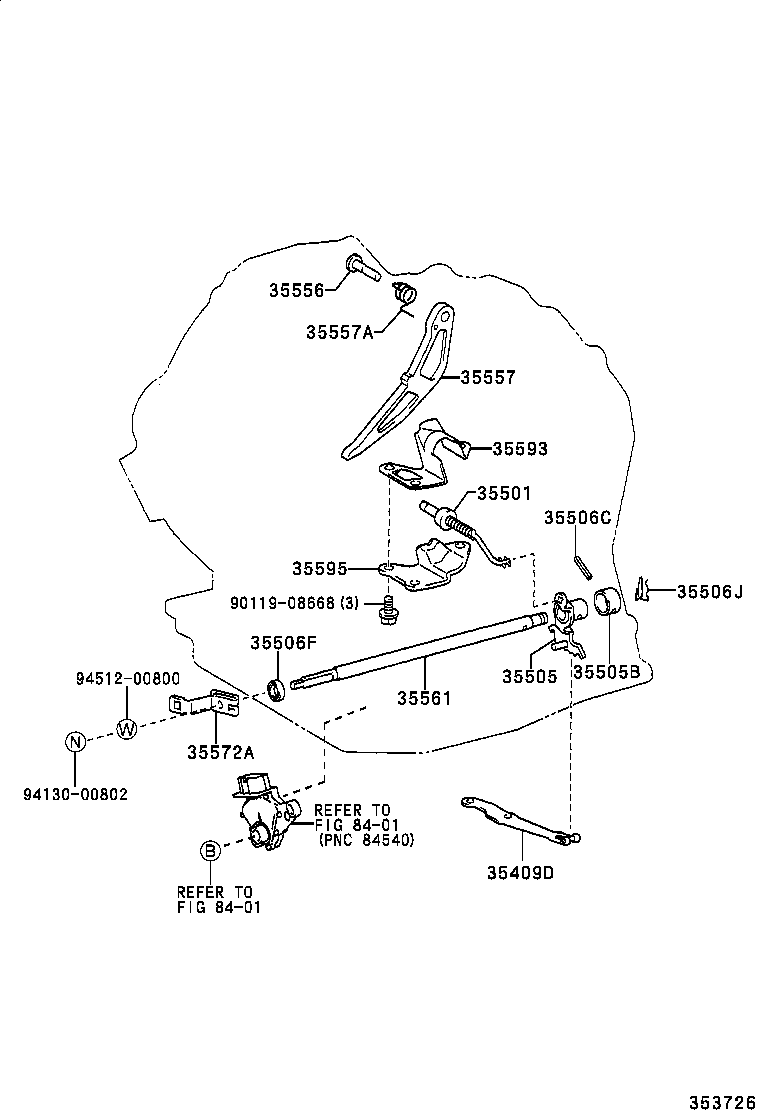

ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
(0108- )ZZE122..ATM..GCC
U341E,UNLEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35409D - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35409-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35501-12030 |
ZZE12#..ATM |
1 | ||
| 35501-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35501-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-20030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35505-12100 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35505-20030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35505-12100 |
ZZE12#..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE121,ZZE121..ATM..GEN |
1 | ||
| 90560-20006 |
NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-04011 |
ZZE122..ATM..GCC |
1 | ||
| 90254-04011 |
NZE12#..ATM;ZZE122..ATM..GCC |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
ZZE121..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC |
1 | ||
| 90311-12002 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-11001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90524-09001 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90524-09001 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90524-11001 |
ZZE12#..ATM |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35556-12020 |
ZZE12#..ATM |
1 | ||
| 35556-32020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35556-32020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12030 |
ZZE12#..ATM |
1 | ||
| 35557-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35557-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35557-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90949-03089 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90949-03060 |
ZZE12#..ATM |
1 | ||
| 90949-03089 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90949-03060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35561-12040 |
ZZE12#..ATM |
1 | ||
| 35561-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35561-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12150 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35572-12150 |
ZZE12#..ATM |
1 | ||
| 35572-20250 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35572-20250 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
ZZE12#..ATM |
1 | ||
| 35593-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35593-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35593-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35595-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| Common parts | ||||
| 90119-08668 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35501-12030 |
ZZE12#..ATM |
1 | ||
| 35501-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35501-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-20030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35505-12100 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35505-20030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35505-12100 |
ZZE12#..ATM |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20006 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE121,ZZE121..ATM..GEN |
1 | ||
| 90560-20006 |
NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90254-04011 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
ZZE121..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC |
1 | ||
| 90311-12002 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90524-11001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90524-09001 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90524-09001 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90524-11001 |
ZZE12#..ATM |
1 | ||
| 35506P - WASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90201-12028 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90201-12028 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90201-12028 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35556-12020 |
ZZE12#..ATM |
1 | ||
| 35556-32020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35556-32020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-12030 |
ZZE12#..ATM |
1 | ||
| 35557-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35557-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35557-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90949-03089 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90949-03060 |
ZZE12#..ATM |
1 | ||
| 90949-03089 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90949-03060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35558 - CLAMP, PAWL SHAFT | ||||
| 35558-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35558-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35558-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35561-12040 |
ZZE12#..ATM |
1 | ||
| 35561-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35561-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12150 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35572-12150 |
ZZE12#..ATM |
1 | ||
| 35572-20250 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35572-20250 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35593 - SLEEVE, CAM GUIDE | ||||
| 35593-12010 |
ZZE12#..ATM |
1 | ||
| 35593-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35593-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35593-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35596 - PLATE, PAWL STOPPER | ||||
| 35596-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35596-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35596-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
ZZE12#..ATM..(ARL,GCC,GEN) *8-1.25PX17-13.5 |
1 | ||
| 90105-08070 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX17-13.5 |
1 | ||
| 90105-08333 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX35-30 |
1 | ||
| 90105-08333 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX35-30 |
1 | ||
| 90105-08333 |
ZZE12#..ATM *8-1.25PX35-30 |
1 | ||
| 90105-08070 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX17-13.5 |
1 | ||
| 35596A - BOLT (FOR PAWL STOPPER PLATE) | ||||
| 90105-08070 |
ZZE12#..ATM..(ARL,GCC,GEN) *8-1.25PX17-13.5 |
1 | ||
| 90105-08070 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX17-13.5 |
1 | ||
| 90105-08333 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX35-30 |
1 | ||
| 90105-08333 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX35-30 |
1 | ||
| 90105-08333 |
ZZE12#..ATM *8-1.25PX35-30 |
1 | ||
| 90105-08070 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX17-13.5 |
1 | ||
| 35597 - SLEEVE, SPRING GUIDE | ||||
| 35597-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35597-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35597-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35598 - SLEEVE, PARKING LOCK | ||||
| 35598-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35598-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35598-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 91611-B0610 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
