ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg

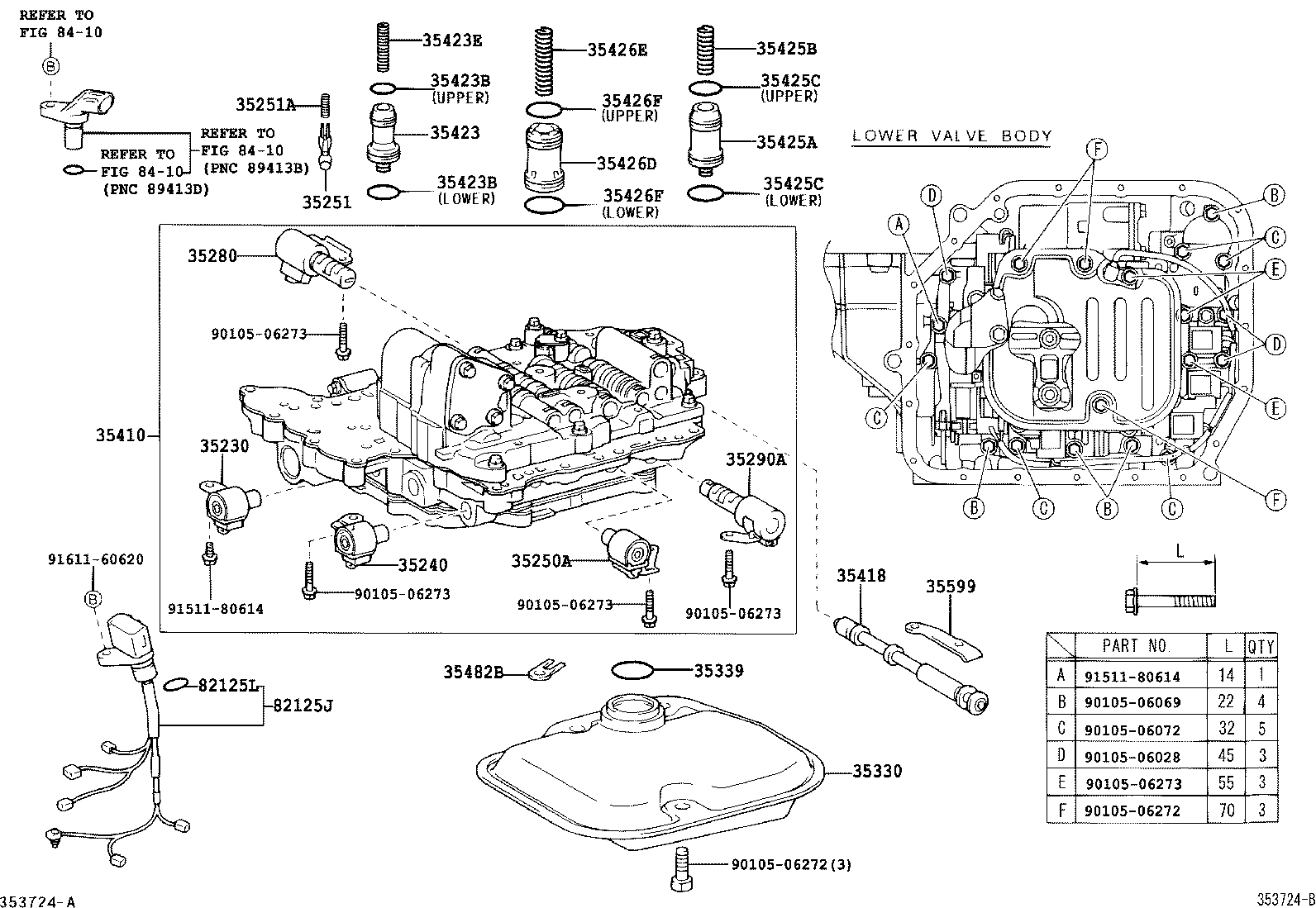

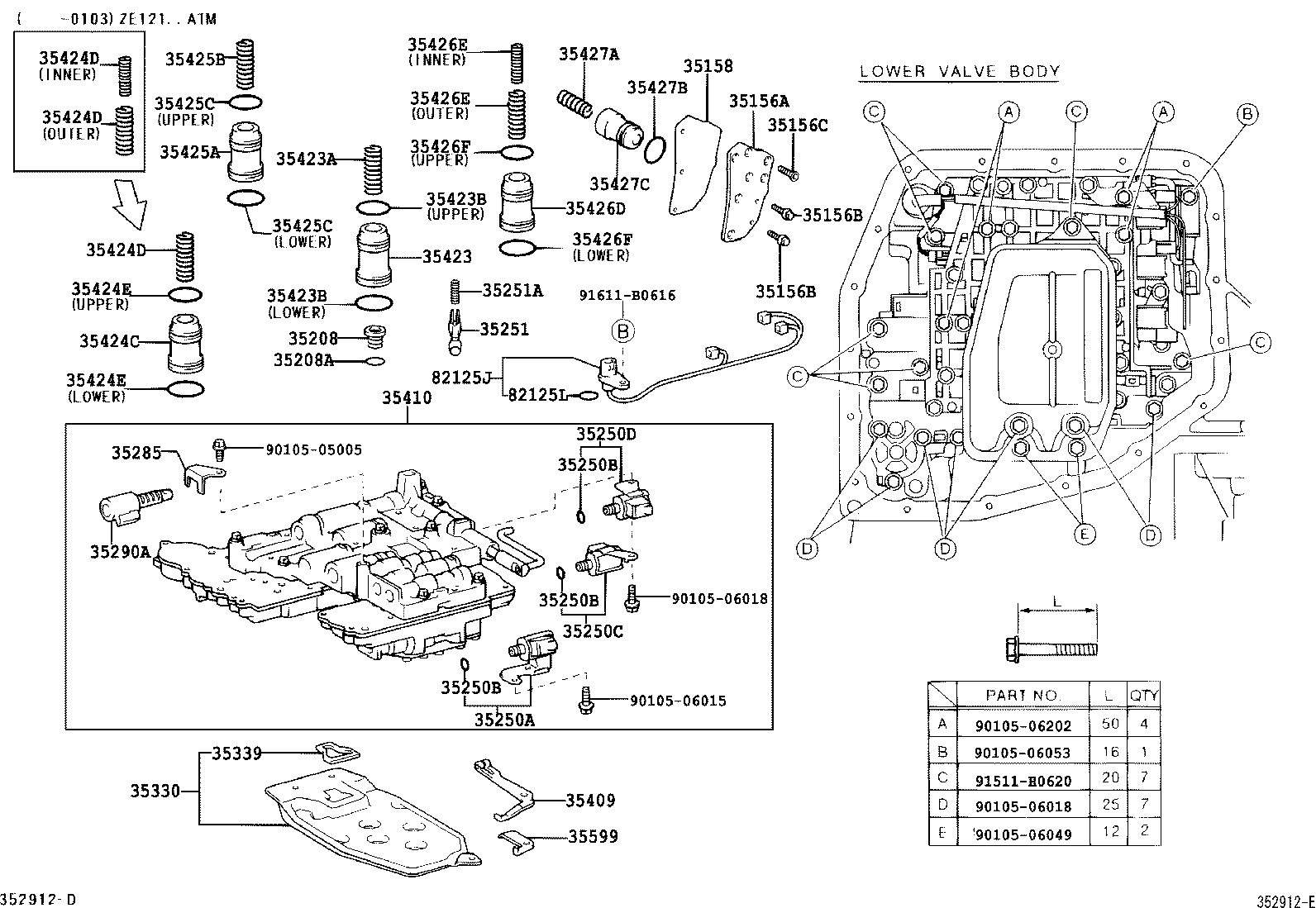

ILLUST NO. 1 OF 2(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35156A - PLATE, TRANSMISSION CASE, NO.2 | ||||
| 35108-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35108-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35108-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
ZZE12#..ATM..(GCC,GEN,PKN) |
2 | ||
| 90105-06049 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90105-06049 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35156B - BOLT(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90105-06049 |
ZZE12#..ATM..(GCC,GEN,PKN) |
2 | ||
| 90105-06049 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90105-06049 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35156C - SCREW(FOR TRANSMISSION CASE NO.2 PLATE) | ||||
| 90149-60041 |
ZZE12#..ATM..(GCC,GEN) |
7 | ||
| 90149-60041 |
ZZE12#..ATM..(GCC,GEN) |
7 | ||
| 90149-60041 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
7 | ||
| 35158 - GASKET, TRANSMISSION CASE, NO.2 PLATE | ||||
| 35158-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35158-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35158-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35205-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35205-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35205-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90521-22004 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35250-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35250-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35250-12030 |
ZZE12#..ATM |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ZZE12#..ATM |
3 | ||
| 90301-06004 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 90301-06004 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ZZE12#..ATM |
3 | ||
| 90301-06004 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 90301-06004 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
ZZE12#..ATM |
3 | ||
| 90301-06004 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 90301-06004 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35250C - SOLENOID ASSY, TRANSMISSION NO.1 | ||||
| 35250-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35250-12010 |
ZZE12#..ATM |
1 | ||
| 35250-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35250D - SOLENOID ASSY, TRANSMISSION NO.2 | ||||
| 35250-12020 |
ZZE12#..ATM |
1 | ||
| 35250-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35250-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35251-30020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE121,ZZE121..ATM..GEN |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-03005 |
NZE121,ZZE12#..ATM |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35285-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35285-12020 |
ZZE12#..ATM |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35290-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35290-12020 |
ZZE12#..ATM |
1 | ||
| 35290-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35330-12040 |
ZZE12#..ATM |
1 | ||
| 35330-0W020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35330-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90301-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35339-12020 |
ZZE12#..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-12030 |
ZZE12#..ATM |
1 | ||
| 35409-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12681 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35410-12680 |
ZZE122..ATM |
1 | ||
| 35410-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52041 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52042 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52042 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-12681 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35410-12681 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-12010 |
ZZE12#..ATM |
1 | ||
| 35403-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35423-12020 |
ZZE12#..ATM |
1 | ||
| 35403-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35423-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-22034 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90501-22034 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-22034 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN,PKN) UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN,PKN) UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-12050 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35424-12050 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35424-12050 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35424-12030 |
ZZE12#..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22058 |
ZZE121..LHD..ATM;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90501-22058 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-22058 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22058 |
ZZE121..LHD..ATM;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90501-22058 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-22058 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-22058 |
ZZE121..LHD..ATM;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90501-22058 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-22058 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN LOWER |
1 | ||
| 90301-23010 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-23010 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-23010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN LOWER |
1 | ||
| 90301-23010 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-23010 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-23010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12040 |
ZZE12#..ATM |
1 | ||
| 35425-12050 |
ZZE12#..ATM |
1 | ||
| 35425-12050 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35405-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35405-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22057 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 90501-24036 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90501-24036 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90501-22057 |
ZZE122..ATM |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-26012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM LOWER |
1 | ||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-26012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-26012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM LOWER |
1 | ||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-26012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-12030 |
ZZE12#..ATM |
1 | ||
| 35423-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35423-12020 |
ZZE12#..ATM..(GCC,GEN,PKN) |
1 | ||
| 35426-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35426-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-20134 |
ZZE12#..ATM INNER |
1 | ||
| 90501-23129 |
ZZE12#..ATM OUTER |
1 | ||
| 90501-20134 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-23129 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90501-23149 |
ZZE122..ATM..GCC |
1 | ||
| 90501-23149 |
ZZE122..ATM..GCC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-20134 |
ZZE12#..ATM INNER |
1 | ||
| 90501-23129 |
ZZE12#..ATM OUTER |
1 | ||
| 90501-20134 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-23129 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90501-23149 |
ZZE122..ATM..GCC |
1 | ||
| 90501-23149 |
ZZE122..ATM..GCC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 35427A - SPRING, COMPRESSION (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90501-26078 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90501-26078 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 90501-26078 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35427B - RING, O (FOR B-4 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-21012 |
ZZE12#..ATM |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35427C - PISTON, B-4 ACCUMULATOR | ||||
| 35427-13010 |
ZZE12#..ATM |
1 | ||
| 35427-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35427-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35427-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35599-12020 |
ZZE12#..ATM |
1 | ||
| 35599-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35599-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-12380 |
ZZE121..ATM;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 82125-20270 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82125-20270 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82125-12380 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 82125-20270 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN |
1 | ||
| 90301-21009 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-21009 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06015 | ||||
| 90105-06018 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06202 | ||||
| 91511-H0620 | ||||
| 91611-B0616 | ||||
(0108- )ZZE122..ATM..GCC
U341E,UNLEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35230-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35230-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35230-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35240-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35240-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35240-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35250-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35250-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35250-12030 |
ZZE12#..ATM |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35251-30020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN;NZE121,ZZE121..ATM..GEN |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
NZE121,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90501-03005 |
NZE121,ZZE12#..ATM |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35270-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35270-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35270-52011 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35290A - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35290-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35290-12020 |
ZZE12#..ATM |
1 | ||
| 35290-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-0W020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35330-12040 |
ZZE12#..ATM |
1 | ||
| 35330-0W020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35330-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90301-32010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35339-12020 |
ZZE12#..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-12681 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35410-12680 |
ZZE122..ATM |
1 | ||
| 35410-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52041 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52042 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-52042 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35410-12681 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35410-12681 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35418-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-12010 |
ZZE12#..ATM |
1 | ||
| 35403-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35423-12020 |
ZZE12#..ATM |
1 | ||
| 35403-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35423-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN,PKN) UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN,PKN) UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-20010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35423E - SPRING, COMPRESSION (FOR B-2 ACCMULATOR PISTON) | ||||
| 90501-18119 |
ZZE122..ATM..GCC |
1 | ||
| 90501-18119 |
ZZE122..ATM..GCC |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-12040 |
ZZE12#..ATM |
1 | ||
| 35425-12050 |
ZZE12#..ATM |
1 | ||
| 35425-12050 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35405-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35405-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22057 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 90501-24036 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90501-24036 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90501-22057 |
ZZE122..ATM |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-26012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM LOWER |
1 | ||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-26012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-26012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM LOWER |
1 | ||
| 90301-22010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,LOWER |
1 | ||
| 90301-35004 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-29011 |
ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-26012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-12030 |
ZZE12#..ATM |
1 | ||
| 35423-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35423-12020 |
ZZE12#..ATM..(GCC,GEN,PKN) |
1 | ||
| 35426-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35426-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-20134 |
ZZE12#..ATM INNER |
1 | ||
| 90501-23129 |
ZZE12#..ATM OUTER |
1 | ||
| 90501-20134 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-23129 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90501-23149 |
ZZE122..ATM..GCC |
1 | ||
| 90501-23149 |
ZZE122..ATM..GCC |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM..(GCC,GEN) UPPER |
1 | ||
| 90301-21012 |
ZZE12#..ATM UPPER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM LOWER |
1 | ||
| 90301-29011 |
NZE121,ZZE12#..ATM..(GCC,GEN) LOWER |
1 | ||
| 90301-24016 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,UPPER |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35482-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35599-12020 |
ZZE12#..ATM |
1 | ||
| 35599-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35599-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-12380 |
ZZE121..ATM;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 82125-20270 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82125-20270 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82125-12380 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 82125-20270 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN |
1 | ||
| 90301-21009 |
NZE12#,ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-21009 |
NZE12#,ZZE12#..ATM..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-06069 | ||||
| 90105-06072 | ||||
| 90105-06272 | ||||
| 90105-06273 | ||||
| 91511-80614 | ||||
| 91611-60620 | ||||
| Linked diagrams | ||||
| 8410 | ||||
ILLUST NO. 2 OF 2(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 35195-12030 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35195-12030 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 35195-12030 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35195-12030 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35196-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35196-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35197 - CLAMP, TRANSAXLE APPLY TUBE, NO.3 | ||||
| 35197-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35197-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35197-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35847-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35847-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35882-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35882-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35899 - TUBE, GOVERNOR PRESSURE | ||||
| 35899-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35899-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35899-12040 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| Common parts | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
