ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR | ||||
| 35076-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35076-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35076-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG | ||||
| 90374-25009 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90374-25009 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90374-25009 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35076F - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR FLANGE) | ||||
| 90521-99014 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90521-99014 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE | ||||
| 35097-12050 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35097-12050 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35097-12050 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35708D - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-12070 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35708-12070 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35708-12070 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35708F - BEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT) | ||||
| 90374-22003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90374-22003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90374-22003 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-12050 |
ZZE122..ATM |
1 | ||
| 35720-12050 |
ZZE12#..ATM |
1 | ||
| 35720-17010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35720-12050 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35720-17010 |
ZZE122..RHD..ATM;ZZE122..ATM..GCC |
1 | ||
| 35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR | ||||
| 90374-22009 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90374-22009 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90374-22009 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 35738-12010 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35738-12010 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 35738-12010 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35738-12010 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-32011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35739-32011 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35739-32011 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-32040 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35743-32040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35743-32040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35748B - RING, INTERMEDIATE SHAFT OIL SEAL | ||||
| 35748-32010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35748-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35748-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-12020 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35760-52010 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 35760-52010 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 35760-52010 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 35760-12020 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE) | ||||
| 90521-90001 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90521-90001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-52007 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90363-52005 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90366-52007 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90363-40070 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90363-40070 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35782H - NUT(FOR COUNTER DRIVE GEAR) | ||||
| 90179-40009 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90179-40008 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 90179-22021 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90179-22021 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90179-40009 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35782J - RING, SNAP | ||||
| 90520-75003 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90520-75003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90520-75003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35783E - BEARING, CYLINDRICAL ROLLER(FOR COUNTER DRIVEN GEAR) | ||||
| 90365-37001 |
ZZE12#..ATM |
1 | ||
| 90365-37008 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90365-37008 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90365-37008 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35783F - BEARING, THRUST NEEDLE ROLLER(FOR COUNTER DRIVEN GEAR) | ||||
| 90374-41001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90374-41001 |
ZZE121..LHD..ATM;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90374-41001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35783G - NUT(FOR COUNTER DRIVEN GEAR) | ||||
| 90179-22021 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90179-22021 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90179-22021 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35789 - RACE, THRUST BEARING (FOR FRONT PLANETARY FLANGE FRONT) | ||||
| 35789-12040 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35789-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35789-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35789C - RACE, THRUST BEARING (FOR FRONT PLANETARY GEAR FRONT) | ||||
| 35789-32060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35789-32060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35789-32060 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-32011 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35792-32011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35792-32011 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
ZZE122..ATM..GCC *FGR=4.058 |
2 | ||
| 90520-99053 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 90520-99053 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90521-99010 |
ZZE122..ATM..GCC *FGR=4.058 |
2 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
ZZE122..ATM..GCC *FGR=4.058 |
2 | ||
| 90520-99053 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 90520-99053 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90521-99010 |
ZZE122..ATM..GCC *FGR=4.058 |
2 | ||
| 35795 - RACE, 1 WAY CLUTCH OUTER | ||||
| 35795-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35795-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35795-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90521-99011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE) | ||||
| 90521-99011 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90521-99011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
(0108- )ZZE122..ATM..GCC
U341E,UNLEADED GASOLINE SPEC

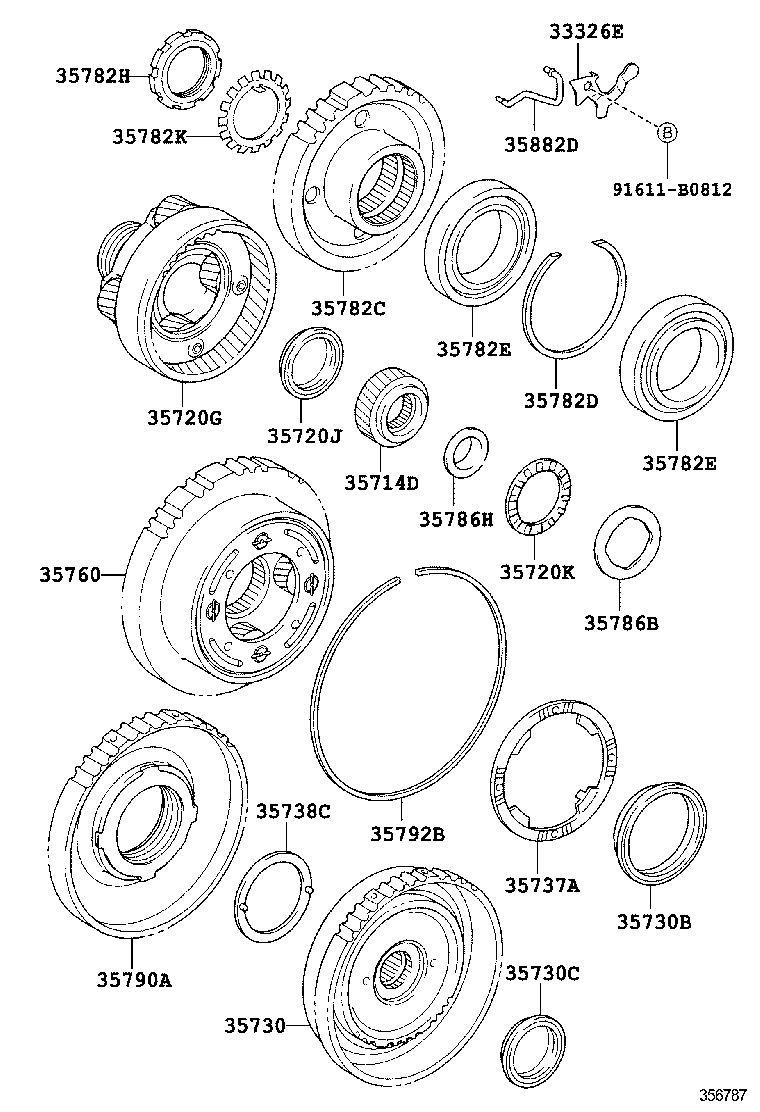

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33326E - PLATE, BEARING LOCK | ||||
| 33326-20010 |
ZZE122..ATM..GCC |
1 | ||
| 33326-20010 |
ZZE122..ATM..GCC |
1 | ||
| 35714D - GEAR, FR PLANETARY SUN | ||||
| 35714-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35714-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35720G - GEAR ASSY, PLANETARY | ||||
| 35720-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35720-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35720-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35720J - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT) | ||||
| 90374-33006 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90374-33006 |
ZZE122..ATM..GCC |
1 | ||
| 35720K - BEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR) | ||||
| 90374-33007 |
ZZE122..ATM..GCC |
1 | ||
| 90374-33007 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35730 - GEAR ASSY, REAR PLANETARY SUN | ||||
| 35730-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35730-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35730B - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN G | ||||
| 90374-43003 |
ZZE122..ATM..GCC |
1 | ||
| 90374-43003 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35730C - BEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO. | ||||
| 90374-29002 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90374-29002 |
ZZE122..ATM..GCC |
1 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35737-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35738C - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35738-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-12020 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35760-52010 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 35760-52010 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 35760-52010 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 35760-12020 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35782C - GEAR, COUNTER DRIVE | ||||
| 35782-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35782-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR) | ||||
| 90520-83001 |
ZZE122..ATM..GCC |
1 | ||
| 90520-83001 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-52007 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90363-52005 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90366-52007 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90363-40070 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90363-40070 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35782E - BEARING(FOR COUNTER DRIVE GEAR) | ||||
| 90366-52007 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90363-52005 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90366-52007 |
ZZE122..ATM..GCC *FGR=3.941 |
2 | ||
| 90363-40070 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90363-40070 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 35782H - NUT(FOR COUNTER DRIVE GEAR) | ||||
| 90179-40009 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90179-40008 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 90179-22021 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90179-22021 |
ZZE122..ATM..GCC *FGR=4.058 |
1 | ||
| 90179-40009 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35782K - WASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT) | ||||
| 90215-40002 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90215-40001 |
ZZE122..ATM..GCC |
1 | ||
| 90215-40002 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35786B - RACE, THRUST BEARING, NO.2 | ||||
| 35787-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35787-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35786H - RACE, THRUST BEARING, NO.1 | ||||
| 35786-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35786-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35790A - CLUTCH ASSY, 1 WAY | ||||
| 35790-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35790-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-99010 |
ZZE122..ATM..GCC *FGR=4.058 |
2 | ||
| 90520-99053 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 90520-99053 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90521-99010 |
ZZE122..ATM..GCC *FGR=4.058 |
2 | ||
| 35882D - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35882-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| Common parts | ||||
| 91611-B0812 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
