ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E

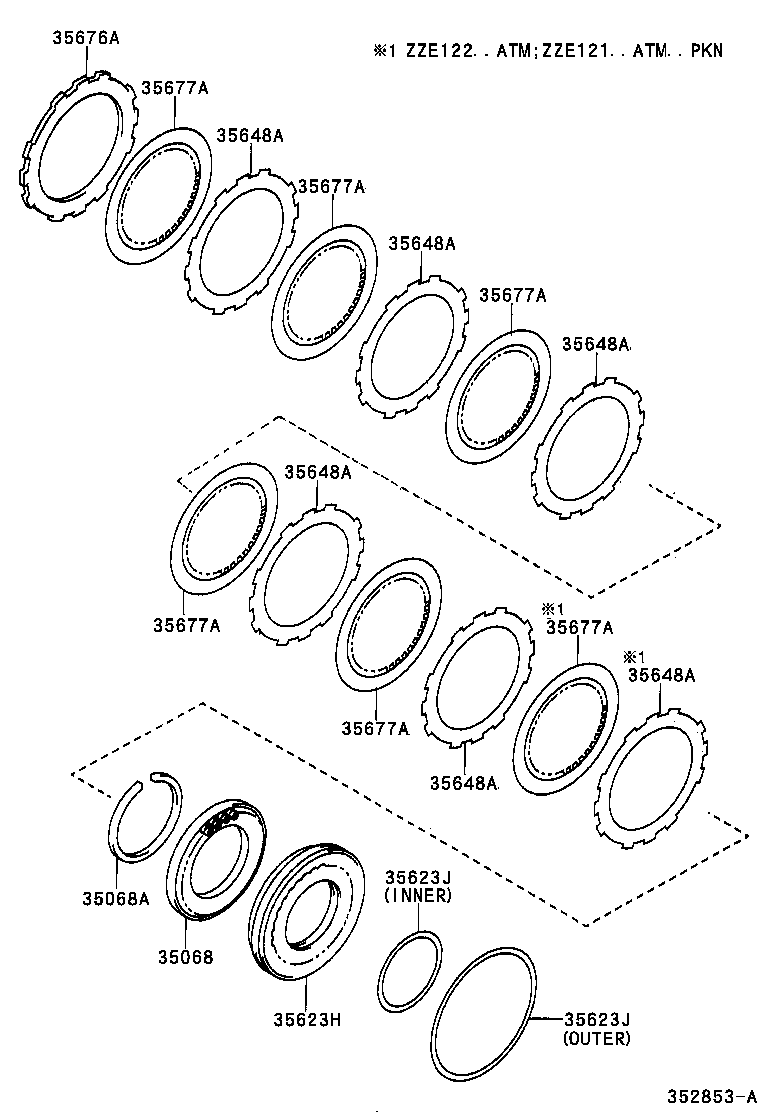

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35068-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35068-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35068-12010 |
ZZE12#..ATM |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-90001 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90520-90001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90520-90001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-12030 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35623-12030 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35623-12030 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94004 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OUTER |
1 | ||
| 90301-99131 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN INNER |
1 | ||
| 90301-94004 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-99131 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99131 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-94004 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94004 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OUTER |
1 | ||
| 90301-99131 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN INNER |
1 | ||
| 90301-94004 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-99131 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99131 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-94004 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35648-12020 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-12030 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) T=3.5 |
1 | ||
| 35676-32010 |
ZZE12#..ATM..(GCC,GEN) T=3.5 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677-12080 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677-12080 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677-12080 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677-12080 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677-12080 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
| 35677-12080 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
6 | ||
| 35677-12080 |
ZZE122..ATM..(GCC,GEN) |
6 | ||
(0108- )ZZE122..ATM..GCC
U341E,UNLEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34603B - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 34603-52020 |
ZZE122..ATM..GCC |
1 | ||
| 34603-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 34603C - RING, HOLE SNAP(FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90520-99055 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90520-99055 |
ZZE122..ATM..GCC |
1 | ||
| 34622B - PISTON, 2ND COAST & OVERDRIVE BRAKE | ||||
| 34622-52021 |
ZZE122..ATM..GCC |
1 | ||
| 34622-52021 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 34622C - RING, O(FOR 2ND COAST & OVERDRIVE) | ||||
| 90301-99121 |
NZE121..ATM;ZZE122..ATM..GCC INNER |
1 | ||
| 90301-99122 |
ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99122 |
NZE121..ATM;ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99121 |
ZZE122..ATM..GCC INNER |
1 | ||
| 34622C - RING, O(FOR 2ND COAST & OVERDRIVE) | ||||
| 90301-99121 |
NZE121..ATM;ZZE122..ATM..GCC INNER |
1 | ||
| 90301-99122 |
ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99122 |
NZE121..ATM;ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99121 |
ZZE122..ATM..GCC INNER |
1 | ||
| 34625D - FLANGE, 2ND COAST & OVERDRIVE BRAKE | ||||
| 34625-52071 |
ZZE122..ATM..GCC T=4.2, MARK 5 |
1 | ||
| 34625-52110 |
ZZE122..ATM..GCC T=4.0, MARK 4 |
1 | ||
| 34625-52091 |
ZZE122..ATM..GCC T=4.6, MARK 7 |
1 | ||
| 34625-52071 |
NZE121..ATM;ZZE122..ATM..GCC T=4.2, MARK 5 |
1 | ||
| 34625-52081 |
ZZE122..ATM..GCC T=4.4, MARK 6 |
1 | ||
| 34625-52091 |
NZE121..ATM;ZZE122..ATM..GCC T=4.6, MARK 7 |
1 | ||
| 34625-52081 |
NZE121..ATM;ZZE122..ATM..GCC T=4.4, MARK 6 |
1 | ||
| 34625-52110 |
NZE121..ATM;ZZE122..ATM..GCC T=4.0, MARK 4 |
1 | ||
| 34625E - RING, HOLE SNAP(FOR 2ND COAST & OVERDRIVE BRAKE FLANGE) | ||||
| 90520-99050 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90520-99050 |
ZZE122..ATM..GCC |
1 | ||
| 34625F - FLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2 | ||||
| 34625-52060 |
NZE121..ATM;ZZE122..ATM..GCC |
2 | ||
| 34625-52060 |
ZZE122..ATM..GCC |
2 | ||
| 34625F - FLANGE, 2ND COAST & OVERDRIVE BRAKE, NO.2 | ||||
| 34625-52060 |
NZE121..ATM;ZZE122..ATM..GCC |
2 | ||
| 34625-52060 |
ZZE122..ATM..GCC |
2 | ||
| 34633 - DISC, 2ND COAST & OVERDRIVE BRAKE | ||||
| 34633-52020 |
ZZE122..ATM..GCC |
2 | ||
| 34633-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
2 | ||
| 34633 - DISC, 2ND COAST & OVERDRIVE BRAKE | ||||
| 34633-52020 |
ZZE122..ATM..GCC |
2 | ||
| 34633-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
2 | ||
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35068-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35068-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35068-12010 |
ZZE12#..ATM |
1 | ||
| 35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35608-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35608M - RING, SNAP(FOR 2ND BRAKE PISTON RETURN SPRING) | ||||
| 90520-99048 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90520-99048 |
ZZE122..ATM..GCC |
1 | ||
| 35623P - PISTON, 1ST & REVERSE BRAKE, NO.2 | ||||
| 35623-52030 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35623-52030 |
ZZE122..ATM..GCC |
1 | ||
| 35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) | ||||
| 90301-99117 |
NZE121..ATM;ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99117 |
ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-98002 |
NZE121..ATM;ZZE122..ATM..GCC INNER |
1 | ||
| 90301-98002 |
ZZE122..ATM..GCC INNER |
1 | ||
| 35623Q - RING, O (FOR 1ST & REVERSE BRAKE PISTON NO.2) | ||||
| 90301-99117 |
NZE121..ATM;ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99117 |
ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-98002 |
NZE121..ATM;ZZE122..ATM..GCC INNER |
1 | ||
| 90301-98002 |
ZZE122..ATM..GCC INNER |
1 | ||
| 35624E - PISTON, 2ND BRAKE | ||||
| 35624-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35624-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35626D - SLEEVE, 2ND BRAKE PISTON | ||||
| 35626-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35626-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35664C - CYLINDER, 2ND BRAKE | ||||
| 35664-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35664-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35664D - RING, O(FOR 2ND BRAKE CYLINDER) | ||||
| 90301-99118 |
ZZE122..ATM..GCC INNER |
1 | ||
| 90301-99118 |
NZE121..ATM;ZZE122..ATM..GCC INNER |
1 | ||
| 90301-99119 |
NZE121..ATM;ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99119 |
ZZE122..ATM..GCC OUTER |
1 | ||
| 35664D - RING, O(FOR 2ND BRAKE CYLINDER) | ||||
| 90301-99118 |
ZZE122..ATM..GCC INNER |
1 | ||
| 90301-99118 |
NZE121..ATM;ZZE122..ATM..GCC INNER |
1 | ||
| 90301-99119 |
NZE121..ATM;ZZE122..ATM..GCC OUTER |
1 | ||
| 90301-99119 |
ZZE122..ATM..GCC OUTER |
1 | ||
| 35664E - RING, HOLE SNAP(FOR 2ND BRAKE CYLINDER) | ||||
| 90520-99050 |
ZZE122..ATM..GCC |
1 | ||
| 90520-99050 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35678 - FLANGE, BRAKE(FOR 2ND BRAKE) | ||||
| 35678-52040 |
ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35678-52020 |
ZZE122..ATM..GCC T=3.0 |
1 | ||
| 35678-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=3.0 |
1 | ||
| 35678-52050 |
ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35678-52040 |
NZE121..ATM;ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35678-52030 |
ZZE122..ATM..GCC T=3.2 |
1 | ||
| 35678-52050 |
NZE121..ATM;ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35678-52030 |
NZE121..ATM;ZZE122..ATM..GCC T=3.2 |
1 | ||
| 35678A - FLANGE, BRAKE, NO.1(FOR 2ND BRAKE) | ||||
| 35678-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35678-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35679 - FLANGE, BRAKE(FOR 1ST & REVERSE) | ||||
| 35679-52030 |
ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35679-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35679-52050 |
NZE121..ATM;ZZE122..ATM..GCC T=4.0 |
1 | ||
| 35679-52040 |
ZZE122..ATM..GCC T=3.8 |
1 | ||
| 35679-52040 |
NZE121..ATM;ZZE122..ATM..GCC T=3.8 |
1 | ||
| 35679-52020 |
ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35679-52050 |
ZZE122..ATM..GCC T=4.0 |
1 | ||
| 35679-52030 |
NZE121..ATM;ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35679A - RING, HOLE SNAP(FOR BRAKE FLANGE) | ||||
| 90520-99054 |
ZZE122..ATM..GCC |
1 | ||
| 90520-99054 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35682 - DISC, BRAKE(FOR 2ND BRAKE) | ||||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682 - DISC, BRAKE(FOR 2ND BRAKE) | ||||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682 - DISC, BRAKE(FOR 2ND BRAKE) | ||||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682 - DISC, BRAKE(FOR 2ND BRAKE) | ||||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35682-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35683 - DISC, BRAKE(FOR 1ST & REVERSE) | ||||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683 - DISC, BRAKE(FOR 1ST & REVERSE) | ||||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683 - DISC, BRAKE(FOR 1ST & REVERSE) | ||||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683 - DISC, BRAKE(FOR 1ST & REVERSE) | ||||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35683-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35692 - PLATE, BRAKE(FOR 2ND BRAKE) | ||||
| 35692-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35692-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35692 - PLATE, BRAKE(FOR 2ND BRAKE) | ||||
| 35692-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35692-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35692 - PLATE, BRAKE(FOR 2ND BRAKE) | ||||
| 35692-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35692-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693 - PLATE, BRAKE (FOR 1ST & REVERSE) | ||||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693-52030 |
ZZE122..ATM..GCC |
4 | ||
| 35693A - RING, SNAP(FOR 1ST & REVERSE PLATE) | ||||
| 90520-99057 |
ZZE122..ATM..GCC |
1 | ||
| 90520-99057 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35792C - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-52021 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35792-52021 |
ZZE122..ATM..GCC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
