ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
(0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602A - PISTON SUB-ASSY, FORWARD CLUTCH | ||||
| 35602-12060 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35602-12060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35602-12060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99058 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OUTER |
1 | ||
| 90301-49006 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-49006 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-49006 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN INNER |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-99058 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OUTER |
1 | ||
| 90301-49006 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-49006 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-49006 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN INNER |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-47009 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90520-47009 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90520-47009 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35603-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35603-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35603-12020 |
ZZE12#..ATM |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-12010 |
ZZE12#..ATM |
1 | ||
| 35604-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35604-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35604-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-12040 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35605-12040 |
ZZE122..ATM |
1 | ||
| 35605-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,KOYO |
1 | ||
| 35605-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,KOYO |
1 | ||
| 35605-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NOK |
1 | ||
| 35605-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NOK |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35606-20010 |
ZZE12#..ATM |
1 | ||
| 35606-20010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35606-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-56007 |
ZZE12#..ATM INNER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM OUTER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-56007 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-56007 |
ZZE12#..ATM INNER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM OUTER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-56007 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-52002 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90520-52002 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90520-52002 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-12040 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35616-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35616-12040 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12080 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12080 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12080 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35633-12080 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633-12080 |
ZZE12#..ATM..(GCC,GEN) |
4 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-12100 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
3 | ||
| 35633-12100 |

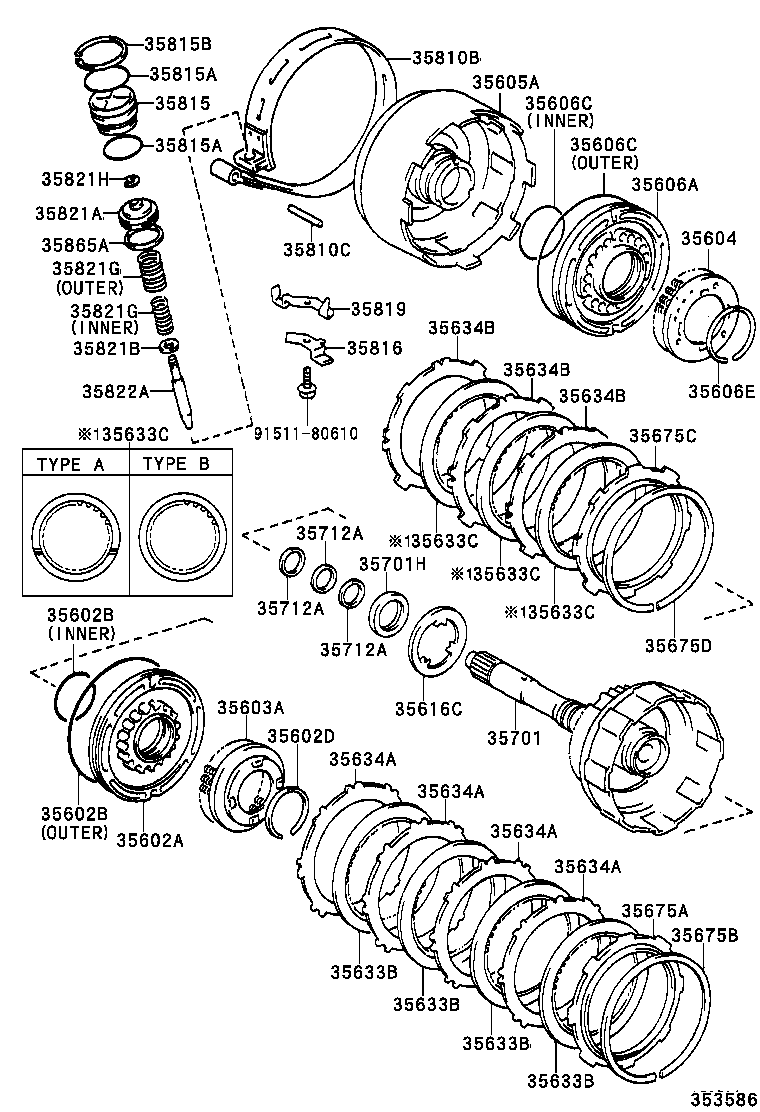

ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-12100 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-12100 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35633-12100 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35633-12100 |
ZZE122..ATM..(GCC,GEN) TYPE A:REFER TO ILLUSTRATION |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=1.8 |
3 | ||
| 35634-12020 |
ZZE122..ATM..(GCC,GEN) T=1.8 |
3 | ||
| 35634-12020 |
ZZE122..ATM..(GCC,GEN) T=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=1.8 |
3 | ||
| 35634-12020 |
ZZE122..ATM..(GCC,GEN) T=1.8 |
3 | ||
| 35634-12020 |
ZZE122..ATM..(GCC,GEN) T=1.8 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35634-12020 |
ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=1.8 |
3 | ||
| 35634-12020 |
ZZE122..ATM..(GCC,GEN) T=1.8 |
3 | ||
| 35634-12020 |
ZZE122..ATM..(GCC,GEN) T=1.8 |
3 | ||
| 35675A - FLANGE, FORWARD CLUTCH | ||||
| 35675-32010 |
ZZE12#..ATM T=3.0 |
1 | ||
| 35635-30060 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=3.6,MARK 93 |
1 | ||
| 35675-32061 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=3.4 |
1 | ||
| 35635-50030 |
ZZE12#..ATM T=3.60,MARK 62 |
1 | ||
| 35675-17010 |
ZZE12#..ATM T=2.8 |
1 | ||
| 35675-12040 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=2.8 |
1 | ||
| 35675-12050 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=3.0 |
1 | ||
| 35675-12060 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN T=3.2 |
1 | ||
| 35675-12010 |
ZZE12#..ATM T=3.2 |
1 | ||
| 35635-30060 |
ZZE12#..ATM..(GCC,GEN) T=3.6,MARK 93 |
1 | ||
| 35675-12060 |
ZZE12#..ATM..(GCC,GEN) T=3.2 |
1 | ||
| 35675-12050 |
ZZE12#..ATM..(GCC,GEN) T=3.0 |
1 | ||
| 35675-32061 |
ZZE12#..ATM..(GCC,GEN) T=3.4 |
1 | ||
| 35635-30060 |
ZZE12#..ATM..(GCC,GEN) T=3.6,MARK 93 |
1 | ||
| 35675-12050 |
ZZE12#..ATM..(GCC,GEN) T=3.0 |
1 | ||
| 35675-12040 |
ZZE12#..ATM..(GCC,GEN) T=2.8 |
1 | ||
| 35675-12040 |
ZZE12#..ATM..(GCC,GEN) T=2.8 |
1 | ||
| 35675-12060 |
ZZE12#..ATM..(GCC,GEN) T=3.2 |
1 | ||
| 35675-32061 |
ZZE12#..ATM..(GCC,GEN) T=3.4 |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90521-99001 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-12010 |
ZZE12#..ATM T=3.2 |
1 | ||
| 35675-32010 |
ZZE12#..ATM T=3.0 |
1 | ||
| 35675-52060 |
ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35675-17010 |
ZZE12#..ATM T=2.8 |
1 | ||
| 35675-12020 |
ZZE12#..ATM T=2.6 |
1 | ||
| 35675-52070 |
ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35675-12060 |
ZZE12#..ATM T=3.2 |
1 | ||
| 35675-32030 |
ZZE12#..ATM T=2.6 |
1 | ||
| 35675-52050 |
ZZE122..ATM..GCC T=3.2,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-12040 |
ZZE12#..ATM T=2.8 |
1 | ||
| 35675-12050 |
ZZE12#..ATM..(GCC,GEN) T=3.0 |
1 | ||
| 35675-12020 |
ZZE12#..ATM..(GCC,GEN) T=2.6 |
1 | ||
| 35675-12050 |
ZZE12#..ATM T=3.0 |
1 | ||
| 35675-52050 |
ZZE122..ATM..GCC T=3.2,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35675-12060 |
ZZE12#..ATM..(GCC,GEN) T=3.2 |
1 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-12040 |
ZZE12#..ATM..(GCC,GEN) T=2.8 |
1 | ||
| 35675-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=3.6 |
1 | ||

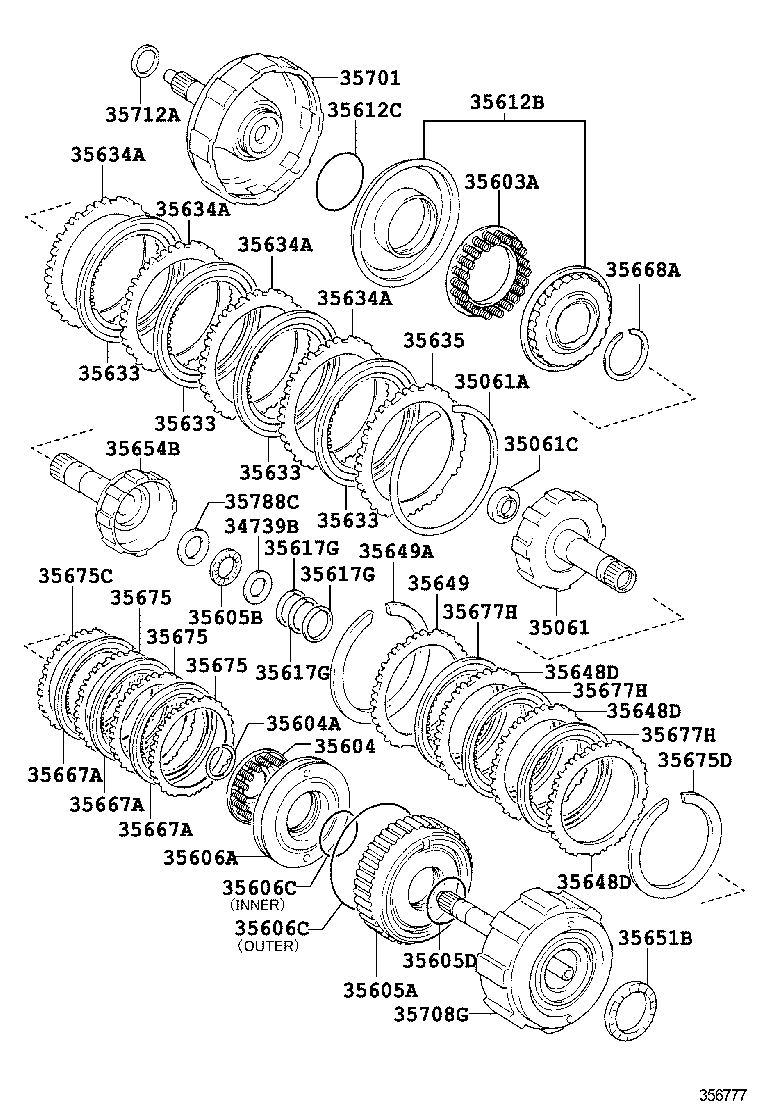

| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90520-99051 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90521-99001 |
ZZE12#..ATM |
1 | ||
| 90520-99051 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-12030 |
ZZE12#..ATM |
1 | ||
| 35701-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35701-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35701-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35701H - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT) | ||||
| 90374-30012 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OD=47.10 |
1 | ||
| 90374-30011 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OD=46.02 |
1 | ||
| 90374-30013 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OD=46.43 |
1 | ||
| 90374-30013 |
ZZE12#..ATM..(GCC,GEN) OD=46.43 |
1 | ||
| 90374-30011 |
ZZE12#..ATM..(GCC,GEN) OD=46.02 |
1 | ||
| 90374-30012 |
ZZE12#..ATM..(GCC,GEN) OD=47.10 |
1 | ||
| 90374-30011 |
ZZE12#..ATM..(GCC,GEN) OD=46.02 |
1 | ||
| 90374-30012 |
ZZE12#..ATM..(GCC,GEN) OD=47.10 |
1 | ||
| 90374-30013 |
ZZE12#..ATM..(GCC,GEN) OD=46.43 |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35712-32010 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35712-32010 |
ZZE12#..ATM |
3 | ||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35712-32010 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35712-32010 |
ZZE12#..ATM |
3 | ||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35712-32010 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35712-32010 |
ZZE12#..ATM |
3 | ||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-32020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35810-32020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35810-32020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90250-07003 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90250-07003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90250-07003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35815-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35815-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-41002 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 90301-41002 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90301-41002 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-41002 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
2 | ||
| 90301-41002 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 90301-41002 |
ZZE12#..ATM..(GCC,GEN) |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-48003 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90521-48003 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35816 - RETAINER, BRAKE BAND GUIDE PLATE | ||||
| 35816-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35816-12010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35816-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35819 - PLATE, 2ND COAST BRAKE BAND GUIDE | ||||
| 35819-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35819-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35819-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35821-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35821-32010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90201-06557 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 90201-06557 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-27009 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN INNER |
1 | ||
| 90501-26024 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OUTER |
1 | ||
| 90501-27009 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-26024 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90501-27009 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-26024 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-27009 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN INNER |
1 | ||
| 90501-26024 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN OUTER |
1 | ||
| 90501-27009 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-26024 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90501-27009 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90501-26024 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 96160-00500 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 96160-00500 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN L=72.4 |
1 | ||
| 35822-32010 |
ZZE12#..ATM..(GCC,GEN) L=70.9 |
1 | ||
| 35822-32010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN L=70.9 |
1 | ||
| 35822-32020 |
ZZE12#..ATM..(GCC,GEN) L=72.4 |
1 | ||
| 35822-32020 |
ZZE12#..ATM..(GCC,GEN) L=72.4 |
1 | ||
| 35822-32010 |
ZZE12#..ATM..(GCC,GEN) L=70.9 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-32010 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 35865-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35865-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 91511-80610 | ||||
(0108- )ZZE122..ATM..GCC
U341E,UNLEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34739B - RACE, THRUST BEARING(FOR C2 HUB) | ||||
| 34739-52010 |
ZZE122..ATM..GCC |
1 | ||
| 34739-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35061 - HUB SUB-ASSY, FORWARD CLUTCH | ||||
| 35061-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35061-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35061A - RING, HOLE SNAP(FOR FORWARD CLUTCH FLANGE) | ||||
| 90520-99049 |
ZZE122..ATM..GCC |
1 | ||
| 90520-99049 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35061C - BEARING, THRUST NEEDLE ROLLER(FOR FORWARD CLUTCH HUB) | ||||
| 90374-21003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90374-21003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-12020 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35603-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35603-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35603-12020 |
ZZE12#..ATM |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-12010 |
ZZE12#..ATM |
1 | ||
| 35604-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35604-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35604-12010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35604A - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON) | ||||
| 90520-31012 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90520-31012 |
ZZE122..ATM..GCC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-12040 |
ZZE122..ATM..(GCC,GEN) |
1 | ||
| 35605-12040 |
ZZE122..ATM |
1 | ||
| 35605-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,KOYO |
1 | ||
| 35605-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,KOYO |
1 | ||
| 35605-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NOK |
1 | ||
| 35605-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,NOK |
1 | ||
| 35605B - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-22008 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90374-22008 |
ZZE122..ATM..GCC |
1 | ||
| 35605D - RING, O(FOR DIRECT CLUTCH DRUM) | ||||
| 90301-42005 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90301-42005 |
ZZE122..ATM..GCC |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35606-20010 |
ZZE12#..ATM |
1 | ||
| 35606-20010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35606-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-56007 |
ZZE12#..ATM INNER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM OUTER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-56007 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-56007 |
ZZE12#..ATM INNER |
1 | ||
| 90301-41008 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,INNER |
1 | ||
| 90301-99058 |
ZZE12#..ATM OUTER |
1 | ||
| 90301-99058 |
ZZE12#..ATM..(GCC,GEN) OUTER |
1 | ||
| 90301-56007 |
ZZE12#..ATM..(GCC,GEN) INNER |
1 | ||
| 90301-99120 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC,OUTER |
1 | ||
| 35612B - PISTON, FORWARD CLUTCH | ||||
| 35063-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35063-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35612C - RING, O(FOR FORWARD CLUTCH PISTON) | ||||
| 90301-58003 |
ZZE122..ATM..GCC |
1 | ||
| 90301-58003 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
3 | ||
| 35617-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
3 | ||
| 35617-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35617G - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
3 | ||
| 35617-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
4 | ||
| 35633-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
4 | ||
| 35633-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
4 | ||
| 35633-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35633-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
4 | ||
| 35633-52020 |
ZZE122..ATM..GCC |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-12030 |
ZZE12#..ATM T=1.8 |
4 | ||
| 35634-12030 |
ZZE12#..ATM..(GCC,GEN) T=1.8 |
4 | ||
| 35634-52020 |
ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35634-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=1.9 |
4 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-52080 |
ZZE122..ATM..GCC T=3.6,MARK 3 |
1 | ||
| 35635-52070 |
ZZE122..ATM..GCC T=3.4,MARK 2 |
1 | ||
| 35635-52050 |
ZZE122..ATM..GCC T=3.0,NO MARK |
1 | ||
| 35635-52060 |
ZZE122..ATM..GCC T=3.2,MARK 1 |
1 | ||
| 35635-52050 |
NZE121..ATM;ZZE122..ATM..GCC T=3.0,NO MARK |
1 | ||
| 35635-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=3.2,MARK 1 |
1 | ||
| 35635-52080 |
NZE121..ATM;ZZE122..ATM..GCC T=3.6,MARK 3 |
1 | ||
| 35635-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=3.4,MARK 2 |
1 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35648-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35648-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35648D - PLATE, CLUTCH, NO.3 | ||||
| 35648-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35648-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35649 - FLANGE, REVERSE CLUTCH | ||||
| 35649-52040 |
ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35649-52030 |
ZZE122..ATM..GCC T=3.2 |
1 | ||
| 35649-52050 |
ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35649-52020 |
ZZE122..ATM..GCC T=3.0 |
1 | ||
| 35649-52030 |
NZE121..ATM;ZZE122..ATM..GCC T=3.2 |
1 | ||
| 35649-52050 |
NZE121..ATM;ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35649-52020 |
NZE121..ATM;ZZE122..ATM..GCC T=3.0 |
1 | ||
| 35649-52040 |
NZE121..ATM;ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35649A - RING, HOLE SNAP(FOR REVERSE CLUTCH FLANGE) | ||||
| 90520-99052 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90520-99052 |
ZZE122..ATM..GCC |
1 | ||
| 35651B - BEARING, THRUST NEEDLE ROLLER (FOR REAR CLUTCH DRUM) | ||||
| 90374-43005 |
ZZE122..ATM..GCC BLACK |
1 | ||
| 90374-43004 |
ZZE122..ATM..GCC BROWN |
1 | ||
| 90374-43004 |
NZE121..ATM;ZZE122..ATM..GCC BROWN |
1 | ||
| 90374-43005 |
NZE121..ATM;ZZE122..ATM..GCC BLACK |
1 | ||
| 35654B - HUB, DIRECT CLUTCH | ||||
| 35062-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35062-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35667-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
3 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35667-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
3 | ||
| 35667A - DISK, DIRECT CLUTCH | ||||
| 35667-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35667-52020 |
NZE121..ATM;ZZE122..ATM..GCC |
3 | ||
| 35668A - RING, SNAP(FOR CLUTCH BALANCER) | ||||
| 90520-39024 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 90520-39024 |
ZZE122..ATM..GCC |
1 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-52040 |
NZE121..ATM;ZZE122..ATM..GCC T=3.0 |
3 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0 |
3 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-52040 |
NZE121..ATM;ZZE122..ATM..GCC T=3.0 |
3 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0 |
3 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-52040 |
NZE121..ATM;ZZE122..ATM..GCC T=3.0 |
3 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0 |
3 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-12010 |
ZZE12#..ATM T=3.2 |
1 | ||
| 35675-32010 |
ZZE12#..ATM T=3.0 |
1 | ||
| 35675-52060 |
ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35675-17010 |
ZZE12#..ATM T=2.8 |
1 | ||
| 35675-12020 |
ZZE12#..ATM T=2.6 |
1 | ||
| 35675-52070 |
ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35675-12060 |
ZZE12#..ATM T=3.2 |
1 | ||
| 35675-32030 |
ZZE12#..ATM T=2.6 |
1 | ||
| 35675-52050 |
ZZE122..ATM..GCC T=3.2,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-12040 |
ZZE12#..ATM T=2.8 |
1 | ||
| 35675-12050 |
ZZE12#..ATM..(GCC,GEN) T=3.0 |
1 | ||
| 35675-12020 |
ZZE12#..ATM..(GCC,GEN) T=2.6 |
1 | ||
| 35675-12050 |
ZZE12#..ATM T=3.0 |
1 | ||
| 35675-52050 |
ZZE122..ATM..GCC T=3.2,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=3.4 |
1 | ||
| 35675-12060 |
ZZE12#..ATM..(GCC,GEN) T=3.2 |
1 | ||
| 35675-52040 |
ZZE122..ATM..GCC T=3.0,UNLEADED GASOLINE SPEC |
1 | ||
| 35675-12040 |
ZZE12#..ATM..(GCC,GEN) T=2.8 |
1 | ||
| 35675-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=3.6 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90521-99001 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90520-99051 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90521-99001 |
ZZE12#..ATM |
1 | ||
| 90520-99051 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35677H - DISC, REVERCE CLUTCH | ||||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677H - DISC, REVERCE CLUTCH | ||||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677H - DISC, REVERCE CLUTCH | ||||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35677-52020 |
ZZE122..ATM..GCC |
3 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-12030 |
ZZE12#..ATM |
1 | ||
| 35701-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35701-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35701-12030 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35708G - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35708-52020 |
ZZE122..ATM..GCC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35712-32010 |
ZZE12#..ATM..(GCC,GEN) |
3 | ||
| 35712-32010 |
ZZE12#..ATM |
3 | ||
| 35712-52020 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35788C - RACE, THRUST BEARING, NO.3 | ||||
| 35788-52010 |
ZZE122..ATM..GCC |
1 | ||
| 35788-52010 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
