ZZE122L-AWPDKV (2000)
Toyota Corolla/Altis Sed/Wg
(0008- )ZZE121..ATM ; (0008- )ZZE122..ATM..GCC,GEN ; (0110-0510)ATM..ARL
A245E,A246E

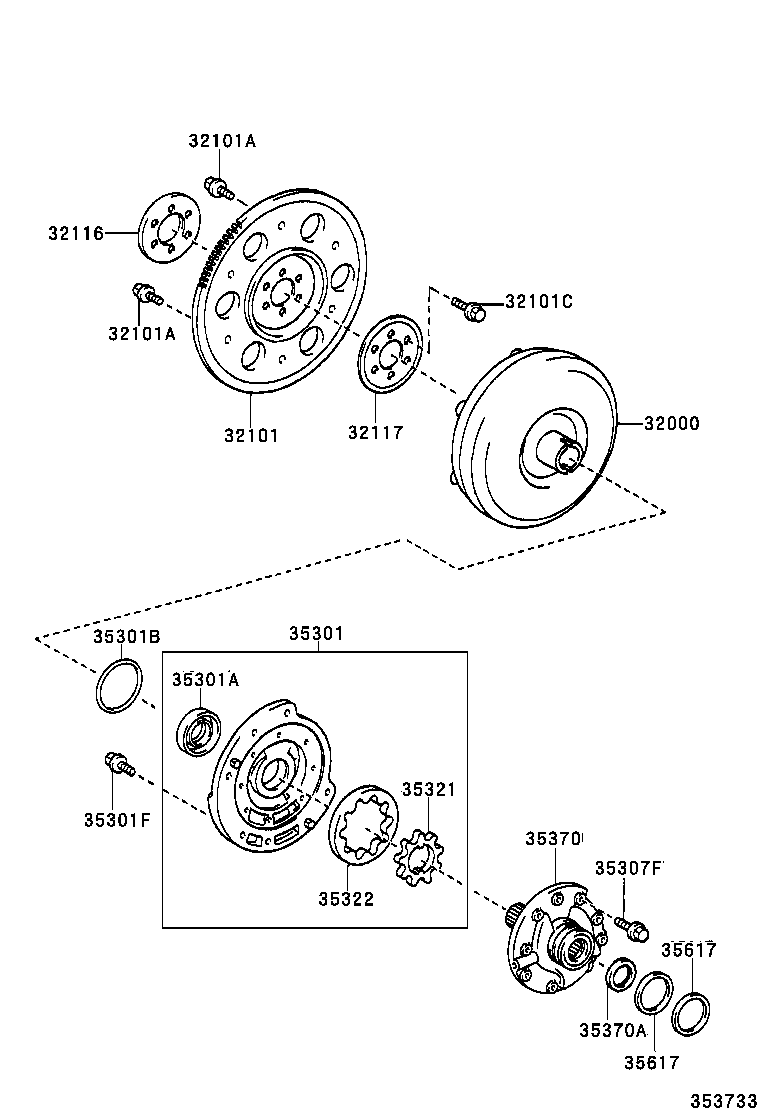

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-12360 |
ZZE122..ATM..(GCC,GEN) *FGR=4.058 |
1 | ||
| 32000-32160 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 32000-32160 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 32000-12360 |
ZZE122..ATM..(GCC,GEN) *FGR=4.058 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12090 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 32101-12091 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32101-12091 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN *8-1.25PX12-8,YELLOW GREEN |
5 | ||
| 90109-08113 |
ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..ATM..GCC;ZZE121..RHD..ATM..GEN *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08269 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08107 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..ATM..GCC;ZZE121..RHD..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08113 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
ZZE121..ATM..GEN;ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
ZZE12#..ATM..(GCC,GEN) *10-1.25PX18-13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 32116-12020 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 32117-12030 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-20010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35035-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35035-20010 |
ZZE12#..ATM |
1 | ||
| 35035-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38082 |
ZZE12#..ATM BROWN |
1 | ||
| 90311-38082 |
ZZE12#..ATM..(GCC,GEN) BROWN |
1 | ||
| 90311-38064 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90311-38064 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90311-38020 |
ZZE12#..ATM ORANGE |
1 | ||
| 90311-38020 |
ZZE12#..ATM..(GCC,GEN) ORANGE |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99124 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90301-99024 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-99024 |
ZZE12#..ATM |
1 | ||
| 90301-99124 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08198 |
ZZE12#..ATM *8-1.25PX28-28 |
6 | ||
| 90105-08198 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX28-28 |
6 | ||
| 90105-08301 |
ZZE122..ATM..GCC *8-1.25PX22-20 |
7 | ||
| 90105-08301 |
NZE121..ATM;ZZE122..ATM..GCC *8-1.25PX22-20 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06559 |
ZZE12#..ATM..(GCC,GEN) |
11 | ||
| 90148-60027 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
10 | ||
| 90148-60027 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
10 | ||
| 90119-06559 |
ZZE12#..ATM |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-52080 |
ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35321-52100 |
ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35321-52070 |
ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35321-52060 |
ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35321-52090 |
ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35321-12090 |
ZZE12#..ATM T=9.460-9.470 |
1 | ||
| 35321-12100 |
ZZE12#..ATM T=9.471-9.480 |
1 | ||
| 35321-12070 |
ZZE12#..ATM T=9.440-9.449 |
1 | ||
| 35321-12090 |
ZZE12#..ATM..(GCC,GEN) T=9.460-9.470 |
1 | ||
| 35321-12070 |
ZZE12#..ATM..(GCC,GEN) T=9.440-9.449 |
1 | ||
| 35321-12080 |
ZZE12#..ATM T=9.450-9.459 |
1 | ||
| 35321-12110 |
ZZE12#..ATM T=9.481-9.490 |
1 | ||
| 35321-12080 |
ZZE12#..ATM..(GCC,GEN) T=9.450-9.459 |
1 | ||
| 35321-12100 |
ZZE12#..ATM..(GCC,GEN) T=9.471-9.480 |
1 | ||
| 35321-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35321-12110 |
ZZE12#..ATM..(GCC,GEN) T=9.481-9.490 |
1 | ||
| 35321-52090 |
NZE121..ATM;ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35321-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35321-52080 |
NZE121..ATM;ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35321-52100 |
NZE121..ATM;ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-52100 |
ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35322-12060 |
ZZE12#..ATM T=9.440-9.449 |
1 | ||
| 35322-52080 |
ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35322-52070 |
ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35322-12070 |
ZZE12#..ATM T=9.450-9.459 |
1 | ||
| 35322-52060 |
ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35322-52090 |
ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35322-12100 |
ZZE12#..ATM T=9.481-9.490 |
1 | ||
| 35322-12080 |
ZZE12#..ATM T=9.460-9.470 |
1 | ||
| 35322-12060 |
ZZE12#..ATM..(GCC,GEN) T=9.440-9.449 |
1 | ||
| 35322-12090 |
ZZE12#..ATM T=9.471-9.480 |
1 | ||
| 35322-12100 |
ZZE12#..ATM..(GCC,GEN) T=9.481-9.490 |
1 | ||
| 35322-12070 |
ZZE12#..ATM..(GCC,GEN) T=9.450-9.459 |
1 | ||
| 35322-52100 |
NZE121..ATM;ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35322-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35322-12090 |
ZZE12#..ATM..(GCC,GEN) T=9.471-9.480 |
1 | ||
| 35322-52080 |
NZE121..ATM;ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35322-52090 |
NZE121..ATM;ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35322-12080 |
ZZE12#..ATM..(GCC,GEN) T=9.460-9.470 |
1 | ||
| 35322-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35370-32060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35370-12050 |
ZZE12#..ATM |
1 | ||
| 35370-32060 |
ZZE12#..ATM |
1 | ||
| 35370-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35370-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT) | ||||
| 35616-32010 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35616-32010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35617-32011 |
ZZE12#..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35617-32011 |
ZZE12#..ATM |
2 | ||
(0108- )ZZE122..ATM..GCC
U341E,UNLEADED GASOLINE SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-12360 |
ZZE122..ATM..(GCC,GEN) *FGR=4.058 |
1 | ||
| 32000-32160 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 32000-32160 |
ZZE122..ATM..GCC *FGR=3.941 |
1 | ||
| 32000-12360 |
ZZE122..ATM..(GCC,GEN) *FGR=4.058 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-12090 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 32101-12091 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32101-12091 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN *8-1.25PX12-8,YELLOW GREEN |
5 | ||
| 90109-08113 |
ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..ATM..GCC;ZZE121..RHD..ATM..GEN *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08269 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08107 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..ATM..GCC;ZZE121..RHD..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08113 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08498 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN *8-1.25PX12-8,YELLOW GREEN |
5 | ||
| 90109-08113 |
ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC;NZE121,ZZE121..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..ATM..GCC;ZZE121..RHD..ATM..GEN *8-1.25PX12-8,BLACK |
5 | ||
| 90119-08269 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 90109-08107 |
NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..ATM..GCC;ZZE121..RHD..ATM..GEN *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08107 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90109-08113 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8.4,GREEN |
1 | ||
| 90119-08269 |
ZZE122..WG..ATM..ARL;NZE12#,ZZE12#..ATM..(GCC,GEN) *8-1.25PX12-8,BLACK |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
ZZE121..ATM..GEN;ZZE122..RHD..ATM..GEN;NZE120,ZZE122..ATM..GCC *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) *10-1.25PX18-13 |
8 | ||
| 90105-10048 |
ZZE12#..ATM..(GCC,GEN) *10-1.25PX18-13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-12020 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 32116-12020 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-12030 |
ZZE121..ATM..GEN;ZZE122..ATM..GCC;ZZE122..RHD..ATM..GEN |
1 | ||
| 32117-12030 |
ZZE122..WG..ATM..ARL;ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35035-20010 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35035-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35035-20010 |
ZZE12#..ATM |
1 | ||
| 35035-52040 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38082 |
ZZE12#..ATM BROWN |
1 | ||
| 90311-38082 |
ZZE12#..ATM..(GCC,GEN) BROWN |
1 | ||
| 90311-38064 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90311-38064 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90311-38020 |
ZZE12#..ATM ORANGE |
1 | ||
| 90311-38020 |
ZZE12#..ATM..(GCC,GEN) ORANGE |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99124 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 90301-99024 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 90301-99024 |
ZZE12#..ATM |
1 | ||
| 90301-99124 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08198 |
ZZE12#..ATM *8-1.25PX28-28 |
6 | ||
| 90105-08198 |
ZZE12#..ATM..(GCC,GEN) *8-1.25PX28-28 |
6 | ||
| 90105-08301 |
ZZE122..ATM..GCC *8-1.25PX22-20 |
7 | ||
| 90105-08301 |
NZE121..ATM;ZZE122..ATM..GCC *8-1.25PX22-20 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90119-06559 |
ZZE12#..ATM..(GCC,GEN) |
11 | ||
| 90148-60027 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
10 | ||
| 90148-60027 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
10 | ||
| 90119-06559 |
ZZE12#..ATM |
11 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-52080 |
ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35321-52100 |
ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35321-52070 |
ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35321-52060 |
ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35321-52090 |
ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35321-12090 |
ZZE12#..ATM T=9.460-9.470 |
1 | ||
| 35321-12100 |
ZZE12#..ATM T=9.471-9.480 |
1 | ||
| 35321-12070 |
ZZE12#..ATM T=9.440-9.449 |
1 | ||
| 35321-12090 |
ZZE12#..ATM..(GCC,GEN) T=9.460-9.470 |
1 | ||
| 35321-12070 |
ZZE12#..ATM..(GCC,GEN) T=9.440-9.449 |
1 | ||
| 35321-12080 |
ZZE12#..ATM T=9.450-9.459 |
1 | ||
| 35321-12110 |
ZZE12#..ATM T=9.481-9.490 |
1 | ||
| 35321-12080 |
ZZE12#..ATM..(GCC,GEN) T=9.450-9.459 |
1 | ||
| 35321-12100 |
ZZE12#..ATM..(GCC,GEN) T=9.471-9.480 |
1 | ||
| 35321-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35321-12110 |
ZZE12#..ATM..(GCC,GEN) T=9.481-9.490 |
1 | ||
| 35321-52090 |
NZE121..ATM;ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35321-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35321-52080 |
NZE121..ATM;ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35321-52100 |
NZE121..ATM;ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-52100 |
ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35322-12060 |
ZZE12#..ATM T=9.440-9.449 |
1 | ||
| 35322-52080 |
ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35322-52070 |
ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35322-12070 |
ZZE12#..ATM T=9.450-9.459 |
1 | ||
| 35322-52060 |
ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35322-52090 |
ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35322-12100 |
ZZE12#..ATM T=9.481-9.490 |
1 | ||
| 35322-12080 |
ZZE12#..ATM T=9.460-9.470 |
1 | ||
| 35322-12060 |
ZZE12#..ATM..(GCC,GEN) T=9.440-9.449 |
1 | ||
| 35322-12090 |
ZZE12#..ATM T=9.471-9.480 |
1 | ||
| 35322-12100 |
ZZE12#..ATM..(GCC,GEN) T=9.481-9.490 |
1 | ||
| 35322-12070 |
ZZE12#..ATM..(GCC,GEN) T=9.450-9.459 |
1 | ||
| 35322-52100 |
NZE121..ATM;ZZE122..ATM..GCC T=9.481-9.49,MARK 5 |
1 | ||
| 35322-52070 |
NZE121..ATM;ZZE122..ATM..GCC T=9.45-9.459,MARK 2 |
1 | ||
| 35322-12090 |
ZZE12#..ATM..(GCC,GEN) T=9.471-9.480 |
1 | ||
| 35322-52080 |
NZE121..ATM;ZZE122..ATM..GCC T=9.46-9.47,MARK 3 |
1 | ||
| 35322-52090 |
NZE121..ATM;ZZE122..ATM..GCC T=9.471-9.48,MARK 4 |
1 | ||
| 35322-12080 |
ZZE12#..ATM..(GCC,GEN) T=9.460-9.470 |
1 | ||
| 35322-52060 |
NZE121..ATM;ZZE122..ATM..GCC T=9.44-9.449,MARK 1 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35370-32060 |
ZZE12#..ATM..(GCC,GEN) |
1 | ||
| 35370-12050 |
ZZE12#..ATM |
1 | ||
| 35370-32060 |
ZZE12#..ATM |
1 | ||
| 35370-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35370-52030 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
1 | ||
| 35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT) | ||||
| 90374-26003 |
ZZE122..ATM..GCC |
1 | ||
| 90374-26003 |
NZE121..ATM;ZZE122..ATM..GCC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35617-32011 |
ZZE12#..ATM |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35613-52010 |
ZZE122..ATM..GCC UNLEADED GASOLINE SPEC |
2 | ||
| 35617-32011 |
ZZE12#..ATM |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
