ZZE122L-AWPDKV (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

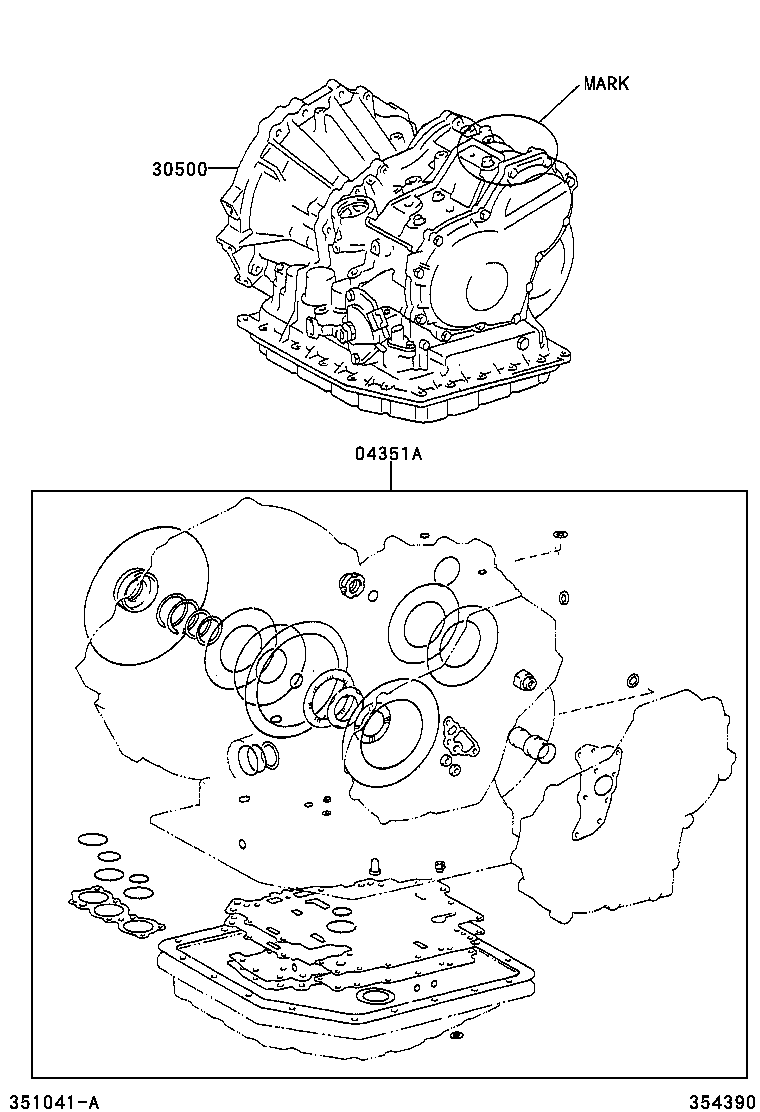

U341E,UNLEADED GASOLINE SPEC

Part #	Description	Period	Qty
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-20120	ZZE122..ATM..GCC UNLEADED GASOLINE SPEC	08/2001 - 09/2002	1
04351-12180	ZZE12#..ATM	08/2000 - 11/2002	1
04351-30830	ZZE12#..ATM..(GCC,GEN)	09/2002 - 04/2004	1
04351-20120	ZZE122..ATM..GCC UNLEADED GASOLINE SPEC	09/2002 - 04/2004	1
04351-12580	ZZE12#..ATM..(ARL,GCC,GEN)	04/2004 - 08/2004	1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-1A691	ZZE122..ATM..(GCC,GEN) A245E,MARK 30510-1A671	09/2002 - 04/2004	1
30500-1A690	ZZE122..ATM	08/2000 - 08/2001	1
30500-1A691	ZZE122..ATM..(GCC,GEN) A245E,MARK 30510-1A671	08/2001 - 04/2004	1
30500-1A850	ZZE122..ATM..GCC U341E,UNLEADED GASOLINE SPEC	08/2001 - 09/2002	1
30500-1A850	ZZE122..ATM..GCC U341E,UNLEADED GASOLINE SPEC	09/2002 - 04/2004	1
30500-12A50	ZZE122..ATM..GCC U341E	04/2004 - 08/2005	1

Click highlighted areas on diagram

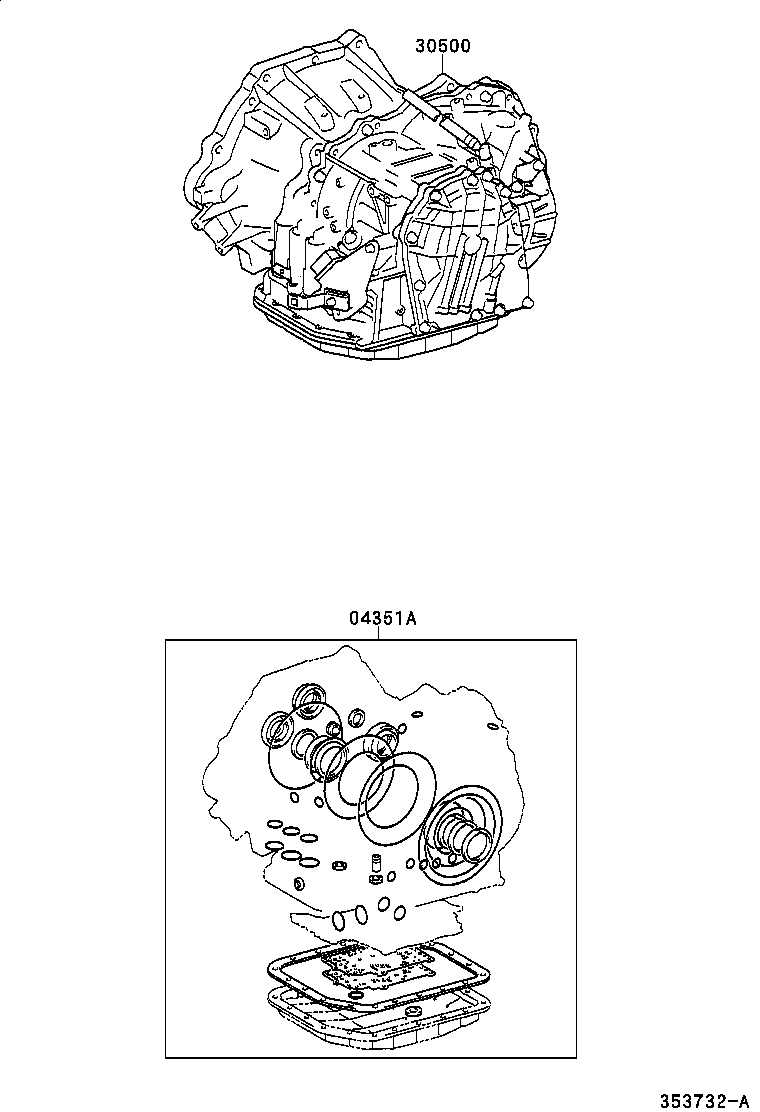

A245E,A246E

Part #	Description	Period	Qty
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-20120	ZZE122..ATM..GCC UNLEADED GASOLINE SPEC	08/2001 - 09/2002	1
04351-12180	ZZE12#..ATM	08/2000 - 11/2002	1
04351-30830	ZZE12#..ATM..(GCC,GEN)	09/2002 - 04/2004	1
04351-20120	ZZE122..ATM..GCC UNLEADED GASOLINE SPEC	09/2002 - 04/2004	1
04351-12580	ZZE12#..ATM..(ARL,GCC,GEN)	04/2004 - 08/2004	1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-1A691	ZZE122..ATM..(GCC,GEN) A245E,MARK 30510-1A671	09/2002 - 04/2004	1
30500-1A690	ZZE122..ATM	08/2000 - 08/2001	1
30500-1A691	ZZE122..ATM..(GCC,GEN) A245E,MARK 30510-1A671	08/2001 - 04/2004	1
30500-1A850	ZZE122..ATM..GCC U341E,UNLEADED GASOLINE SPEC	08/2001 - 09/2002	1
30500-1A850	ZZE122..ATM..GCC U341E,UNLEADED GASOLINE SPEC	09/2002 - 04/2004	1
30500-12A50	ZZE122..ATM..GCC U341E	04/2004 - 08/2005	1
