Toyota Corolla/altis sed/wg ZZE122 ROOF PANEL & BACK WINDOW GLASS

Manufacturers Home
Toyota
GR
COROLLA/ALTIS SED/WG
ZZE122L-AWMDKV (2000)
6104 - ROOF PANEL & BACK WINDOW GLASS

ZZE122L-AWMDKV (2000)

Toyota Corolla/Altis Sed/Wg

Production Aug 2000 - Sep 2006

Engine 1ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

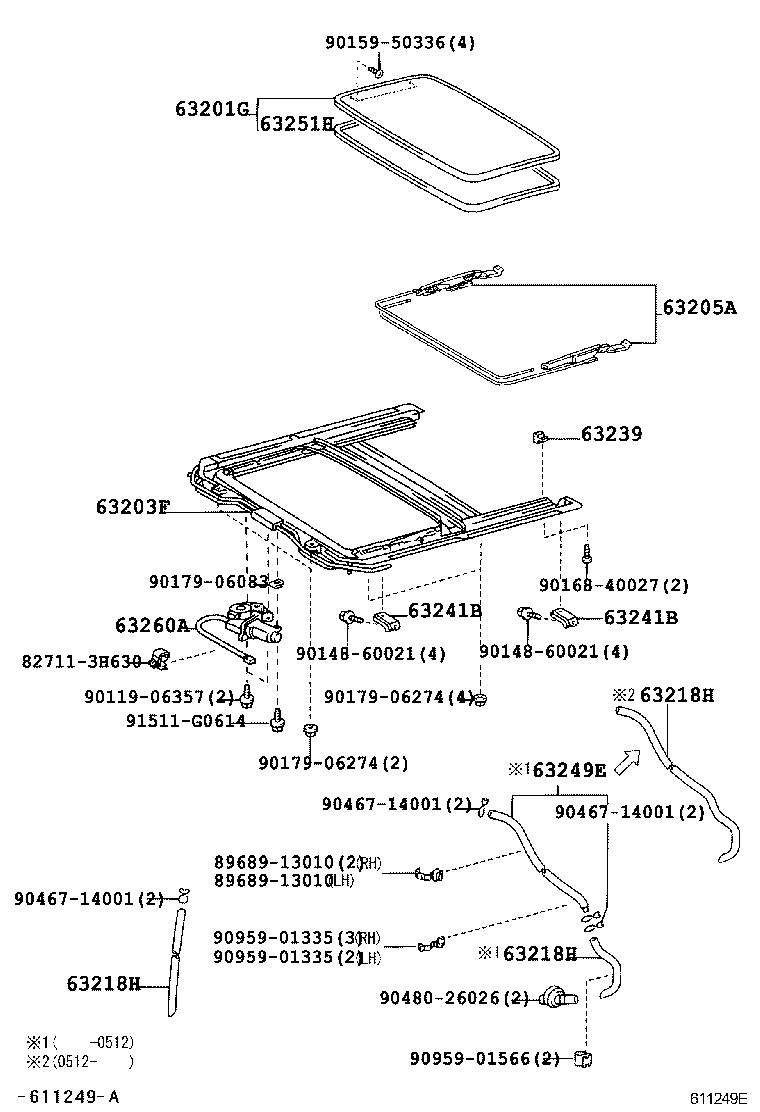

ILLUST NO. 2 OF 3(0008- )WG

Click highlighted areas on diagram

MOON ROOF

Part #	Description	Period	Qty
63201G - GLASS SUB-ASSY, SLIDING ROOF
63201-12260	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN *TT,T=4.0,GRAY	08/2000 - 09/2002	1
63201-12262	CE120,NZE12#,ZZE12#..GCC,GEN *TT,T=4.0,GRAY	09/2003 - 04/2004	1
63201-12261	CE120,NZE12#,ZZE12#..GCC,GEN *TT,T=4.0,GRAY	11/2002 - 09/2003	1
63201-12260	CE120,NZE12#,ZZE12#..GCC,GEN *TT,T=4.0,GRAY	09/2002 - 11/2002	1
63201-12262	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN *TT,T=4.0,GRAY	04/2004 - 12/2999	1
63203F - HOUSING SUB-ASSY, SLIDING ROOF
63203-13030	NZE120,ZZE122..WG	04/2004 - 09/2006	1
63203-13030	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	1
63203-13030	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE
63205-12150	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
63205-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63205-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63218H - HOSE, SLIDING ROOF DRAIN
63249-12330	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN FRONT	08/2000 - 09/2002	2
63249-13050	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC REAR	08/2000 - 09/2002	2
63249-12330	CE120,NZE12#,ZZE12#..GCC,GEN FRONT	09/2002 - 04/2004	2
63249-12330	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) FRONT	04/2004 - 03/2005	2
63249-13050	NZE120,ZZE122..WG..XLI REAR	09/2002 - 04/2004	2
63249-12331	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN FRONT	04/2005 - 12/2999	2
63249-13050	NZE120,ZZE122..WG REAR	04/2004 - 12/2005	2
63249-13180	NZE120,ZZE122..WG REAR	12/2005 - 09/2006	2
63218H - HOSE, SLIDING ROOF DRAIN
63249-12330	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN FRONT	08/2000 - 09/2002	2
63249-13050	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC REAR	08/2000 - 09/2002	2
63249-12330	CE120,NZE12#,ZZE12#..GCC,GEN FRONT	09/2002 - 04/2004	2
63249-12330	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) FRONT	04/2004 - 03/2005	2
63249-13050	NZE120,ZZE122..WG..XLI REAR	09/2002 - 04/2004	2
63249-12331	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN FRONT	04/2005 - 12/2999	2
63249-13050	NZE120,ZZE122..WG REAR	04/2004 - 12/2005	2
63249-13180	NZE120,ZZE122..WG REAR	12/2005 - 09/2006	2
63218H - HOSE, SLIDING ROOF DRAIN
63249-12330	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN FRONT	08/2000 - 09/2002	2
63249-13050	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC REAR	08/2000 - 09/2002	2
63249-12330	CE120,NZE12#,ZZE12#..GCC,GEN FRONT	09/2002 - 04/2004	2
63249-12330	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..(GLI,LX,ULT,XLI)..(ARL,GCC,GEN) FRONT	04/2004 - 03/2005	2
63249-13050	NZE120,ZZE122..WG..XLI REAR	09/2002 - 04/2004	2
63249-12331	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN FRONT	04/2005 - 12/2999	2
63249-13050	NZE120,ZZE122..WG REAR	04/2004 - 12/2005	2
63249-13180	NZE120,ZZE122..WG REAR	12/2005 - 09/2006	2
63239 - STOPPER, SLIDING ROOF PANEL
63239-12030	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	2
63239-12030	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
63239-12030	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-12110	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	4
63241-12110	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	4
63241-12110	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-12110	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	4
63241-12110	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	4
63241-12110	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	4
63249E - HOSE, SLIDING ROOF DRAIN
63220-13020	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
63220-13020	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	08/2000 - 09/2002	2
63220-13020	NZE120,ZZE122..WG	04/2004 - 12/2005	2
63251H - WEATHERSTRIP, SLIDING ROOF
63251-12160	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 08/2003	1
63251-12161	CE120,NZE12#,ZZE12#..GCC,GEN	09/2003 - 04/2004	1
63251-12161	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE
63260-12120	NZE120,ZZE122..WG	07/2004 - 09/2006	1
63260-12110	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63260-12110	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
63260-12110	NZE120,ZZE122..WG	04/2004 - 06/2004	1
Common parts
82711-3H630
89689-13010
90119-06357
90148-60021
90159-50336
90168-40027
90179-06083
90179-06274
90467-14001
90480-26026
90959-01335
90959-01566
91511-G0614

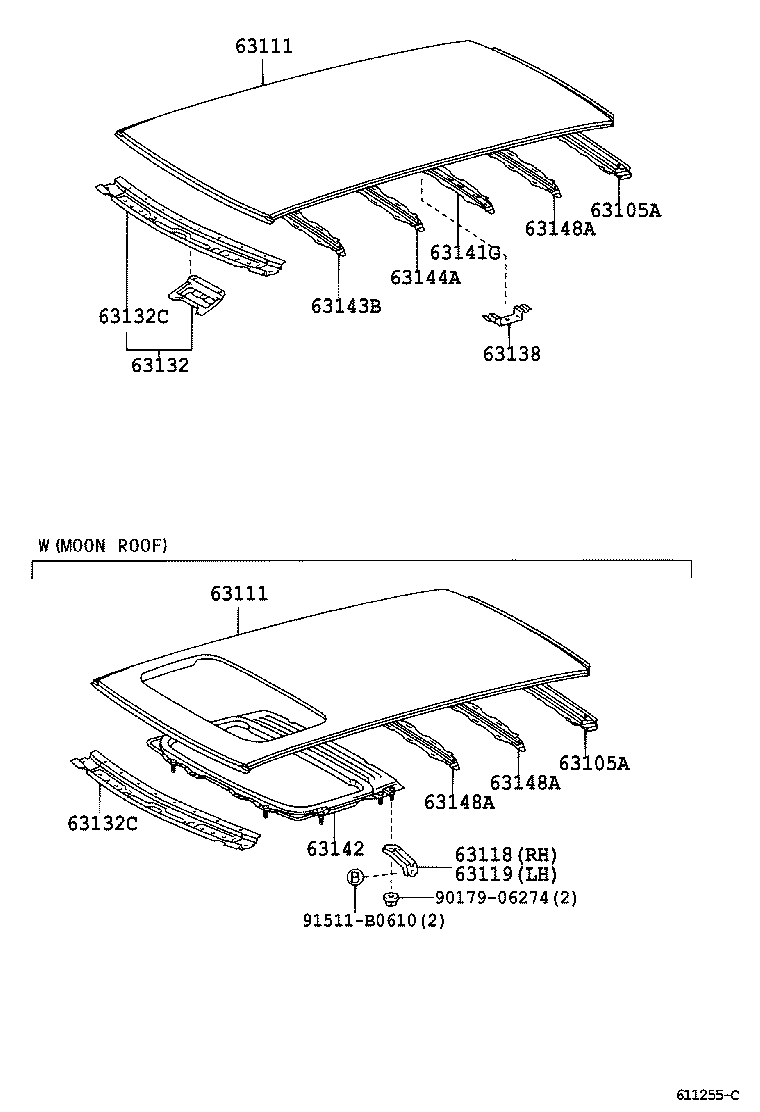

ILLUST NO. 1 OF 3(0008- )WG

Click highlighted areas on diagram

ROOF PANEL

Part #	Description	Period	Qty
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13160	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	10/2001 - 09/2002	1
63105-13160	NZE120,ZZE122..WG	08/2000 - 10/2001	1
63105-13160	NZE120,ZZE122..WG	04/2004 - 09/2006	1
63105-13160	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-13160	ZZE122..RHD..WG..GEN;NZE120,ZZE122..WG..GCC	10/2001 - 09/2002	1
63105-13160	NZE120,ZZE122..WG	08/2000 - 10/2001	1
63105-13160	NZE120,ZZE122..WG	04/2004 - 09/2006	1
63105-13160	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63111 - PANEL, ROOF
63111-13270	NZE120,ZZE122..WG..XLI W(MOON ROOF)	10/2001 - 04/2004	1
63111-13260	NZE120,ZZE122..WG..XLI	10/2001 - 04/2004	1
63111-13260	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63111-13420	NZE120,ZZE122..WG W(ROOF ANTENNA & MOON ROOF)	04/2004 - 09/2006	1
63111-13270	NZE120,ZZE122..WG..XLI W(MOON ROOF)	09/2002 - 04/2004	1
63111-13400	NZE120,ZZE122..WG W(ROOF ANTENNA)	04/2004 - 09/2006	1
63111 - PANEL, ROOF
63111-13270	NZE120,ZZE122..WG..XLI W(MOON ROOF)	10/2001 - 04/2004	1
63111-13260	NZE120,ZZE122..WG..XLI	10/2001 - 04/2004	1
63111-13260	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63111-13420	NZE120,ZZE122..WG W(ROOF ANTENNA & MOON ROOF)	04/2004 - 09/2006	1
63111-13270	NZE120,ZZE122..WG..XLI W(MOON ROOF)	09/2002 - 04/2004	1
63111-13400	NZE120,ZZE122..WG W(ROOF ANTENNA)	04/2004 - 09/2006	1
63118 - SUPPORT, ROOF PANEL, RH
63118-12100	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
63118-12100	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63118-12100	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63119 - SUPPORT, ROOF PANEL, LH
63118-12100	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
63118-12100	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63118-12100	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63132 - PANEL, WINDSHIELD HEADER, INNER
63102-12150	NZE120,ZZE122..WG..GCC	10/2001 - 04/2004	1
63102-12150	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63102-12150	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-12240	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63132-12240	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63132-12240	NZE120,ZZE122..WG..GCC	10/2001 - 04/2004	1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-12240	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63132-12240	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63132-12240	NZE120,ZZE122..WG..GCC	10/2001 - 04/2004	1
63138 - BRACKET, DOME LAMP, NO.2
63138-12011	NZE120,ZZE122..WG..GCC	10/2001 - 07/2005	2
63138-12010	NZE120,ZZE122..WG	08/2000 - 05/2001	2
63138-12011	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	2
63138-12011	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	2
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-13080	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63141-13080	NZE120,ZZE122..WG	10/2001 - 04/2004	1
63141-13080	NZE120,ZZE122..WG	04/2004 - 09/2006	1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-12100	CE120,NZE12#,ZZE12#..GCC,GEN	09/2002 - 04/2004	1
63142-12100	NZE121,ZZE121..GEN;NZE120,ZZE122..GCC;CE120,NZE120,ZZE122..RHD..GEN	08/2000 - 09/2002	1
63142-12100	ZZE122..WG..ARL;CE120,NZE12#,ZZE12#..GCC,GEN	04/2004 - 12/2999	1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-12100	NZE120,ZZE122..WG	04/2004 - 09/2006	1
63143-12100	NZE120,ZZE122..WG	10/2001 - 04/2004	1
63143-12100	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63144A - REINFORCEMENT, ROOF PANEL, NO.4
63144-13030	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	1
63144-13030	NZE120,ZZE122..WG	10/2001 - 04/2004	1
63144-13030	NZE120,ZZE122..WG	04/2004 - 09/2006	1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-13020	NZE120,ZZE122..WG	08/2000 - 04/2004	2
63148-13020	NZE120,ZZE122..WG	04/2004 - 09/2006	2
63148-13020	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-13020	NZE120,ZZE122..WG	08/2000 - 04/2004	2
63148-13020	NZE120,ZZE122..WG	04/2004 - 09/2006	2
63148-13020	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-13020	NZE120,ZZE122..WG	08/2000 - 04/2004	2
63148-13020	NZE120,ZZE122..WG	04/2004 - 09/2006	2
63148-13020	NZE120,ZZE122..WG..XLI	09/2002 - 04/2004	2
Common parts
90179-06274
91511-B0610

ZZE122L-AWMDKV (2000)

ILLUST NO. 2 OF 3(0008- )WG

ILLUST NO. 1 OF 3(0008- )WG
