ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

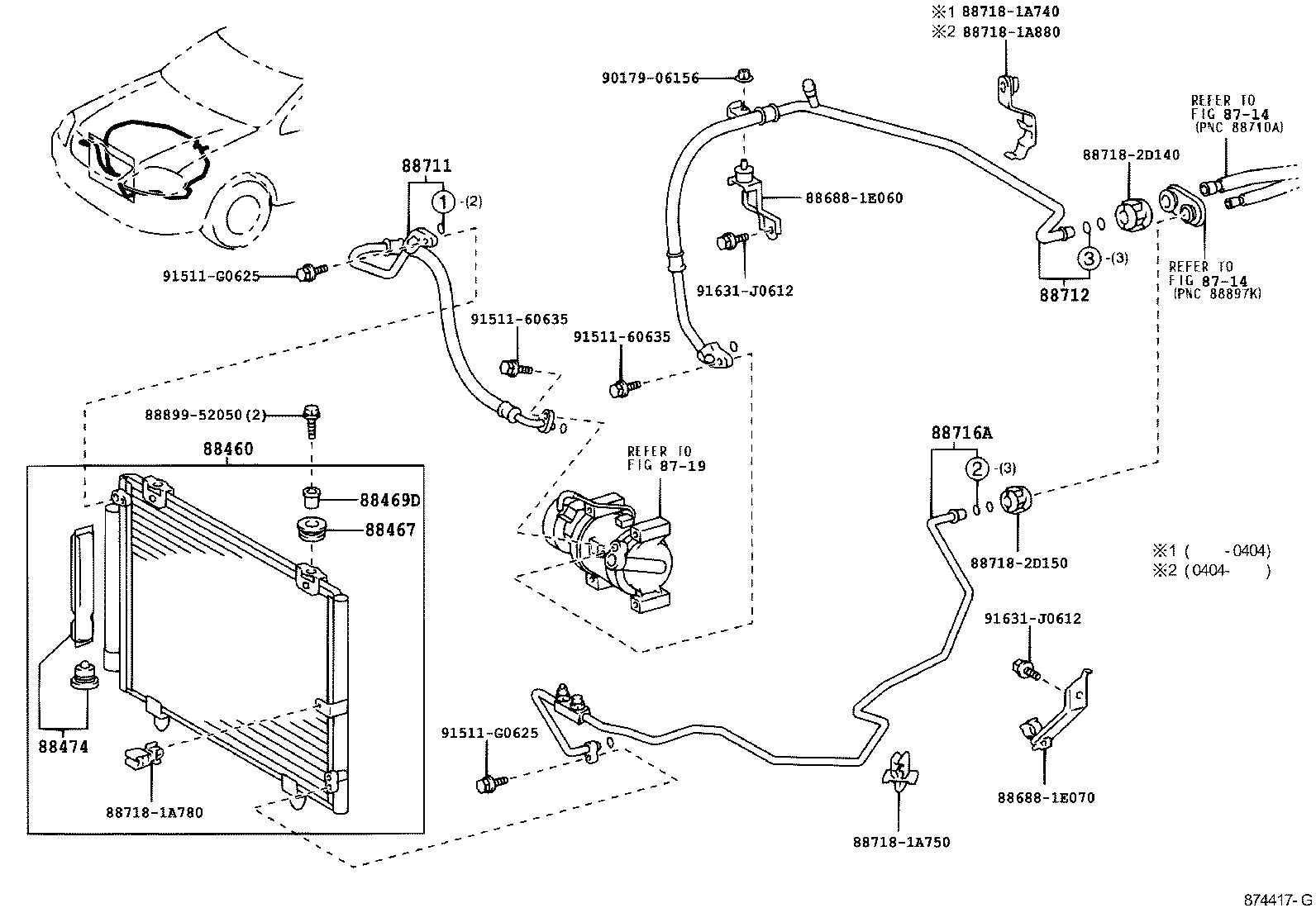

ILLUST NO. 1 OF 2(0008- )NZE12#,ZZE12#..RHD

Click highlighted areas on diagram

MAKER OPTION

diagram 8714 8714 8719 88460 88467 88469D 88474 886881E060 886881E070 88711 88712 88716A 887181A740 887181A750 887181A780 887181A880 887182D140 887182D150 8889952050 9017906156 9151160635 9151160635 91511G0625 91511G0625 91631J0612 91631J0612
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88450-12211

ZZE122..RHD..MTM;CE120,ZZE121..RHD

FIN PITCH=3.6

 1
88450-12210

CE120,ZZE121..PKN

 1
88474 - DRYER, COOLER
88474-47010

NZE121..GLI;CE120,NZE120,ZZE12#..GCC,PKN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12540

ZZE121;ZZE122..GCC;ZZE122..RHD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12820

ZZE12#..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12510

CE120,NZE120,ZZE121..PKN

 1
Common parts
88688-1E060
88688-1E070
88718-1A740
88718-1A750
88718-1A780
88718-1A880
88718-2D140
88718-2D150
88899-52050
90179-06156
91511-60635
91511-G0625
91631-J0612
Linked diagrams
8714
8719

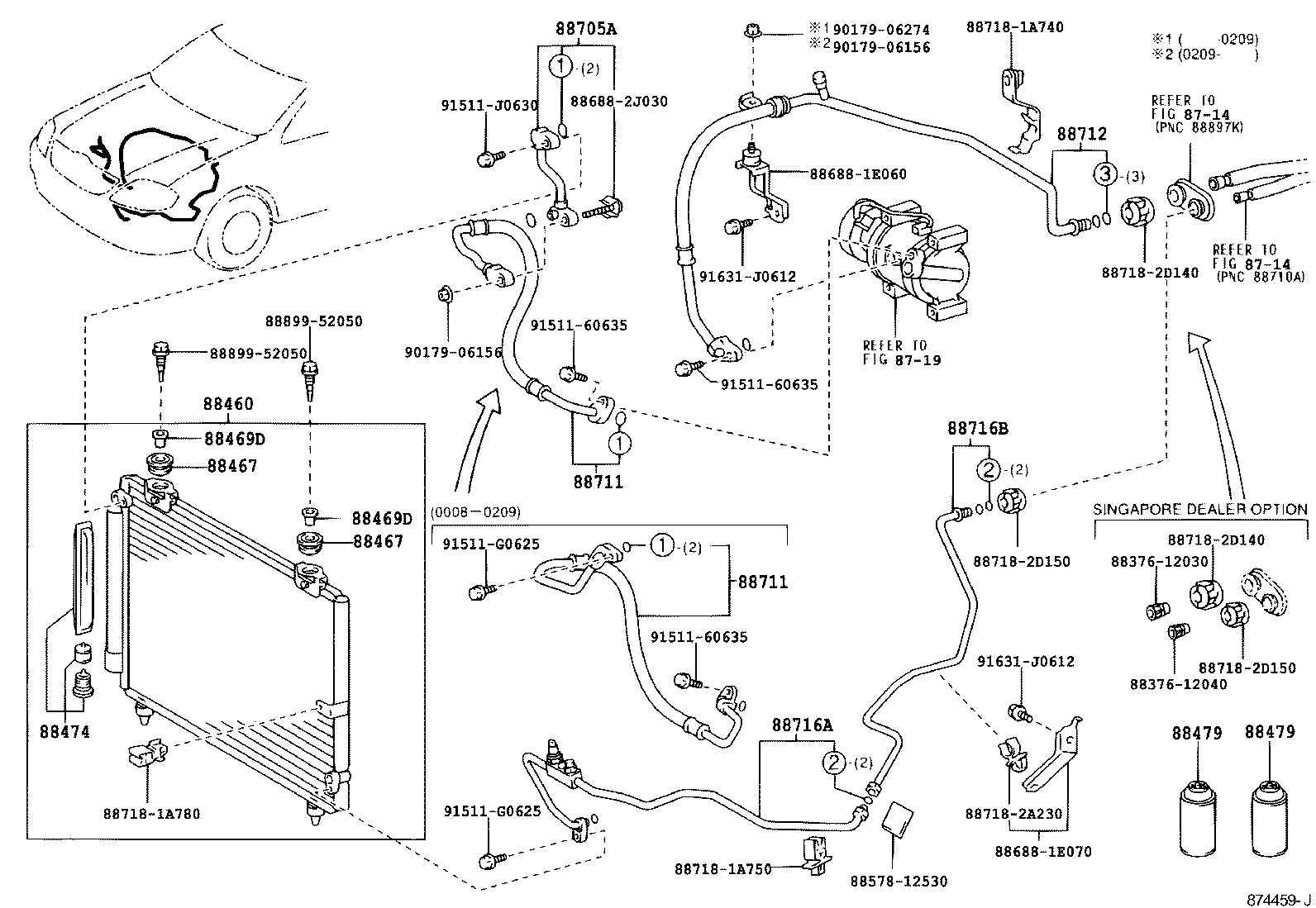

ILLUST NO. 1 OF 2(0008- )NZE12#,ZZE121..RHD ; (0008- )ZZE122..RHD..ARL,GEN

Click highlighted areas on diagram

DEALER OPTION

diagram 8714 8714 8719 8837612030 8837612040 88460 88467 88467 88469D 88469D 88474 88479 88479 8857812530 886881E060 886881E070 886882J030 88705A 88711 88711 88712 88716A 88716B 887181A740 887181A750 887181A780 887182A230 887182D140 887182D140 887182D150 887182D150 8889952050 8889952050 9017906156 9017906156 9017906274 9151160635 9151160635 9151160635 91511G0625 91511G0625 91511J0630 91631J0612 91631J0612
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88450-12211

ZZE122..RHD..MTM;CE120,ZZE121..RHD

FIN PITCH=3.6

 1
88450-12210

CE120,ZZE121..PKN

 1
88474 - DRYER, COOLER
88474-47010

NZE121..GLI;CE120,NZE120,ZZE12#..GCC,PKN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12540

ZZE121;ZZE122..GCC;ZZE122..RHD..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-12540

ZZE121;ZZE122..GCC;ZZE122..RHD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88704-12820

ZZE12#..RHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88710-12510

CE120,NZE120,ZZE121..PKN

 1
Common parts
88376-12030
88376-12040
88578-12530
88688-1E060
88688-1E070
88688-2J030
88718-1A740
88718-1A750
88718-1A780
88718-2A230
88718-2D140
88718-2D150
88899-52050
90179-06156
90179-06274
91511-60635
91511-G0625
91511-J0630
91631-J0612
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(0008- )CE120,NZE12#,ZZE121 ; (0008- )ZZE122..ARL,GCC,GEN

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
