Toyota Corolla/altis sed/wg ZZE121 HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005

Engine 3ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0008- )

Click highlighted areas on diagram

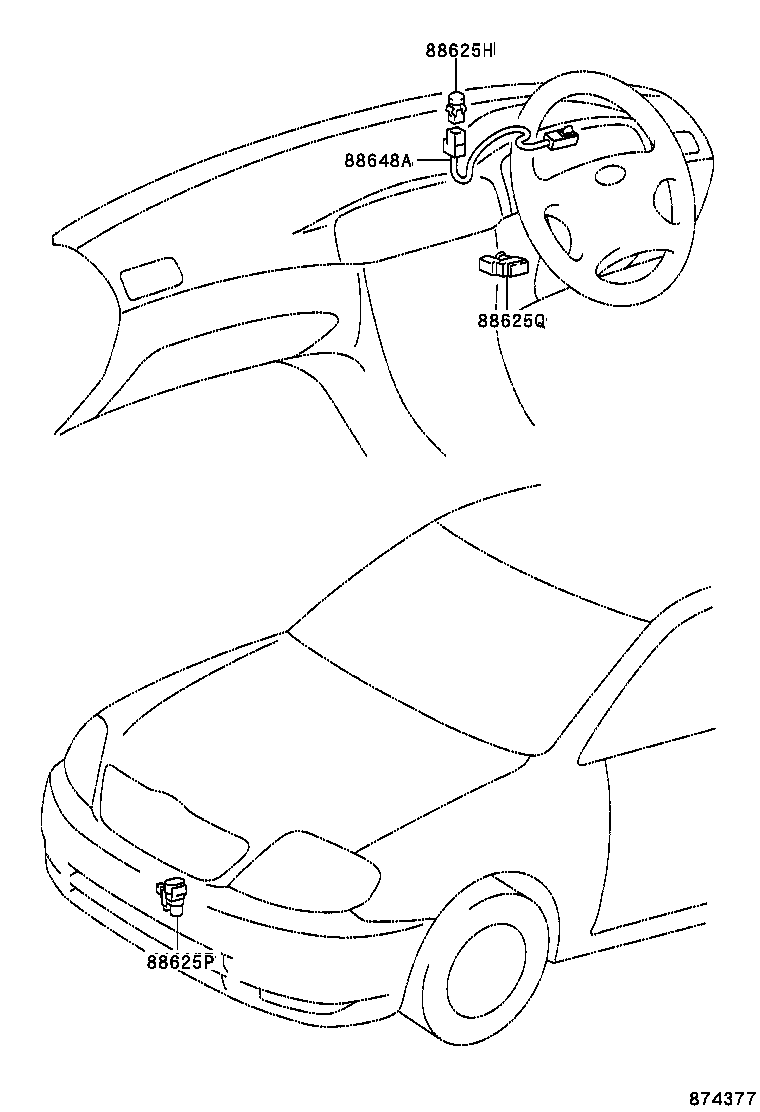

SENSOR

Part #	Description	Period	Qty	Price

ILLUST NO. 1 OF 3(0008- )

Click highlighted areas on diagram

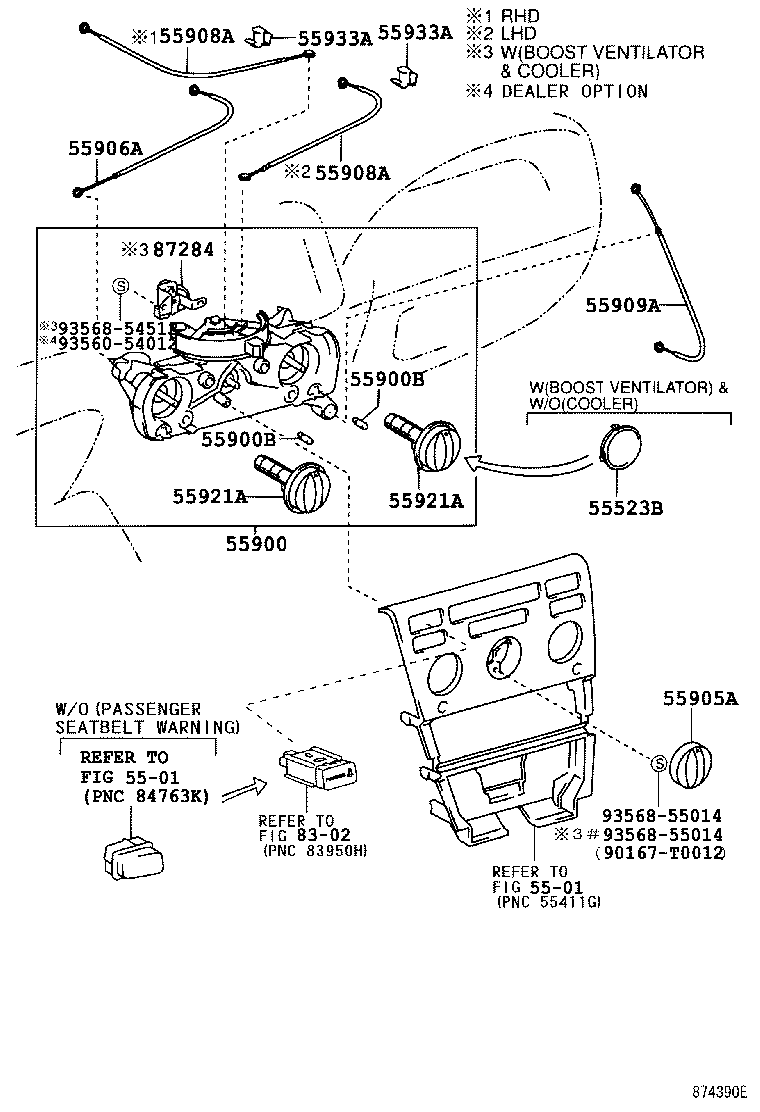

CONTROL PANEL--DIAL TYPE

Part #	Description	Period	Qty
55900 - CONTROL ASSY, AIR CONDITIONER
55900-1A010	NZE12#,ZZE121..RHD;NZE120,ZZE122..GCC W(BOOST VENTILATOR)	08/2000 - 02/2001	1
55900-1A070	CE120,NZE120,ZZE12#..ARL,PKN;CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 10/2004	1
55900-1A071	CE120,NZE120,ZZE121..PKN	10/2004 - 07/2005	1
55900-12820	NZE12#,ZZE12#	08/2000 - 02/2001	1
55900B - BULB, AIR CONDITIONER CONTROL
90981-11040	CE120,NZE120,ZZE121..PKN 12V 2W	10/2004 - 07/2005	2
90981-11040	CE120,NZE120,ZZE121..PKN 12V 2W	08/2000 - 09/2004	2
55900B - BULB, AIR CONDITIONER CONTROL
90981-11040	CE120,NZE120,ZZE121..PKN 12V 2W	10/2004 - 07/2005	2
90981-11040	CE120,NZE120,ZZE121..PKN 12V 2W	08/2000 - 09/2004	2
55905A - KNOB, HEATER CONTROL
55905-12741	CE120,NZE120,ZZE121..PKN	10/2004 - 07/2005	1
55905-12740	CE120,NZE120,ZZE12#..ARL,PKN;CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 10/2004	1
55905-12610	NZE12#,ZZE12#	08/2000 - 02/2001	1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-12410	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12330	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-12330	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-12320	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	1
55921A - RETAINER, HEATER CONTROL
55921-12120	NZE12#,ZZE12#	08/2000 - 02/2001	2
55921-12161	CE120,NZE120,ZZE121..PKN	10/2004 - 07/2005	2
55921-12160	CE120,NZE120,ZZE12#..ARL,PKN;CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 10/2004	2
55921A - RETAINER, HEATER CONTROL
55921-12120	NZE12#,ZZE12#	08/2000 - 02/2001	2
55921-12161	CE120,NZE120,ZZE121..PKN	10/2004 - 07/2005	2
55921-12160	CE120,NZE120,ZZE12#..ARL,PKN;CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 10/2004	2
55933A - CLAMP, HEATER CONTROL CABLE
55933-52010	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	2
55933A - CLAMP, HEATER CONTROL CABLE
55933-52010	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	2
Common parts
90167-T0012
93560-54012
93568-54512
93568-55014
Linked diagrams
5501
8302

ILLUST NO. 2 OF 3(0202- )PKN

Click highlighted areas on diagram

AIR DUCT

Part #	Description	Period	Qty
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-02070	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-02100	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-02040	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-02050	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-12590	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	1
Common parts
90179-06314
90467-05014B3
90467-0502022

ILLUST NO. 1 OF 3(0008- )

Click highlighted areas on diagram

CONTROL PANEL--PUSH TYPE

Part #	Description	Period	Qty
55921A - RETAINER, HEATER CONTROL
55921-12120	NZE12#,ZZE12#	08/2000 - 02/2001	2
55921-12161	CE120,NZE120,ZZE121..PKN	10/2004 - 07/2005	2
55921-12160	CE120,NZE120,ZZE12#..ARL,PKN;CE120,NZE120,ZZE122..LHD..GEN	09/2002 - 10/2004	2
Common parts
90167-30010
Linked diagrams
5501
