ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

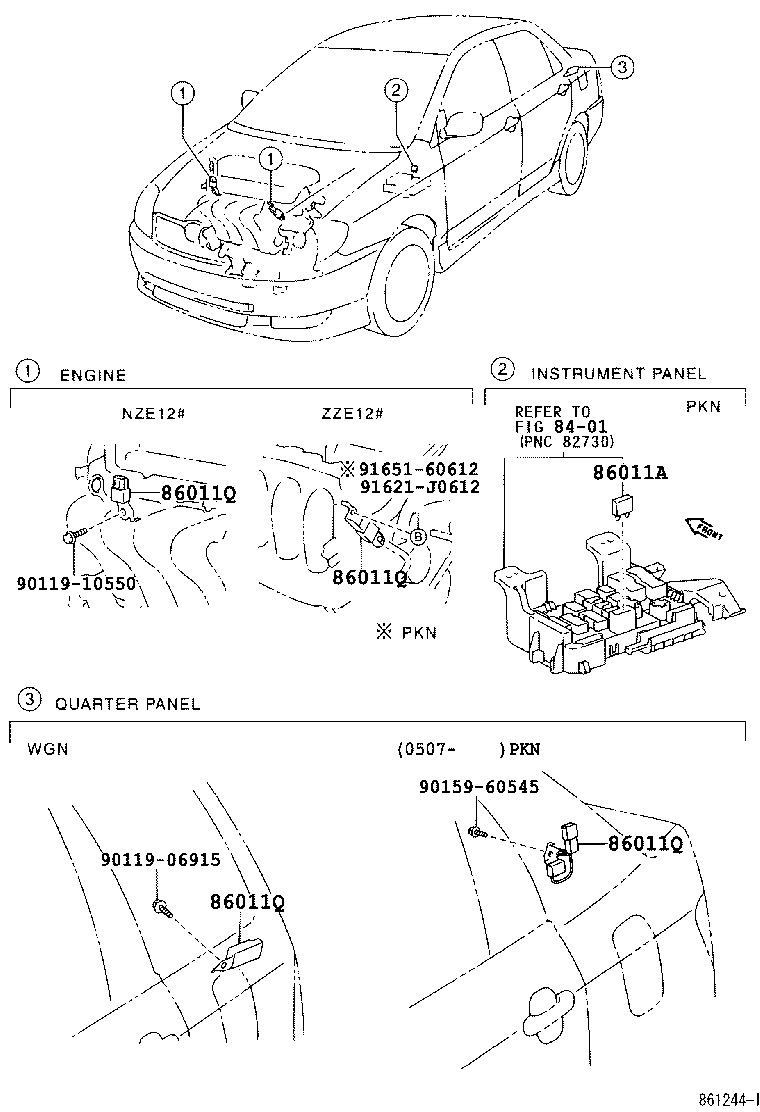

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

CONDENSER

diagram 8401 86011A 86011Q 86011Q 86011Q 86011Q 9011906915 9011910550 9015960545 91621J0612 9165160612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

CE120,NZE120,ZZE121..PKN

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..PKN

ENGINE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..PKN

ENGINE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..PKN

ENGINE

 1
86011Q - CONDENSER, RADIO SETTING
90980-04154

ZZE121..PKN

ENGINE

 1
Common parts
90119-06915
90119-10550
90159-60545
91621-J0612
91651-60612
Linked diagrams
8401

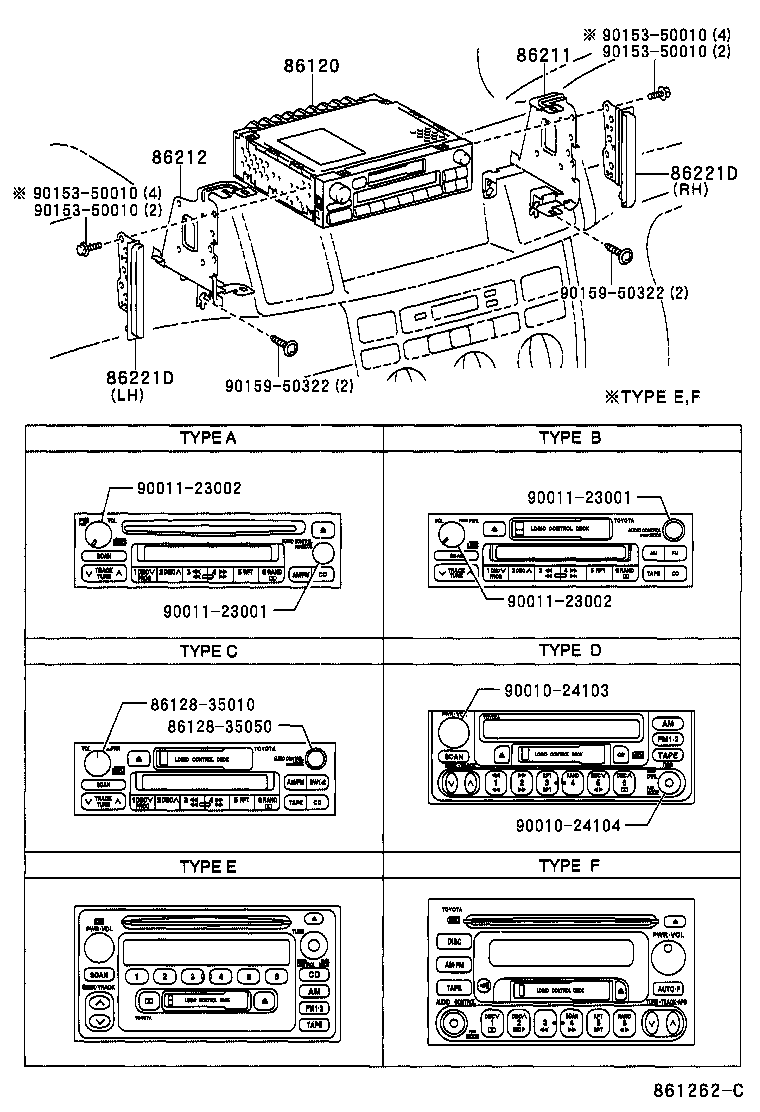

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

diagram 86120 8612835010 8612835050 86211 86212 86221D 86221D 9001024103 9001024104 9001123001 9001123001 9001123002 9001123002 9015350010 9015350010 9015350010 9015350010 9015950322 9015950322
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-33280

CE120,ZZE121..20DSA,SESAL

FUJITSU TEN,ID=15852,TYPE F:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-12370

CE120,NZE120,ZZE121..PKN

 1
86212 - BRACKET, RADIO, NO.2
86212-12350

CE120,NZE120,ZZE121..PKN

 1
86221D - PANEL, RADIO RECEIVER
86221-52050

CE120,NZE120,ZZE121..PKN

LH

 1
86221-52060

CE120,NZE120,ZZE121..PKN

RH

 1
86221D - PANEL, RADIO RECEIVER
86221-52050

CE120,NZE120,ZZE121..PKN

LH

 1
86221-52060

CE120,NZE120,ZZE121..PKN

RH

 1
Common parts
86128-35010
86128-35050
90010-24103
90010-24104
90011-23001
90011-23002
90153-50010
90159-50322
