ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0209) ; (0209- )SED

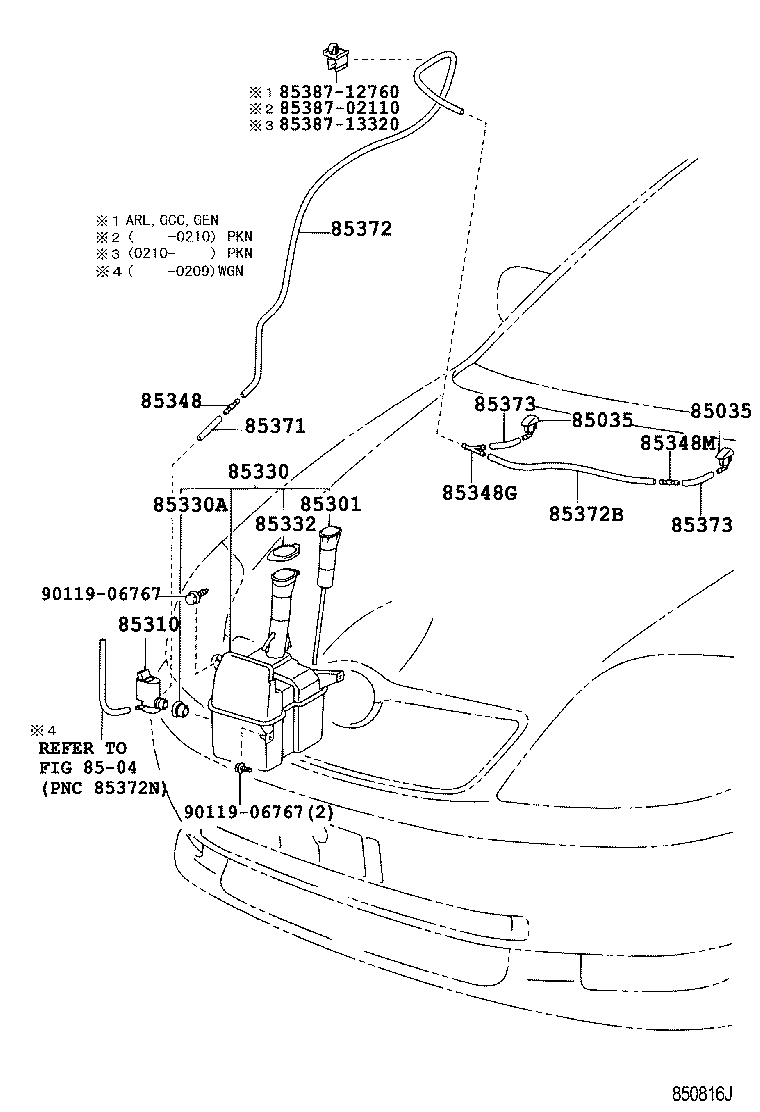

Click highlighted areas on diagram

diagram 85035 85035 8504 85301 85310 85330 85330A 85332 85348 85348G 85348M 85371 85372 85372B 85373 85373 8538702110 8538712760 8538713320 9011906767 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12240

CE120,NZE120,ZZE121..PKN

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12240

CE120,NZE120,ZZE121..PKN

 2
85301 - INLET SUB-ASSY, WASHER
85318-12450

CE120,NZE120,ZZE121..PKN

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-10280

CE120,NZE120,ZZE121..PKN

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-12450

ZZE121;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

CE120,NZE120,ZZE121..PKN

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

CE120,NZE120,ZZE121..PKN

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

CE120,NZE120,ZZE121..PKN

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85348-14390

CE120,NZE120,ZZE121..PKN

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85349-89122

CE120,NZE120,ZZE121..PKN

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

CE120,NZE120,ZZE121..PKN

*H,L=50

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

CE120,NZE120,ZZE121..PKN

*H,L=1510

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

CE120,NZE120,ZZE121..PKN

*H,L=480

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

CE120,NZE120,ZZE121..PKN

*H,L=90

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

CE120,NZE120,ZZE121..PKN

*H,L=90

 2
Common parts
85387-02110
85387-12760
85387-13320
90119-06767
Linked diagrams
8504
