Toyota Corolla/altis sed/wg ZZE121 SWITCH & RELAY & COMPUTER

ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005

Engine 3ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

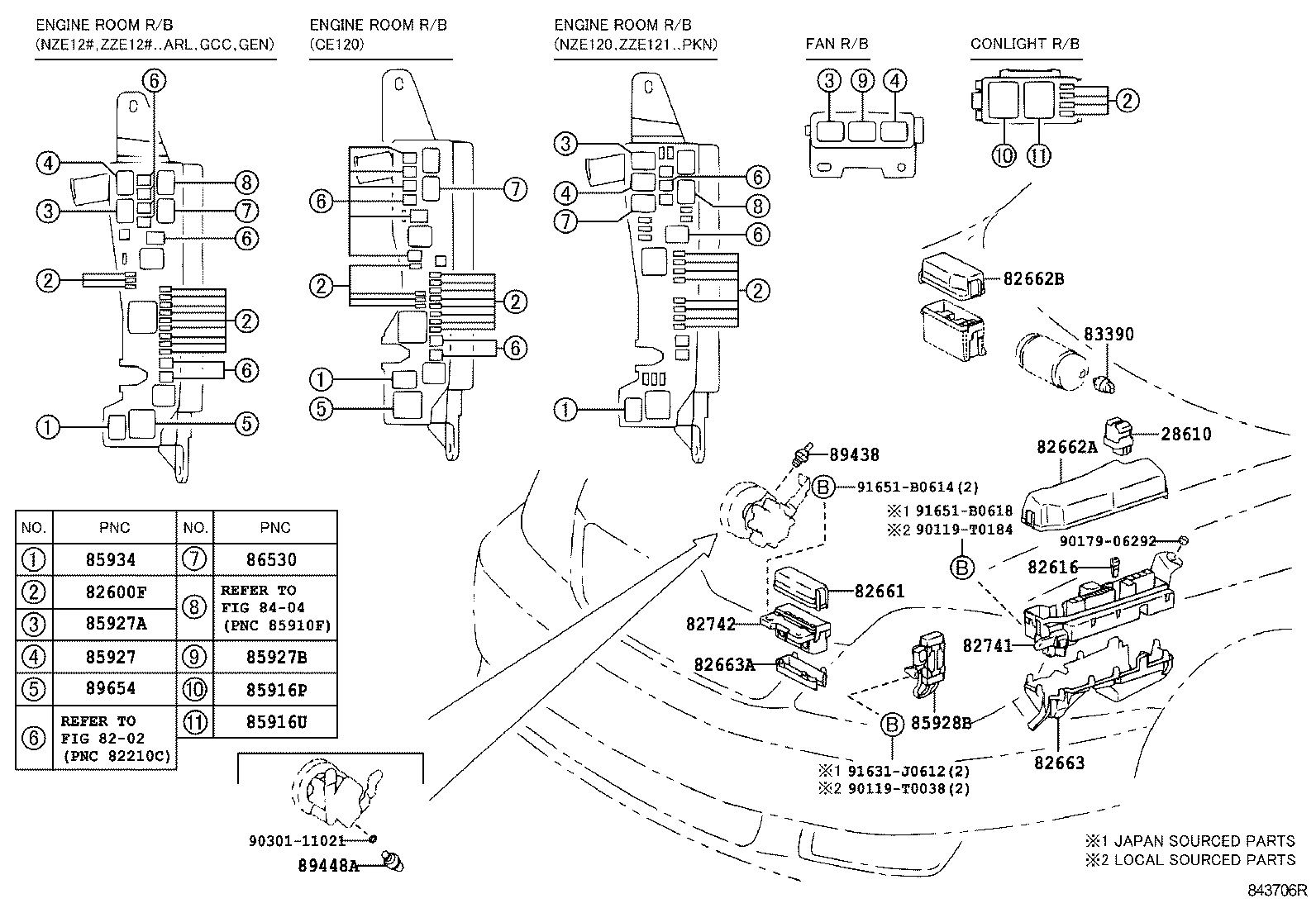

ILLUST NO. 2 OF 7(0008- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82600F - FUSE, FUSE BLOCK
90080-82020	CE120,NZE120,ZZE121..PKN 7.5A,MINI FUSE,BROWN	02/2002 - 07/2005	1
90982-09007	CE120,NZE120,ZZE121..PKN 5A,MINI FUSE,TAN	02/2002 - 07/2005	1
90080-82024	CE120,NZE120,ZZE121..PKN 30A,MINI FUSE,GREEN,SUMITOMO	02/2002 - 07/2005	1
90080-82021	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED,SUMITOMO	02/2002 - 07/2005	1
90982-09009	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED	02/2002 - 07/2005	1
90080-82022	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE,SUMITOMO	02/2002 - 07/2005	1
90982-09010	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE	02/2002 - 07/2005	1
90080-82033	CE120,NZE120,ZZE121..PKN 25A,MINI FUSE	02/2002 - 07/2005	1
82616 - PULLER, FUSE
82616-20010	CE120,NZE120,ZZE121..PKN	08/2000 - 07/2005	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-01030	NZE120,ZZE121..PKN	02/2002 - 07/2005	1
82663 - COVER, RELAY BLOCK, LOWER
82663-12010	NZE120,ZZE121..PKN	08/2000 - 07/2005	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-12020	NZE120,ZZE121..PKN	08/2000 - 07/2005	1
85927 - RELAY, COOLING FAN
90080-87010	NZE121,ZZE121;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..(GEN,PKN) P/N LABEL=9008087010	08/2000 - 07/2005	1
90080-87027	NZE120,ZZE121..PKN P/N LABEL=9008087027	10/2002 - 07/2005	1
90080-87008	NZE121,ZZE121;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..(GEN,PKN) P/N LABEL=9008087008	08/2000 - 07/2005	1
85927A - RELAY, COOLING FAN, NO.2
90987-04004	NZE121,ZZE121;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..(GEN,PKN) P/N LABEL=9098704004	08/2000 - 07/2005	1
90080-87028	NZE120,ZZE121..PKN P/N LABEL=9008087028	10/2002 - 07/2005	1
90080-87009	NZE121,ZZE121;NZE120,ZZE122..GCC;NZE120,ZZE122..RHD..(GEN,PKN) P/N LABEL=9008087009	08/2000 - 07/2005	1
85928B - RESISTOR, COOLING FAN
85928-12010	ZZE122..RHD;ZZE122..GCC;NZE12#,ZZE121	08/2000 - 07/2005	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	ZZE121..MTM..XLI;CE120,NZE120,ZZE121..PKN PART NUMBER LABEL=90987-02028	09/2002 - 07/2005	1
90987-02020	CE120,NZE120,ZZE12#..ARL,PKN	08/2000 - 09/2002	1
90987-02020	CE120,ZZE121;NZE120..GCC,PKN;NZE120..LHD..GEN;ZZE122..ARL,GCC,GEN	09/2002 - 02/2004	1
86530 - RELAY ASSY, HORN
90080-87008	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
89438 - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	ZZE122..RHD;ZZE122..GCC;ZZE121..LX,SESAL;ZZE121..ATM..XLI	08/2000 - 07/2005	1
Common parts
90119-T0038
90119-T0184
90179-06292
90301-11021
91631-J0612
91651-B0614
91651-B0618
Linked diagrams
8202
8404

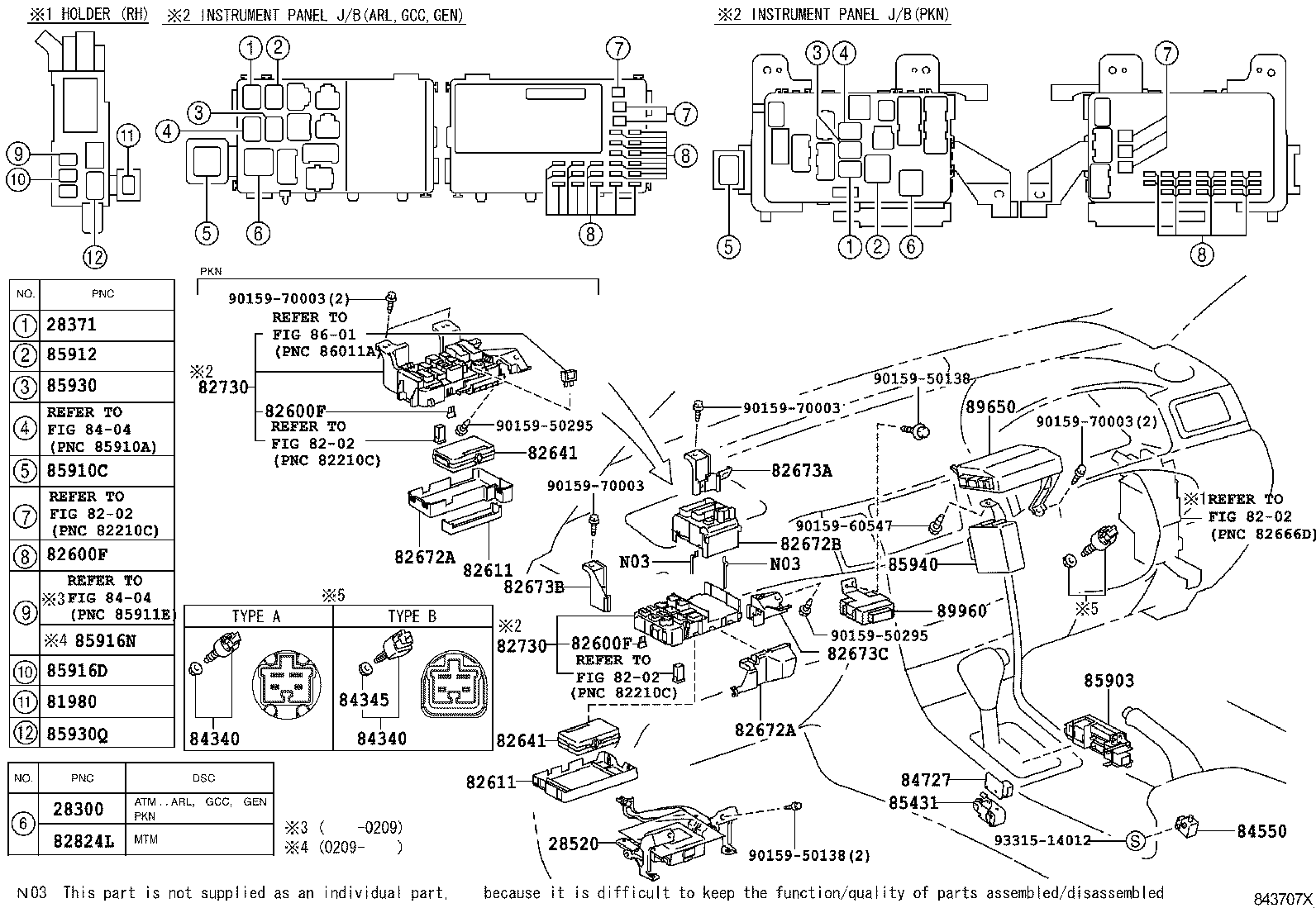

ILLUST NO. 3 OF 7(0008- )RHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-10020	2C,2NZFE,3ZZFE..CE120,NZE120,ZZE121..PKN	11/2003 - 07/2005	1
28300-06010	2C,2NZFE,3ZZFE..CE120,NZE120,ZZE121..PKN	02/2002 - 11/2003	1
28371 - RELAY, IGNITION, NO.1
90080-87027	2C,2NZFE,3ZZFE..CE120,NZE120,ZZE121..PKN P/N LABEL=9008087027	10/2002 - 07/2005	1
90080-87008	2C,2NZFE,3ZZFE..CE120,NZE120,ZZE121..PKN P/N LABEL=9008087008	02/2002 - 07/2005	1
90080-87010	2C,2NZFE,3ZZFE..CE120,NZE120,ZZE121..PKN P/N LABEL=9008087010	02/2002 - 07/2005	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-50030	NZE12#,ZZE12#	08/2000 - 03/2001	1
82600F - FUSE, FUSE BLOCK
90080-82020	CE120,NZE120,ZZE121..PKN 7.5A,MINI FUSE,BROWN	02/2002 - 07/2005	1
90982-09007	CE120,NZE120,ZZE121..PKN 5A,MINI FUSE,TAN	02/2002 - 07/2005	1
90080-82024	CE120,NZE120,ZZE121..PKN 30A,MINI FUSE,GREEN,SUMITOMO	02/2002 - 07/2005	1
90080-82021	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED,SUMITOMO	02/2002 - 07/2005	1
90982-09009	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED	02/2002 - 07/2005	1
90080-82022	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE,SUMITOMO	02/2002 - 07/2005	1
90982-09010	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE	02/2002 - 07/2005	1
90080-82033	CE120,NZE120,ZZE121..PKN 25A,MINI FUSE	02/2002 - 07/2005	1
82600F - FUSE, FUSE BLOCK
90080-82020	CE120,NZE120,ZZE121..PKN 7.5A,MINI FUSE,BROWN	02/2002 - 07/2005	1
90982-09007	CE120,NZE120,ZZE121..PKN 5A,MINI FUSE,TAN	02/2002 - 07/2005	1
90080-82024	CE120,NZE120,ZZE121..PKN 30A,MINI FUSE,GREEN,SUMITOMO	02/2002 - 07/2005	1
90080-82021	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED,SUMITOMO	02/2002 - 07/2005	1
90982-09009	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED	02/2002 - 07/2005	1
90080-82022	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE,SUMITOMO	02/2002 - 07/2005	1
90982-09010	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE	02/2002 - 07/2005	1
90080-82033	CE120,NZE120,ZZE121..PKN 25A,MINI FUSE	02/2002 - 07/2005	1
82600F - FUSE, FUSE BLOCK
90080-82020	CE120,NZE120,ZZE121..PKN 7.5A,MINI FUSE,BROWN	02/2002 - 07/2005	1
90982-09007	CE120,NZE120,ZZE121..PKN 5A,MINI FUSE,TAN	02/2002 - 07/2005	1
90080-82024	CE120,NZE120,ZZE121..PKN 30A,MINI FUSE,GREEN,SUMITOMO	02/2002 - 07/2005	1
90080-82021	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED,SUMITOMO	02/2002 - 07/2005	1
90982-09009	CE120,NZE120,ZZE121..PKN 10A,MINI FUSE,RED	02/2002 - 07/2005	1
90080-82022	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE,SUMITOMO	02/2002 - 07/2005	1
90982-09010	CE120,NZE120,ZZE121..PKN 15A,MINI FUSE,BLUE	02/2002 - 07/2005	1
90080-82033	CE120,NZE120,ZZE121..PKN 25A,MINI FUSE	02/2002 - 07/2005	1
82611 - COVER, FUSE BLOCK
82611-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
82611 - COVER, FUSE BLOCK
82611-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
82641 - RELAY, INTEGRATION NO.1
82641-12190	CE120,ZZE121..20DSA,SESAL W(KEY LESS ENTRY)	05/2002 - 10/2002	1
82641-12240	CE120,ZZE121..20DSA,SESAL	10/2002 - 07/2005	1
82641 - RELAY, INTEGRATION NO.1
82641-12190	CE120,ZZE121..20DSA,SESAL W(KEY LESS ENTRY)	05/2002 - 10/2002	1
82641-12240	CE120,ZZE121..20DSA,SESAL	10/2002 - 07/2005	1
82672A - COVER, JUNCTION BLOCK
82672-01030	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
82672A - COVER, JUNCTION BLOCK
82672-01030	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-02070	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION
82730-02070	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
84340 - SWITCH ASSY, STOP LAMP
84340-04010	CE120,NZE120,ZZE121..PKN TYPE A:REFER ILLUST.	02/2002 - 07/2005	1
84340 - SWITCH ASSY, STOP LAMP
84340-04010	CE120,NZE120,ZZE121..PKN TYPE A:REFER ILLUST.	02/2002 - 07/2005	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02030	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR)
90987-04010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
85912 - RELAY, DEFOGGER
90987-02012	NZE12#,ZZE12# P/N LABEL=9098702012	08/2000 - 11/2000	1
90987-02025	CE120,NZE120,ZZE121..PKN PART NUMBER LABEL=90987-02025	02/2002 - 07/2005	1
85930 - RELAY ASSY, POWER WINDOW
90080-87008	CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN P/N LABEL=9008087008	02/2002 - 07/2005	1
90080-87010	CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN P/N LABEL=9008087010	02/2002 - 07/2005	1
90080-87027	CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN P/N LABEL=9008087027	10/2002 - 07/2005	1
Common parts
90159-50138
90159-50295
90159-60547
90159-70003
93315-14012
Linked diagrams
8202
8404
8601

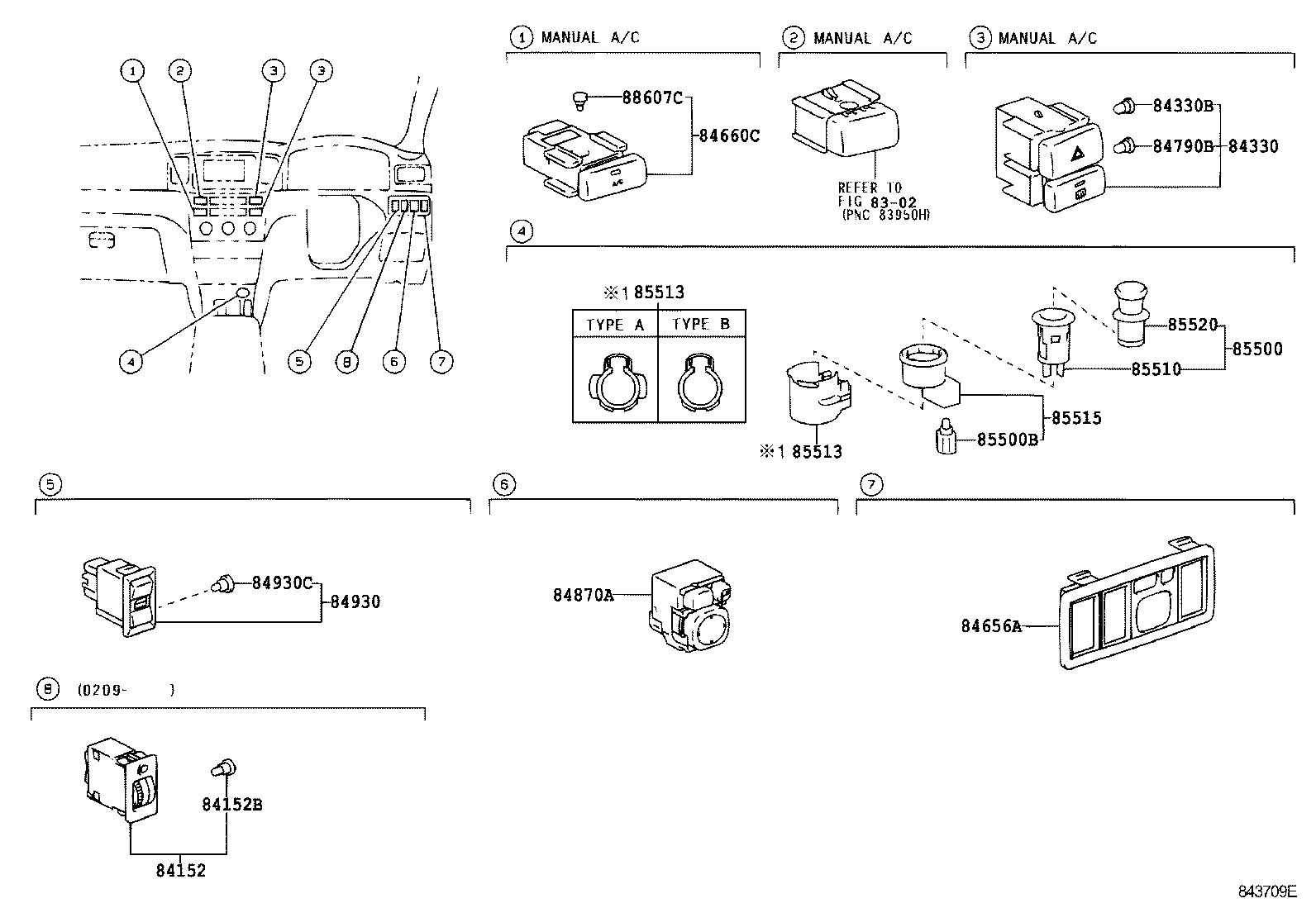

ILLUST NO. 4 OF 7(0008- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
84330 - SWITCH ASSY, HAZARD WARNING SIGNAL
84332-12440	CE120,NZE12#,ZZE12#..RHD..(GEN,PKN) W(MANUAL AIR CONDITIONER)	08/2000 - 07/2005	1
84330B - BULB, HAZARD WARNING SIGNAL SWITCH
84999-10310	ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) 14V 0.91W,W(MANUAL AIR CONDITIONER)	08/2000 - 07/2005	1
84656A - BEZEL, SWITCH
84656-12090A0	NZE120..GLI..PKN;NZE120,ZZE122..RHD..GEN;CE120,NZE121,ZZE121..RHD..(20DSA,LX,SESAL,XLI) IVORY,TRIM0#	08/2000 - 07/2005	1
84660C - SWITCH, COOLER
84660-12200	CE120,NZE120,ZZE121..PKN W(MANUAL AIR CONDITIONER)	08/2000 - 07/2005	1
84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH)
90010-01060	NZE120,ZZE122..GCC;CE120,NZE12#,ZZE12#..RHD..(GEN,PKN) 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER)	08/2000 - 07/2005	1
84870A - SWITCH ASSY, OUTER MIRROR
84872-52030	NZE120..RHD..GEN;NZE120..GLI..PKN;NZE120,ZZE122..GCC;NZE121,ZZE121..LX,SESAL,XLI;CE120,ZZE122..RHD..(20DSA,GLI,XLI)	08/2000 - 07/2005	1
85500 - LIGHTER ASSY, CIGARETTE
85500-12240	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 07/2005	1
85500B - BULB, CIGARETTE LIGHTER
90010-01065	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) 14V1.4W,W(GREEN CAP)	08/2000 - 07/2005	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-16040	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 07/2005	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) TYPE B:REFER ILLUST.	04/2002 - 07/2005	1
85513-12020	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) TYPE A:REFER ILLUST.	04/2002 - 07/2005	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) TYPE B:REFER ILLUST.	04/2002 - 07/2005	1
85513-12020	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN) TYPE A:REFER ILLUST.	04/2002 - 07/2005	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-12110	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 07/2005	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	ZZE121;NZE120,ZZE122..GCC;CE120,NZE12#,ZZE122..RHD..(GEN,PKN)	08/2000 - 07/2005	1
88607C - LAMP SUB-ASSY, INDICATOR
90010-03044	CE120,NZE120,ZZE121..PKN 14V0.84W,W/GREEN CAP,W(MANUAL AIR CONDITIONER)	08/2000 - 07/2005	1
Linked diagrams
8302

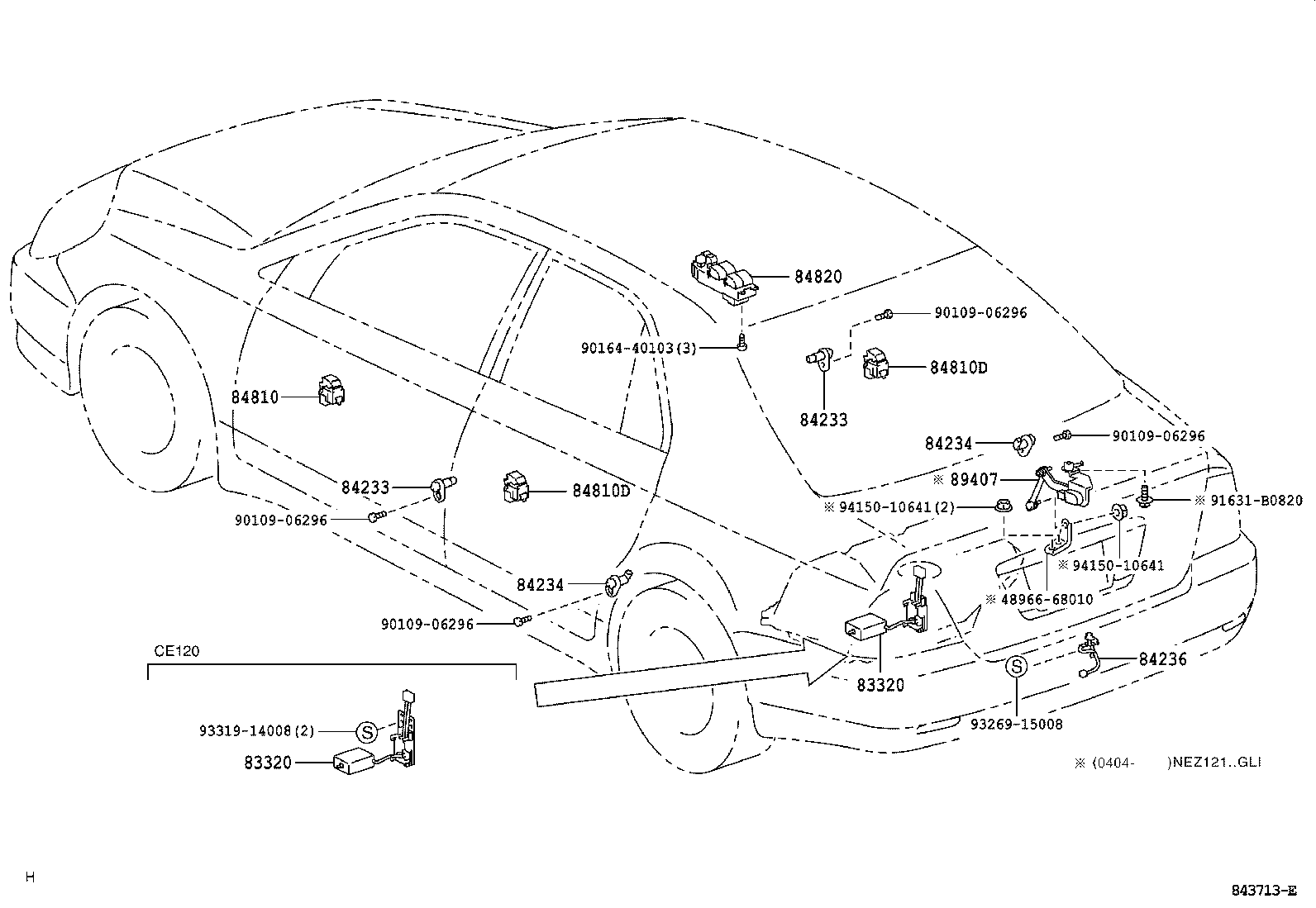

ILLUST NO. 7 OF 7(0008- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & LUGGAGE

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-12640	NZE12#,ZZE12#..GCC,GEN,PKN	08/2000 - 07/2005	1
83320 - GAGE ASSY, FUEL SENDER
83320-12640	NZE12#,ZZE12#..GCC,GEN,PKN	08/2000 - 07/2005	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02070	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-02070	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02090	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-02090	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	2
84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM
84231-12130	CE120,NZE120,ZZE121..PKN	08/2002 - 07/2005	1
84231-02100	CE120,NZE120,ZZE121..PKN	02/2002 - 08/2002	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-12080	ZZE121;ZZE122..CONQ,GLI;ZZE122..LHD..XLI;CE120,NZE120..LHD;CE120,NZE12#..RHD..(20DSA,GLI)	08/2000 - 07/2005	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12080	ZZE121;ZZE122..GLI;ZZE122..LHD..XLI;CE120,NZE120..LHD;CE120,NZE12#..RHD..(20DSA,GLI)	08/2000 - 07/2005	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-12080	ZZE121;ZZE122..GLI;ZZE122..LHD..XLI;CE120,NZE120..LHD;CE120,NZE12#..RHD..(20DSA,GLI)	08/2000 - 07/2005	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-12470	ZZE121..RHD;CE120,NZE12#,ZZE122..RHD..(20DSA,GLI)	08/2000 - 07/2005	1
Common parts
48966-68010
90109-06296
90164-40103
91631-B0820
93269-15008
93319-14008
94150-10641

ILLUST NO. 1 OF 7(0008- )ZZE12#

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83181G - SENSOR, SPEEDOMETER
83181-12020	NZE120,ZZE121..PKN	02/2002 - 07/2005	1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030	NZE120,ZZE121..PKN	02/2002 - 07/2005	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	NZE12#,ZZE12# DENSO	08/2000 - 07/2005	1
83530-60020	NZE12#,ZZE12# YAZAKI	08/2000 - 07/2005	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-12040	CE120,NZE12#,ZZE12#..MTM	08/2000 - 07/2005	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	ZZE121..PKN	02/2002 - 07/2005	1
89615 - SENSOR, KNOCK CONTROL
89615-20090	ZZE121..PKN	02/2002 - 07/2005	1
Common parts
82715-2B340
90126-08046
90179-08153
90430-18008
91651-40620
91651-40625
91671-80612

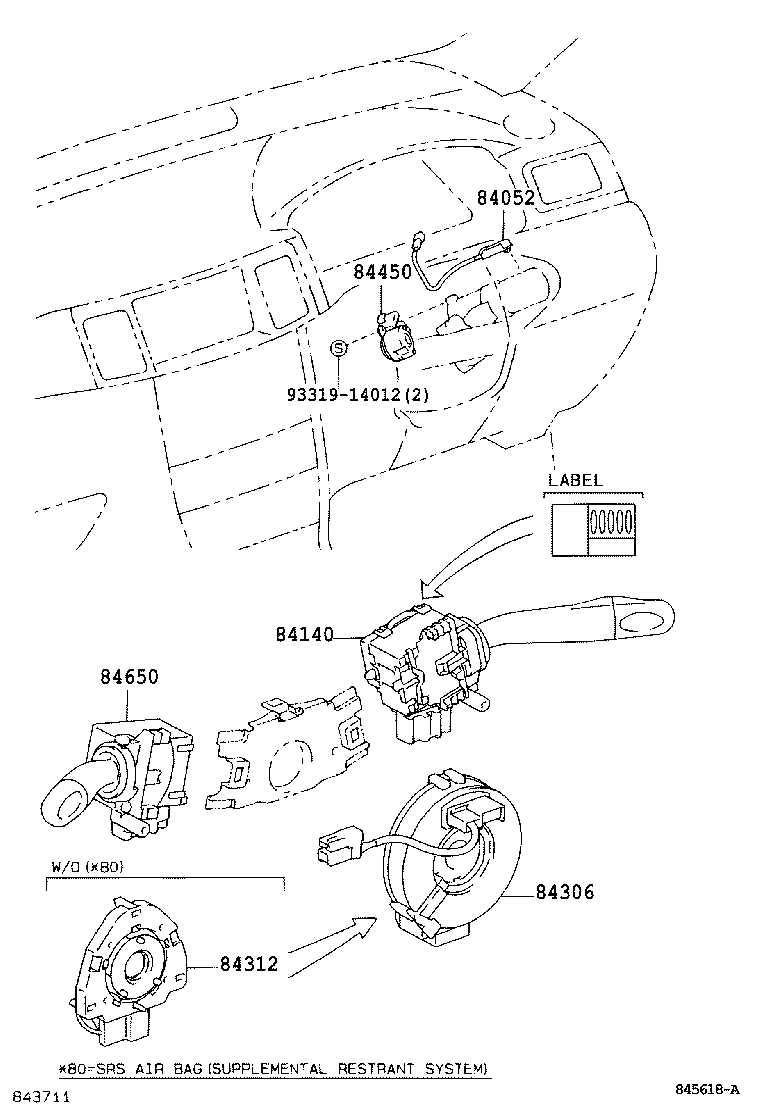

ILLUST NO. 5 OF 7(0008- )RHD

Click highlighted areas on diagram

IGNITION & COMBINATION SWITCH

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-60010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-02090	CE120,NZE120,ZZE121..PKN PART NUMBER LABEL=02090	02/2002 - 07/2005	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-02050	CE120,ZZE121..20DSA,SESAL	02/2002 - 07/2005	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-52010	CE120,NZE12#,ZZE12#	08/2000 - 07/2005	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-02210	CE120,ZZE121..20DSA,SESAL	02/2002 - 07/2005	1
Common parts
93319-14012

ZZE121R-GEMNKP (2002)

ILLUST NO. 2 OF 7(0008- )

ILLUST NO. 3 OF 7(0008- )RHD

ILLUST NO. 4 OF 7(0008- )RHD

ILLUST NO. 7 OF 7(0008- )

ILLUST NO. 1 OF 7(0008- )ZZE12#

ILLUST NO. 5 OF 7(0008- )RHD

Part Price Details
