ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

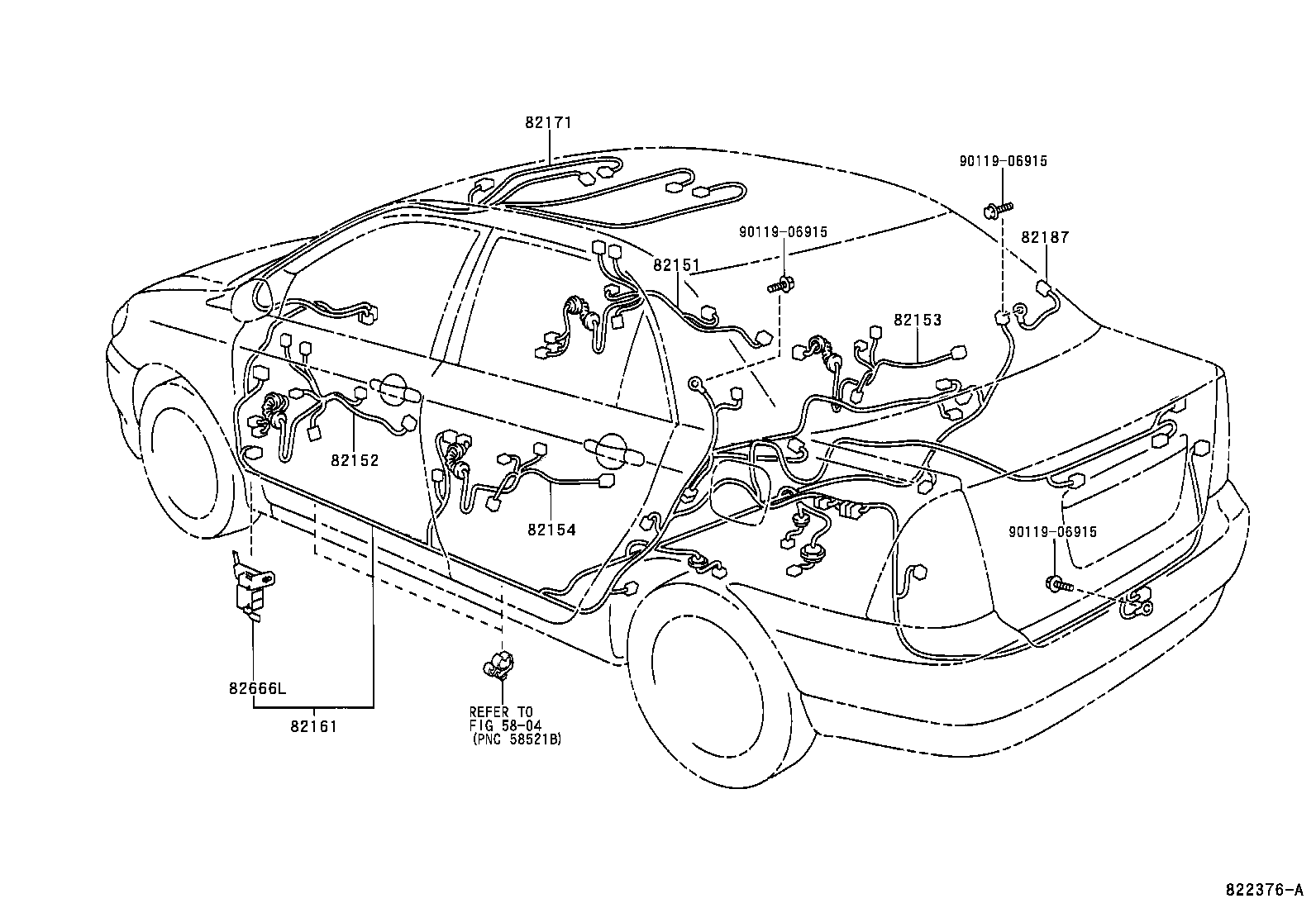

ILLUST NO. 4 OF 8(0008-0404)SED

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 5804 82151 82152 82153 82154 82161 82171 82187 82666L 9011906915 9011906915 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82197-02020

CE120,ZZE121..20DSA,SESAL

 1
82152 - WIRE, FRONT DOOR, LH
82198-02020

CE120,ZZE121..20DSA,SESAL

 1
82153 - WIRE, REAR DOOR, NO.1
82153-02300

CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN

 1
82154 - WIRE, REAR DOOR, NO.2
82153-02300

CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN

 1
82161 - WIRE, FLOOR
82161-02800

NZE120,ZZE121..(GLI,SESAL)..PKN

 1
82161-1N290

NZE12#,ZZE121..RHD

W(ABS)

 1
82161-02801

NZE120,ZZE121..(GLI,SESAL)..PKN

 1
82171 - WIRE, ROOF, NO.1
82171-02540

CE120,ZZE121..20DSA,SESAL

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-02090

CE120,NZE120,ZZE121..PKN

 1
Common parts
90119-06915
Linked diagrams
5804

ILLUST NO. 1 OF 8(0008- )NZE12#,ZZE12#

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82210C 82824 8401 8401 8401 8401 9011906390 9011906390 9011906915 9011906915
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-1K480

NZE120,ZZE121..RHD

W(ABS & *80, DRIVER SIDE) OR W(ABS & *80, DRIVER & PASSENGER SIDE)

 1
82116-02020

ZZE121..PKN

 1
82116-02021

ZZE121..PKN

 1
82210C - FUSIBLE LINK
90982-08283

CE120,NZE120,ZZE121..PKN

30A,TERM.:FEMALE,PNK,TAIHEIYO

 3
90982-08246

CE120,ZZE121..20DSA,SESAL

100A,TERM.:MALE,BLUE,TAIHEIYO

 1
90982-08282

NZE120,ZZE121..PKN

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08284

NZE120,ZZE121..PKN

40A,TERM.:FEMALE,GRN,TAIHEIYO

 3
82824 - CONNECTOR, WIRING HARNESS
82824-12300

CE120,ZZE121..20DSA,SESAL

 1
Common parts
90119-06390
90119-06915
Linked diagrams
8401

ILLUST NO. 2 OF 8(0008- )ZZE12#

Click highlighted areas on diagram

ENGINE

diagram 82121 82123 82124 82823S 82823T 82991 9010508096 9010510122 9011606127 9011906390 9011906915 90119T0003 91635G0616 9164380614 9415080640
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-1T570

ZZE121..MTM

 1
82121-02850

ZZE121..MTM..PKN

 1
82123 - WIRE, ENGINE, NO.3
82123-02150

ZZE121..PKN

 1
82823S - CAP, STARTER TERMINAL
82823-12090

ZZE121..PKN

 2
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

NZE12#,ZZE12#

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-12070

CE120,NZE120,ZZE121..PKN

 1
Common parts
90105-08096
90105-10122
90116-06127
90119-06390
90119-06915
90119-T0003
91635-G0616
91643-80614
94150-80640

ILLUST NO. 3 OF 8(0008- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82143 82144 82210C 82223 82223D 82666A 82666B 82666C 82666C 82666D 82666E 82817 82817 8401 8401 8401 8401 8401 8401 8401 9011906390 9011906915 9011906915 9015950295 9015950295 9015970003 9015970003 9015970003
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-1T160

ZZE121

PART NUMBER LABEL=82141-1T160

 1
82117-02520

ZZE121..MTM..PKN

PART NUMBER LABEL=82117-02520

 1
82117-02521

ZZE121..MTM..PKN

PART NUMBER LABEL=82117-02521

 1
82210C - FUSIBLE LINK
90982-08283

CE120,NZE120,ZZE121..PKN

30A,TERM.:FEMALE,PNK,TAIHEIYO

 3
90982-08246

CE120,ZZE121..20DSA,SESAL

100A,TERM.:MALE,BLUE,TAIHEIYO

 1
90982-08282

NZE120,ZZE121..PKN

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08284

NZE120,ZZE121..PKN

40A,TERM.:FEMALE,GRN,TAIHEIYO

 3
82666A - HOLDER, CONNECTOR NO.2
82666-12240

CE120,NZE120,ZZE121..PKN

 1
82666B - HOLDER, CONNECTOR NO.3
82666-12250

CE120,NZE120,ZZE121..PKN

 1
82666C - HOLDER, CONNECTOR NO.4
82666-12260

NZE120..GCC;NZE12#,ZZE121..RHD

 2
82666C - HOLDER, CONNECTOR NO.4
82666-12260

NZE120..GCC;NZE12#,ZZE121..RHD

 2
82666D - HOLDER, CONNECTOR NO.5
82666-12290

CE120,NZE120,ZZE121..PKN

 1
82666E - HOLDER, CONNECTOR NO.6
82666-12310

NZE12#,ZZE121..RHD

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A760

NZE12#,ZZE12#

 2
82817-02210

CE120,NZE120,ZZE121..PKN

(L)

 2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-1A760

NZE12#,ZZE12#

 2
82817-02210

CE120,NZE120,ZZE121..PKN

(L)

 2
Common parts
90119-06390
90119-06915
90159-50295
90159-70003
Linked diagrams
8401

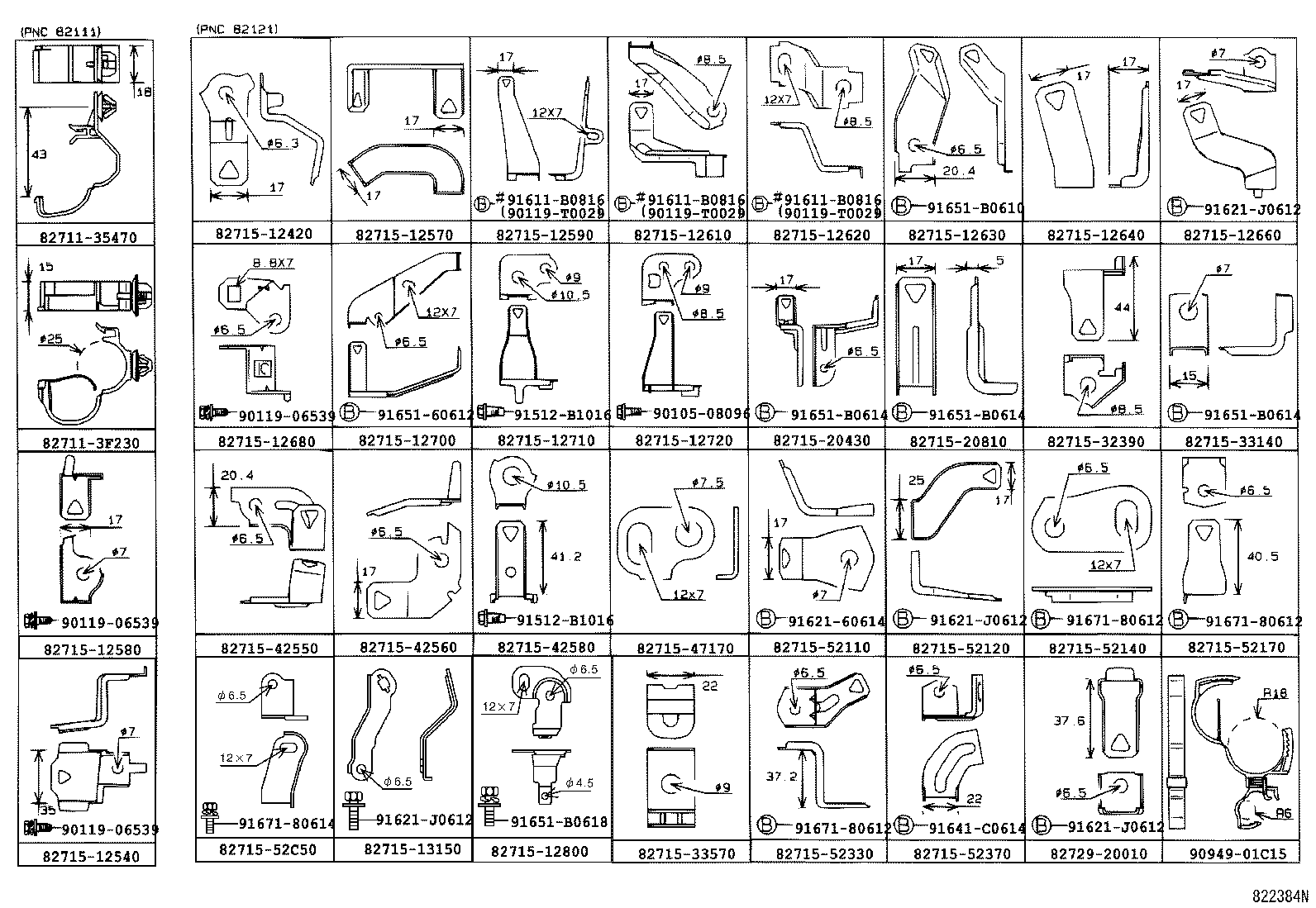

ILLUST NO. 6 OF 8(0008- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271135470 827113F230 8271512420 8271512540 8271512570 8271512580 8271512590 8271512610 8271512620 8271512630 8271512640 8271512660 8271512680 8271512700 8271512710 8271512720 8271512800 8271513150 8271520430 8271520810 8271532390 8271533140 8271533570 8271542550 8271542560 8271542580 8271547170 8271552110 8271552120 8271552140 8271552170 8271552330 8271552370 8271552C50 8272920010 9010508096 9011906539 9011906539 9011906539 90119T0029 90119T0029 90119T0029 9094901C15 91512B1016 91512B1016 91611B0816 91611B0816 91611B0816 9162160614 91621J0612 91621J0612 91621J0612 91621J0612 91641C0614 9165160612 91651B0610 91651B0614 91651B0614 91651B0614 91651B0618 9167180612 9167180612 9167180612 9167180614
Part # Description Qty Price
Common parts
82711-35470
82711-3F230
82715-12420
82715-12540
82715-12570
82715-12580
82715-12590
82715-12610
82715-12620
82715-12630
82715-12640
82715-12660
82715-12680
82715-12700
82715-12710
82715-12720
82715-12800
82715-13150
82715-20430
82715-20810
82715-32390
82715-33140
82715-33570
82715-42550
82715-42560
82715-42580
82715-47170
82715-52110
82715-52120
82715-52140
82715-52170
82715-52330
82715-52370
82715-52C50
82729-20010
90105-08096
90119-06539
90119-T0029
90949-01C15
91512-B1016
91611-B0816
91621-60614
91621-J0612
91641-C0614
91651-60612
91651-B0610
91651-B0614
91651-B0618
91671-80612
91671-80614

ILLUST NO. 7 OF 8(0008- )NZE12#,ZZE12#

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001 82001 82001 82001 8761622010 8761622010 9011906915 9011906915 9011906915 9011906915 9011910550 91512B1016 91512B1016 91621J0612 91621J0814 91621J0814 9167180612
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07109

ZZE12#

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07109

ZZE12#

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07109

ZZE12#

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07109

ZZE12#

NO.1

 1
82001 - CABLE, BOND, NO.1
90980-07109

ZZE12#

NO.1

 1
Common parts
87616-22010
90119-06915
90119-10550
91512-B1016
91621-J0612
91621-J0814
91671-80612

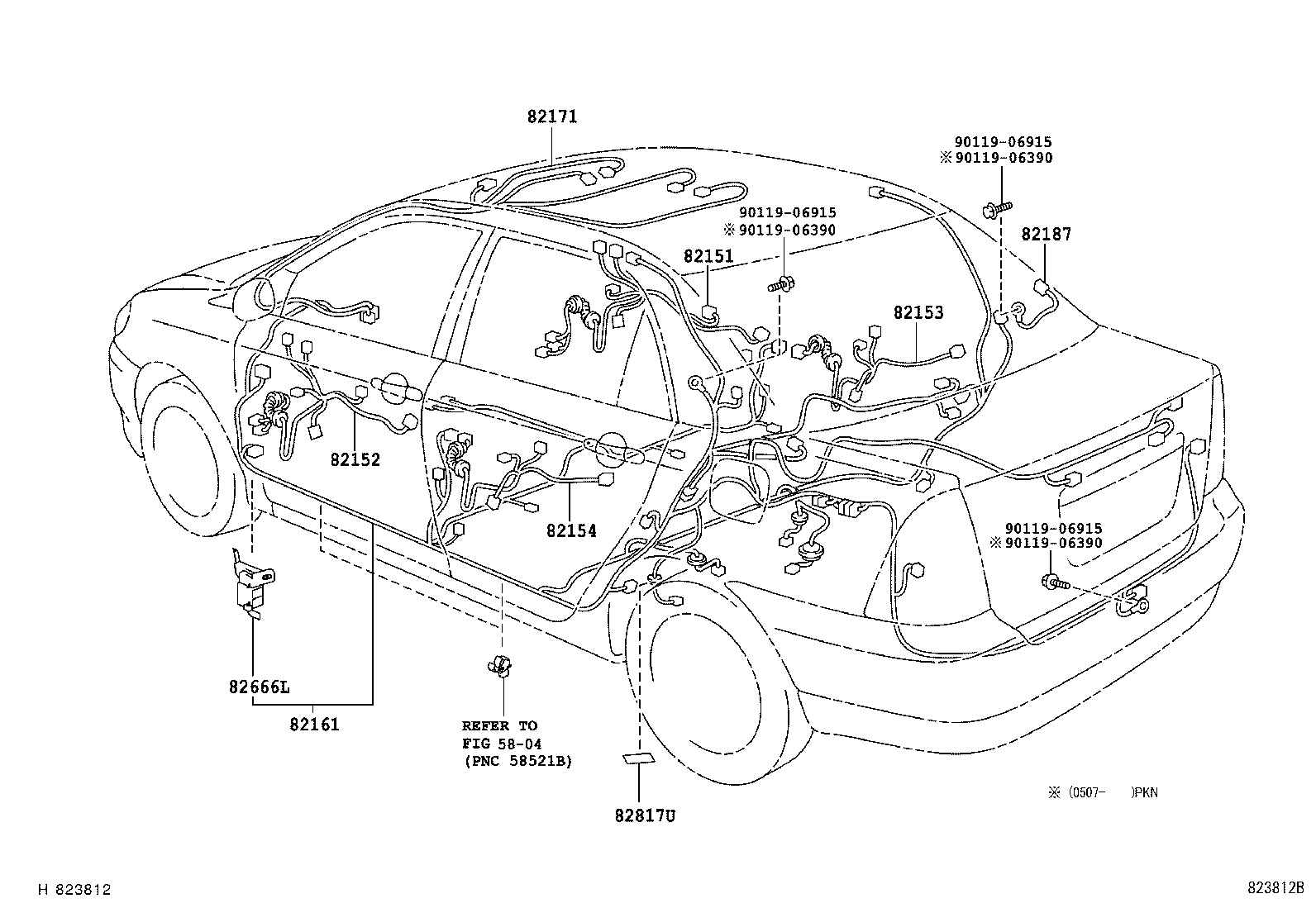

ILLUST NO. 4 OF 8(0404- )SED

Click highlighted areas on diagram

DOOR,ROOF & FLOOR

diagram 5804 82151 82152 82153 82154 82161 82171 82187 82666L 82817U 9011906390 9011906390 9011906390 9011906915 9011906915 9011906915
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82197-02020

CE120,ZZE121..20DSA,SESAL

 1
82152 - WIRE, FRONT DOOR, LH
82198-02020

CE120,ZZE121..20DSA,SESAL

 1
82153 - WIRE, REAR DOOR, NO.1
82153-02300

CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN

 1
82154 - WIRE, REAR DOOR, NO.2
82153-02300

CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN

 1
82161 - WIRE, FLOOR
82161-02800

NZE120,ZZE121..(GLI,SESAL)..PKN

 1
82161-1N290

NZE12#,ZZE121..RHD

W(ABS)

 1
82161-02801

NZE120,ZZE121..(GLI,SESAL)..PKN

 1
82171 - WIRE, ROOF, NO.1
82171-02540

CE120,ZZE121..20DSA,SESAL

 1
82187 - WIRE, REAR WINDOW, NO.2
82187-02090

CE120,NZE120,ZZE121..PKN

 1
Common parts
90119-06390
90119-06915
Linked diagrams
5804

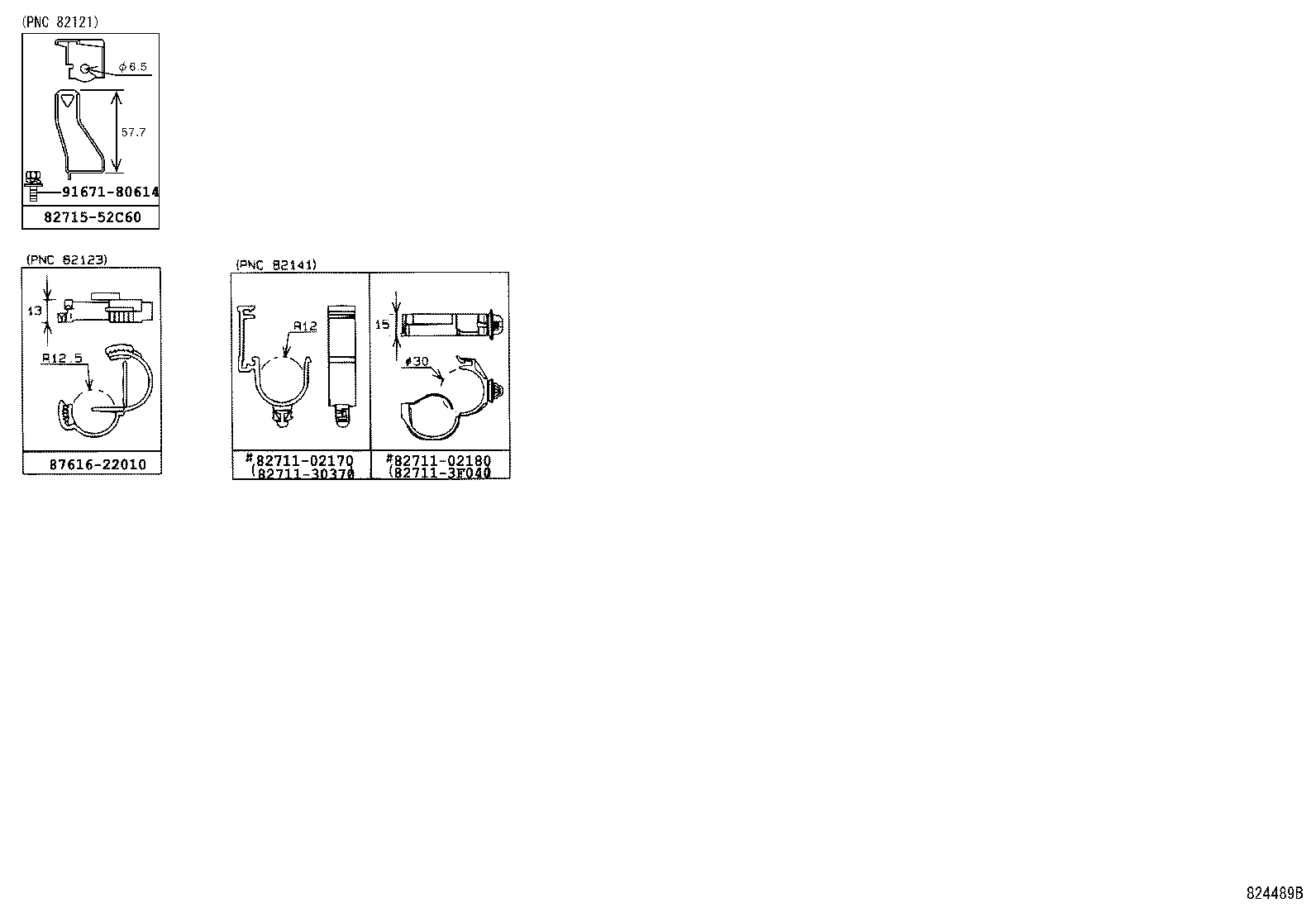

ILLUST NO. 6 OF 8(0008- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271102170 8271102180 8271130370 827113F040 8271552C60 8761622010 9167180614
Part # Description Qty Price
Common parts
82711-02170
82711-02180
82711-30370
82711-3F040
82715-52C60
87616-22010
91671-80614

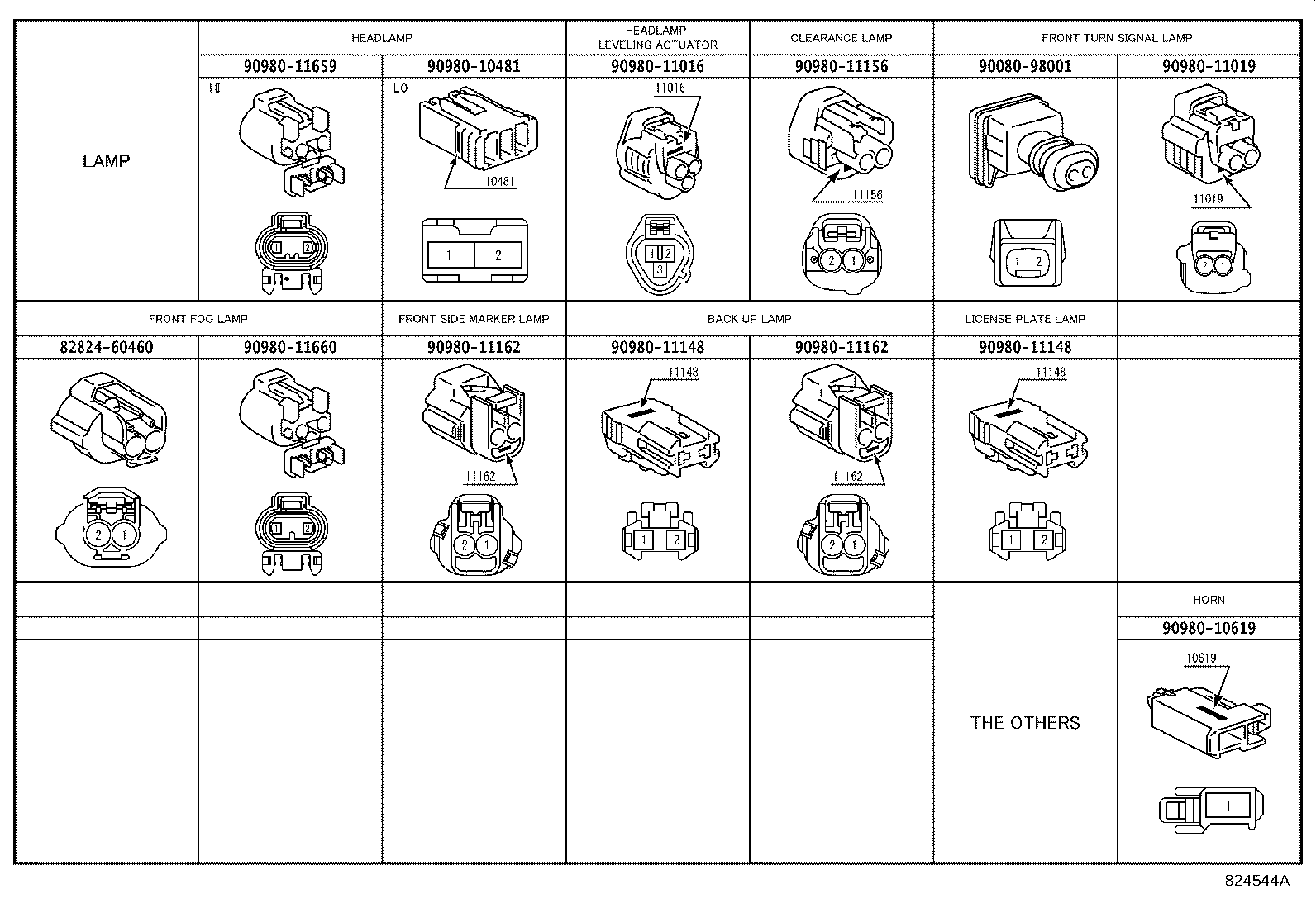

ILLUST NO. 8 OF 8(0404- )

Click highlighted areas on diagram

CONNECTOR

diagram 8282460460 9008098001 9098010481 9098010619 9098011016 9098011019 9098011148 9098011148 9098011156 9098011162 9098011162 9098011659 9098011660
Part # Description Qty Price
Common parts
82824-60460
90080-98001
90980-10481
90980-10619
90980-11016
90980-11019
90980-11148
90980-11156
90980-11162
90980-11659
90980-11660
