ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg
Production
Feb 2002
-
Jul 2005
Engine
3ZZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0008- )

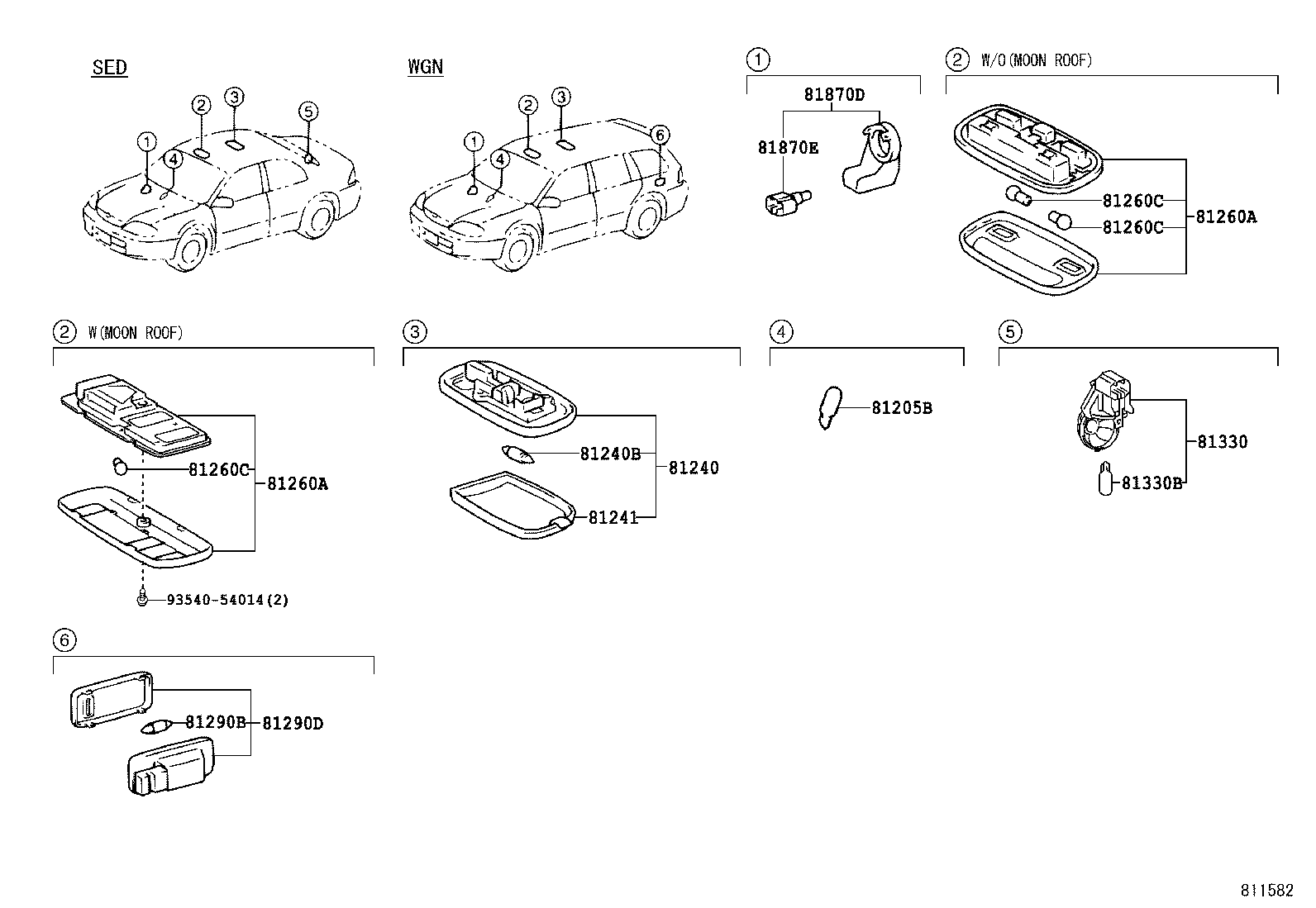

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81205B - BULB, ASH RECEPTACLE LAMP | ||||
| 90981-11018 |
CE120,NZE12#,ZZE12# 12V 1.2W W/O SOCKET |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-12070A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
CE120,NZE120,ZZE121..PKN 12V 8W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-12070 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-02020A0 |
CE120,ZZE121..20DSA,SESAL IVORY,TRIM0# |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-02020A0 |
CE120,ZZE121..20DSA,SESAL IVORY,TRIM0# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CE120,ZZE121..20DSA,SESAL 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CE120,ZZE121..20DSA,SESAL 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-12005 |
CE120,ZZE121..20DSA,SESAL 12V 8W |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-0A010 |
CE120,NZE120,ZZE121..PKN |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90080-81058 |
CE120,NZE120,ZZE121..PKN 12V 3W |
1 | ||
| Common parts | ||||
| 93540-54014 | ||||
