Toyota Corolla/altis sed/wg ZZE121 REAR COMBINATION LAMP

ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005

Engine 3ZZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0202-0507)PKN

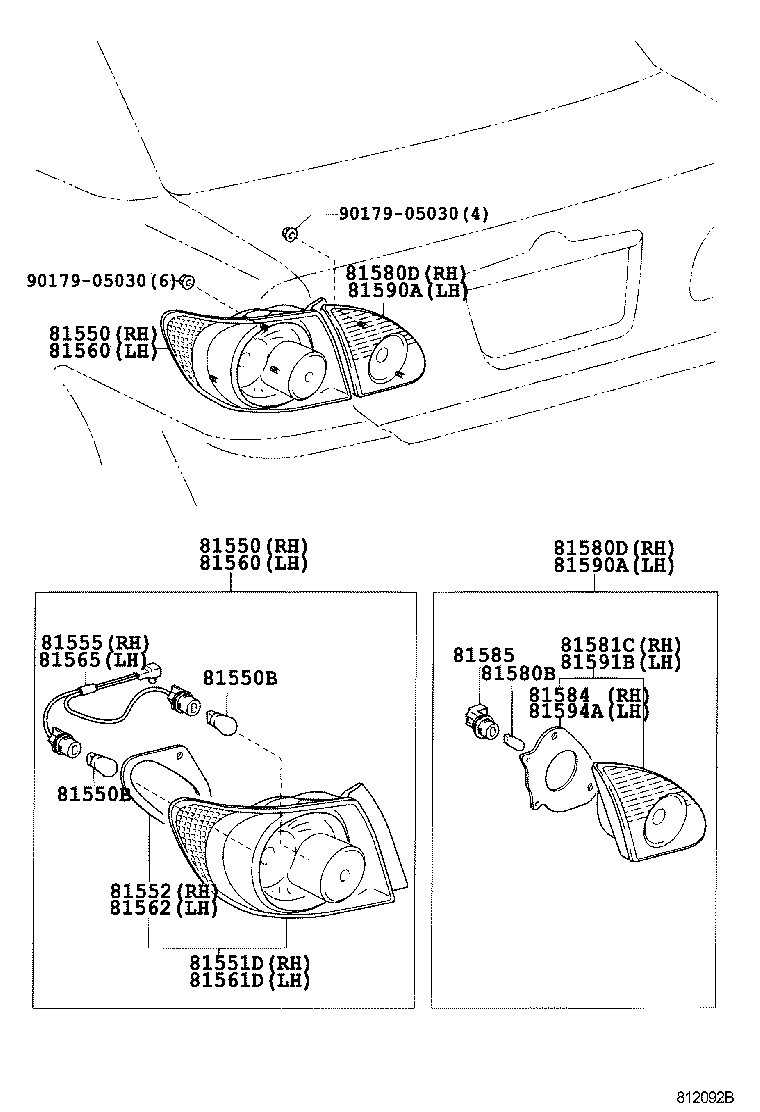

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CE120,NZE120,ZZE121..PKN 12V 21W	02/2002 - 07/2005	2
99132-21210	CE120,NZE120,ZZE121..PKN 12V 21/5W	02/2002 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CE120,NZE120,ZZE121..PKN 12V 21W	02/2002 - 07/2005	2
99132-21210	CE120,NZE120,ZZE121..PKN 12V 21/5W	02/2002 - 07/2005	2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81580B - BULB (FOR REAR LAMP)
90981-11059	CE120,NZE120,ZZE121..PKN 12V 16W	02/2002 - 07/2005	2
81580D - LAMP ASSY, REAR, RH
81580-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81580D - LAMP ASSY, REAR, RH
81580-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81581C - LENS AND BODY, REAR LAMP, RH
81581-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81584 - PACKING, REAR LAMP RH
81584-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81585 - SOCKET & WIRE, REAR LAMP
90069-81017	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	2
81590A - LAMP ASSY, REAR, LH
81590-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81590A - LAMP ASSY, REAR, LH
81590-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81591B - LENS AND BODY, REAR LAMP, LH
81591-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81594A - GASKET, REAR LAMP LH
81584-02010	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
Common parts
90179-05030

(0008-0209)SED ; (0209-0404)SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CE120,NZE120,ZZE121..PKN 12V 21W	02/2002 - 07/2005	2
99132-21210	CE120,NZE120,ZZE121..PKN 12V 21/5W	02/2002 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CE120,NZE120,ZZE121..PKN 12V 21W	02/2002 - 07/2005	2
99132-21210	CE120,NZE120,ZZE121..PKN 12V 21/5W	02/2002 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CE120,NZE120,ZZE121..PKN 12V 21W	02/2002 - 07/2005	2
99132-21210	CE120,NZE120,ZZE121..PKN 12V 21/5W	02/2002 - 07/2005	2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210	CE120,NZE120,ZZE121..PKN 12V 21W	02/2002 - 07/2005	2
99132-21210	CE120,NZE120,ZZE121..PKN 12V 21/5W	02/2002 - 07/2005	2
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81552-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-02120	CE120,NZE120,ZZE121..PKN	02/2002 - 07/2005	1
Common parts
90179-05030

ZZE121R-GEMNKP (2002)

(0202-0507)PKN

(0008-0209)SED ; (0209-0404)SED
