ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0202- )PKN

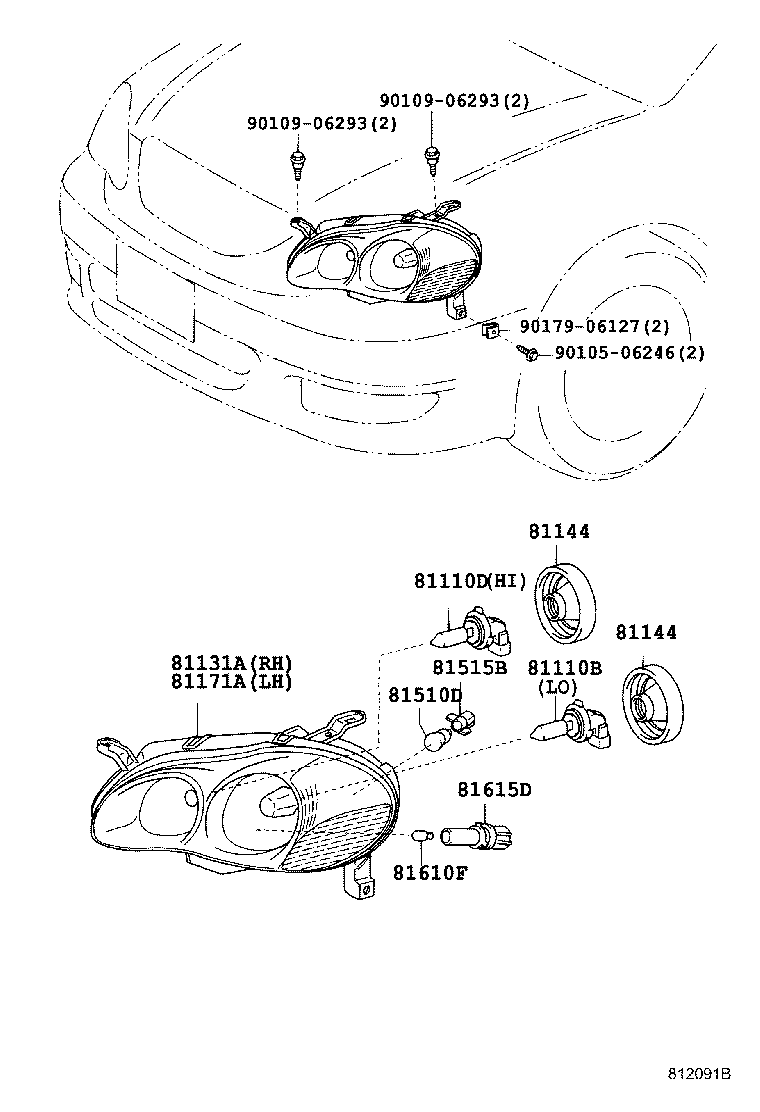

Click highlighted areas on diagram

diagram 81110B 81110D 81131A 81144 81144 81171A 81510D 81515B 81610F 81615D 9010506246 9010906293 9010906293 9017906127
Part # Description Qty Price
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13047

CE120,NZE120,ZZE121..PKN

12V 51W,HALOGEN

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90080-81041

CE120,NZE120,ZZE121..PKN

12V 65W

 2
81131A - UNIT, HEADLAMP, RH
81130-02121

CE120,NZE120,ZZE121..PKN

 1
81130-02120

CE120,NZE120,ZZE121..PKN

 1
81144 - COVER, HEADLAMP, NO.1
90069-81016

CE120,NZE120,ZZE121..PKN

 4
81144 - COVER, HEADLAMP, NO.1
90069-81016

CE120,NZE120,ZZE121..PKN

 4
81171A - UNIT, HEADLAMP, LH
81170-02110

CE120,NZE120,ZZE121..PKN

 1
81170-02111

CE120,NZE120,ZZE121..PKN

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

CE120,NZE12#,ZZE12#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60004

CE120,NZE120,ZZE121..PKN

 2
Common parts
90105-06246
90109-06293
90179-06127
