ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0510)ZZE12#..RHD ; (0510- )ZZE12#..RHD..GEN,PKN

Click highlighted areas on diagram

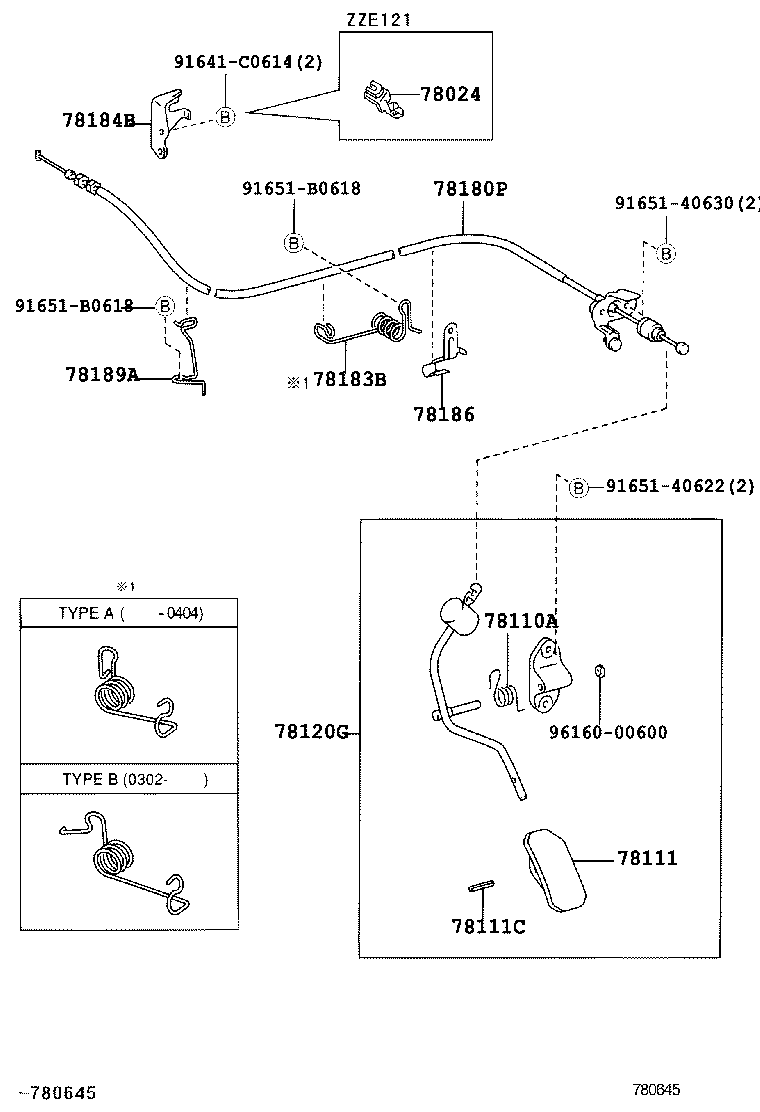

diagram 78024 78110A 78111 78111C 78120G 78180P 78183B 78184B 78186 78189A 91641C0614 9165140622 9165140630 91651B0618 91651B0618 9616000600
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-12090

ZZE121

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03307

CE120,NZE12#,ZZE12#..RHD

 1
78111 - PEDAL, ACCELERATOR
78111-32020

CE120,NZE12#,ZZE12#..RHD

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

CE120,NZE12#,ZZE12#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-13041

ZZE121..RHD

 1
78180-13041

ZZE121..PKN

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-02090

NZE120,ZZE121..PKN

 1
78183-12240

NZE120,ZZE121..PKN

TYPE A:REFER TO ILLUSTRATION

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-12370

NZE12#,ZZE12#..RHD

 1
78189A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78189-02010

NZE120,ZZE121..PKN

 1
78189-12100

NZE120,ZZE121..PKN

 1
Common parts
91641-C0614
91651-40622
91651-40630
91651-B0618
96160-00600
