ZZE121R-GEMNKP (2002)

Toyota Corolla/Altis Sed/Wg

Production Feb 2002 - Jul 2005
Engine 3ZZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0008- )

Click highlighted areas on diagram

EXTERIOR & INTERIOR

diagram 11296C 11298B 23923A 69339C 73794 74511F 74541 74559A 74571 74571A 74579 74596A 88723E
Part # Description Qty Price
11296C - LABEL, ENGINE SERVICE INFORMATION
11296-27020

3ZZFE..ZZE121..MTM..XLI;2C,2NZFE,1ZZFE..CE120,NZE120,ZZE122..LHD..GEN;2C,2NZFE,1ZZFE,3ZZFE..CE120,NZE120,ZZE12#..ARL,PKN

 1
69339C - LABEL, CHILD PROTECTOR INFORMATION
69339-0A010

CE120,NZE12#,ZZE12#

TYPE A:REFER ILLUST.

 2
69339-0A020

NZE120..GCC,GEN;NZE120..GLI..PKN;CE120,NZE121,ZZE12#..20DSA,CONQ,GLI,LX,SESAL,ULT,XLI

TYPE B:REFER ILLUST.

 2
69339-12010

CE120,NZE12#,ZZE12#

TYPE C:REFER ILLUST.

 2
88723E - LABEL, COOLER SERVICE CAUTION
88723-28220

CE120,NZE12#,ZZE12#

 1

ILLUST NO. 1 OF 2(0008- )

Click highlighted areas on diagram

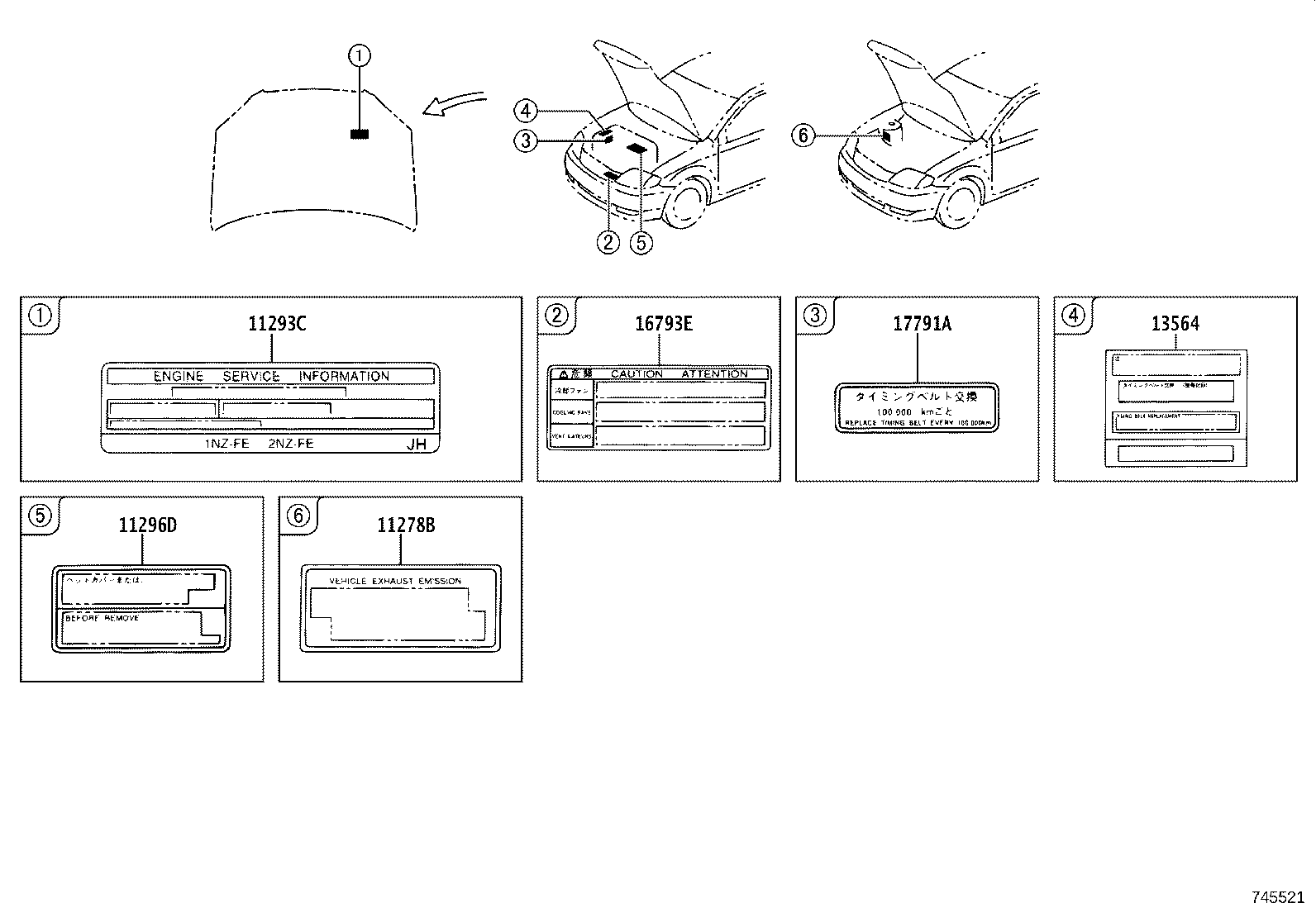

ENGINE ROOM

diagram 11278B 11293C 11296D 13564 16793E 17791A
Part # Description Qty Price
16793E - LABEL, COOLING FAN CAUTION
16793-46010

2C,1NZFE,2NZFE,1ZZFE,3ZZFE..CE120,NZE12#,ZZE12#

 1
