ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg

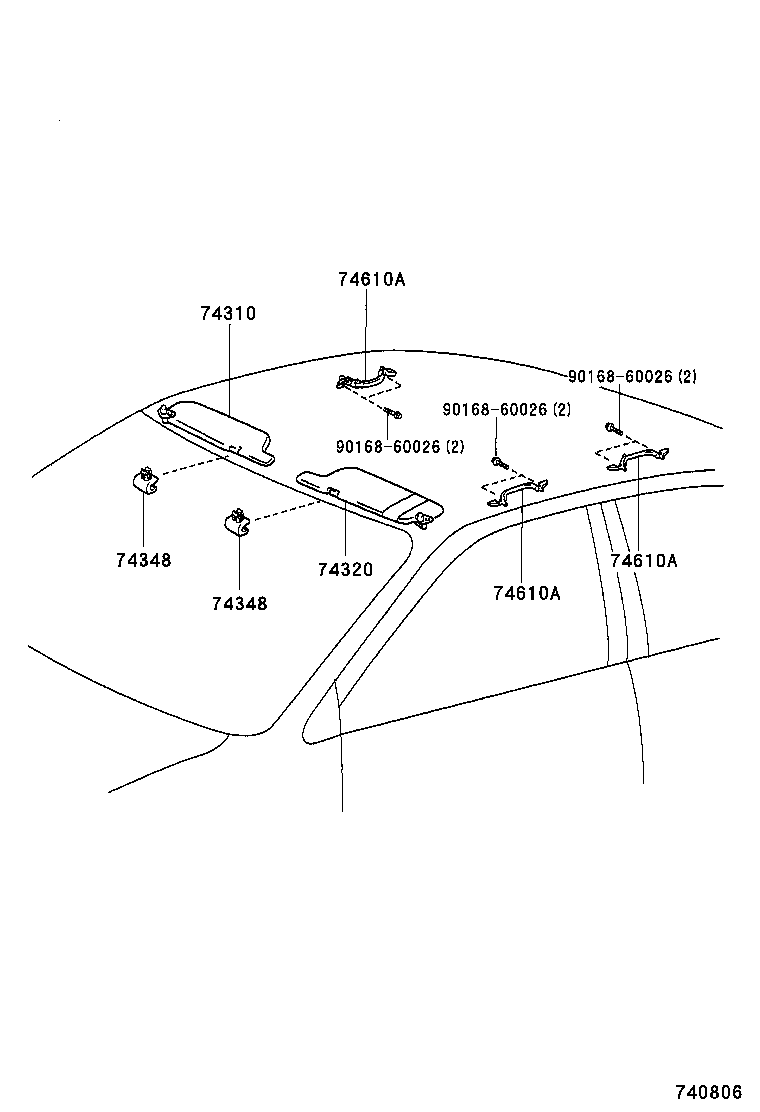

ILLUST NO. 2 OF 2(0008- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1E540A1 |
NZE120..RHD..GEN;ZZE12#..RHD..(GLI,SESAL,XLI);CE120,NZE121..RHD..(20DSA,LX,XLI) W(*80,DRIVER SIDE),IVORY,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1E250A1 |
ZZE122..WG..GEN;CE120,NZE121,ZZE121;NZE120,ZZE122..RHD..SED;NZE120,ZZE122..LHD..GLI..GEN W(VANITY MIRROR),IVORY,TRIM0# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12030A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,REAR |
2 | ||
| 74611-12020A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,FRONT |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12030A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,REAR |
2 | ||
| 74611-12020A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,FRONT |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12030A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,REAR |
2 | ||
| 74611-12020A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,FRONT |
1 | ||
| Common parts | ||||
| 90168-60026 | ||||

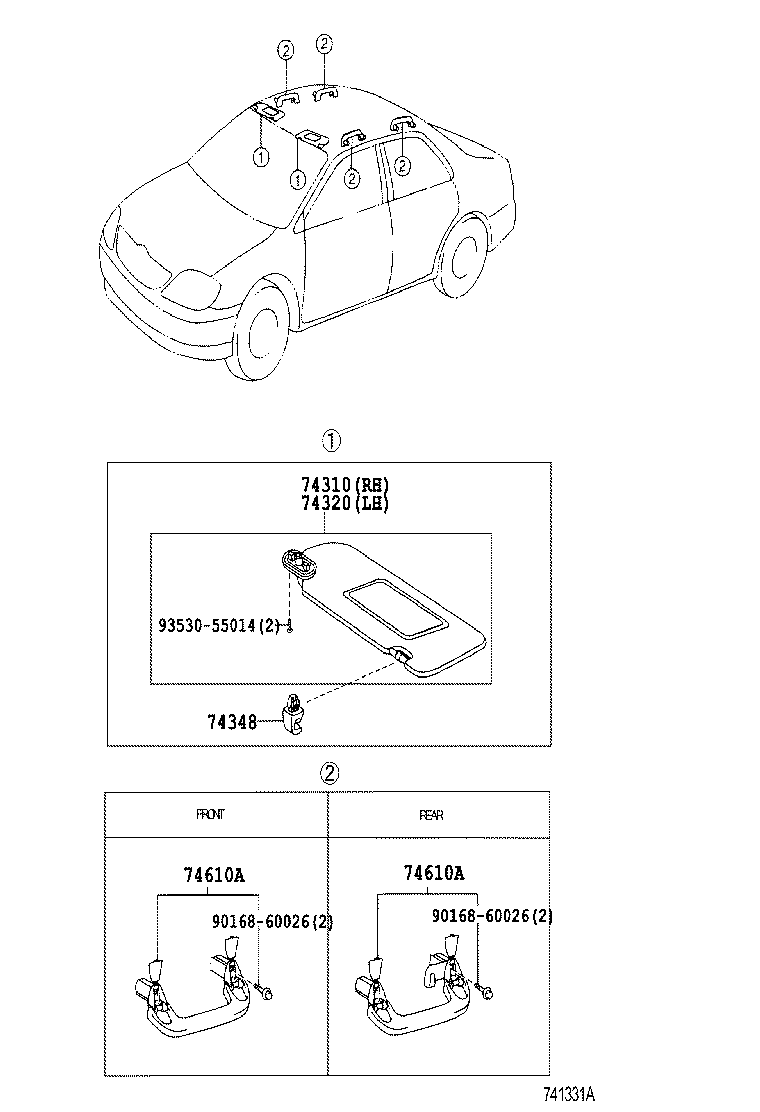

ILLUST NO. 2 OF 2(0404- )
VISOR,W(SRS CURTAIN SHIELD AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1E540A1 |
NZE120..RHD..GEN;ZZE12#..RHD..(GLI,SESAL,XLI);CE120,NZE121..RHD..(20DSA,LX,XLI) W(*80,DRIVER SIDE),IVORY,TRIM0# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1E250A1 |
ZZE122..WG..GEN;CE120,NZE121,ZZE121;NZE120,ZZE122..RHD..SED;NZE120,ZZE122..LHD..GLI..GEN W(VANITY MIRROR),IVORY,TRIM0# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-12040A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12030A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,REAR |
2 | ||
| 74611-12020A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,FRONT |
1 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74611-12030A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,REAR |
2 | ||
| 74611-12020A0 |
ZZE121..LX,SESAL;ZZE121..ATM..XLI;NZE120,ZZE122..GCC;ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE122..RHD..SED IVORY,TRIM0#,FRONT |
1 | ||
| Common parts | ||||
| 90168-60026 | ||||
| 93530-55014 | ||||

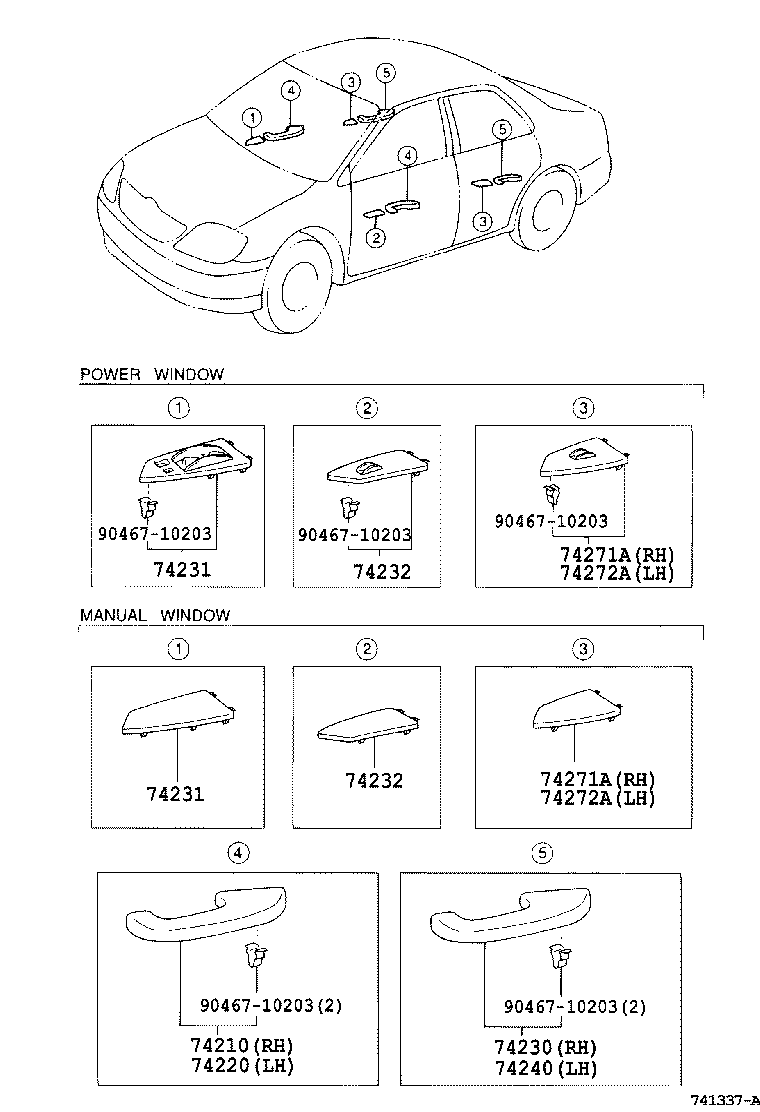

ILLUST NO. 1 OF 2(0008- )
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12250A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74210-12251A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| 74210-12240A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-12190A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74220-12191A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| 74220-12180A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12240A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74210-12251A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| 74210-12250A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74220-12180A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74220-12190A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
1 | ||
| 74220-12191A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
