ZZE121R-GEMNKP (2002)
Toyota Corolla/Altis Sed/Wg

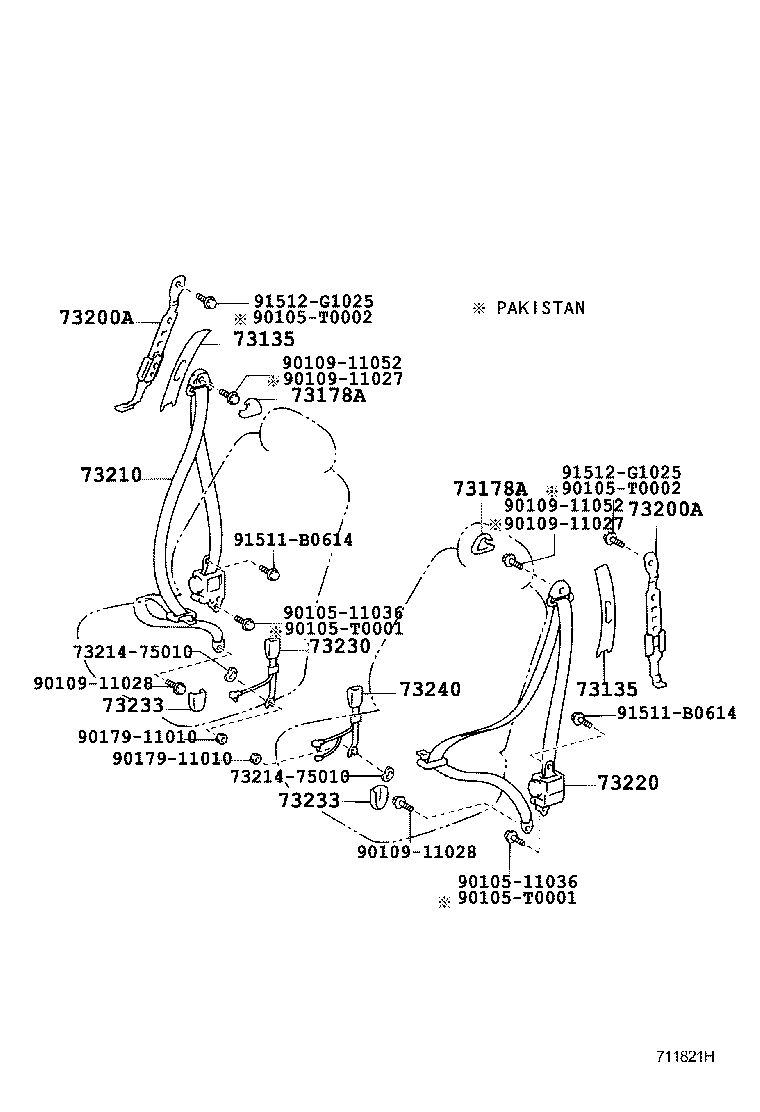

ILLUST NO. 1 OF 2(0008- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
2 | ||
| 73135 - COVER, SHOULDER BELT ANCHORAGE PLATE | ||||
| 73135-02010A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-33020A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52010A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73200-02020A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-52010A0 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73200-02020A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-1A220A0 |
NZE12#,ZZE12# W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73210-1A220C0 |
NZE12#,ZZE12#..SED W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73210-02110A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-1A120A0 |
NZE12#,ZZE12# W(*80,DRIVER SIDE & PASSENGER SIDE),IVORY,TRIM0# |
1 | ||
| 73220-1A120C0 |
NZE12#,ZZE12#..SED W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 73220-02080A0 |
CE120,NZE120,ZZE121..PKN IVORY,TRIM0# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-12670A0 |
ZZE122..RHD..WG..GEN;CE120,NZE12#,ZZE12#..RHD..SED W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73230-12690A0 |
CE120,NZE120,ZZE12#..SED..(ARL,PKN) W(SEAT BELT WARNING SWITCH),IVORY,TRIM0# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-33010A1 |
ZZE122..SED;ZZE122..WG..XLI;CE120,NZE12#,ZZE121 IVORY,TRIM0# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-32280A0 |
NZE121..LX;ZZE121..LHD..LX;ZZE122..WG..GEN;CE120,NZE120,ZZE12#..SED..(20D,20DSA,CONQ,GLI,SESAL,XLI)..(ARL,GEN,PKN) IVORY,TRIM0# |
1 | ||
| 73230-12710A0 |
CE120,NZE120,ZZE12#..SED..(20D,20DSA,CONQ,GLI,SESAL,XLI)..(ARL,PKN) IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11036 | ||||
| 90105-T0001 | ||||
| 90105-T0002 | ||||
| 90109-11027 | ||||
| 90109-11028 | ||||
| 90109-11052 | ||||
| 90179-11010 | ||||
| 91511-B0614 | ||||
| 91512-G1025 | ||||

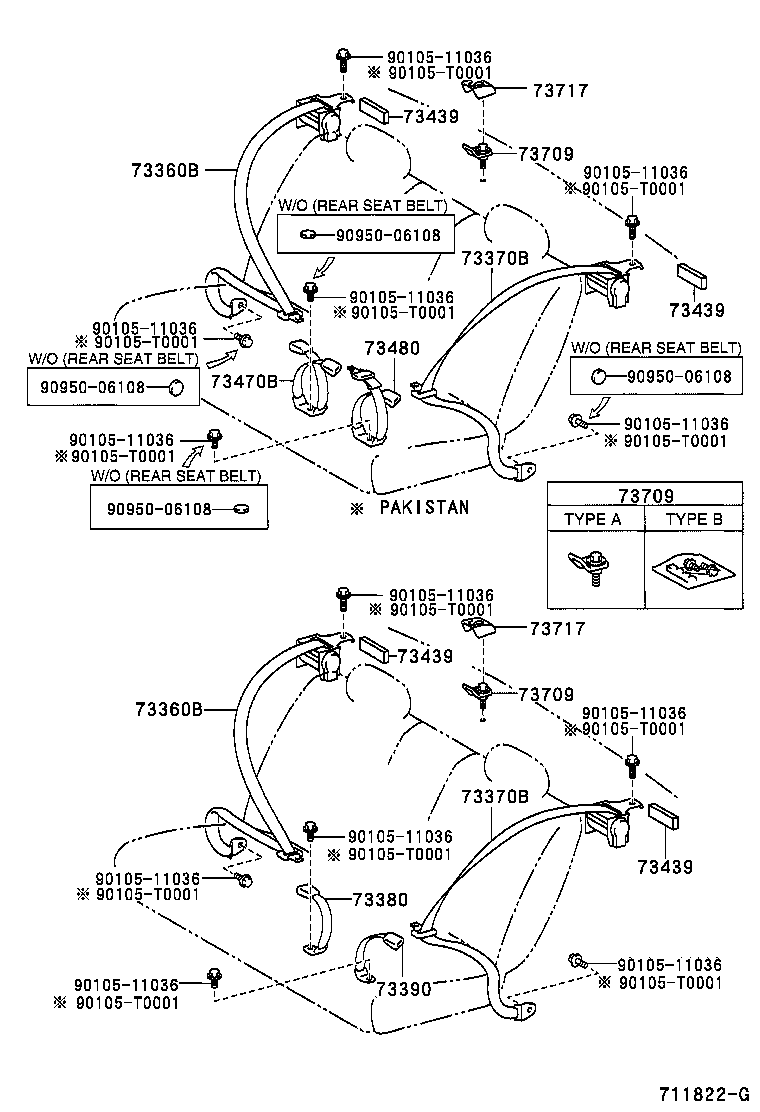

ILLUST NO. 2 OF 2(0008- )SED..GCC,GEN,PKN
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02120A0 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN IVORY,TRIM0# |
1 | ||
| 73360-12750C0 |
NZE12#,ZZE12#..SED BLACK,TRIM1# |
1 | ||
| 73360-12750A0 |
NZE12#,ZZE12#..SED IVORY,TRIM0# |
1 | ||
| 73360B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-02120A0 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN IVORY,TRIM0# |
1 | ||
| 73360-12750C0 |
NZE12#,ZZE12#..SED BLACK,TRIM1# |
1 | ||
| 73360-12750A0 |
NZE12#,ZZE12#..SED IVORY,TRIM0# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12750C0 |
NZE12#,ZZE12#..SED BLACK,TRIM1# |
1 | ||
| 73360-02120A0 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN IVORY,TRIM0# |
1 | ||
| 73360-12750A0 |
NZE12#,ZZE12#..SED IVORY,TRIM0# |
1 | ||
| 73370B - BELT ASSY, REAR SEAT, OUTER | ||||
| 73360-12750C0 |
NZE12#,ZZE12#..SED BLACK,TRIM1# |
1 | ||
| 73360-02120A0 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN IVORY,TRIM0# |
1 | ||
| 73360-12750A0 |
NZE12#,ZZE12#..SED IVORY,TRIM0# |
1 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN |
2 | ||
| 73439-02040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (L) |
2 | ||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (J) |
2 | ||
| 73439-12040 |
NZE12#,ZZE12#..SED |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN |
2 | ||
| 73439-02040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (L) |
2 | ||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (J) |
2 | ||
| 73439-12040 |
NZE12#,ZZE12#..SED |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN |
2 | ||
| 73439-02040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (L) |
2 | ||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (J) |
2 | ||
| 73439-12040 |
NZE12#,ZZE12#..SED |
2 | ||
| 73439 - CUSHION, REAR SEAT BELT RETRACTOR | ||||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN |
2 | ||
| 73439-02040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (L) |
2 | ||
| 73439-12040 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN (J) |
2 | ||
| 73439-12040 |
NZE12#,ZZE12#..SED |
2 | ||
| 73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH | ||||
| 73470-02060A0 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN IVORY,TRIM0# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-02070A0 |
CE120,NZE120,ZZE121..(20DSA,GLI,SESAL)..PKN IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90105-T0001 | ||||
| 90950-06108 | ||||
